#include <ImFusion/GL/GlObject.h>

Abstract base class for an renderable OpenGL object that can be hosted in a GlView. More...

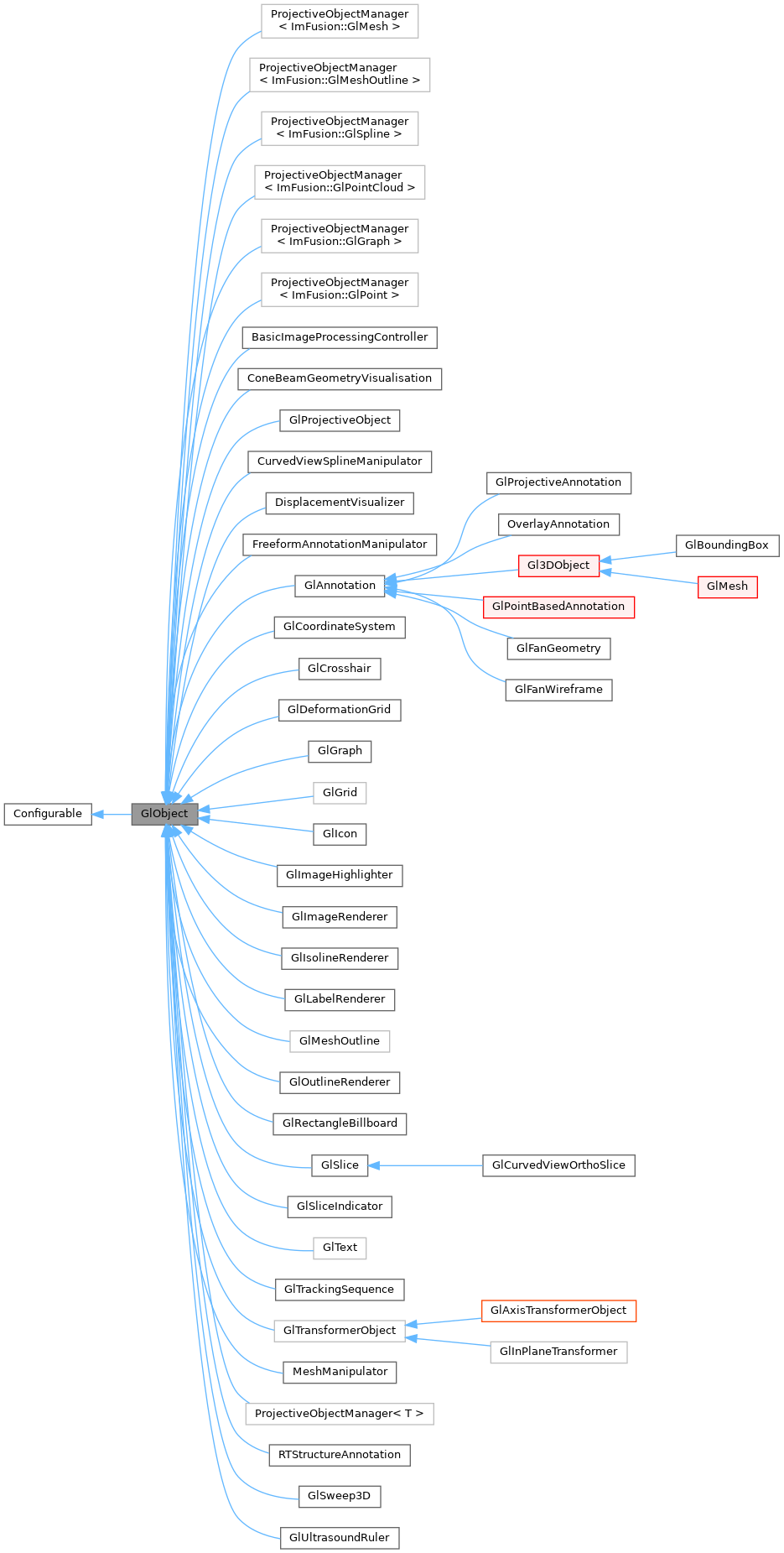

Inheritance diagram for ImFusion::GlObject:

Detailed Description

Abstract base class for an renderable OpenGL object that can be hosted in a GlView.

In contrast to a GlOverlay, a GlObject reside in world space and is rendered as part of the scene of the hosting GlView. If you do not require user interaction with the GlObject, you can add it directly to a GlView. Alternatively, you can wrap it in an InteractiveObject pairing it with a Manipulator and then add it to the corresponding InteractiveView.

See also: InteractiveObject

Examples: MyCustomGlObject.h.

Public Types
enum	RenderingOrderGroup { RenderingGroupRest , RenderingGroupMesh , RenderingGroupManipulator }
	Enumeration to determine rendering order of GlObjects in GlSliceView and GlVolumeView. More...

Public Member Functions
virtual void	draw (const GlView &view)=0
	Draw the object in 3D space.
virtual Geometry::AlignedBox	bounds () const =0
	Get the axis-aligned bounding box of this GlObject in world space.
virtual Geometry::AlignedBox	boundsSpherical () const
	Get the spherical bounds of this GlObject in world space.
virtual void	setMatrix (const mat4 &m)
	Set the modelview matrix of this object.
virtual const mat4 &	matrix () const
	Return the modelview matrix.
virtual void	setVisible (bool visible)
	Set object visibility.
virtual bool	visible () const
	Return object visibility.
virtual void	setAlwaysVisible (bool alwaysVisible)
	Set if object is always visible.
virtual bool	alwaysVisible () const
	Return if object is always visible.
virtual std::string	typeName () const =0
	Return unique identifier for this object class used for serialization.
RenderingOrderGroup	renderingOrder () const
	Return current rendering order value for this GlObject.
void	setRenderingOrder (RenderingOrderGroup group)
	Set rendering order value for this GlObject.
void	setDraw3DIn2DView (bool draw3DIn2DView)
void	configure (const Properties *p) override
	Configure this object instance by de-serializing the given Properties.
void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.
Public Member Functions inherited from ImFusion::Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept

Protected Attributes
mat4	m_matrix = mat4::Identity()
	Modelview transformation matrix of this object.
bool	m_visible = true
	Object visibility.
bool	m_alwaysVisible = false
	Object always visible.
bool	m_draw3DIn2DView
	Draw 3D objects in 2D views. This is to render 3D objects in projective 2D views. Property is not serialized.
RenderingOrderGroup	m_renderingOrder = RenderingGroupRest
Protected Attributes inherited from ImFusion::Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Additional Inherited Members
Public Attributes inherited from ImFusion::Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.

Member Enumeration Documentation

◆ RenderingOrderGroup

enum ImFusion::GlObject::RenderingOrderGroup

Enumeration to determine rendering order of GlObjects in GlSliceView and GlVolumeView.

Objects are to be rendered in ascending order according to their group.

Enumerator
RenderingGroupRest	This group will be rendered first.
RenderingGroupMesh	This group will be rendered after the rest since meshes might be transparent.
RenderingGroupManipulator	This group will be rendered last since to avoid manipulators to be hidden by other objects.

Member Function Documentation

◆ draw()

virtual void ImFusion::GlObject::draw ( const GlView & view )

pure virtual

Draw the object in 3D space.

Implemented in ImFusion::BasicImageProcessingController, ImFusion::CT::ConeBeamGeometryVisualisation, ImFusion::CT::GlProjectiveAnnotation, ImFusion::CT::GlProjectiveObject, ImFusion::CurvedViewSplineManipulator, ImFusion::Dicom::OverlayAnnotation, ImFusion::DisplacementVisualizer, ImFusion::FreeformAnnotationManipulator, ImFusion::GlAngle, ImFusion::GlArrow, ImFusion::GlAxis, ImFusion::GlBall, ImFusion::GlBoundingBox, ImFusion::GlBox, ImFusion::GlCircle, ImFusion::GlCoordinateSystem, ImFusion::GlCrosshair, ImFusion::GlCurve, ImFusion::GlCurvedViewCircle, ImFusion::GlCurvedViewEllipse, ImFusion::GlCurvedViewOrthoSlice, ImFusion::GlCurvedViewPolyLine, ImFusion::GlCurvedViewSpline, ImFusion::GlCutLine, ImFusion::GlDeformationGrid, ImFusion::GlEllipse, ImFusion::GlFreeform, ImFusion::GlGraph, ImFusion::GlGrid, ImFusion::GlIcon, ImFusion::GlImageHighlighter, ImFusion::GlImageRenderer, ImFusion::GlInfiniteLine, ImFusion::GlInPlaneTransformer, ImFusion::GlIsolineRenderer, ImFusion::GlLabelRenderer, ImFusion::GlLine, ImFusion::GlLoop, ImFusion::GlMesh, ImFusion::GlMeshOutline, ImFusion::GlOutlineRenderer, ImFusion::GlParallelogram, ImFusion::GlPlane, ImFusion::GlPoint, ImFusion::GlPointCloud, ImFusion::GlPointTree, ImFusion::GlPolyLine, ImFusion::GlPoseGraph, ImFusion::GlRectangleBillboard, ImFusion::GlRotationTransformer, ImFusion::GlSlice, ImFusion::GlSliceIndicator, ImFusion::GlSmartSpline, ImFusion::GlSpline, ImFusion::GlText, ImFusion::GlTrackingSequence, ImFusion::GlTrackingSequenceLegacy, ImFusion::GlTranslationTransformer, ImFusion::MeshManipulator, ImFusion::MeshPickingManipulator, ImFusion::PointCloudPickingManipulator, ImFusion::ProjectedAnatomicalStructure::ProjectiveObjectManager< T >, ImFusion::ProjectedAnatomicalStructure::ProjectiveObjectManager< ImFusion::GlGraph >, ImFusion::ProjectedAnatomicalStructure::ProjectiveObjectManager< ImFusion::GlMesh >, ImFusion::ProjectedAnatomicalStructure::ProjectiveObjectManager< ImFusion::GlMeshOutline >, ImFusion::ProjectedAnatomicalStructure::ProjectiveObjectManager< ImFusion::GlPoint >, ImFusion::ProjectedAnatomicalStructure::ProjectiveObjectManager< ImFusion::GlPointCloud >, ImFusion::ProjectedAnatomicalStructure::ProjectiveObjectManager< ImFusion::GlSpline >, ImFusion::RTStructureAnnotation, ImFusion::US::GlFanGeometry, ImFusion::US::GlFanWireframe, ImFusion::US::GlSweep3D, and ImFusion::US::GlUltrasoundRuler.

Examples: MyCustomGlObject.h.

◆ bounds()

virtual Geometry::AlignedBox ImFusion::GlObject::bounds ( ) const

pure virtual

Get the axis-aligned bounding box of this GlObject in world space.

Return an empty (default-constructed) AlignedBox object if the GlObject does not reside in world space.

Implemented in ImFusion::BasicImageProcessingController, ImFusion::CT::ConeBeamGeometryVisualisation, ImFusion::CT::GlProjectiveAnnotation, ImFusion::CT::GlProjectiveObject, ImFusion::CurvedViewSplineManipulator, ImFusion::Dicom::OverlayAnnotation, ImFusion::DisplacementVisualizer, ImFusion::FreeformAnnotationManipulator, ImFusion::GlBall, ImFusion::GlBoundingBox, ImFusion::GlCircle, ImFusion::GlCoordinateSystem, ImFusion::GlCrosshair, ImFusion::GlCurvedViewCircle, ImFusion::GlCurvedViewEllipse, ImFusion::GlCurvedViewPolyLine, ImFusion::GlCurvedViewSpline, ImFusion::GlDeformationGrid, ImFusion::GlGraph, ImFusion::GlGrid, ImFusion::GlIcon, ImFusion::GlImageHighlighter, ImFusion::GlImageRenderer, ImFusion::GlInPlaneTransformer, ImFusion::GlIsolineRenderer, ImFusion::GlLabelRenderer, ImFusion::GlLoop, ImFusion::GlMesh, ImFusion::GlMeshOutline, ImFusion::GlOutlineRenderer, ImFusion::GlParallelogram, ImFusion::GlPlane, ImFusion::GlPointBasedAnnotation, ImFusion::GlPointCloud, ImFusion::GlPoseGraph, ImFusion::GlRectangleBillboard, ImFusion::GlRotationTransformer, ImFusion::GlSlice, ImFusion::GlSliceIndicator, ImFusion::GlText, ImFusion::GlTrackingSequence, ImFusion::GlTrackingSequenceLegacy, ImFusion::GlTranslationTransformer, ImFusion::GlTree, ImFusion::MeshManipulator, ImFusion::ProjectedAnatomicalStructure::ProjectiveObjectManager< T >, ImFusion::ProjectedAnatomicalStructure::ProjectiveObjectManager< ImFusion::GlGraph >, ImFusion::ProjectedAnatomicalStructure::ProjectiveObjectManager< ImFusion::GlMesh >, ImFusion::ProjectedAnatomicalStructure::ProjectiveObjectManager< ImFusion::GlMeshOutline >, ImFusion::ProjectedAnatomicalStructure::ProjectiveObjectManager< ImFusion::GlPoint >, ImFusion::ProjectedAnatomicalStructure::ProjectiveObjectManager< ImFusion::GlPointCloud >, ImFusion::ProjectedAnatomicalStructure::ProjectiveObjectManager< ImFusion::GlSpline >, ImFusion::RTStructureAnnotation, ImFusion::US::GlFanGeometry, ImFusion::US::GlFanWireframe, ImFusion::US::GlSweep3D, and ImFusion::US::GlUltrasoundRuler.

Examples: MyCustomGlObject.h.

◆ boundsSpherical()

virtual Geometry::AlignedBox ImFusion::GlObject::boundsSpherical ( ) const

virtual

Get the spherical bounds of this GlObject in world space.

Return an empty (default-constructed) Geometry::AlignedBox object if the GlObject does not reside in world space. This may be cheaper to compute than the axis-aligned bounding box for a moving object.

Reimplemented in ImFusion::GlMesh.

◆ setMatrix()

virtual void ImFusion::GlObject::setMatrix ( const mat4 & m )

virtual

Set the modelview matrix of this object.

Reimplemented in ImFusion::GlCurvedViewOrthoSlice, ImFusion::GlLoop, ImFusion::GlMesh, ImFusion::GlPointBasedAnnotation, ImFusion::GlPointCloud, ImFusion::GlSlice, and ImFusion::GlTree.

◆ matrix()

virtual const mat4 & ImFusion::GlObject::matrix ( ) const

virtual

Return the modelview matrix.

Reimplemented in ImFusion::GlMesh, ImFusion::GlPointCloud, and ImFusion::GlTree.

◆ setVisible()

virtual void ImFusion::GlObject::setVisible ( bool visible )

virtual

Set object visibility.

Reimplemented in ImFusion::CurvedViewSplineManipulator, ImFusion::GlLoop, and ImFusion::MeshManipulator.

◆ setAlwaysVisible()

virtual void ImFusion::GlObject::setAlwaysVisible ( bool alwaysVisible )

virtual

Set if object is always visible.

Reimplemented in ImFusion::GlLoop.

◆ typeName()

virtual std::string ImFusion::GlObject::typeName ( ) const

pure virtual

Return unique identifier for this object class used for serialization.

Implemented in ImFusion::BasicImageProcessingController, ImFusion::CT::ConeBeamGeometryVisualisation, ImFusion::CT::GlProjectiveAnnotation, ImFusion::CT::GlProjectiveObject, ImFusion::CurvedViewSplineManipulator, ImFusion::Dicom::OverlayAnnotation, ImFusion::DisplacementVisualizer, ImFusion::FreeformAnnotationManipulator, ImFusion::GlAngle, ImFusion::GlArrow, ImFusion::GlAxis, ImFusion::GlBall, ImFusion::GlBoundingBox, ImFusion::GlBox, ImFusion::GlCircle, ImFusion::GlCoordinateSystem, ImFusion::GlCrosshair, ImFusion::GlCurve, ImFusion::GlCurvedViewCircle, ImFusion::GlCurvedViewEllipse, ImFusion::GlCurvedViewPolyLine, ImFusion::GlCurvedViewSpline, ImFusion::GlCutLine, ImFusion::GlDeformationGrid, ImFusion::GlEllipse, ImFusion::GlFreeform, ImFusion::GlGraph, ImFusion::GlGrid, ImFusion::GlIcon, ImFusion::GlImageHighlighter, ImFusion::GlImageRenderer, ImFusion::GlInfiniteLine, ImFusion::GlInPlaneTransformer, ImFusion::GlIsolineRenderer, ImFusion::GlLabelRenderer, ImFusion::GlLine, ImFusion::GlLoop, ImFusion::GlMesh, ImFusion::GlMeshOutline, ImFusion::GlOutlineRenderer, ImFusion::GlParallelogram, ImFusion::GlPlane, ImFusion::GlPoint, ImFusion::GlPointCloud, ImFusion::GlPointTree, ImFusion::GlPolyLine, ImFusion::GlPoseGraph, ImFusion::GlRectangle, ImFusion::GlRectangleBillboard, ImFusion::GlRotationTransformer, ImFusion::GlSlice, ImFusion::GlSliceIndicator, ImFusion::GlSmartSpline, ImFusion::GlSpline, ImFusion::GlText, ImFusion::GlTrackingSequence, ImFusion::GlTrackingSequenceLegacy, ImFusion::GlTranslationTransformer, ImFusion::GlTree, ImFusion::MeshManipulator, ImFusion::ProjectedAnatomicalStructure::ProjectiveObjectManager< T >, ImFusion::ProjectedAnatomicalStructure::ProjectiveObjectManager< ImFusion::GlGraph >, ImFusion::ProjectedAnatomicalStructure::ProjectiveObjectManager< ImFusion::GlMesh >, ImFusion::ProjectedAnatomicalStructure::ProjectiveObjectManager< ImFusion::GlMeshOutline >, ImFusion::ProjectedAnatomicalStructure::ProjectiveObjectManager< ImFusion::GlPoint >, ImFusion::ProjectedAnatomicalStructure::ProjectiveObjectManager< ImFusion::GlPointCloud >, ImFusion::ProjectedAnatomicalStructure::ProjectiveObjectManager< ImFusion::GlSpline >, ImFusion::RTStructureAnnotation, ImFusion::US::GlFanGeometry, ImFusion::US::GlFanWireframe, ImFusion::US::GlSweep3D, and ImFusion::US::GlUltrasoundRuler.

Examples: MyCustomGlObject.h.

◆ configure()

void ImFusion::GlObject::configure ( const Properties * p )

overridevirtual

Configure this object instance by de-serializing the given Properties.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configuration() for the inverse functionality

Reimplemented from ImFusion::Configurable.

Reimplemented in ImFusion::GlParallelogram, ImFusion::GlPlane, ImFusion::GlPointBasedAnnotation, ImFusion::GlPointCloud, ImFusion::GlRectangleBillboard, ImFusion::GlSpline, and ImFusion::GlTransformerObject.

◆ configuration()

void ImFusion::GlObject::configuration ( Properties * p ) const

overridevirtual

Serialize the current object configuration into the given Properties object.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configure() for the inverse functionality

Reimplemented from ImFusion::Configurable.

Reimplemented in ImFusion::GlParallelogram, ImFusion::GlPlane, ImFusion::GlPointBasedAnnotation, ImFusion::GlPointCloud, ImFusion::GlRectangleBillboard, ImFusion::GlSpline, and ImFusion::GlTransformerObject.

Member Data Documentation

◆ m_draw3DIn2DView

bool ImFusion::GlObject::m_draw3DIn2DView

protected

Initial value:

=

false

Draw 3D objects in 2D views. This is to render 3D objects in projective 2D views. Property is not serialized.

The documentation for this class was generated from the following file:

ImFusion/GL/GlObject.h
