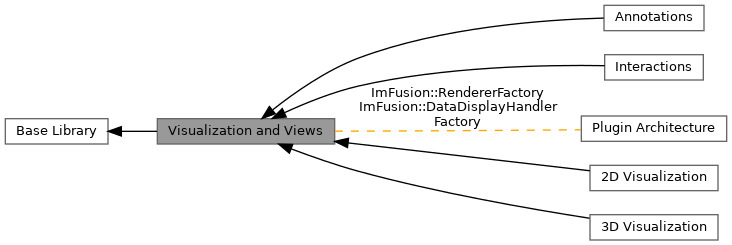

Collaboration diagram for Visualization and Views:

Detailed Description

Visualization and Views

The ImFusion library natively supports the 2D and 3D visualization of any number of images and geometric objects (e.g. meshes). Data is visualized inside a display containing one or multiple views. The size and location of the views is managed by a layout manager. This allows to easily add and remove views and to create side-by-side layouts for simultaneously working with multiple data sets without having to directly deal with layout issues. The actual rendering of the data is performed by OpenGL objects which are rendered by the views. Views are not limited to rendering only a single object but can also render multiple objects for instance allowing to blend multiple data sets in a registration scenario. To remain independent of the GUI-toolkit used to build the application, the visualization framework is consistently separated into a high-level GUI-dependent layer and a low-level OpenGL-based layer.

Visualization architecture

Note: Several classes referenced in this article belong to the old Qt-based view framework. They have been superseeded by their equivalents in the newer ImFusion::GUI framework. You can refer to ImFusionGUI Migration Guide for more details.

The top-most class in the visualization framework is DisplayWidgetMulti, which represents a display surface on which OpenGL can render. Among other things it provides methods for adding and removing views and managing the layout through an associated DisplayLayout object. A single view is represented by InteractiveView which is a high-level Qt-aware class. As such it can display context menus and deal with user input such as mouse events. Inside the interactive view is an associated GlView object which is responsible for setting up the OpenGL scene and rendering Data. Furthermore, a GlView renders GlObject instances, such GlAnnotations. User interaction is handled on the Qt GUI layer side by objects inheriting from Interaction. They can be attached to an InteractiveView and translate user input to calls on the underlying GlView. Several pre-defined Interaction objects exist allowing to quickly add support for standard 2D- and 3D interactions such as pan, zoom and rotate.

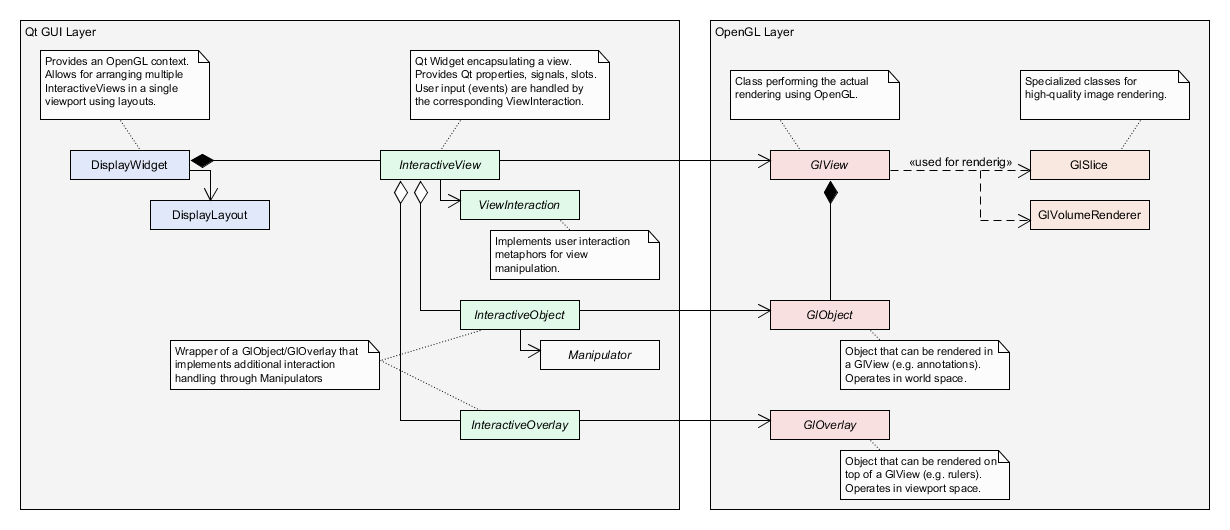

Overview class diagram of the ImFusion views and visualization architecture.

InteractiveViews can also contain multiple InteractiveObject objects. They are responsible for rendering graphical primitives directly in world space. Such primitives are for instance MPR intersection lines of other views or annotations such as splines. For annotations there exists the dedicated base-class InteractiveAnnotation. InteractiveObjects contain a GlObject object which is responsible for performing the actual rendering. For annotations a dedicated base-class GlAnnotation is available. User input for these objects is handled by Manipulator objects which are associated with the InteractiveObject and operate in a similar fashion to the Interaction objects by translating user-input to calls on the associated GlObject. There exist several pre-defined manipulators for dealing with basic geometric primitives and meshes. A convenience class Interactive allows for easy access to the contained OpenGL class, e.g. Interactive<GlSpline> represents a spline object whose control points can be manipulated.

Finally, InteractiveViews can also hold multiple InteractiveOverlay objects. In contrast to InteractiveObjects, InteractiveOverlay reside in viewport space and are always rendered on top of the view. Examples are the text overlay, button overlays, as well as the orientation overlay. Same as with all other parts of the view architecture InteractiveOverlays also have an OpenGL counterpart: the GlOverlay that takes care of the actual rendering process.

For 2D and MPR visualization, the following classes collaborate in order to get the final rendering result:

ImageView2D (Qt GUI layer, widget)
InteractionView2D (Qt GUI layer, user interaction)
GlSliceView (OpenGL layer, setup and GlObject rendering)
GlSlice (OpenGL layer, image compositing/blending)
GlSliceRenderer (OpenGL layer, interface for rendering individual types of Data)

For 3D visualization, the following classes collaborate in order to get the final rendering result:

ImageView3D (Qt GUI layer, widget)
InteractionView3D (Qt GUI layer, user interaction)
GlVolumeView (OpenGL layer, setup and GlObject rendering)
GlVolumeRenderer (OpenGL layer, interface for direct volume rendering of images)

Configuration of Visualizations using the ImFusion SDK

The configuration of the visualization is split into two main levels: The per-view configuration and the per-data configuration.

View Configuration

The view configuration level defines the general appearance of the given view but not the individual appearance of the shown data. The view configuration consists of

The image data to show, accessed through InteractiveView::setVisibleData().
The set of additional renderable objects to show in the scene, accessed through InteractiveView::addObject().
The set of renderable overlays to show on top of the view, accessed through InteractiveView::addOverlay().
View specific configuration, such as view matrix, zoom factor, etc. This is accessed through the corresponding getters and setters. Furthermore, it can be (de-)serialized to/from Properties objects through the Configurable interface.

For backwards-compatibility, the view classes also provide some getters/setters to setup data-specific display configuration. Please note, that a view does not store this information but only forwards the calls to the corresponding DisplayOptions object (the one of the first shown image) and therefore the usage of these methods is considered deprecated.

Data Display Configuration

Since a single view can display multiple images/objects at the same time, an additional per-data configuration layer is needed. This data display configuration is based on the DataComponent API and implemented in the DisplayOption2d class for 2D/MPR views and DisplayOptions3d class for 3D views. In order to configure the visualization for a specific image, you request the corresponding DisplayOptions object and configure that one:

// The image I want to configure
SharedImageSet* myImage = ...;
// Get the corresponding 3D display options object
auto opt3d = DisplayOptions3d::get(myImage);
// Set the 3D transparency for myImage to 0.5
opt3d->setAlpha(0.5);

Rendering Custom Data in Views

Member functions such as InteractiveView::setVisibleData() accept any Data type as input. Due to the extensible nature of the SDK not all views can necessarily display every data type. You can query compatibility through the InteractiveView::acceptsData() interface. The DataDisplayHandler interface enables you to add support for custom Data types. Therefore, you implement a specialization and register it with the DataDisplayHandlerFactory. The default implementation of an InteractiveView will query all registered DataDisplayHandlers if they can handle a given Data type for a given view. The SDK provides a couple of default handlers for its essential Data types such as SharedImageSet or ImageStream.

See also

Interactions

Topics
	2D Visualization
	Tools and classes for 2D visualization.

	3D Visualization
	Tools and classes for 3D visualization.

	Annotations
	Augmenting visualizations with annotations.

	Interactions
	User interaction with views and overlays.

Classes
class	GlImageIntensifierAngleOverlay
	Text overlay representing the current view's matrix in the form of image intensifier angles, for instance "RAO -3.3, CAU -51.5". More...

class	GlObject
	Abstract base class for an renderable OpenGL object that can be hosted in a GlView. More...

class	GlOverlay
	Abstract base class for OpenGL overlays. More...

class	GlPlotView
	View for plotting data. More...

class	GlView
	Base class for implementing OpenGL views. More...

class	RendererFactory
	Static factory class to manage registered slice and volume renderers to be used in views. More...

class	DataDisplayHandlerFactory
	Factory class to maintain the list of registered DataDisplayHandlers ,. More...

class	DataDisplayHandler
	Interface to generically show/hide Data in a GUI::View and/or query visibility. More...

class	DisplayWidget
	Render surface that hosts InteractiveViews and will call their render method on repaints. More...

class	DisplayWidgetMulti
	Specialized version of DisplayWidget that manages specific views and provides an automatic layout. More...

class	GlPlotLegend
	Display legend of a plot view as an overlay Color and marker styles replicate the plot style, however, in the text form instead of graphic renders. More...

class	Interactive< T, S >
	Strongly typed templated version of an InteractiveObject. More...

class	InteractiveObject
	Wraps a GlObject pairing it with an optional Manipulator in order to attach it to an InteractiveView. More...

class	InteractiveOverlay
	Wraps a GlOverlay in order to display it at specific positions in an InteractiveView. More...

class	InteractiveView
	Abstract base class for a view that can be hosted by a DisplayWidget. More...

class	PlotView
	View for plotting data. More...

class	SharedImageSetDisplayHandler
	Shows regular SharedImageSet instances (no derivatives) in ImageView2D and ImageView3D. More...

class	StereoSharedImageSetController
	Shows regular StereoSharedImageSet instances (no derivatives) in ImageView2D. More...

class	StereoImageStreamDataController
	Data Controller for StereoImageStream. More...
