| InteractionView2D (ImageView2D &view) |
| |
|
void | setInteractionTarget (InteractionTarget target) |
| |
|
InteractionTarget | interactionTarget () const |
| |
|
RotationReference | rotationReference () const |
| | Returns the reference for determining the rotation center.
|
| |
|
void | setRotationReference (RotationReference value) |
| | Sets the reference for determining the rotation center.
|
| |
|
void | setTouchActions (const TouchActions &touchActions) |
| | Setter/getter pair for touch action types.
|
| |
|
const TouchActions & | touchActions () const |
| |
| bool | sceneEvent (QEvent *event) override |
| | Modify the view parameters based on the mouse events.
|
| |
|
bool | sceneEventTouch (QEvent *event) |
| | Modify the view parameters based on the touchscreen events.
|
| |
| void | contextMenuCreate (QMenu &m) override |
| | Create context menu entries.
|
| |
| void | contextMenuEvaluate (QAction *a) override |
| | Evaluate action chosen in context menu.
|
| |
| void | createActions () override |
| | Create actions shown in context menu.
|
| |
|
ImageView2D & | view2D () |
| | Returns the view of this interaction.
|
| |
|
std::vector< SharedImageSet * > | moveImages () const |
| | Returns the list of images that should be moved if interactionTarget() is InteractionTarget::Image.
|
| |
| void | addMoveImage (SharedImageSet *val) |
| | Adds the given image to the list of images to which the "move image" feature is applied.
|
| |
| void | removeMoveImage (const SharedImageSet *img) |
| | Removes the given image from the list of images to which the "move image" feature is applied.
|
| |
|
void | setMoveImageHighlightColor (const vec4 &color) |
| | Sets the color for highlighting move images.
|
| |
|
void | setMoveImageHighlightEnabled (bool enable) |
| | Enables/Disables highlighting of the move-image.
|
| |
| | ViewInteraction (InteractiveView &view) |
| | Instantiate a new ViewInteraction that contains already basic actions for the view.
|
| |
| void | contextMenuCreate (QMenu &m) override |
| | Create context menu entries.
|
| |
|
virtual void | setViewActionMap (ViewActionMap *m) |
| | Sets the action mapping of this view. If nullptr, will default to the global one.
|
| |
|
virtual ViewActionMap * | viewActionMap () |
| | Returns the local view action map for this view interaction, if any has been set.
|
| |
| void | setMouseActionSpeed (ViewActionType action, double speed) |
| | Setters for the speed of a mouse (touch) action.
|
| |
|
void | setTouchActionSpeed (ViewActionType action, double speed) |
| |
|
double | mouseActionSpeed (ViewActionType action) const |
| | Getters for the speed of a mouse (touch) action, return the default value if the action is not found in the map.
|
| |
|
double | touchActionSpeed (ViewActionType action) const |
| |
|
bool | matchMappedActions (ViewActionType viewAction, Qt::MouseButton button, Qt::KeyboardModifiers modifiers) const |
| | Returns true if the MouseAction defined by button and modifiers is registered for the viewAction.
|
| |
| virtual void | createCustomViewActionMap () |
| | Must be used to override the global view action mapper This method can be overridden in order to define a custom default mapping between view actions and user mouse events Example code for the overridden method:
|
| |
|
virtual void | openContextMenu (QPoint pos, QPoint globalPos, Qt::KeyboardModifiers modifiers) |
| |
| virtual void | reset () |
| |
|
void | setUseContextMenu (bool use) |
| | Set if the context menu must be created or not.
|
| |
|
bool | useContextMenu () const |
| | Specifies if the view creates context menu entries or not. Default value is false.
|
| |
|
|
bool | changePose (QMouseEvent *event) |
| | Changes the pose of the view using CumulativeViewManipulation2D.
|
| |
|
vec3 | rotationCenter (const SharedImageSet *sis=nullptr) const |
| | Returns the rotation center (optionally considering the image)
|
| |
|
bool | handleMouseMoveEvent (QMouseEvent *event) |
| | Returns true(false) if the mouse move was (not) handled.
|
| |
|
bool | hasMatchingAction (int touchPointsCount, ViewActionType action) |
| | Returns true (false) if there is (not) a matching action for the given number of touch-points Checks that the touch points are positive and smaller than three.
|
| |
|
CumulativeViewManipulation2D * | cumulativeManipulation () const |
| | Getters for the view manipulations.
|
| |
|
ImmediateViewManipulation2D * | immediateViewManipulation () const |
| |
|
virtual void | keyPressEvent (QKeyEvent *event) |
| | Triggers actions if the pressed key sequence matches their shortcut.
|
| |
| void | createActions () override |
| | Creates actions shown in context menu.
|
| |
|
|
bool | m_dragging = false |
| |
|
Qt::MouseButton | m_mouseDragButton = Qt::NoButton |
| |
|
vec2 | m_mouseDownPos = vec2::Zero() |
| |
|
vec2 | m_mouseDelta = vec2::Zero() |
| |
|
vec3 | m_rotationCenter = vec3::Zero() |
| |
|
std::optional< double > | m_oldDistance = std::nullopt |
| | Indicates the cached distance between 2 former touchpoints.
|
| |
|
vec2 | m_oldPoint = vec2::Zero() |
| | Indicates the cached point of a single touch.
|
| |
|
vec2 | m_oldCenterPoint = vec2::Zero() |
| | Indicates the cached center between 2 former touchpoints.
|
| |
|
QLineF | m_oldAngleReferenceLine = {} |
| | Indicates the cached angle between 2 former lines (of 2 touchpoints)
|
| |
|
TouchActions | m_touchActions = {{PAN}, {PAN, ROTATESLICE2D, ZOOMSLICE}} |
| | Standard touch actions for one/two finger touch gestures.
|
| |
|
InteractionTarget | m_interactionTarget = InteractionTarget::Slice |
| |
|
RotationReference | m_rotationReference = RotationReference::Crossection |
| |
|
InteractiveView & | m_view |
| |
| ViewActionMap * | m_viewActionMap |
| | Custom mapping for this specific view. This will override the global mapping if is not nullptr.
|
| |
|
QMap< QString, QAction * > | m_actions |
| | Actions used in the context menu.
|
| |
|
bool | m_useContextMenu = false |
| | Default value is false.
|
| |
|
| static bool | addMappedViewAction (ViewActionType viewAction, Qt::MouseButton button, Qt::KeyboardModifiers modifiers) |
| |
|
static bool | removeMappedViewAction (ViewActionType viewAction, Qt::MouseButton button, Qt::KeyboardModifiers modifiers) |
| | Removes mapping from viewAction to MouseAction defined by button and modifiers Returns true if removing succeeds, or false if this mapping does not exists.
|
| |
|
static void | resetActionMapping () |
| | Loads the default view interaction mapping.
|
| |
|
static const ViewActionMap & | globalViewActionMap () |
| | Const access to the global view action mapper.
|
| |
|
static void | setGlobalViewActionMap (const ViewActionMap &map) |
| | Sets the global view action map.
|
| |
|
static bool | hasConflicts (const ViewActionMap &actionMap, std::vector< std::pair< ViewActionType, ViewActionType > > &conflictingActions) |
| | Checks if the mapping defined in actionMap has any conflicts.
|
| |
|
static const std::unordered_map< ViewActionType, QString > | viewActionsName |
| |
|
static const std::unordered_map< Qt::MouseButton, QString > | mouseButtonsName |
| |
|
void | contextMenuEvaluate (QAction *action) override |
| | Evaluate action chosen in context menu or by shortcut.
|
| |
|
static ViewActionMap | viewActionMapGlobal |
| | Global mapping between view actions and user mouse events (only mouse and keyboard modifiers now, touch and gestures must be supported too)
|
| |

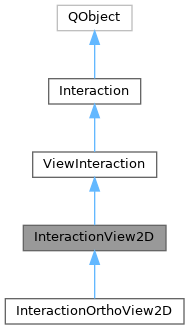

Inheritance diagram for InteractionView2D:
