#include <ImFusion/Base/Image.h>

Base class and interface for images. More...

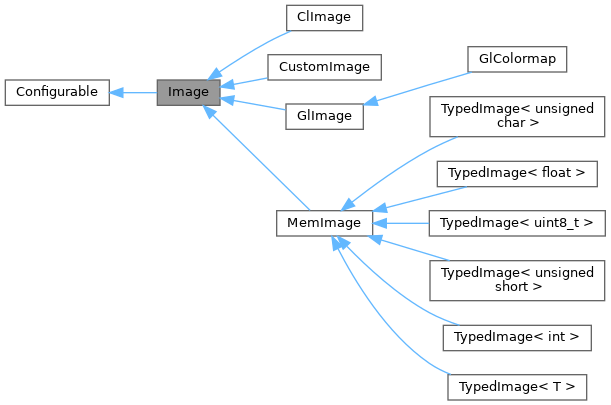

Inheritance diagram for Image:

Detailed Description

Base class and interface for images.

This class is merely a wrapper around an ImageDescriptor that offers a couple of convenience functions for the user. It does not store any image data, which is only done by the derived classes.

Older iterations of the SDK did not yet have the dedicated ImageDescriptor class and were therefore using the Image class as descriptor. New code should refrain from this and use ImageDescriptor directly to avoid confusing semantics of function signatures.

See also: Using Image Data

Public Types
enum	Type { BYTE = static_cast<int>(PixelType::Byte) , UBYTE = static_cast<int>(PixelType::UByte) , SHORT = static_cast<int>(PixelType::Short) , USHORT = static_cast<int>(PixelType::UShort) , INT = static_cast<int>(PixelType::Int) , UINT = static_cast<int>(PixelType::UInt) , FLOAT = static_cast<int>(PixelType::Float) , DOUBLE = static_cast<int>(PixelType::Double) , HFLOAT = static_cast<int>(PixelType::HFloat) }
	Pixel/voxel data type, equivalent to OpenGL defines. More...

enum	Location { NONE = 0 , MEMORY = 1 , OPENGL = 2 , OPENCL = 3 , CUSTOM = 6 }
	Location where the data resides. More...

Public Member Functions
	Image (const ImageDescriptor &desc)
	Create a new Image with the given descriptor.

	Image (const Image &other)=default

Image &	operator= (const Image &other)=default

	Image (Image &&other) noexcept=default

Image &	operator= (Image &&other) noexcept=default

const ImageDescriptor &	descriptor () const
	Return the image descriptor.

void	configure (const Properties *p) override
	Configure the image descriptor from properties.

void	configuration (Properties *p) const override
	Store image descriptor into properties.

void	setShift (double val)
	Sets the intensity shift value.

void	setScale (double val)
	Sets the intensity scale value.

void	setSpacing (double sx, double sy, double sz=1.0)
	Specify pixel/voxel spacing with two or three scalar values.

void	setSpacing (double sx, double sy, double sz, bool isMetric)
	Convenience function for specifying spacing and metric flag at the same time.

void	setSpacing (const vec3 &s)
	Specify pixel/voxel spacing using a 3-vector.

void	setSpacing (const vec3 &s, bool metric)
	Convenience function for specifying spacing and metric flag at the same time.

void	setMetric (bool val)
	Set data to be metric.

double	storageToOriginal (double value) const
	Applies the image's shift and scale in order to convert value from storage pixel value domain to original pixel value domain.

double	originalToStorage (double value) const
	Applies the image's shift and scale in order to convert value from original pixel value domain to storage pixel value domain.

Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.

void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().

void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.

	Configurable (const Configurable &rhs)

	Configurable (Configurable &&rhs) noexcept

Configurable &	operator= (const Configurable &)

Configurable &	operator= (Configurable &&) noexcept

Protected Member Functions
template<typename T>
bool	typeCompatible () const

Protected Attributes
ImageDescriptor	m_descriptor

Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Access to the image information
PixelType	pixelType () const
	Returns the data type of the image.

Type	type () const
	Returns the data type of the image.

virtual Location	location () const
	Returns the location of the image (e.g. none, host memory or a GPU device)

int	width () const
	Returns the width of the image.

int	height () const
	Returns the height of the image.

int	slices () const
	Returns the number of 3D slices of the image.

int	channels () const
	Returns the number of channels of the image.

double	shift () const
	Returns the intensity shift.

double	scale () const
	Returns the intensity scale.

vec3	spacing () const
	Returns pointer to the pixel/voxel spacing values.

bool	isMetric () const
	Returns true if data is metric.

vec3	extent () const
	Returns the physical size of the image as a vector.

vec3i	dimensions () const
	Returns the dimensions of the image in pixels as a vector.

vec3	pixelToImage (const vec3 &pixel) const
	Convert a 3D pixel/voxel position to image coordinates.

vec3	imageToPixel (const vec3 &world) const
	Convert 3D image coordinates to pixel/voxel position.

mat4	pixelToImageMatrix () const
	Returns a 4x4 matrix to transform from image pixel space to image space.

mat4	imageToPixelMatrix () const
	Returns a 4x4 matrix to transform from image space to image pixel space.

size_t	index (int x, int y, int z=0, int c=0) const
	Returns a linear memory index for a pixel or voxel.

bool	hasIndex (int x, int y, int z=0, int c=0) const
	Returns true if the pixel at (x,y,z) exists, false otherwise.

vec4i	coord (size_t index) const
	Returns the pixel/voxel coordinate (x,y,z,c) for a given index.

size_t	size () const
	Returns the size (number of elements) of the image.

int	typeSize () const
	Return the nominal size in bytes of standard data types, zero if unknown.

bool	isInteger () const
	Returns whether the image is of an integer data type.

bool	isSigned () const
	Returns whether the image type supports negative values.

size_t	byteSize () const
	Returns the size of the image in bytes.

int	alignment () const
	Returns the byte alignment of an image line (up to 8)

int	dimension () const
	Returns the spatial dimension of the image.

bool	compatible (const Image &other, bool ignoreType=false, bool ignore3D=false, bool ignoreChannels=false) const
	Tells if this image is compatible to another one.

Additional Inherited Members
Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' `signalValueChanged` signal was emitted.

Member Enumeration Documentation

◆ Type

enum Type

Pixel/voxel data type, equivalent to OpenGL defines.

Note: This enumeration is redundant with PixelType and may become deprecated eventually. Prefer interfaces using PixelType when writing new code.

◆ Location

enum Location

Location where the data resides.

Enumerator
NONE	Actual data is not available.
MEMORY	CPU main memory.
OPENGL	OpenGL texture.
OPENCL	OpenCL image or buffer.
CUSTOM	Custom image location.

Member Function Documentation

◆ configure()

void configure ( const Properties * p )

overridevirtual

Configure the image descriptor from properties.

Reimplemented from Configurable.

◆ configuration()

void configuration ( Properties * p ) const

overridevirtual

Store image descriptor into properties.

Reimplemented from Configurable.

◆ location()

virtual Location location ( ) const

inlinevirtual

Returns the location of the image (e.g. none, host memory or a GPU device)

Reimplemented in ClImage, CustomImage, GlImage, and MemImage.

◆ storageToOriginal()

double storageToOriginal ( double value ) const

inline

Applies the image's shift and scale in order to convert value from storage pixel value domain to original pixel value domain.

See also: Pixel Value Domains

◆ originalToStorage()

double originalToStorage ( double value ) const

inline

Applies the image's shift and scale in order to convert value from original pixel value domain to storage pixel value domain.

See also: Pixel Value Domains

The documentation for this class was generated from the following file:

ImFusion/Base/Image.h
