ViewInteraction Class Reference

#include <ImFusion/GUI/ViewInteraction.h>

Base class for all view interactions. More...

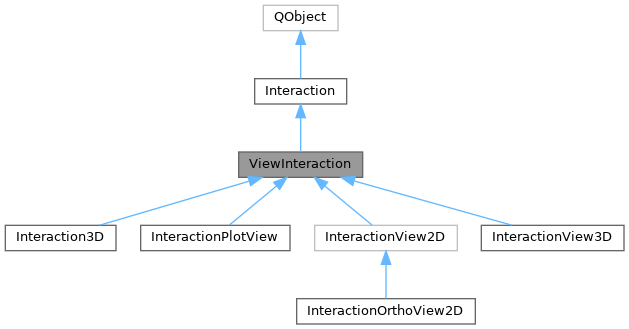

Inheritance diagram for ViewInteraction:

Detailed Description

Base class for all view interactions.

Classes
struct	ActionSpeed

Public Member Functions
	ViewInteraction (InteractiveView &view)
	Instantiate a new ViewInteraction that contains already basic actions for the view.
void	contextMenuCreate (QMenu &m) override
	Create context menu entries.
virtual void	setViewActionMap (ViewActionMap *m)
	Sets the action mapping of this view. If nullptr, will default to the global one.
virtual ViewActionMap *	viewActionMap ()
	Returns the local view action map for this view interaction, if any has been set.
void	setMouseActionSpeed (ViewActionType action, double speed)
	Setters for the speed of a mouse (touch) action.
void	setTouchActionSpeed (ViewActionType action, double speed)
double	mouseActionSpeed (ViewActionType action) const
	Getters for the speed of a mouse (touch) action, return the default value if the action is not found in the map.
double	touchActionSpeed (ViewActionType action) const
Public Member Functions inherited from Interaction
virtual bool	sceneEvent (QEvent *event)=0
	Handles the event and returns true if the event was handles and should not passed to other interactions.
virtual void	openContextMenu (QPoint pos, QPoint globalPos, Qt::KeyboardModifiers modifiers)
virtual void	reset ()
void	setUseContextMenu (bool use)
	Set if the context menu must be created or not.
bool	useContextMenu () const
	Specifies if the view creates context menu entries or not. Default value is false.

Static Public Attributes
static const std::unordered_map< ViewActionType, QString >	viewActionsName
static const std::unordered_map< Qt::MouseButton, QString >	mouseButtonsName

Protected Slots
void	contextMenuEvaluate (QAction *action) override
	Evaluate action chosen in context menu or by shortcut.
Protected Slots inherited from Interaction
virtual void	contextMenuEvaluate (QAction *)
	Evaluate action chosen in context menu or by shortcut.

Protected Member Functions
virtual void	keyPressEvent (QKeyEvent *event)
	Triggers actions if the pressed key sequence matches their shortcut.
void	createActions () override
	Creates actions shown in context menu.

Protected Attributes
InteractiveView &	m_view
ViewActionMap *	m_viewActionMap
	Custom mapping for this specific view. This will override the global mapping if is not nullptr.
Protected Attributes inherited from Interaction
QMap< QString, QAction * >	m_actions
	Actions used in the context menu.
bool	m_useContextMenu = false
	Default value is false.

Static Protected Attributes
static ViewActionMap	viewActionMapGlobal
	Global mapping between view actions and user mouse events (only mouse and keyboard modifiers now, touch and gestures must be supported too)

Interface for defining and accessing view action mapper
bool	matchMappedActions (ViewActionType viewAction, Qt::MouseButton button, Qt::KeyboardModifiers modifiers) const
	Returns true if the MouseAction defined by button and modifiers is registered for the viewAction.
virtual void	createCustomViewActionMap ()
	Must be used to override the global view action mapper This method can be overridden in order to define a custom default mapping between view actions and user mouse events Example code for the overridden method:
static bool	addMappedViewAction (ViewActionType viewAction, Qt::MouseButton button, Qt::KeyboardModifiers modifiers)
static bool	removeMappedViewAction (ViewActionType viewAction, Qt::MouseButton button, Qt::KeyboardModifiers modifiers)
	Removes mapping from viewAction to MouseAction defined by button and modifiers Returns true if removing succeeds, or false if this mapping does not exists.
static void	resetActionMapping ()
	Loads the default view interaction mapping.
static const ViewActionMap &	globalViewActionMap ()
	Const access to the global view action mapper.
static void	setGlobalViewActionMap (const ViewActionMap &map)
	Sets the global view action map.
static bool	hasConflicts (const ViewActionMap &actionMap, std::vector< std::pair< ViewActionType, ViewActionType > > &conflictingActions)
	Checks if the mapping defined in actionMap has any conflicts.

Constructor & Destructor Documentation

ViewInteraction()

ViewInteraction

(

InteractiveView &

view

)

Instantiate a new ViewInteraction that contains already basic actions for the view.

Basic actions are {"Reset", "Hide", "Fullscreen", "Link Zoom"}.

Note

ViewInteraction does not self-register with view. You must call InteractiveView::setInteraction().

Member Function Documentation

contextMenuCreate()

void contextMenuCreate ( QMenu & m )

overridevirtual

Create context menu entries.

Reimplemented from Interaction.

addMappedViewAction()

static bool addMappedViewAction ( ViewActionType viewAction, Qt::MouseButton button, Qt::KeyboardModifiers modifiers )

static

Adds a mapping from viewAction to a MouseAction defined by button and modifiers Returns true if adding succeeds, or false if this mapping is already exists.

createCustomViewActionMap()

virtual void createCustomViewActionMap ( )

inlinevirtual

Must be used to override the global view action mapper This method can be overridden in order to define a custom default mapping between view actions and user mouse events Example code for the overridden method:

void CustomInteraction::createViewActionMap()
{
   clearActionMapping();
   ...
   addMappedViewAction(ViewActionType::WINDOW, Qt::MouseButton::LeftButton, Qt::KeyboardModifier::ShiftModifier);
   addMappedViewAction(ViewActionType::BLEND, Qt::MouseButton::LeftButton, Qt::KeyboardModifier::AltModifier);
  ...
}

setMouseActionSpeed()

void setMouseActionSpeed	(	ViewActionType	action,
		double	speed )

Setters for the speed of a mouse (touch) action.

Note, The speed is a multiplicative value in front of the actual physical displacement of the mouse/touch action. If you are using a track-pad and want to change the scrolling speed of a 3D Slice-View or a 2D Frame-View, set the speed of SWEEPSLICE3D/SWEEPSLICE2D to the desired value

createActions()

void createActions ( )

overrideprotectedvirtual

Creates actions shown in context menu.

Reimplemented from Interaction.

Member Data Documentation

m_viewActionMap

ViewActionMap* m_viewActionMap

protected

Initial value:

=
            nullptr

Custom mapping for this specific view. This will override the global mapping if is not nullptr.

---

The documentation for this class was generated from the following file:

• ImFusion/GUI/ViewInteraction.h
