#include <ImFusion/GUI/InteractiveView.h>

Abstract base class for a view that can be hosted by a DisplayWidget. More...

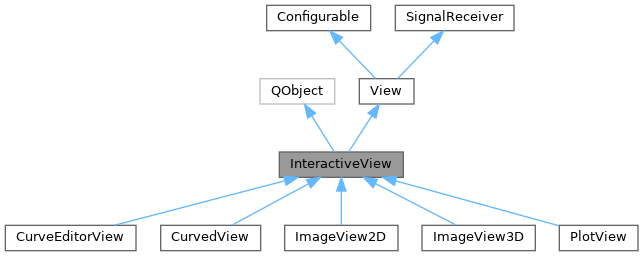

Inheritance diagram for InteractiveView:

Detailed Description

Abstract base class for a view that can be hosted by a DisplayWidget.

An InteractiveView is a wrapper around a GlView adding a ViewInteraction, overlays, as well as a set of properties and signals. Each view has a certain size on the screen which is determined by the layout in DisplayWidget. Before rendering the actual view content with GlView, an InteractiveView draws a rectangular border around the content. The color of the border can be set with setDrawBorder.

InteractiveView takes care of automatically layouting the hosted overlays, which are always drawn on top of the view content. Overlays can be placed at different anchors (e.g. corners, edges) of the view. If several overlays reside on the same Anchor, the view will position them in a way that they don't overlap.

Public Types
enum	LayoutDirection { Horizontal = int(GUI::ViewOverlay::LayoutDirection::Horizontal) , Vertical = int(GUI::ViewOverlay::LayoutDirection::Vertical) }
	Layout direction when stacking multiple InteractiveOverlays at the same anchor.

Public Slots
void	setVisible (bool value)
	Make view hidden/visible.

void	render () override

virtual void	reset ()

Signals
void	visibilityChanged (bool visible)

void	rectChanged (QRect rect)

void	updateRequested ()

void	visibilityChangeRequested (bool visible)

void	visibleDataChanged (const DataList &before, const DataList &now)
	Emitted in setVisibleData after the visible data has been changed from before to now.

Public Member Functions
	InteractiveView (std::unique_ptr< GlView > glView)
	Construct view with underlying GlView.

void	setInteractions (std::vector< std::unique_ptr< ViewInteraction > > interactions)
	Replace all existing ViewInteractions with the ones in interactions.

void	addInteraction (std::unique_ptr< ViewInteraction > interaction, int where=-1)
	Add an interaction at the given position (default is at the end).

void	removeInteraction (ViewInteraction *interaction)
	Delete the given interaction, if it exists. Note: This will make the pointer invalid.

std::vector< ViewInteraction * >	interactions () const
	Returns all view interactions of this view.

template<typename T>
T *	findInteraction () const
	Returns the first ViewInteraction that dynamic_casts to `T` or nullptr if no such ViewInteraction exists.

void	setBorderColor (const QColor &color)
	Set border color.

void	setDrawBorder (bool drawBorder)
	Set whether to draw a border around the view.

bool	isBorderDrawn () const
	Get whether to draw a border around the view.

void	setBorderPixelSize (int pixelSize)
	Set the size of the border around the view.

int	borderPixelSize () const
	Get the size of the border around the view.

void	setBackgroundColor (const QColor &color)
	Set border color.

void	setViewGroup (ViewGroup *group)
	Set associated view group. The view is not automatically added to the view group.

ViewGroup *	viewGroup () const
	Get associated view group.

QRectF	boundingRect () const
	Bounding rect in item coordinates.

virtual void	setRect (const QRect &rect)
	Set position and size of view in scene coordinates.

QRect	rect () const
	Get position and size of view in scene coordinates.

void	setViewport (const GL::Viewport &rect) override
	Sets the area where this view is drawn in render() wrt. the attached framebuffer.

virtual bool	sceneEvent (QEvent *qtEvent, const GUI::InputEvent &inputEvent)
	Called by the DisplayWidget if a user input event has happened on this view.

void	addObject (GUI::ViewObject *object) override
	Add the given InteractiveObject to this view.

void	removeObject (GUI::ViewObject *object) override
	Remove the given InteractiveObject from this view.

virtual bool	hasObject (const InteractiveObject *object) const

virtual void	addOverlay (std::unique_ptr< InteractiveOverlay > overlay, int position=-1)
	Add overlay to this view.

std::unique_ptr< GUI::ViewOverlay >	removeOverlay (GUI::ViewOverlay *overlay) override
	Remove overlay. The user is responsible for deleting the overlay afterwards.

void	setWaterMark (SharedImage *image)
	Set a water mark to the view.

void	setAnchorLayoutDirection (InteractiveOverlay::AnchorPoint anchor, LayoutDirection direction)
	Sets in which direction multiple overlays at one anchor are layed out.

void	requestUpdate ()
	Allows some outside interaction to request an update of the view.

bool	showOverlays () const
	Get flag whether to show overlays.

void	setAndRunAnimation (std::unique_ptr< Animations::Animation >)
	Launch an animation while ensuring that only one animation is running at a time for this instance.

Public Member Functions inherited from View
	View (std::unique_ptr< GlView > glView)
	Instantiate a new View using the given GlView as renderer; glView must not be null.

virtual void	render ()
	Will render the view into the viewport() of the current framebuffer by drawing the optional background color, the optional border, the underlying GlView, and finally all overlays().

const GlView &	glView () const
	Returns the underlying GlView.

GlView &	glView ()
	Returns the underlying GlView.

const GL::Viewport &	viewport () const
	Returns the area where this view is drawn in render() wrt. the attached framebuffer.

bool	isVisible () const
	Returns whether this view has a non-zero viewport and can therefore be considered visible.

std::optional< vec3 >	backgroundColor () const
	Returns the optional background color used to clear the viewport before rendering anything.

void	setBackgroundColor (std::optional< vec3 > value)
	Sets the optional background color used to clear the viewport before rendering anything.

const BorderConfig &	borderConfig () const
	Returns the BorderConfig struct defining if and how to render a border frame surrounding the view.

virtual void	setBorderConfig (const BorderConfig &value)
	Sets the BorderConfig struct defining if and how to render a border frame surrounding the view.

bool	showsOverlays () const
	Returns the flag whether to show overlays or not.

void	setShowOverlays (bool value)
	Sets the flag whether to show overlays or not.

void	setWatermark (const SharedImage &image)
	Sets a watermark image to be rendered on top of the view.

virtual EventResult	handleInputEvent (const InputEvent &event)
	Called by the parent Display if a user input event has happened on this view.

void	setDataDisplayDispatcher (std::shared_ptr< DataDisplayDispatcher > ddd)
	Sets a common DataDisplayDispatcher so that it can be shared across views.

const DataDisplayDispatcher *	dataDisplayDispatcher () const
	Returns the DataDisplayDispatcher used by this view.

virtual bool	acceptsData (const Data *data) const
	Returns whether this view is capable of displaying the given data.

void	setVisibleData (const DataList &data)
	Set the data that should be shown in this view.

const DataList &	visibleData () const
	Returns a list of the currently displayed data.

bool	showData (Data *data)
	Appends the given Data instance to the list of visible data.

void	hideData (const Data *data)
	Removes the given Data instance to the list of visible data.

void	setEventHandlers (std::vector< std::unique_ptr< EventHandler > > eventHandlers)
	Replace all existing EventHandlers with the ones in eventHandlers.

void	addEventHandler (std::unique_ptr< EventHandler > eventHandler, int where=-1)
	Add an EventHandler at the given position (default is at the end).

std::unique_ptr< EventHandler >	removeEventHandler (EventHandler *interaction)
	Delete the given interaction, if it exists. Note: This will make the pointer invalid.

std::vector< EventHandler * >	eventHandlers () const
	Returns all view interactions of this view.

template<typename T>
T *	findEventHandler () const
	Returns the first EventHandler that dynamic_casts to `T`, or `nullptr` if no such EventHandler exists.

void	addOverlay (std::unique_ptr< ViewOverlay > overlay, ViewOverlay::Anchor anchor, int position=-1)
	Inserts overlay into the list of overlays of this view at position of the given anchor.

std::vector< ViewOverlay * >	overlays () const
	Returns all InteractiveOverlays of this view.

void	setOverlayAnchor (ViewOverlay *overlay, ViewOverlay::Anchor anchor)
	Set the anchor point to use for the given overlay.

void	setOverlayLayoutDirection (ViewOverlay::Anchor anchor, ViewOverlay::LayoutDirection direction)
	Sets in which direction multiple overlays at one anchor are laid out.

std::vector< ViewObject * >	objects () const
	Returns all ViewObjects of this view.

const GlView *	view () const

GlView *	view ()
	Return associated GlView object.

Public Member Functions inherited from Configurable
virtual void	configure (const Properties *p)
	Configure this object instance by de-serializing the given Properties.

virtual void	configuration (Properties *p) const
	Serialize the current object configuration into the given Properties object.

virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.

void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().

void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.

	Configurable (const Configurable &rhs)

	Configurable (Configurable &&rhs) noexcept

Configurable &	operator= (const Configurable &)

Configurable &	operator= (Configurable &&) noexcept

Public Member Functions inherited from SignalReceiver
	SignalReceiver ()=default
	Default constructor.

	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.

SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.

virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Public Attributes
Signal< DataList >	signalRendered
	Emitted at the end of render(); the passed DataList will hold all visible data.

Public Attributes inherited from View
Signal	signalUpdateRequested
	Emitted when this view or one of its overlays has become outdated and needs to be re-rendered.

Signal< const DataList &, const DataList & >	signalVisibleDataChanged
	Emitted when visibleData() has changed.

Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' `signalValueChanged` signal was emitted.

Protected Member Functions
GUI::EventResult	dispatchToViewOverlays (const GUI::InputEvent &event) override
	Dispatch event to all known ViewOverlays considering m_mouseEventFocusObject and m_touchEventFocusObject.

GUI::EventResult	dispatchToViewObjects (const GUI::InputEvent &event) override
	Dispatch event to all known ViewObjects considering m_mouseEventFocusObject and m_touchEventFocusObject.

GUI::EventResult	dispatchToViewEventHandlers (const GUI::InputEvent &event) override
	Dispatch event to all known View::EventHandlers considering m_mouseEventFocusObject and m_touchEventFocusObject.

virtual bool	handleOverlayEvent (QEvent *qtEvent, const GUI::InputEvent &inputEvent)
	The default implementation will call InteractiveOverlay::sceneEvent() and set m_mouseEventTarget/m_touchEventTarget if needed.

virtual bool	handleObjectEvent (QEvent *qtEvent, const GUI::InputEvent &inputEvent)
	Auxiliary method for forwarding the scene event to all registered objects.

virtual bool	handleInteractionEvent (QEvent *qtEvent, const GUI::InputEvent &inputEvent)
	Auxiliary method for forwarding the scene event to the view interaction.

Protected Member Functions inherited from View
void	updateEventFocus (const InputEvent &event, const void *newTarget)
	Update the internal bookkeeping of "focus" event handlers:

bool	filterEventFocus (const InputEvent &event, const void *target) const
	Checks if the object target should receive the given event based on the event type and current "focus" object.

virtual void	showDataImpl (Data *data)
	Override this function to implement custom logic whenever a dataset is added to the list of visible data.

virtual void	hideDataImpl (const Data *data)
	Override this function to implement custom logic whenever a dataset is removed from the list of visible data.

Protected Member Functions inherited from SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.

Protected Attributes
std::vector< std::unique_ptr< ViewInteraction > >	m_interactions
	ViewInteractions used for this view.

ViewGroup *	m_group = nullptr
	Optional ViewGroup this view is part of.

Protected Attributes inherited from View
std::unique_ptr< GlView >	m_glView

std::unique_ptr< ViewOverlayLayouter >	m_overlayLayouter

std::vector< std::unique_ptr< EventHandler > >	m_eventHandlers

std::vector< std::unique_ptr< ViewOverlay > >	m_overlays

std::vector< ViewObject * >	m_objects

DataList	m_visibleData

GL::Viewport	m_viewport

const void *	m_mouseEventFocusObject = nullptr
	Pointer to the event receiver that shall receive MouseEvent::Type::Move events exclusively.

const void *	m_touchEventFocusObject = nullptr
	Pointer to the event receiver that shall receive TouchEvent::Type::Update events exclusively.

Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Properties
QRect	rect

Member Function Documentation

◆ addInteraction()

void addInteraction	(	std::unique_ptr< ViewInteraction >	interaction,
		int	where = -1 )

Add an interaction at the given position (default is at the end).

Note that events will be forwarded to the view interactions in the given order, and the first one accepting it will consume it. Thus, subsequent interactions will not receive events already taken care of.

◆ setRect()

virtual void setRect ( const QRect & rect )

virtual

Set position and size of view in scene coordinates.

Reimplemented in ImageView2D.

◆ setViewport()

void setViewport ( const GL::Viewport & rect )

overridevirtual

Sets the area where this view is drawn in render() wrt. the attached framebuffer.

Reimplemented from View.

◆ sceneEvent()

virtual bool sceneEvent	(	QEvent *	qtEvent,
		const GUI::InputEvent &	inputEvent )

virtual

Called by the DisplayWidget if a user input event has happened on this view.

The default implementation will forward the event to the sub-objects in the following order:

InteractiveOverlays
InteractiveObjects
ViewInteraction
Returns
true if the event has been handled and should no longer be passed to other objects.

◆ addObject()

void addObject ( GUI::ViewObject * object )

overridevirtual

Add the given InteractiveObject to this view.

Will add the underlying GlObject to the GlView and register the Manipulator.

Reimplemented from View.

◆ removeObject()

void removeObject ( GUI::ViewObject * object )

overridevirtual

Remove the given InteractiveObject from this view.

Reimplemented from View.

◆ addOverlay()

virtual void addOverlay	(	std::unique_ptr< InteractiveOverlay >	overlay,
		int	position = -1 )

virtual

Add overlay to this view.

If the overlay is not removed, it will be deleted with the view. The optional position argument defines where the overlay should be inserted in between the existing overlays. A position of -1 indicates the end.

◆ removeOverlay()

std::unique_ptr< GUI::ViewOverlay > removeOverlay ( GUI::ViewOverlay * overlay )

overridevirtual

Remove overlay. The user is responsible for deleting the overlay afterwards.

Reimplemented from View.

◆ setAndRunAnimation()

void setAndRunAnimation ( std::unique_ptr< Animations::Animation > )

Launch an animation while ensuring that only one animation is running at a time for this instance.

A potentially running animation is canceled before launching the new animation.

◆ dispatchToViewOverlays()

GUI::EventResult dispatchToViewOverlays ( const GUI::InputEvent & event )

overrideprotectedvirtual

Dispatch event to all known ViewOverlays considering m_mouseEventFocusObject and m_touchEventFocusObject.

Reimplemented from View.

◆ dispatchToViewObjects()

GUI::EventResult dispatchToViewObjects ( const GUI::InputEvent & event )

overrideprotectedvirtual

Dispatch event to all known ViewObjects considering m_mouseEventFocusObject and m_touchEventFocusObject.

Reimplemented from View.

◆ dispatchToViewEventHandlers()

GUI::EventResult dispatchToViewEventHandlers ( const GUI::InputEvent & event )

overrideprotectedvirtual

Dispatch event to all known View::EventHandlers considering m_mouseEventFocusObject and m_touchEventFocusObject.

Reimplemented from View.

◆ handleOverlayEvent()

virtual bool handleOverlayEvent	(	QEvent *	qtEvent,
		const GUI::InputEvent &	inputEvent )

protectedvirtual

The default implementation will call InteractiveOverlay::sceneEvent() and set m_mouseEventTarget/m_touchEventTarget if needed.

Furthermore, it will evaluate m_lastMouseEventOverlay and post enter/leave events to the overlays. Returns true if the event affects any overlay, false otherwise.

◆ handleObjectEvent()

virtual bool handleObjectEvent	(	QEvent *	qtEvent,
		const GUI::InputEvent &	inputEvent )

protectedvirtual

Auxiliary method for forwarding the scene event to all registered objects.

The default implementation will call InteractiveObject::sceneEvent() and set m_mouseEventTarget if needed. Returns true if the event affects any overlay, false otherwise.

Reimplemented in CurvedView, and ImageView2D.

◆ handleInteractionEvent()

virtual bool handleInteractionEvent	(	QEvent *	qtEvent,
		const GUI::InputEvent &	inputEvent )

protectedvirtual

Auxiliary method for forwarding the scene event to the view interaction.

The default implementation will call ViewInteraction::sceneEvent() and set m_mouseEventTarget if needed. It will also handle the ContextMenuEvent. Returns true if the event affects any overlay, false otherwise.

The documentation for this class was generated from the following file:

ImFusion/GUI/InteractiveView.h

Detailed Description

Public Types

Public Slots

Signals

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Properties

Member Function Documentation

◆ addInteraction()

◆ setRect()

◆ setViewport()

◆ sceneEvent()

◆ addObject()

◆ removeObject()

◆ addOverlay()

◆ removeOverlay()

◆ setAndRunAnimation()

◆ dispatchToViewOverlays()

◆ dispatchToViewObjects()

◆ dispatchToViewEventHandlers()

◆ handleOverlayEvent()

◆ handleObjectEvent()

◆ handleInteractionEvent()
