#include <ImFusion/GUI/ViewOverlay.h>
Wraps a GlOverlay in order to display it at specific positions inside a View and handle input events. More...

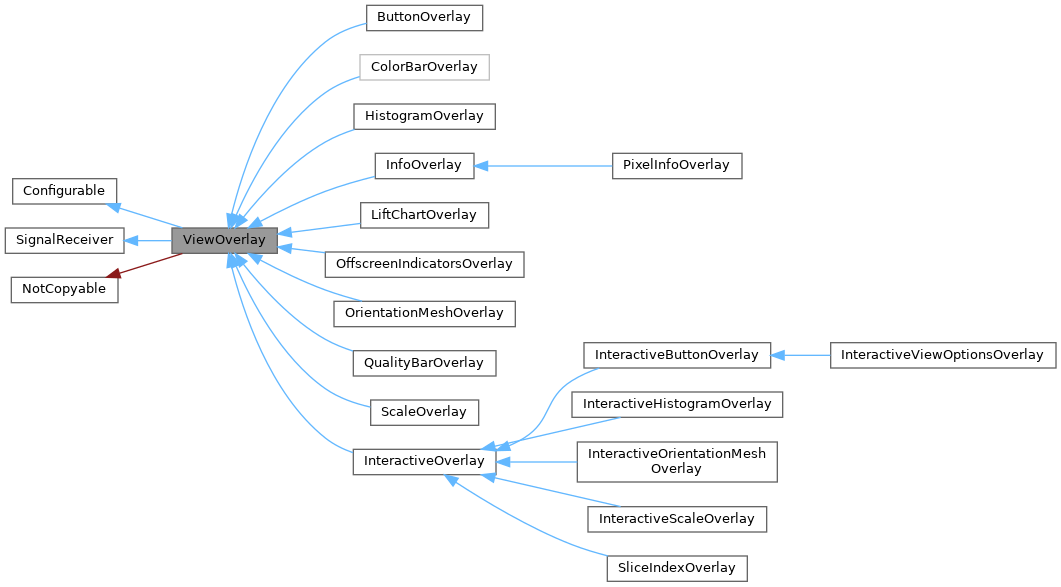

Inheritance diagram for ViewOverlay:Wraps a GlOverlay in order to display it at specific positions inside a View and handle input events.
In contrast to a ViewObject a ViewOverlay resides in viewport space and is always rendered on top of the scene. The viewport() is automatically determined by the parent View's ViewOverlayLayouter taking all registered overlays into account so that they don't overlap. The layouting is performed based on sizeHint() and minimalSizeHint() given by the underlying GlOverlay and the configured margin().
In order to react to user input events you need to override the handleInputEvent() member function.
Public Types | |
| enum class | Anchor { BottomLeft = 0 , BottomRight = 1 , TopLeft = 2 , TopRight = 3 , Top = 4 , Bottom = 5 , Left = 6 , Right = 7 , Fill = 8 } |
| Anchor point of the overlay in the parent View. More... | |
| enum class | LayoutDirection { Horizontal = 0 , Vertical = 1 } |
| Layout direction when stacking multiple ViewOverlays at the same anchor. | |
Public Member Functions | |
| ViewOverlay (std::unique_ptr< GlOverlay > glOverlay) | |
| Instantiate a new ViewOverlay taking ownership of the underlying GlOverlay which must not be null. | |
| virtual void | render () |
| Calls GlOverlay::render() on the underlying glOverlay() using the current viewport() shrinked by margin(). | |
| virtual EventResult | handleInputEvent (const InputEvent &event) |
| Handle a user event received from the parent View. | |
| const GlOverlay & | glOverlay () const |
| Get a pointer to the underlying overlay. | |
| GlOverlay & | glOverlay () |
| Get a pointer to the underlying overlay. | |
| const GL::Viewport & | viewport () |
| Returns the area where this overlay is rendered. | |
| bool | isVisible () const |
| Returns the visibility of this overlay. | |
| virtual void | setVisible (bool value) |
| Sets the visibility of this overlay. | |
| const vec2i & | margin () const |
| Returns the margin in pixels between the border of the drawing area and the border of the overlay content. | |
| void | setMargin (const vec2i &value) |
| Sets the margin in pixels between the border of the drawing area and the border of the overlay content. | |
| vec2i | minimalSizeHint () const |
| Returns the underlying GlOverlay's minimal size hint plus the configured margin(). | |
| vec2i | sizeHint () const |
| Returns the underlying GlOverlay's size hint plus the configured margin(). | |
| void | configure (const Properties *p) override |
| Configure this object instance by de-serializing the given Properties. | |
| void | configuration (Properties *p) const override |
| Serialize the current object configuration into the given Properties object. | |
| Public Member Functions inherited from Configurable | |
| virtual void | configureDefaults () |
| Retrieve the properties of this object, replaces values with their defaults and sets it again. | |
| void | registerParameter (ParameterBase *param) |
| Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration(). | |
| void | unregisterParameter (const ParameterBase *param) |
| Remove the given Parameter or SubProperty from the list of registered parameters. | |
| Configurable (const Configurable &rhs) | |
| Configurable (Configurable &&rhs) noexcept | |
| Configurable & | operator= (const Configurable &) |
| Configurable & | operator= (Configurable &&) noexcept |
| Public Member Functions inherited from SignalReceiver | |
| SignalReceiver ()=default | |
| Default constructor. | |
| SignalReceiver (const SignalReceiver &other) | |
| Copy constructor, does not copy any existing signal connections from other. | |
| SignalReceiver & | operator= (SignalReceiver rhs) |
| Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs. | |
| virtual | ~SignalReceiver () |
| Virtual destructor disconnects from all connected signals. | |
Public Attributes | |
| Signal | signalUpdateRequested |
| Emitted in order to notify the parent Display that it's contents have changed and need to be re-rendered. | |
| Signal | signalLayoutNeeded |
| Emitted whenever the size hints or margin have changed to notify the parent View that it needs to perform overlay layouting. | |
| Public Attributes inherited from Configurable | |
| Signal | signalParametersChanged |
Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted. | |
Protected Attributes | |
| std::unique_ptr< GlOverlay > | m_glOverlay |
| GL::Viewport | m_viewport = {} |
| vec2i | m_margin = vec2i::Zero() |
| bool | m_isVisible = true |
| Protected Attributes inherited from Configurable | |
| std::vector< Param > | m_params |
| List of all registered Parameter and SubProperty instances. | |
Additional Inherited Members | |
| Protected Member Functions inherited from SignalReceiver | |
| void | disconnectAll () |
| Disconnects all existing connections. | |
|
strong |
Anchor point of the overlay in the parent View.
| ViewOverlay | ( | std::unique_ptr< GlOverlay > | glOverlay | ) |
Instantiate a new ViewOverlay taking ownership of the underlying GlOverlay which must not be null.
| std::runtime_error | if glOverlay is nullptr |
|
virtual |
Calls GlOverlay::render() on the underlying glOverlay() using the current viewport() shrinked by margin().
Reimplemented in HistogramOverlay, InfoOverlay, and InteractiveHistogramOverlay.
|
virtual |
Handle a user event received from the parent View.
The default implementation is empty.
Reimplemented in ButtonOverlay, HistogramOverlay, InfoOverlay, OffscreenIndicatorsOverlay, QualityBarOverlay, and InteractiveOverlay.
|
virtual |
Sets the visibility of this overlay.
Reimplemented in OffscreenIndicatorsOverlay, and SliceIndexOverlay.
|
overridevirtual |
Configure this object instance by de-serializing the given Properties.
The default implementation will do so automatically for all registered Parameter and SubProperty instances.
Reimplemented from Configurable.
|
overridevirtual |
Serialize the current object configuration into the given Properties object.
The default implementation will do so automatically for all registered Parameter and SubProperty instances.
Reimplemented from Configurable.
