#include <ImFusion/GUI/InteractiveOverlay.h>

Wraps a GlOverlay in order to display it at specific positions in an InteractiveView. More...

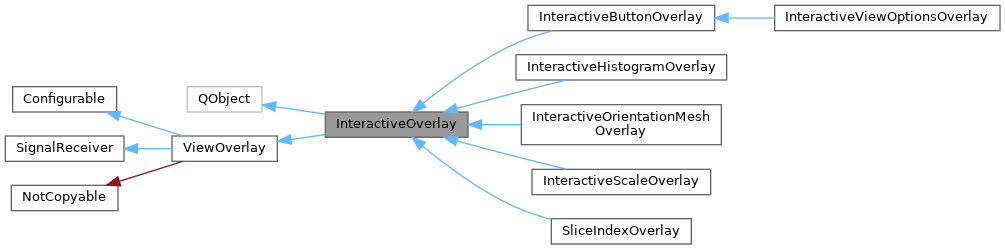

Inheritance diagram for ImFusion::InteractiveOverlay:

Detailed Description

Wraps a GlOverlay in order to display it at specific positions in an InteractiveView.

Note: The size hint of an InteractiveOverlay is managed/defined by the underlying GlOverlay. Thus, the corresponding functions of this class are only a forwarding convenience API.

See also: GlOverlay, OverlayInteraction

Public Types
enum	AnchorPoint { BottomLeft = int(Anchor::BottomLeft) , BottomRight = int(Anchor::BottomRight) , TopLeft = int(Anchor::TopLeft) , TopRight = int(Anchor::TopRight) , Top = int(Anchor::Top) , Bottom = int(Anchor::Bottom) , Left = int(Anchor::Left) , Right = int(Anchor::Right) , Fill = int(Anchor::Fill) }
	Anchor point of the overlay in the hosting InteractiveView. More...
Public Types inherited from ImFusion::GUI::ViewOverlay
enum class	Anchor { BottomLeft = 0 , BottomRight = 1 , TopLeft = 2 , TopRight = 3 , Top = 4 , Bottom = 5 , Left = 6 , Right = 7 , Fill = 8 }
	Anchor point of the overlay in the parent View. More...
enum class	LayoutDirection { Horizontal = 0 , Vertical = 1 }
	Layout direction when stacking multiple ViewOverlays at the same anchor.

Signals
void	anchorPointChanged (InteractiveOverlay::AnchorPoint anchorPoint)

Public Member Functions
	InteractiveOverlay (std::unique_ptr< GlOverlay > overlay, AnchorPoint anchor)
	Instantiate a new InteractiveOverlay taking ownership of the underlying GlOverlay.
	InteractiveOverlay (GlOverlay &overlay, AnchorPoint anchor)
	Instantiate a new InteractiveOverlay referencing the given overlay.
	InteractiveOverlay (GlOverlay *overlay, AnchorPoint anchor, bool ownOverlay=true)
const GlOverlay *	overlay () const
	Get a pointer to the underlying overlay.
GlOverlay *	overlay ()
	Get a pointer to the underlying overlay.
virtual void	setInteraction (std::unique_ptr< OverlayInteraction > interaction)
	Set an interaction event handler for this overlay.
QRect	rect () const
	Get position and actual size (including margins) of overlay in viewport coordinates.
void	setMargin (int horizontal, int vertical)
	Sets the margin in pixels between the border of the drawing area and the border of the overlay content.
int	horizontalMargin () const
	Gets the horizontal margin in pixels between the border of the drawing area and the border of the overlay content. Default is 2.
int	verticalMargin () const
	Gets the vertical margin in pixels between the border of the drawing area and the border of the overlay content. Default is 2.
virtual void	setSizeHint (int width, int height)
	Sets the preferred size of the overlay for a DPI scaling of 1.0.
virtual int	sizeHintWidth () const
	Gets the preferred width of the overlay.
virtual int	sizeHintHeight () const
	Gets the preferred height of the overlay.
virtual void	setMinimalSizeHint (int width, int height)
	Sets the minimal size of the overlay for a DPI scaling of 1.0.
virtual int	minimalSizeHintWidth () const
	Gets the minimal width of the overlay.
virtual int	minimalSizeHintHeight () const
	Gets the minimal height of the overlay.
void	setAnchorPoint (AnchorPoint anchorPoint)
	Set the anchor point of overlay.
AnchorPoint	anchorPoint () const
	Get the anchor point of overlay.
virtual bool	sceneEvent (QEvent *event)
	Called by the hosting InteractiveView, default implementation forwards it to the set OverlayInteraction.
GUI::EventResult	handleInputEvent (const GUI::InputEvent &event) override
	Calls the base interface's version and then continues propagation to sceneEvent().
Public Member Functions inherited from ImFusion::GUI::ViewOverlay
	ViewOverlay (std::unique_ptr< GlOverlay > glOverlay)
	Instantiate a new ViewOverlay taking ownership of the underlying GlOverlay which must not be null.
virtual void	render ()
	Calls GlOverlay::render() on the underlying glOverlay() using the current viewport() shrinked by margin().
const GlOverlay &	glOverlay () const
	Get a pointer to the underlying overlay.
GlOverlay &	glOverlay ()
	Get a pointer to the underlying overlay.
const GL::Viewport &	viewport ()
	Returns the area where this overlay is rendered.
bool	isVisible () const
	Returns the visibility of this overlay.
virtual void	setVisible (bool value)
	Sets the visibility of this overlay.
const vec2i &	margin () const
	Returns the margin in pixels between the border of the drawing area and the border of the overlay content.
void	setMargin (const vec2i &value)
	Sets the margin in pixels between the border of the drawing area and the border of the overlay content.
vec2i	minimalSizeHint () const
	Returns the underlying GlOverlay's minimal size hint plus the configured margin().
vec2i	sizeHint () const
	Returns the underlying GlOverlay's size hint plus the configured margin().
void	configure (const Properties *p) override
	Configure this object instance by de-serializing the given Properties.
void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.
Public Member Functions inherited from ImFusion::Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept
Public Member Functions inherited from ImFusion::SignalReceiver
	SignalReceiver ()=default
	Default constructor.
	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.
SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Protected Member Functions
void	setOverlay (GlOverlay *overlay, bool ownOverlay)
	Update the internal GlOverlay.
Protected Member Functions inherited from ImFusion::SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.

Protected Attributes
GlOverlay *	m_overlay = nullptr
	Underlying GlOverlay.
std::unique_ptr< OverlayInteraction >	m_interaction
	Interaction class to handle overlay events.
AnchorPoint	m_anchorPoint
	Anchor point within parent view.
bool	m_ownOverlay = true
	Flag whether m_overlay is owned by this instance.
Protected Attributes inherited from ImFusion::GUI::ViewOverlay
std::unique_ptr< GlOverlay >	m_glOverlay
GL::Viewport	m_viewport = {}
vec2i	m_margin = vec2i::Zero()
bool	m_isVisible = true
Protected Attributes inherited from ImFusion::Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Properties
InteractiveOverlay::AnchorPoint	anchorPoint

Additional Inherited Members
Public Attributes inherited from ImFusion::GUI::ViewOverlay
Signal	signalUpdateRequested
	Emitted in order to notify the parent Display that it's contents have changed and need to be re-rendered.
Signal	signalLayoutNeeded
	Emitted whenever the size hints or margin have changed to notify the parent View that it needs to perform overlay layouting.
Public Attributes inherited from ImFusion::Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.

Member Enumeration Documentation

◆ AnchorPoint

enum ImFusion::InteractiveOverlay::AnchorPoint

Anchor point of the overlay in the hosting InteractiveView.

Enumerator
BottomLeft	Bottom left corner.
BottomRight	Bottom right corner.
TopLeft	Top left corner.
TopRight	Top right corner.
Top	Top center.
Bottom	Bottom center.
Left	Left center.
Right	Right center.
Fill	Always fills the complete view.

Constructor & Destructor Documentation

◆ InteractiveOverlay()

ImFusion::InteractiveOverlay::InteractiveOverlay	(	GlOverlay *	overlay,
		AnchorPoint	anchor,
		bool	ownOverlay = true )

Deprecated: "Unclear ownership semantics: use one of the other ctor overloads."

Member Function Documentation

◆ setSizeHint()

virtual void ImFusion::InteractiveOverlay::setSizeHint	(	int	width,
		int	height )

virtual

Sets the preferred size of the overlay for a DPI scaling of 1.0.

The size hint should be the optimal size of the overlay to display all its information. If the overlay does not have a preferred size, the size hint should be set to to the minimalSizeHint.

◆ sizeHintWidth()

virtual int ImFusion::InteractiveOverlay::sizeHintWidth ( ) const

virtual

Gets the preferred width of the overlay.

◆ sizeHintHeight()

virtual int ImFusion::InteractiveOverlay::sizeHintHeight ( ) const

virtual

Gets the preferred height of the overlay.

◆ setMinimalSizeHint()

virtual void ImFusion::InteractiveOverlay::setMinimalSizeHint	(	int	width,
		int	height )

virtual

Sets the minimal size of the overlay for a DPI scaling of 1.0.

The minimal size should reflect the size to display the content in an undistorted way. The actual size of the overlay can still be lower than this, in which case the overlay should scale its content.

◆ minimalSizeHintWidth()

virtual int ImFusion::InteractiveOverlay::minimalSizeHintWidth ( ) const

virtual

Gets the minimal width of the overlay.

◆ minimalSizeHintHeight()

virtual int ImFusion::InteractiveOverlay::minimalSizeHintHeight ( ) const

virtual

Gets the minimal height of the overlay.

◆ setAnchorPoint()

void ImFusion::InteractiveOverlay::setAnchorPoint ( AnchorPoint anchorPoint )

Set the anchor point of overlay.

If several overlays use the same anchor point the will be rendered above/below (depending on Bottom or Top) the previous overlays.

◆ sceneEvent()

virtual bool ImFusion::InteractiveOverlay::sceneEvent ( QEvent * event )

virtual

Called by the hosting InteractiveView, default implementation forwards it to the set OverlayInteraction.

Returns: true if the event has been handled and should no longer be passed to other objects.

◆ handleInputEvent()

GUI::EventResult ImFusion::InteractiveOverlay::handleInputEvent ( const GUI::InputEvent & event )

overridevirtual

Calls the base interface's version and then continues propagation to sceneEvent().

Reimplemented from ImFusion::GUI::ViewOverlay.

The documentation for this class was generated from the following file:

ImFusion/GUI/InteractiveOverlay.h
