#include <ImFusion/GUI/View.h>

Base interface for a rendering view (e.g. More...

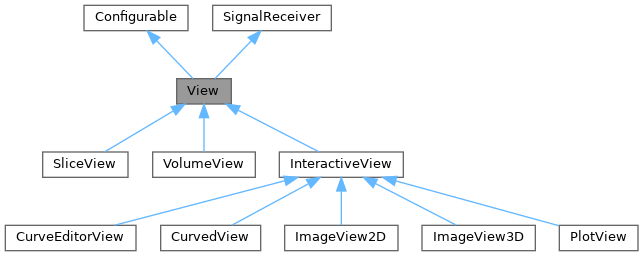

Inheritance diagram for ImFusion::GUI::View:

Detailed Description

Base interface for a rendering view (e.g.

single anatomical plane) that can be hosted inside a Display.

A View takes care of rendering a scene consisting of any number of compatible datasets, scene objects and overlays, and of receiving and dispatching incoming input events to the individual elements. This is achieved by combining the following interfaces:

It wraps one GlView that implements the actual rendering of the datasets using OpenGL.
Any number of ViewObject instances that describe additional objects of the rendered scene. In contrast to the plain GlObject that can be attached directly to the GlView, the ViewObject supports attaching input event handlers so that the user can interact with the scene object.
Any number of ViewOverlay instances that are rendered on top of the scene. They reside in viewport space and are automatically layouted wrt. to their assigned anchor in a fashion that they don't overlap.

The generic interface to display datasets inside a View is setVisibleData(). The default implementation will use the DataDisplayHandler interface to determine if and how dataset can be is visualized in a concrete view type. A DataDisplayHandler will then usually forward to member functions of the concrete GlView or create a suitable GlObject renderer instance and register it with the view.

Usually, the viewport() size of a View is automatically determined by the layouting algorithm of the parent Display from which it also receives the input events. Incoming input events are dispatched in the following logic until one EventResult indicates to stop propagation:

all registered overlays() in reverse order
all registered objects() in reverse order
all registered eventHandlers() in original order

You can optionally define a background color, as well as a rectangular border that should be rendered around the content.

Classes
class	EventHandler
	Interface to be used as base class for event handlers of Views. More...
struct	BorderConfig
	Record for specifying if and how to render a border frame surrounding the view. More...

Public Member Functions
	View (std::unique_ptr< GlView > glView)
	Instantiate a new View using the given GlView as renderer; glView must not be null.
virtual void	render ()
	Will render the view into the viewport() of the current framebuffer by drawing the optional background color, the optional border, the underlying GlView, and finally all overlays().
const GlView &	glView () const
	Returns the underlying GlView.
GlView &	glView ()
	Returns the underlying GlView.
virtual void	setViewport (const GL::Viewport &rect)
	Sets the area where this view is drawn in render() wrt. the attached framebuffer.
const GL::Viewport &	viewport () const
	Returns the area where this view is drawn in render() wrt. the attached framebuffer.
bool	isVisible () const
	Returns whether this view has a non-zero viewport and can therefore be considered visible.
std::optional< vec3 >	backgroundColor () const
	Returns the optional background color used to clear the viewport before rendering anything.
void	setBackgroundColor (std::optional< vec3 > value)
	Sets the optional background color used to clear the viewport before rendering anything.
const BorderConfig &	borderConfig () const
	Returns the BorderConfig struct defining if and how to render a border frame surrounding the view.
virtual void	setBorderConfig (const BorderConfig &value)
	Sets the BorderConfig struct defining if and how to render a border frame surrounding the view.
bool	showsOverlays () const
	Returns the flag whether to show overlays or not.
void	setShowOverlays (bool value)
	Sets the flag whether to show overlays or not.
void	setWatermark (const SharedImage &image)
	Sets a watermark image to be rendered on top of the view.
virtual EventResult	handleInputEvent (const InputEvent &event)
	Called by the parent Display if a user input event has happened on this view.
void	setDataDisplayDispatcher (std::shared_ptr< DataDisplayDispatcher > ddd)
	Sets a common DataDisplayDispatcher so that it can be shared across views.
const DataDisplayDispatcher *	dataDisplayDispatcher () const
	Returns the DataDisplayDispatcher used by this view.
Public Member Functions inherited from ImFusion::Configurable
virtual void	configure (const Properties *p)
	Configure this object instance by de-serializing the given Properties.
virtual void	configuration (Properties *p) const
	Serialize the current object configuration into the given Properties object.
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept
Public Member Functions inherited from ImFusion::SignalReceiver
	SignalReceiver ()=default
	Default constructor.
	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.
SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Public Attributes
Signal	signalUpdateRequested
	Emitted when this view or one of its overlays has become outdated and needs to be re-rendered.
Signal< const DataList &, const DataList & >	signalVisibleDataChanged
	Emitted when visibleData() has changed.
Public Attributes inherited from ImFusion::Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.

Protected Member Functions
virtual EventResult	dispatchToViewOverlays (const InputEvent &event)
	Dispatch event to all known ViewOverlays considering m_mouseEventFocusObject and m_touchEventFocusObject.
virtual EventResult	dispatchToViewObjects (const InputEvent &event)
	Dispatch event to all known ViewObjects considering m_mouseEventFocusObject and m_touchEventFocusObject.
virtual EventResult	dispatchToViewEventHandlers (const InputEvent &event)
	Dispatch event to all known View::EventHandlers considering m_mouseEventFocusObject and m_touchEventFocusObject.
void	updateEventFocus (const InputEvent &event, const void *newTarget)
	Update the internal bookkeeping of "focus" event handlers:
bool	filterEventFocus (const InputEvent &event, const void *target) const
	Checks if the object target should receive the given event based on the event type and current "focus" object.
virtual void	showDataImpl (Data *data)
	Override this function to implement custom logic whenever a dataset is added to the list of visible data.
virtual void	hideDataImpl (const Data *data)
	Override this function to implement custom logic whenever a dataset is removed from the list of visible data.
Protected Member Functions inherited from ImFusion::SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.

Protected Attributes
std::unique_ptr< GlView >	m_glView
std::unique_ptr< ViewOverlayLayouter >	m_overlayLayouter
std::vector< std::unique_ptr< EventHandler > >	m_eventHandlers
std::vector< std::unique_ptr< ViewOverlay > >	m_overlays
std::vector< ViewObject * >	m_objects
DataList	m_visibleData
GL::Viewport	m_viewport
const void *	m_mouseEventFocusObject = nullptr
	Pointer to the event receiver that shall receive MouseEvent::Type::Move events exclusively.
const void *	m_touchEventFocusObject = nullptr
	Pointer to the event receiver that shall receive TouchEvent::Type::Update events exclusively.
Protected Attributes inherited from ImFusion::Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Setting the shown datasets in a generic fashion
virtual bool	acceptsData (const Data *data) const
	Returns whether this view is capable of displaying the given data.
void	setVisibleData (const DataList &data)
	Set the list of datasets that should be shown in this view.
const DataList &	visibleData () const
	Returns the list of currently displayed datasets.
bool	showData (Data *data)
	Appends the given dataset to the list of visible datasets.
void	hideData (const Data *data)
	Removes the given dataset from the list of visible datasets.

Configure the set of input event handlers reacting to user inputs
void	setEventHandlers (std::vector< std::unique_ptr< EventHandler > > eventHandlers)
	Replace all existing EventHandlers with the ones in eventHandlers.
void	addEventHandler (std::unique_ptr< EventHandler > eventHandler, int where=-1)
	Add an EventHandler at the given position (default is at the end).
std::unique_ptr< EventHandler >	removeEventHandler (EventHandler *interaction)
	Delete the given interaction, if it exists. Note: This will make the pointer invalid.
std::vector< EventHandler * >	eventHandlers () const
	Returns all view interactions of this view.
template<typename T>
T *	findEventHandler () const
	Returns the first EventHandler that dynamic_casts to T, or nullptr if no such EventHandler exists.

Configure the set of overlays rendered on top of this view
void	addOverlay (std::unique_ptr< ViewOverlay > overlay, ViewOverlay::Anchor anchor, int position=-1)
	Inserts overlay into the list of overlays of this view at position of the given anchor.
virtual std::unique_ptr< ViewOverlay >	removeOverlay (ViewOverlay *overlay)
	Remove a previously added overlay from this view again.
std::vector< ViewOverlay * >	overlays () const
	Returns all InteractiveOverlays of this view.
void	setOverlayAnchor (ViewOverlay *overlay, ViewOverlay::Anchor anchor)
	Set the anchor point to use for the given overlay.
void	setOverlayLayoutDirection (ViewOverlay::Anchor anchor, ViewOverlay::LayoutDirection direction)
	Sets in which direction multiple overlays at one anchor are laid out.

Configure the set of interactive scene objects
virtual void	addObject (ViewObject *object)
	Will add the underlying GlObject to the GlView and register the event handler.
virtual void	removeObject (const ViewObject *object)
	Remove the given ViewObject from this view unregistering both the GlObject renderer and the event handler.
std::vector< ViewObject * >	objects () const
	Returns all currently registered ViewObjects of this view.

Original access API for compatibility with derived class InteractiveView
const GlView *	view () const
GlView *	view ()
	Return associated GlView object.

Member Function Documentation

◆ acceptsData()

virtual bool ImFusion::GUI::View::acceptsData ( const Data * data ) const

virtual

Returns whether this view is capable of displaying the given data.

The default implementation checks whether there is any registered DataDisplayHandler that accepts this data for this type of view.

See also: setVisibleData(), showData()

Reimplemented in ImFusion::CurveEditorView, and ImFusion::PlotView.

◆ setVisibleData()

void ImFusion::GUI::View::setVisibleData ( const DataList & data )

Set the list of datasets that should be shown in this view.

The default implementation relies on DataDisplayHandler interface to determine if and how a Data instance is visualized in this view. It is not an error if a particular Data type is not visualizable (i.e. acceptsData() returns false), however it will be silently dropped and not be part of visibleData() afterwards. If the new visible data is different from the current visibleData() signalVisibleDataChanged is emitted.

See also: visibleData(), showData(), hideData()

◆ visibleData()

const DataList & ImFusion::GUI::View::visibleData ( ) const

Returns the list of currently displayed datasets.

See also: setVisibleData(), showData(), hideData()

◆ showData()

bool ImFusion::GUI::View::showData ( Data * data )

Appends the given dataset to the list of visible datasets.

See also: setVisibleData(), hideData()

◆ hideData()

void ImFusion::GUI::View::hideData ( const Data * data )

Removes the given dataset from the list of visible datasets.

See also: setVisibleData(), showData()

◆ addEventHandler()

void ImFusion::GUI::View::addEventHandler	(	std::unique_ptr< EventHandler >	eventHandler,
		int	where = -1 )

Add an EventHandler at the given position (default is at the end).

Note that events will be forwarded to the view interactions in the given order, and the first one accepting it will consume it. Thus, subsequent interactions will not receive events already taken care of.

◆ addOverlay()

void ImFusion::GUI::View::addOverlay	(	std::unique_ptr< ViewOverlay >	overlay,
		ViewOverlay::Anchor	anchor,
		int	position = -1 )

Inserts overlay into the list of overlays of this view at position of the given anchor.

A negative position indicates to insert it at the end of the list.

◆ removeOverlay()

virtual std::unique_ptr< ViewOverlay > ImFusion::GUI::View::removeOverlay ( ViewOverlay * overlay )

virtual

Remove a previously added overlay from this view again.

Reimplemented in ImFusion::InteractiveView.

◆ addObject()

virtual void ImFusion::GUI::View::addObject ( ViewObject * object )

virtual

Will add the underlying GlObject to the GlView and register the event handler.

This function is in the GUI layer and registers a GUI::ViewObject (combining a GlObject renderer with event handling logic) with a GUI::View (hosting a GlView for rendering and dispatching input events). There is a similar function GlView::addObject() in the GL layer that you can use in case you have a plain/unwrapped GlObject without event handling.

See also: removeObject(), objects()

Reimplemented in ImFusion::InteractiveView.

◆ removeObject()

virtual void ImFusion::GUI::View::removeObject ( const ViewObject * object )

virtual

Remove the given ViewObject from this view unregistering both the GlObject renderer and the event handler.

Note: object must have been added previously via View::addObject() and not via GlView::addObject().

See also: addObject(), objects()

Reimplemented in ImFusion::InteractiveView.

◆ objects()

std::vector< ViewObject * > ImFusion::GUI::View::objects ( ) const

Returns all currently registered ViewObjects of this view.

See also: addObject(), removeObject()

◆ render()

virtual void ImFusion::GUI::View::render ( )

virtual

Will render the view into the viewport() of the current framebuffer by drawing the optional background color, the optional border, the underlying GlView, and finally all overlays().

Reimplemented in ImFusion::ImageView2D.

◆ view()

const GlView * ImFusion::GUI::View::view ( ) const

inline

Return associated GlView object

◆ setViewport()

virtual void ImFusion::GUI::View::setViewport ( const GL::Viewport & rect )

virtual

Sets the area where this view is drawn in render() wrt. the attached framebuffer.

Reimplemented in ImFusion::GUI::SliceView, and ImFusion::InteractiveView.

◆ setBorderConfig()

virtual void ImFusion::GUI::View::setBorderConfig ( const BorderConfig & value )

virtual

Sets the BorderConfig struct defining if and how to render a border frame surrounding the view.

Reimplemented in ImFusion::GUI::SliceView.

◆ handleInputEvent()

virtual EventResult ImFusion::GUI::View::handleInputEvent ( const InputEvent & event )

virtual

Called by the parent Display if a user input event has happened on this view.

The default implementation will forward the event to the sub-objects in the following order:

ViewOverlays, see dispatchToViewOverlays()
ViewObjects, see dispatchToViewObjects()
EventHandlers, see dispatchToViewEventHandlers()

◆ setDataDisplayDispatcher()

void ImFusion::GUI::View::setDataDisplayDispatcher ( std::shared_ptr< DataDisplayDispatcher > ddd )

Sets a common DataDisplayDispatcher so that it can be shared across views.

Note: Normally, you do not need to call this function manually because Display::addView() will do it for you.

◆ dispatchToViewOverlays()

virtual EventResult ImFusion::GUI::View::dispatchToViewOverlays ( const InputEvent & event )

protectedvirtual

Dispatch event to all known ViewOverlays considering m_mouseEventFocusObject and m_touchEventFocusObject.

Reimplemented in ImFusion::InteractiveView.

◆ dispatchToViewObjects()

virtual EventResult ImFusion::GUI::View::dispatchToViewObjects ( const InputEvent & event )

protectedvirtual

Dispatch event to all known ViewObjects considering m_mouseEventFocusObject and m_touchEventFocusObject.

Reimplemented in ImFusion::InteractiveView.

◆ dispatchToViewEventHandlers()

virtual EventResult ImFusion::GUI::View::dispatchToViewEventHandlers ( const InputEvent & event )

protectedvirtual

Dispatch event to all known View::EventHandlers considering m_mouseEventFocusObject and m_touchEventFocusObject.

Reimplemented in ImFusion::InteractiveView.

◆ updateEventFocus()

void ImFusion::GUI::View::updateEventFocus	(	const InputEvent &	event,
		const void *	newTarget )

protected

Update the internal bookkeeping of "focus" event handlers:

If event is a mouse press event, m_mouseEventFocusObject is set to newTarget.
If event is a mouse release event, m_mouseEventFocusObject is set to nullptr.
If event is a touch begin event, m_touchEventFocusObject is set to newTarget.
If event is a touch end event, m_touchEventFocusObject is set to nullptr.
See also
filterEventFocus()

◆ filterEventFocus()

bool ImFusion::GUI::View::filterEventFocus	(	const InputEvent &	event,
		const void *	target ) const

protected

Checks if the object target should receive the given event based on the event type and current "focus" object.

Returns true if current focus object is nullptr or matches target.
Returns true if event is not a mouse-move or touch-update event.
Returns false if event is a mouse-move or touch-update event and target does not match the current focus object.
See also
updateEventFocus()

◆ showDataImpl()

virtual void ImFusion::GUI::View::showDataImpl ( Data * data )

protectedvirtual

Override this function to implement custom logic whenever a dataset is added to the list of visible data.

The default implementation will call DataDisplayDispatcher::show() and add data to m_visibleData.

Reimplemented in ImFusion::GUI::SliceView, and ImFusion::ImageView2D.

◆ hideDataImpl()

virtual void ImFusion::GUI::View::hideDataImpl ( const Data * data )

protectedvirtual

Override this function to implement custom logic whenever a dataset is removed from the list of visible data.

The default implementation will call DataDisplayDispatcher::hide() and remove data to m_visibleData.

Reimplemented in ImFusion::ImageView2D.

Member Data Documentation

◆ m_mouseEventFocusObject

const void* ImFusion::GUI::View::m_mouseEventFocusObject = nullptr

protected

Pointer to the event receiver that shall receive MouseEvent::Type::Move events exclusively.

The default implementation will set this to any object/overlay/interaction that handles (EventResult::stopPropagation == true) a MouseButtonPress event. The default implementation will reset this to nullptr on any MouseEvent::Type::Release event.

◆ m_touchEventFocusObject

const void* ImFusion::GUI::View::m_touchEventFocusObject = nullptr

protected

Pointer to the event receiver that shall receive TouchEvent::Type::Update events exclusively.

The default implementation will set this to any object/overlay/interaction that handles (EventResult::stopPropagation == true) a TouchBegin event. The default implementation will reset this to nullptr on any TouchEvent::Type::End or TouchEvent::Type::Cancel event.

The documentation for this class was generated from the following file:

ImFusion/GUI/View.h

Detailed Description

Classes

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Setting the shown datasets in a generic fashion

Configure the set of input event handlers reacting to user inputs

Configure the set of overlays rendered on top of this view

Configure the set of interactive scene objects

Original access API for compatibility with derived class InteractiveView

Member Function Documentation

◆ acceptsData()

◆ setVisibleData()

◆ visibleData()

◆ showData()

◆ hideData()

◆ addEventHandler()

◆ addOverlay()

◆ removeOverlay()

◆ addObject()

◆ removeObject()

◆ objects()

◆ render()

◆ view()

◆ setViewport()

◆ setBorderConfig()

◆ handleInputEvent()

◆ setDataDisplayDispatcher()

◆ dispatchToViewOverlays()

◆ dispatchToViewObjects()

◆ dispatchToViewEventHandlers()

◆ updateEventFocus()

◆ filterEventFocus()

◆ showDataImpl()

◆ hideDataImpl()

Member Data Documentation

◆ m_mouseEventFocusObject

◆ m_touchEventFocusObject
