Data Class Reference

#include <ImFusion/Base/Data.h>

Virtual base class for representing data from which all concrete data class such as images need to derive. More...

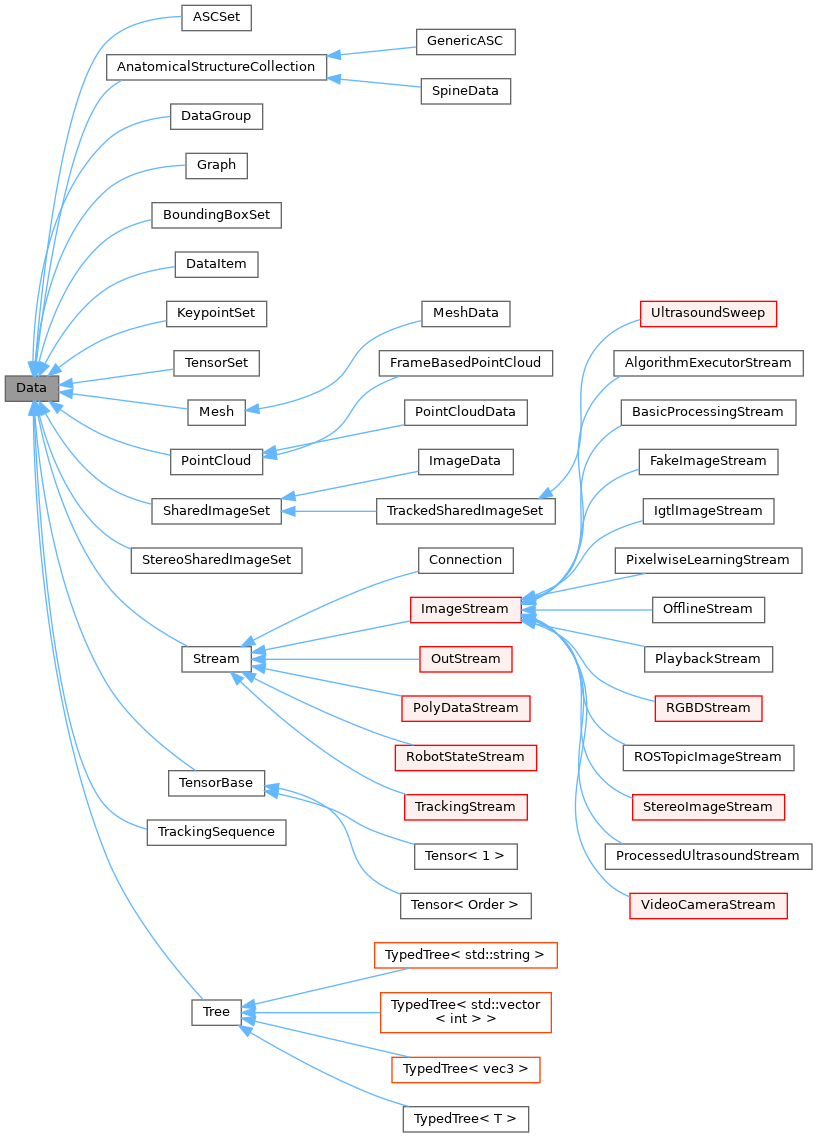

Inheritance diagram for Data:

Detailed Description

Virtual base class for representing data from which all concrete data class such as images need to derive.

Public Types
enum	Kind {   UNKNOWN = 0 , IMAGE = 1 , VOLUME = 2 , IMAGESET = 3 ,   VOLUMESET = 4 , IMAGESTREAM = 5 , VOLUMESTREAM = 6 , POINTSET = 7 ,   SURFACE = 8 , TRACKINGSTREAM = 9 , LIVETRACKINGSTREAM = TRACKINGSTREAM , TRACKINGDATA = 10 ,   TREE = 11 , TENSOR = 12 , POLYDATASTREAM = 13 , STEREOIMAGESET = 14 ,   STEREOIMAGESTREAM = 15 , VOLUMETRICMESH = 16 }
	Kind of data. More...
enum	Modality {   NA = 0 , XRAY = 1 , CT = 2 , MRI = 3 ,   ULTRASOUND = 4 , VIDEO = 5 , NM = 6 , OCT = 7 ,   LABEL = 8 , DISTANCE = 9 }
	Image modality of the data. More...

Public Member Functions
	Data (const std::string &name="")
	Data (const Data &other)
Data &	operator= (const Data &other)
virtual	~Data ()
	Mandatory virtual destructor.
virtual Kind	kind () const =0
	Return the kind of this data.
virtual Modality	modality () const
	Return the modality of this data.
const std::string &	name () const
	Return the name of this data.
void	setName (const std::string &name)
	Sets the name of this data.
virtual bool	isAnnotationType () const
	Return whether this data type is visualized through an annotation (e.g. mesh)
virtual Geometry::AlignedBox	bounds () const =0
	Returns the axis-aligned bounding box of this data in world space.
const DataComponentList &	components () const
	Returns the list of DataComponents for this data.
DataComponentList &	components ()
virtual std::string	describe () const
	Human readable description of the data for showing in the info bar.

Static Public Member Functions
static std::string	modalityString (Data::Modality m)
	Return the name of an image modality.
static Data::Modality	stringToModality (const std::string &s)
	Returns the modality corresponding to a modality string or NA if nothing matches.

Public Attributes
Signal< const Data * >	signalDeleted
	Signal emitted when this instance is deleted.
Signal< const Data * >	signalMatrixChanged
	Signal emitted when the transformation of this Data has changed.
Signal< std::string >	signalNameChanged
	Signal emitted when the name changed.

Protected Member Functions
void	swapWith (Data &other)
	Swaps the data and emits a matrix and name changed signal for both.

Protected Attributes
mat4	m_matrix
	Transformation matrix.
std::recursive_mutex *	m_matrixMutex
	Used to internally synchronize access to the matrix of data.
DataComponentList	m_dataComponentList
	The list of DataComponents for this data.

Image matrix access
virtual Pose::TransformationConvention	matrixConvention () const =0
	Defines whether the internally stored matrices in derived classes map from or to the world coordinate system.
virtual void	setMatrixFromWorld (const mat4 &m)
	Set matrix mapping from the world coordinate system to the data coordinate system.
virtual void	setMatrixToWorld (const mat4 &m)
	Set matrix mapping from the data coordinate system to the world coordinate system.
virtual mat4	matrixFromWorld () const
	Get matrix mapping from the world coordinate system to the data coordinate system.
virtual mat4	matrixToWorld () const
	Get matrix mapping from the data coordinate system to the world coordinate system.
virtual mat4	matrix () const
	Return the transformation matrix.
virtual void	setMatrix (const mat4 &m)
	Set the transformation matrix.

Member Enumeration Documentation

Kind

enum Kind

Kind of data.

Enumerator
UNKNOWN	Unknown or unspecified.
IMAGE	2D image
VOLUME	3D volume
IMAGESET	Set of 2D images.
VOLUMESET	Set of 3D volumes, i.e. 3D+t or 4D data.
IMAGESTREAM	Stream of 2D images.
VOLUMESTREAM	Stream of 3D volumes.
POINTSET	Set of points.
SURFACE	Surface / mesh data.
TRACKINGSTREAM	Stream of tracking data.
TRACKINGDATA	Instance of TrackingSequence class.
TREE	Instance of Tree class.
TENSOR	An arbitrary-dimensional array of floating point data.
POLYDATASTREAM	Stream of point clouds or meshes.
STEREOIMAGESET	Set of paired stereo images.
STEREOIMAGESTREAM	Stream of paired stereo images.
VOLUMETRICMESH	Volumetric unstructured grid / tetrahedral mesh.

Modality

enum Modality

Image modality of the data.

Enumerator
NA	Not applicable.
XRAY	2D X-Ray based data
CT	X-Ray Computed Tomography.
MRI	Magnetic Resonance Imaging (MRI)
ULTRASOUND	Ultrasound image data.
VIDEO	Video / optical image data.
NM	Nuclear Medicine (SPECT or PET)
OCT	Optical Coherence Tomography.
LABEL	Labeling data/label map.
DISTANCE	Distance map.

Member Function Documentation

kind()

virtual Kind kind ( ) const

pure virtual

Return the kind of this data.

Implemented in ASCSet, DataGroup, GenericASC, Graph, Connection, IgtlTrackingOutStream, IgtlTrackingStream, ImageOutStream, ImageStream, Mesh, BoundingBoxSet, DataItem, KeypointSet, TensorSet, PlaybackTrackingStream, PointCloud, PolyDataOutStream, PolyDataStream, FrankaControlStream, RobotStateStream, RobotTrackingStream, ROSTfTrackingStream, ROSTopicImageOutStream, ROSTopicTrackingOutStream, ROSTopicTrackingStream, SharedImageSet, SpineData, StereoSharedImageSet, TensorBase, TrackingOutStream, TrackingSequence, TrackingStream, and Tree.

modality()

virtual Modality modality ( ) const

virtual

Return the modality of this data.

The default implementation will always return NA, sub classes may override this method.

Reimplemented in Graph, ImageStream, RobotStateStream, SharedImageSet, and UltrasoundSweep.

setName()

void setName

(

const std::string &

name

)

Sets the name of this data.

Be aware that if the Data is part of a DataModel, the name might change to something else if it is not unique (usually a number is appended).

matrixConvention()

virtual Pose::TransformationConvention matrixConvention ( ) const

pure virtual

Defines whether the internally stored matrices in derived classes map from or to the world coordinate system.

Changes the behavior of the default implementations of matrixToWorld and matrixFromWorld.

Implemented in AnatomicalStructureCollection, ASCSet, DataGroup, Graph, Mesh, BoundingBoxSet, DataItem, KeypointSet, TensorSet, PointCloud, RobotTrackingStream, ROSTfTrackingStream, ROSTopicImageOutStream, ROSTopicImageStream, ROSTopicRGBDStream, ROSTopicTrackingOutStream, ROSTopicTrackingStream, SharedImageSet, StereoSharedImageSet, Stream, TensorBase, TrackedSharedImageSet, TrackingSequence, and Tree.

setMatrixFromWorld()

virtual void setMatrixFromWorld ( const mat4 & m )

virtual

Set matrix mapping from the world coordinate system to the data coordinate system.

Note

Depending on how matrices are internally stored in concrete derived classes, m might be inverted before it is saved. The default implementation checks matrixConvention and accordingly calls setMatrix with either m or its inverse.

Reimplemented in SharedImageSet.

setMatrixToWorld()

virtual void setMatrixToWorld ( const mat4 & m )

virtual

Set matrix mapping from the data coordinate system to the world coordinate system.

Note

Depending on how matrices are internally stored in concrete derived classes, m might be inverted before it is saved. The default implementation checks matrixConvention and accordingly calls setMatrix with either m or its inverse.

Reimplemented in SharedImageSet, and SpineData.

matrixFromWorld()

virtual mat4 matrixFromWorld ( ) const

virtual

Get matrix mapping from the world coordinate system to the data coordinate system.

Inverse of matrixToWorld.

Note

Depending on how matrices are internally stored in concrete derived classes, a matrix inversion might be necessary to obtain this mapping. The default implementation checks matrixConvention and accordingly returns matrix or its inverse.

Reimplemented in SharedImageSet.

matrixToWorld()

virtual mat4 matrixToWorld ( ) const

virtual

Get matrix mapping from the data coordinate system to the world coordinate system.

Inverse of matrixFromWorld.

Note

Depending on how matrices are internally stored in concrete derived classes, a matrix inversion might be necessary to obtain this mapping. The default implementation checks matrixConvention and accordingly returns matrix or its inverse.

Reimplemented in AnatomicalStructureCollection, SharedImageSet, and SpineData.

matrix()

virtual mat4 matrix ( ) const

virtual

Return the transformation matrix.

Note

Depending on the concrete derived class implementation, this transformation might be mapping either to or from the world coordinate system. Only use if convention is explicitly known. Use methods matrixToWorld or matrixFromWorld to avoid inconsistencies. The default implementation returns m_matrix.

Reimplemented in RGBDPlayback, SharedImageSet, TrackedSharedImageSet, and TrackingSequence.

setMatrix()

virtual void setMatrix ( const mat4 & m )

virtual

Set the transformation matrix.

Note

The matrix convention expected for m depends on the concrete derived class implementation, with either a matrix mapping to or from the world coordinate system being expected. Only use if convention is explicitly known. Use methods setMatrixFromWorld or setMatrixToWorld to avoid inconsistencies. The default implementation sets m_matrix.

Reimplemented in DataGroup, GenericASC, Mesh, DataItem, PointCloud, RGBDPlayback, SharedImageSet, SpineData, TrackedSharedImageSet, and TrackingSequence.

isAnnotationType()

virtual bool isAnnotationType ( ) const

virtual

Return whether this data type is visualized through an annotation (e.g. mesh)

Reimplemented in Mesh, PointCloud, TrackingSequence, and Tree.

bounds()

virtual Geometry::AlignedBox bounds ( ) const

pure virtual

Returns the axis-aligned bounding box of this data in world space.

Warning

Depending on the underlying data type this calling function may be computationally expensive! Do not call this method more often than needed, unless it is known that the caching behavior is implemented.

Implemented in AnatomicalStructureCollection, ASCSet, DataGroup, GenericASC, Graph, Mesh, BoundingBoxSet, DataItem, KeypointSet, TensorSet, PointCloud, SharedImageSet, SpineData, StereoSharedImageSet, Stream, TensorBase, TrackedSharedImageSet, TrackingSequence, Tree, and UltrasoundSweep.

describe()

virtual std::string describe ( ) const

inlinevirtual

Human readable description of the data for showing in the info bar.

Reimplemented in ASCSet, GenericASC, ImageStream, BoundingBoxSet, DataItem, KeypointSet, TensorSet, RemoteVideoStream, RGBDPlayback, SharedImageSet, SpineData, StereoImageStream, StereoSharedImageSet, Stream, Tensor< Order >, Tensor< 1 >, TrackingSequence, TrackingStream, VideoCameraStream, and VideoFileStream.

Member Data Documentation

signalDeleted

Signal<const Data*> signalDeleted

Signal emitted when this instance is deleted.

Note

This method is called from a Data instance in the destructor of the very base class, therefore no type information for dynamic casts or other class attributes are available anymore.

Warning

Use with caution, only pointer comparison is allowed!

m_matrix

mat4 m_matrix

protected

Transformation matrix.

Derived class responsible for defining convention (mapping from or to world coordinate system), see matrix. Derived classes must lock matrix mutex before accessing the matrix.

---

The documentation for this class was generated from the following file:

• ImFusion/Base/Data.h
