#include <ImFusion/Stream/VideoCameraStream.h>
Interface for video streams from cameras Derived classes must override setFormat and setDeviceByIndex (and call the base class versions from there), as well as enumerateDevices. More...

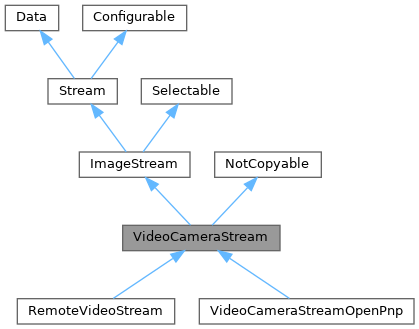

Inheritance diagram for VideoCameraStream:Interface for video streams from cameras Derived classes must override setFormat and setDeviceByIndex (and call the base class versions from there), as well as enumerateDevices.
Classes | |
| struct | VideoCameraDeviceInfo |
| struct | VideoStreamFrameFormat |
Public Member Functions | |
| VideoCameraStream (const std::string &name) | |
| const VideoCameraDeviceInfo & | deviceInfo () const |
| Currently selected device, will be empty if no device has been set. | |
| virtual bool | setFormat (size_t idx) |
| Set capture mode as index in deviceInfo().supportedFormats. | |
| const VideoStreamFrameFormat & | format () const |
| Currently selected format, will use default values if no format has been set. | |
| std::string | describe () const override |
| Human readable description of the stream type. | |
| bool | reset () final |
| Returns false, because rewinding a live stream just does not make sense. | |
| std::string | uuid () override |
| Returns the memory address of this object as unique identifier. | |
| double | fps () const |
| virtual Properties | tryApplySettings (const Properties *p) |
| Takes the given Properties and tries to apply them if it is possible without restarting the stream. | |
| virtual Properties | forceApplySettings (const Properties *p) |
| Takes the given Properties and applies them, even if it means restarting the stream. | |
| template<typename T> | |
| std::enable_if_t< std::is_base_of_v< VideoStreamSettings::VideoStreamSettingsBase, T >, T > * | settings () |
| Gets an accessor for a camera setting. | |
| Public Member Functions inherited from ImageStream | |
| ImageStream (const std::string &name="") | |
| Data::Kind | kind () const override final |
| Returns the kind (typically IMAGESTREAM or VOLUMESTREAM) | |
| void | setModality (Modality m) |
| Set the modality descriptor of this stream. | |
| Modality | modality () const override final |
| Return the modality of this stream. | |
| virtual bool | topDown () const |
| Specify whether the first line of the image data is to be displayed on top. | |
| int | size () const override |
| Returns the number of images of the image stream per emission. | |
| Public Member Functions inherited from Stream | |
| Stream (const std::string &name="") | |
Constructor with the name for this stream. | |
| virtual ThreadingMode | threadingMode () const |
| Configures threading mode of stream. | |
| virtual bool | supportsAsyncOperation () |
| Returns true if xxxAsync() methods support execution in a background thread. | |
| std::shared_future< bool > | openAsync () |
| Open stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful. | |
| std::shared_future< bool > | closeAsync () |
| Close stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful. | |
| std::shared_future< bool > | startAsync () |
| Start stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful. | |
| std::shared_future< bool > | stopAsync () |
| Stop stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful. | |
| std::shared_future< bool > | pauseAsync () |
| Pause stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful. | |
| std::shared_future< bool > | resumeAsync () |
| Resume stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful. | |
| bool | open () |
| Open stream and wait for the operation to complete. Returns whether the operation was successful. | |
| bool | close () |
| Close stream and wait for the operation to complete. Returns whether the operation was successful. | |
| bool | start () |
| Start stream and wait for the operation to complete. Returns whether the operation was successful. | |
| bool | stop () |
| Stop stream and wait for the operation to complete. Returns whether the operation was successful. | |
| bool | pause () |
| Pause stream and wait for the operation to complete. Returns whether the operation was successful. | |
| bool | resume () |
| Resume stream and wait for the operation to complete. Returns whether the operation was successful. | |
| virtual bool | supportsPausing () const |
| Override and return true if this stream implements the pausing and resume operations. | |
| bool | restart () |
| Stops, closes, opens and starts the stream. Returns whether the operation was successful. | |
| virtual bool | isRunning () const |
| Return whether stream is currently running. | |
| State | currentState () const |
| bool | isStateOneOf (const std::vector< State > &states) const |
| Geometry::AlignedBox | bounds () const override |
| Per default a Stream has empty/invalid bounds. | |
| Pose::TransformationConvention | matrixConvention () const override |
| Matrices of streams by default map to the world coordinate system. | |
| virtual bool | createDefaultStreamController () |
| Indicates whether a StreamController should be created for the stream (by default returns true). | |
| double | updateRate () const |
Average update rate in Hz of the signalStreamData. | |
| Public Member Functions inherited from Data | |
| Data (const std::string &name="") | |
| Data (const Data &other) | |
| Data & | operator= (const Data &other) |
| virtual | ~Data () |
| Mandatory virtual destructor. | |
| const std::string & | name () const |
| Return the name of this data. | |
| void | setName (const std::string &name) |
| Sets the name of this data. | |
| virtual bool | isAnnotationType () const |
| Return whether this data type is visualized through an annotation (e.g. mesh) | |
| const DataComponentList & | components () const |
| Returns the list of DataComponents for this data. | |
| DataComponentList & | components () |
| virtual void | setMatrixFromWorld (const mat4 &m) |
| Set matrix mapping from the world coordinate system to the data coordinate system. | |
| virtual void | setMatrixToWorld (const mat4 &m) |
| Set matrix mapping from the data coordinate system to the world coordinate system. | |
| virtual mat4 | matrixFromWorld () const |
| Get matrix mapping from the world coordinate system to the data coordinate system. | |
| virtual mat4 | matrixToWorld () const |
| Get matrix mapping from the data coordinate system to the world coordinate system. | |
| virtual mat4 | matrix () const |
| Return the transformation matrix. | |
| virtual void | setMatrix (const mat4 &m) |
| Set the transformation matrix. | |
| Public Member Functions inherited from Configurable | |
| virtual void | configure (const Properties *p) |
| Configure this object instance by de-serializing the given Properties. | |
| virtual void | configuration (Properties *p) const |
| Serialize the current object configuration into the given Properties object. | |
| virtual void | configureDefaults () |
| Retrieve the properties of this object, replaces values with their defaults and sets it again. | |
| void | registerParameter (ParameterBase *param) |
| Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration(). | |
| void | unregisterParameter (const ParameterBase *param) |
| Remove the given Parameter or SubProperty from the list of registered parameters. | |
| Configurable (const Configurable &rhs) | |
| Configurable (Configurable &&rhs) noexcept | |
| Configurable & | operator= (const Configurable &) |
| Configurable & | operator= (Configurable &&) noexcept |
| Public Member Functions inherited from Selectable | |
| Selectable (const Selectable &) | |
| Selectable (Selectable &&) | |
| Selectable & | operator= (const Selectable &) |
| Selectable & | operator= (Selectable &&) |
| virtual Selection | selection () const |
| virtual int | focus () const |
| virtual void | setSelection (const Selection &sel) |
| Set the underlying selection. | |
| virtual void | setFocus (int index) |
| Set focus of the selection. | |
Static Public Member Functions | |
| static std::vector< VideoCameraDeviceInfo > | enumerateDevices () |
| Lists all currently connected compatible cameras. | |
| Static Public Member Functions inherited from Stream | |
| static std::string | stateToString (State state) |
| Static Public Member Functions inherited from Data | |
| static std::string | modalityString (Data::Modality m) |
| Return the name of an image modality. | |
| static Data::Modality | stringToModality (const std::string &s) |
| Returns the modality corresponding to a modality string or NA if nothing matches. | |
Protected Member Functions | |
| virtual std::any | getSettings (const std::string &name) |
| Protected Member Functions inherited from ImageStream | |
| void | setKind (Kind k) |
| Sets the kind (typically IMAGESTREAM or VOLUMESTREAM) and emits signalKindChanged. | |
| bool | workerThreadRequiresOpenGl () const override |
| Ensure the thread has an GL context before the main loop starts. | |
| Protected Member Functions inherited from Stream | |
| virtual bool | openImpl ()=0 |
| Open stream. | |
| virtual bool | closeImpl ()=0 |
| Close stream. | |
| virtual bool | startImpl ()=0 |
| Start stream. | |
| virtual bool | stopImpl ()=0 |
| Stop stream. | |
| virtual bool | pauseImpl () |
| Pause stream (not required to be supported). | |
| virtual bool | resumeImpl () |
| Resume stream from pause (only required to be supported when pauseImpl() is supported). | |
| virtual std::optional< WorkContinuation > | doWork ()=0 |
| Create one StreamData and publish it (this function will be called at the desired frame rate) If this is not desired, you can do the following: return std::nullopt;. | |
| virtual bool | worksWhilePaused () const |
| Override if doWork() should be called also in the Paused state. | |
| void | changeState (State newState) |
| std::shared_future< bool > | attemptStateChange (std::function< bool()> work, State stateWorking, State stateSuccess, State stateError) |
| Protected Member Functions inherited from Data | |
| void | swapWith (Data &other) |
| Swaps the data and emits a matrix and name changed signal for both. | |
| Protected Member Functions inherited from NotCopyable | |
| NotCopyable (NotCopyable &&) noexcept=default | |
| NotCopyable & | operator= (NotCopyable &&) noexcept=default |
| NotCopyable (const NotCopyable &)=delete | |
| NotCopyable & | operator= (const NotCopyable &)=delete |
Protected Attributes | |
| VideoCameraDeviceInfo | m_device |
| VideoStreamFrameFormat | m_format |
| StreamFps | m_actualFPS |
| Protected Attributes inherited from Data | |
| mat4 | m_matrix |
| Transformation matrix. | |
| std::recursive_mutex * | m_matrixMutex |
| Used to internally synchronize access to the matrix of data. | |
| DataComponentList | m_dataComponentList |
| The list of DataComponents for this data. | |
| Protected Attributes inherited from Configurable | |
| std::vector< Param > | m_params |
| List of all registered Parameter and SubProperty instances. | |
| Protected Attributes inherited from Selectable | |
| std::mutex | m_selectionMutex |
| Mutex protecting the selection. | |
| Selection | m_sel |
Additional Inherited Members | |
| Public Types inherited from Stream | |
| enum class | ThreadingMode { BaseClassRunsWorkerThread , DerivedClassHandlesThreading } |
| This flag represents the two supported threading modes of a Stream. More... | |
| enum class | State { Closed , Opening , Open , Starting , Running , Pausing , Paused , Resuming , Stopping , Closing } |
| Public Types inherited from Data | |
| enum | Kind { UNKNOWN = 0 , IMAGE = 1 , VOLUME = 2 , IMAGESET = 3 , VOLUMESET = 4 , IMAGESTREAM = 5 , VOLUMESTREAM = 6 , POINTSET = 7 , SURFACE = 8 , TRACKINGSTREAM = 9 , LIVETRACKINGSTREAM = TRACKINGSTREAM , TRACKINGDATA = 10 , TREE = 11 , TENSOR = 12 , POLYDATASTREAM = 13 , STEREOIMAGESET = 14 , STEREOIMAGESTREAM = 15 , VOLUMETRICMESH = 16 } |
| Kind of data. More... | |
| enum | Modality { NA = 0 , XRAY = 1 , CT = 2 , MRI = 3 , ULTRASOUND = 4 , VIDEO = 5 , NM = 6 , OCT = 7 , LABEL = 8 , DISTANCE = 9 } |
| Image modality of the data. More... | |
| Public Attributes inherited from ImageStream | |
| Signal< Data::Kind > | signalKindChanged |
| Is emitted when the stream changes between IMAGESTREAM and VOLUMESTREAM, before the next ImageStreamData is emitted. | |
| Public Attributes inherited from Stream | |
| ProtectedSignal< StateChange > | signalStateChanged |
| Emitted after a state change has been completed with the old and new state. | |
| ProtectedSignal | signalEnded |
| Indicates that the stream reached the end of its data, e.g. when a video stream has played to the end. | |
| ProtectedSignal< std::shared_ptr< const StreamData > > | signalStreamData |
| Signal that is emitted by the stream when a new StreamData is available. | |
| DeprecatedSignal< ProtectedSignal< std::shared_ptr< const StreamData > >, const StreamData & > | signalNewData |
| Signal that is emitted by the stream when a new StreamData is available. | |
| Public Attributes inherited from Data | |
| Signal< const Data * > | signalDeleted |
| Signal emitted when this instance is deleted. | |
| Signal< const Data * > | signalMatrixChanged |
| Signal emitted when the transformation of this Data has changed. | |
| Signal< std::string > | signalNameChanged |
| Signal emitted when the name changed. | |
| Public Attributes inherited from Configurable | |
| Signal | signalParametersChanged |
Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted. | |
| Public Attributes inherited from Selectable | |
| ProtectedSignal | signalSelectionChanged |
| Signals that the selection or size might have changed. | |
|
virtual |
Set capture mode as index in deviceInfo().supportedFormats.
Reimplemented in VideoCameraStreamOpenPnp.
|
overridevirtual |
Human readable description of the stream type.
Reimplemented from ImageStream.
|
inlinefinalvirtual |
Returns false, because rewinding a live stream just does not make sense.
Reimplemented from Stream.
|
overridevirtual |
Returns the memory address of this object as unique identifier.
Implements Stream.
|
inlinevirtual |
Takes the given Properties and tries to apply them if it is possible without restarting the stream.
This method is meant to work in connection with a VideoCamerStreamPropertiesInspectorController, which will try to call it when the user changed any setting. It is given as a complement to forceApplySettings(const Properties* p), which will force all options to be applied.
Reimplemented in RemoteVideoStream.
|
inlinevirtual |
Takes the given Properties and applies them, even if it means restarting the stream.
This method is meant to work in connection with a VideoCamerStreamPropertiesInspectorController, which will try to call it when the user pressed the "apply" button. It is given as a complement to tryApplySettings(const Properties* p), which may opt to only apply those options which can be set immediately without restarting the stream, to apply all settings which do need a stream restart to take effect.
Reimplemented in RemoteVideoStream.
|
inline |
Gets an accessor for a camera setting.
This method allows accessing the settings defined in VideoStreamSettings.h with their specified interface. Internally it calls getSettings(), which implementers of concrete VideoCameraStreams must implement, and casts the returned value to the requested type.
\typeparam T The type of setting requested, must be derived from VideoStreamSettingsBase
