#include <ImFusion/Stream/VideoCameraStreamOpenPnp.h>
Stream for videos This is supposed to be created by the corresponding IO algorithm. More...

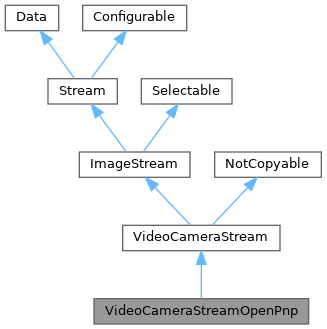

Inheritance diagram for VideoCameraStreamOpenPnp:Stream for videos This is supposed to be created by the corresponding IO algorithm.
It will NOT create a listener for the stream. Note that this spawns a new CPU thread for grabbing images from the video.
Public Member Functions | |
| VideoCameraStreamOpenPnp (const std::string &uuid) | |
| bool | setFormat (size_t idx) override |
| Set capture mode as index in deviceInfo().supportedFormats. | |
| Public Member Functions inherited from VideoCameraStream | |
| VideoCameraStream (const std::string &name) | |
| const VideoCameraDeviceInfo & | deviceInfo () const |
| Currently selected device, will be empty if no device has been set. | |
| const VideoStreamFrameFormat & | format () const |
| Currently selected format, will use default values if no format has been set. | |
| std::string | describe () const override |
| Human readable description of the stream type. | |
| bool | reset () final |
| Returns false, because rewinding a live stream just does not make sense. | |
| std::string | uuid () override |
| Returns the memory address of this object as unique identifier. | |
| double | fps () const |
| virtual Properties | tryApplySettings (const Properties *p) |
| Takes the given Properties and tries to apply them if it is possible without restarting the stream. | |
| virtual Properties | forceApplySettings (const Properties *p) |
| Takes the given Properties and applies them, even if it means restarting the stream. | |
| template<typename T> | |
| std::enable_if_t< std::is_base_of_v< VideoStreamSettings::VideoStreamSettingsBase, T >, T > * | settings () |
| Gets an accessor for a camera setting. | |
| Public Member Functions inherited from ImageStream | |
| ImageStream (const std::string &name="") | |
| Data::Kind | kind () const override final |
| Returns the kind (typically IMAGESTREAM or VOLUMESTREAM) | |
| void | setModality (Modality m) |
| Set the modality descriptor of this stream. | |
| Modality | modality () const override final |
| Return the modality of this stream. | |
| virtual bool | topDown () const |
| Specify whether the first line of the image data is to be displayed on top. | |
| int | size () const override |
| Returns the number of images of the image stream per emission. | |
| Public Member Functions inherited from Stream | |
| Stream (const std::string &name="") | |
Constructor with the name for this stream. | |
| virtual ThreadingMode | threadingMode () const |
| Configures threading mode of stream. | |
| virtual bool | supportsAsyncOperation () |
| Returns true if xxxAsync() methods support execution in a background thread. | |
| std::shared_future< bool > | openAsync () |
| Open stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful. | |
| std::shared_future< bool > | closeAsync () |
| Close stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful. | |
| std::shared_future< bool > | startAsync () |
| Start stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful. | |
| std::shared_future< bool > | stopAsync () |
| Stop stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful. | |
| std::shared_future< bool > | pauseAsync () |
| Pause stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful. | |
| std::shared_future< bool > | resumeAsync () |
| Resume stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful. | |
| bool | open () |
| Open stream and wait for the operation to complete. Returns whether the operation was successful. | |
| bool | close () |
| Close stream and wait for the operation to complete. Returns whether the operation was successful. | |
| bool | start () |
| Start stream and wait for the operation to complete. Returns whether the operation was successful. | |
| bool | stop () |
| Stop stream and wait for the operation to complete. Returns whether the operation was successful. | |
| bool | pause () |
| Pause stream and wait for the operation to complete. Returns whether the operation was successful. | |
| bool | resume () |
| Resume stream and wait for the operation to complete. Returns whether the operation was successful. | |
| virtual bool | supportsPausing () const |
| Override and return true if this stream implements the pausing and resume operations. | |
| bool | restart () |
| Stops, closes, opens and starts the stream. Returns whether the operation was successful. | |
| virtual bool | isRunning () const |
| Return whether stream is currently running. | |
| State | currentState () const |
| bool | isStateOneOf (const std::vector< State > &states) const |
| Geometry::AlignedBox | bounds () const override |
| Per default a Stream has empty/invalid bounds. | |
| Pose::TransformationConvention | matrixConvention () const override |
| Matrices of streams by default map to the world coordinate system. | |
| virtual bool | createDefaultStreamController () |
| Indicates whether a StreamController should be created for the stream (by default returns true). | |
| double | updateRate () const |
Average update rate in Hz of the signalStreamData. | |
| Public Member Functions inherited from Data | |
| Data (const std::string &name="") | |
| Data (const Data &other) | |
| Data & | operator= (const Data &other) |
| virtual | ~Data () |
| Mandatory virtual destructor. | |
| const std::string & | name () const |
| Return the name of this data. | |
| void | setName (const std::string &name) |
| Sets the name of this data. | |
| virtual bool | isAnnotationType () const |
| Return whether this data type is visualized through an annotation (e.g. mesh) | |
| const DataComponentList & | components () const |
| Returns the list of DataComponents for this data. | |
| DataComponentList & | components () |
| virtual void | setMatrixFromWorld (const mat4 &m) |
| Set matrix mapping from the world coordinate system to the data coordinate system. | |
| virtual void | setMatrixToWorld (const mat4 &m) |
| Set matrix mapping from the data coordinate system to the world coordinate system. | |
| virtual mat4 | matrixFromWorld () const |
| Get matrix mapping from the world coordinate system to the data coordinate system. | |
| virtual mat4 | matrixToWorld () const |
| Get matrix mapping from the data coordinate system to the world coordinate system. | |
| virtual mat4 | matrix () const |
| Return the transformation matrix. | |
| virtual void | setMatrix (const mat4 &m) |
| Set the transformation matrix. | |
| Public Member Functions inherited from Configurable | |
| virtual void | configure (const Properties *p) |
| Configure this object instance by de-serializing the given Properties. | |
| virtual void | configuration (Properties *p) const |
| Serialize the current object configuration into the given Properties object. | |
| virtual void | configureDefaults () |
| Retrieve the properties of this object, replaces values with their defaults and sets it again. | |
| void | registerParameter (ParameterBase *param) |
| Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration(). | |
| void | unregisterParameter (const ParameterBase *param) |
| Remove the given Parameter or SubProperty from the list of registered parameters. | |
| Configurable (const Configurable &rhs) | |
| Configurable (Configurable &&rhs) noexcept | |
| Configurable & | operator= (const Configurable &) |
| Configurable & | operator= (Configurable &&) noexcept |
| Public Member Functions inherited from Selectable | |
| Selectable (const Selectable &) | |
| Selectable (Selectable &&) | |
| Selectable & | operator= (const Selectable &) |
| Selectable & | operator= (Selectable &&) |
| virtual Selection | selection () const |
| virtual int | focus () const |
| virtual void | setSelection (const Selection &sel) |
| Set the underlying selection. | |
| virtual void | setFocus (int index) |
| Set focus of the selection. | |
Static Public Member Functions | |
| static std::vector< VideoCameraDeviceInfo > | enumerateDevices () |
| Lists all currently connected compatible cameras. | |
| Static Public Member Functions inherited from VideoCameraStream | |
| static std::vector< VideoCameraDeviceInfo > | enumerateDevices () |
| Lists all currently connected compatible cameras. | |
| Static Public Member Functions inherited from Stream | |
| static std::string | stateToString (State state) |
| Static Public Member Functions inherited from Data | |
| static std::string | modalityString (Data::Modality m) |
| Return the name of an image modality. | |
| static Data::Modality | stringToModality (const std::string &s) |
| Returns the modality corresponding to a modality string or NA if nothing matches. | |
Protected Member Functions | |
| bool | openImpl () override |
| Opens the currently selected device and frame configuration. | |
| bool | closeImpl () override |
| Stops and closes the stream, freeing the device. | |
| bool | startImpl () override |
| Starts streaming on an already opened device. | |
| bool | stopImpl () override |
| Stops the stream, but keeps hold of the device. | |
| int | readImage (MemImage *out) |
| Returns -1 if the reading fails, 0 if there is no new frame and 1 if a new frame has been read. | |
| virtual void | captureThread () |
| Code executed by the thread which keeps reading frames from the stream. | |
| std::optional< WorkContinuation > | doWork () override |
| Create one StreamData and publish it (this function will be called at the desired frame rate) If this is not desired, you can do the following: return std::nullopt;. | |
| Protected Member Functions inherited from VideoCameraStream | |
| virtual std::any | getSettings (const std::string &name) |
| Protected Member Functions inherited from ImageStream | |
| void | setKind (Kind k) |
| Sets the kind (typically IMAGESTREAM or VOLUMESTREAM) and emits signalKindChanged. | |
| bool | workerThreadRequiresOpenGl () const override |
| Ensure the thread has an GL context before the main loop starts. | |
| Protected Member Functions inherited from Stream | |
| virtual bool | pauseImpl () |
| Pause stream (not required to be supported). | |
| virtual bool | resumeImpl () |
| Resume stream from pause (only required to be supported when pauseImpl() is supported). | |
| virtual bool | worksWhilePaused () const |
| Override if doWork() should be called also in the Paused state. | |
| void | changeState (State newState) |
| std::shared_future< bool > | attemptStateChange (std::function< bool()> work, State stateWorking, State stateSuccess, State stateError) |
| Protected Member Functions inherited from Data | |
| void | swapWith (Data &other) |
| Swaps the data and emits a matrix and name changed signal for both. | |
| Protected Member Functions inherited from NotCopyable | |
| NotCopyable (NotCopyable &&) noexcept=default | |
| NotCopyable & | operator= (NotCopyable &&) noexcept=default |
| NotCopyable (const NotCopyable &)=delete | |
| NotCopyable & | operator= (const NotCopyable &)=delete |
Protected Attributes | |
| std::thread * | m_captureThread |
| CPU thread for reading frames. | |
| int | m_deviceID = -1 |
| int | m_formatID = -1 |
| int32_t | m_stream = -1 |
| void * | m_ctx = nullptr |
| Protected Attributes inherited from VideoCameraStream | |
| VideoCameraDeviceInfo | m_device |
| VideoStreamFrameFormat | m_format |
| StreamFps | m_actualFPS |
| Protected Attributes inherited from Data | |
| mat4 | m_matrix |
| Transformation matrix. | |
| std::recursive_mutex * | m_matrixMutex |
| Used to internally synchronize access to the matrix of data. | |
| DataComponentList | m_dataComponentList |
| The list of DataComponents for this data. | |
| Protected Attributes inherited from Configurable | |
| std::vector< Param > | m_params |
| List of all registered Parameter and SubProperty instances. | |
| Protected Attributes inherited from Selectable | |
| std::mutex | m_selectionMutex |
| Mutex protecting the selection. | |
| Selection | m_sel |
Additional Inherited Members | |
| Public Types inherited from Stream | |
| enum class | ThreadingMode { BaseClassRunsWorkerThread , DerivedClassHandlesThreading } |
| This flag represents the two supported threading modes of a Stream. More... | |
| enum class | State { Closed , Opening , Open , Starting , Running , Pausing , Paused , Resuming , Stopping , Closing } |
| Public Types inherited from Data | |
| enum | Kind { UNKNOWN = 0 , IMAGE = 1 , VOLUME = 2 , IMAGESET = 3 , VOLUMESET = 4 , IMAGESTREAM = 5 , VOLUMESTREAM = 6 , POINTSET = 7 , SURFACE = 8 , TRACKINGSTREAM = 9 , LIVETRACKINGSTREAM = TRACKINGSTREAM , TRACKINGDATA = 10 , TREE = 11 , TENSOR = 12 , POLYDATASTREAM = 13 , STEREOIMAGESET = 14 , STEREOIMAGESTREAM = 15 , VOLUMETRICMESH = 16 } |
| Kind of data. More... | |
| enum | Modality { NA = 0 , XRAY = 1 , CT = 2 , MRI = 3 , ULTRASOUND = 4 , VIDEO = 5 , NM = 6 , OCT = 7 , LABEL = 8 , DISTANCE = 9 } |
| Image modality of the data. More... | |
| Public Attributes inherited from ImageStream | |
| Signal< Data::Kind > | signalKindChanged |
| Is emitted when the stream changes between IMAGESTREAM and VOLUMESTREAM, before the next ImageStreamData is emitted. | |
| Public Attributes inherited from Stream | |
| ProtectedSignal< StateChange > | signalStateChanged |
| Emitted after a state change has been completed with the old and new state. | |
| ProtectedSignal | signalEnded |
| Indicates that the stream reached the end of its data, e.g. when a video stream has played to the end. | |
| ProtectedSignal< std::shared_ptr< const StreamData > > | signalStreamData |
| Signal that is emitted by the stream when a new StreamData is available. | |
| DeprecatedSignal< ProtectedSignal< std::shared_ptr< const StreamData > >, const StreamData & > | signalNewData |
| Signal that is emitted by the stream when a new StreamData is available. | |
| Public Attributes inherited from Data | |
| Signal< const Data * > | signalDeleted |
| Signal emitted when this instance is deleted. | |
| Signal< const Data * > | signalMatrixChanged |
| Signal emitted when the transformation of this Data has changed. | |
| Signal< std::string > | signalNameChanged |
| Signal emitted when the name changed. | |
| Public Attributes inherited from Configurable | |
| Signal | signalParametersChanged |
Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted. | |
| Public Attributes inherited from Selectable | |
| ProtectedSignal | signalSelectionChanged |
| Signals that the selection or size might have changed. | |
|
overridevirtual |
Set capture mode as index in deviceInfo().supportedFormats.
Reimplemented from VideoCameraStream.
|
overrideprotectedvirtual |
Opens the currently selected device and frame configuration.
Implements Stream.
|
overrideprotectedvirtual |
Stops and closes the stream, freeing the device.
Implements Stream.
|
overrideprotectedvirtual |
Starts streaming on an already opened device.
Implements Stream.
|
overrideprotectedvirtual |
Stops the stream, but keeps hold of the device.
Implements Stream.
|
inlineoverrideprotectedvirtual |
Create one StreamData and publish it (this function will be called at the desired frame rate) If this is not desired, you can do the following: return std::nullopt;.
Implements Stream.
