Selectable Class Reference

#include <ImFusion/Base/Selectable.h>

Interface for Data that supports having a Selection. More...

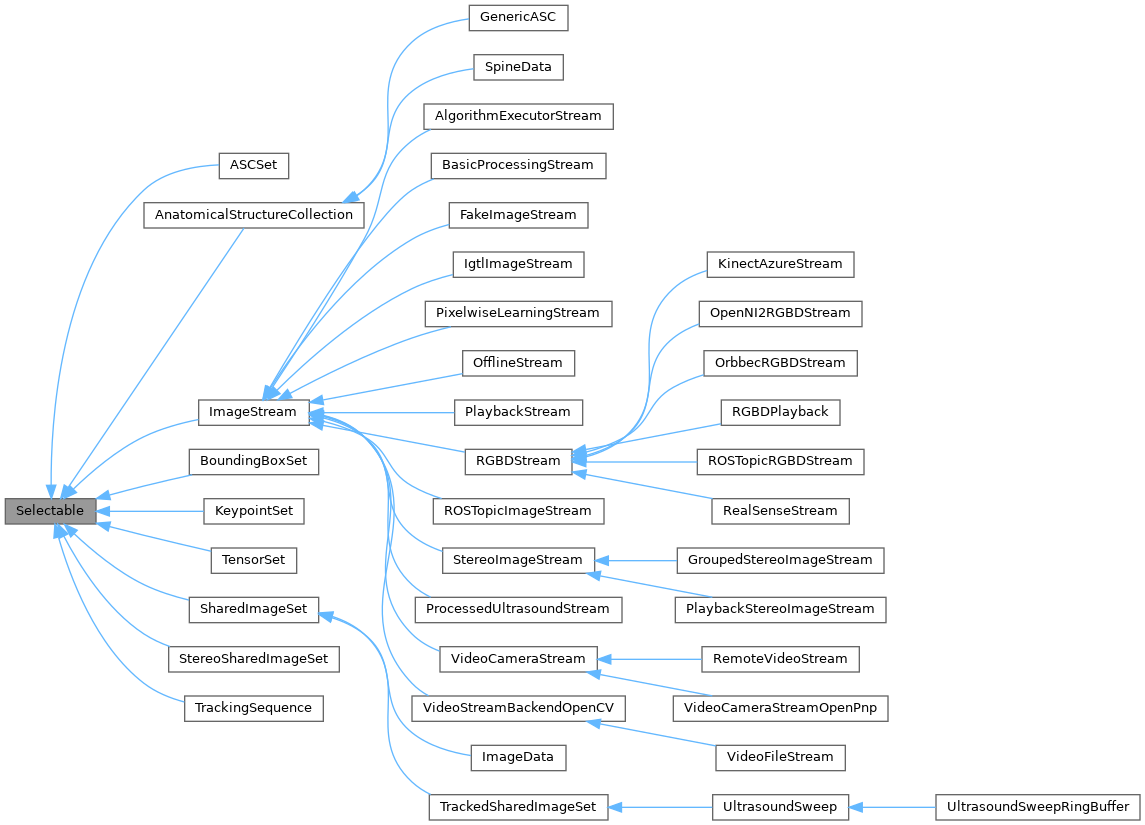

Inheritance diagram for Selectable:

Detailed Description

Interface for Data that supports having a Selection.

The interface is thread safe. However, when modified the signalSelectionChanged is emitted on the thread causing the modification.

Invariant

The implementations overriding any of the non-abstract methods must take care to acquire the mutex before accessing the underlying selection and emit the signalSelectionChanged on any change to the underlying selection.

Note

Threadsafe class: Member functions can be called concurrently from any thread.

Public Member Functions
	Selectable (const Selectable &)
	Selectable (Selectable &&)
Selectable &	operator= (const Selectable &)
Selectable &	operator= (Selectable &&)
virtual Selection	selection () const
virtual int	focus () const
virtual void	setSelection (const Selection &sel)
	Set the underlying selection.
virtual void	setFocus (int index)
	Set focus of the selection.
virtual int	size () const =0

Public Attributes
ProtectedSignal	signalSelectionChanged
	Signals that the selection or size might have changed.

Protected Attributes
std::mutex	m_selectionMutex
	Mutex protecting the selection.
Selection	m_sel

Member Function Documentation

selection()

virtual Selection selection ( ) const

virtual

Returns

A copy of the underlying selection.

focus()

virtual int focus ( ) const

virtual

Returns

The index of the focus of the selection.

setSelection()

virtual void setSelection ( const Selection & sel )

virtual

Set the underlying selection.

Checks and clamps the index to be within the range defined by size(). Emits signalSelectionChanged if sel is different from the underlying selection.

Reimplemented in RGBDPlayback.

setFocus()

virtual void setFocus ( int index )

virtual

Set focus of the selection.

Checks and clamps the index to be within the range defined by size(). Emits signalSelectionChanged if index is different from the underlying selection's focus.

Reimplemented in RGBDPlayback, and VideoFileStream.

size()

virtual int size ( ) const

pure virtual

Returns

Total number of elements.

Implemented in AnatomicalStructureCollection, ASCSet, FakeImageStream, ImageStream, BoundingBoxSet, KeypointSet, TensorSet, RGBDPlayback, SharedImageSet, StereoSharedImageSet, TrackingSequence, and VideoFileStream.

---

The documentation for this class was generated from the following file:

• ImFusion/Base/Selectable.h
