SharedImageSet Class Reference

#include <ImFusion/GL/SharedImageSet.h>

Set of images independent of their storage location. More...

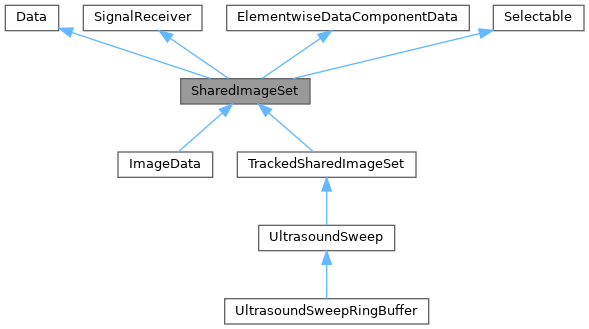

Inheritance diagram for SharedImageSet:

Detailed Description

Set of images independent of their storage location.

This class is the main high-level container for image data consisting of one or multiple images or volumes, and should be used both in algorithms and visualization classes. Both a single focus and multiple selection is featured, as well as providing transformation matrices and timestamps for each image.

SharedImageSet uses shared_ptr internally to store the SharedImages. This enables you to easily create a container SharedImageSet that temporarily wraps existing images (e.g. to pass them to a separate Algorithm) without taking exclusive ownership.

See also

Using Image Data ,

Examples

DicomExtensionExample2.cpp, ExampleAlgorithm.cpp, ExampleAlgorithm.h, NetworkCommunication.cpp, SqrtAlgorithm.cpp, and SqrtAlgorithm.h.

Public Types
enum	CloneOptions {   Everything = 0 , NoImageData = 1 << 0 , NoDataComponents = 1 << 1 , ShallowImageCopy = 1 << 2 ,   NoSelection = 1 << 3 , NoTracking = 1 << 4 }
	Bitset enumeration to configure which aspects of a SharedImageSet to copy. More...
Public Types inherited from Data
enum	Kind {   UNKNOWN = 0 , IMAGE = 1 , VOLUME = 2 , IMAGESET = 3 ,   VOLUMESET = 4 , IMAGESTREAM = 5 , VOLUMESTREAM = 6 , POINTSET = 7 ,   SURFACE = 8 , TRACKINGSTREAM = 9 , LIVETRACKINGSTREAM = TRACKINGSTREAM , TRACKINGDATA = 10 ,   TREE = 11 , TENSOR = 12 , POLYDATASTREAM = 13 , STEREOIMAGESET = 14 ,   STEREOIMAGESTREAM = 15 , VOLUMETRICMESH = 16 }
	Kind of data. More...
enum	Modality {   NA = 0 , XRAY = 1 , CT = 2 , MRI = 3 ,   ULTRASOUND = 4 , VIDEO = 5 , NM = 6 , OCT = 7 ,   LABEL = 8 , DISTANCE = 9 }
	Image modality of the data. More...

Public Member Functions
	SharedImageSet (std::shared_ptr< Image > img)
	Construct from a single Image.
	SharedImageSet (std::shared_ptr< SharedImage > img)
	Construct from a single SharedImage.
	SharedImageSet ()
	Construct an empty SharedImageSet.
SharedImageSet &	operator= (const SharedImageSet &)=delete
std::unique_ptr< SharedImageSet >	clone (Flags< CloneOptions > cloneOptions=Everything) const
	Create a copy of this SharedImageSet instance.
void	add (std::shared_ptr< Image > img)
	Add a single image to the data set.
void	add (std::shared_ptr< Image > img, const mat4 &m)
	Add a single image with its transformation matrix.
virtual void	add (std::shared_ptr< SharedImage > img)
	Add a shared image to the data set.
void	add (const std::vector< std::shared_ptr< SharedImage > > &images)
	Add a list of shared images.
bool	replace (int pos, std::shared_ptr< SharedImage > img)
	Replace a particular shared image entry, will not do anything if no image of that index exist yet.
virtual void	remove (int pos, int count=1)
	Removes images at the specified locations and deletes them if owned.
void	remove (const SharedImage *img)
	Removes a specific image and deletes it if owned.
virtual void	clear ()
	Clear all data and delete it if owned.
std::string	describe () const override
	Short description of the image set.
void	setModalityOverride (std::optional< Data::Modality > modalityOverride)
	Set a modalityOverride.
virtual void	setModality (Modality m)
	Set image modality for all frames.
Modality	modality () const override
	Return the modality of this data.
virtual bool	isMultiModal () const
	Return true if set contains images of different modalities, false otherwise.
virtual void	prepare (bool shiftOnly=false)
	Prepare the image in memory for most common scenarios Integral types are converted to unsigned representation if applicable, double-precision will be converted to single-precision float.
void	uploadGl () const
	Upload all images as OpenGL textures.
bool	hasMem (int which=-1) const
	Query whether an up-to-date memory image is present. If not, a sync is required.
bool	hasGl (int which=-1) const
	Query whether an up-to-date OpenGL image is present. If not, a sync is required.
const DataComponentList &	components () const
	Returns the list of DataComponents for this data.
DataComponentList &	components ()
const DataComponentList &	components (int i) const
	Returns the DataComponents associated to the element with that index.
Public Member Functions inherited from Data
	Data (const std::string &name="")
	Data (const Data &other)
Data &	operator= (const Data &other)
virtual	~Data ()
	Mandatory virtual destructor.
const std::string &	name () const
	Return the name of this data.
void	setName (const std::string &name)
	Sets the name of this data.
virtual bool	isAnnotationType () const
	Return whether this data type is visualized through an annotation (e.g. mesh)
const DataComponentList &	components () const
	Returns the list of DataComponents for this data.
DataComponentList &	components ()
Public Member Functions inherited from SignalReceiver
	SignalReceiver ()=default
	Default constructor.
	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.
SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.
Public Member Functions inherited from ElementwiseDataComponentData
ElementwiseDataComponentList &	elementwiseComponents ()
	Returns elementwise data component list.
const ElementwiseDataComponentList &	elementwiseComponents () const
	Returns elementwise data component list.
DataComponentList &	mutableComponents (int i)
	Returns the DataComponents associated to the element with that index, creating it if necessary.
const DataComponentList &	components (int i) const
	Returns the DataComponents associated to the element with that index.
Public Member Functions inherited from Selectable
	Selectable (const Selectable &)
	Selectable (Selectable &&)
Selectable &	operator= (const Selectable &)
Selectable &	operator= (Selectable &&)
virtual Selection	selection () const
virtual int	focus () const
virtual void	setSelection (const Selection &sel)
	Set the underlying selection.
virtual void	setFocus (int index)
	Set focus of the selection.

Protected Member Functions
virtual SharedImageSet *	createCloneContainer () const
	Internal method for creating the container object holding the clone.
virtual void	cloneInternal (SharedImageSet &other, Flags< CloneOptions > cloneOptions) const
	Internal method for cloning which should be called from derived container classes.
virtual void	swapWith (SharedImageSet &other)
	Internal method for swapping the contents of this container with other.
Protected Member Functions inherited from Data
void	swapWith (Data &other)
	Swaps the data and emits a matrix and name changed signal for both.
Protected Member Functions inherited from SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.

Protected Attributes
std::vector< std::shared_ptr< SharedImage > >	m_images
	Vector of shared image pointers.
std::vector< double >	m_timestamps
	Optional timestamps of the image frames.
Properties	m_properties
	Auxiliary information properties.
Geometry::AlignedBox	m_bounds
	Axis-aligned bounding box of all images in world space.
bool	m_updateBounds = true
	Flag specifying whether the bounds should be re-computed.
std::optional< Data::Modality >	m_modalityOverride
	Overrides the modality of the containing SharedImages. This is used e.g. for the ConeBeamData concept in CT.
Protected Attributes inherited from Data
mat4	m_matrix
	Transformation matrix.
std::recursive_mutex *	m_matrixMutex
	Used to internally synchronize access to the matrix of data.
DataComponentList	m_dataComponentList
	The list of DataComponents for this data.
Protected Attributes inherited from ElementwiseDataComponentData
ElementwiseDataComponentList	m_elementwiseComponents
	Encodes elementwise data components.
Protected Attributes inherited from Selectable
std::mutex	m_selectionMutex
	Mutex protecting the selection.
Selection	m_sel

Image access
virtual SharedImage *	get (int which=-1)
	Get specific or selected shared image.
std::shared_ptr< SharedImage >	getShared (int which=-1)
	Get specific or selected shared image.
MemImage *	mem (int which=-1)
	Get specific or selected image in memory If required image will be synchronized.
GlImage *	gl (int which=-1)
	Get specific or selected OpenGL image If required image will be synchronized.
const std::vector< std::shared_ptr< SharedImage > > &	images ()
	Return entire vector of images.
std::vector< std::shared_ptr< SharedImage > >	selectedImages (Selection::NonePolicy noneSelectionHandling)
	Return vector of all selected images.

Const image access
virtual const SharedImage *	get (int which=-1) const
	Get specific or selected shared image.
std::shared_ptr< const SharedImage >	getShared (int which=-1) const
	Get specific or selected shared image.
const Image *	img (int which=-1) const
	Get specific or selected image descriptor.
const MemImage *	mem (int which=-1) const
	Get specific or selected image in memory If required image will be synchronized.
const GlImage *	gl (int which=-1) const
	Get specific or selected OpenGL image If required image will be synchronized.
std::vector< std::shared_ptr< const SharedImage > >	images () const
	Return entire vector of images.
std::vector< std::shared_ptr< const SharedImage > >	selectedImages (Selection::NonePolicy noneSelectionHandling) const
	Return vector of all selected images.

Image matrix access
Pose::TransformationConvention	matrixConvention () const override
	Matrices of images map from the world coordinate system.
virtual void	setMatrix (const mat4 &m, int which, bool updateAll=false)
	Set specific (which >=0) or focused (which ==-1) image matrix.
virtual mat4	matrix (int which) const
	Get specific (which >=0) or focused (which ==-1) image matrix.
void	setMatrix (const mat4 &m) override
	Set focused image matrix.
mat4	matrix () const override
	Get focused image matrix.
virtual void	setMatrixFromWorld (const mat4 &m, int which, bool updateAll=false)
	Set specific (which >=0) or focused (which ==-1) image matrix mapping from the world coordinate system.
virtual void	setMatrixToWorld (const mat4 &m, int which, bool updateAll=false)
	Set specific (which >=0) or focused (which ==-1) image matrix mapping to the world coordinate system.
virtual mat4	matrixFromWorld (int which) const
	Get specific (which >=0) or focused (which ==-1) image matrix mapping from the world coordinate system.
virtual mat4	matrixToWorld (int which) const
	Get specific (which >=0) or focused (which ==-1) image matrix mapping to the world coordinate system.
virtual bool	hasTransformations () const
	Return true if at least one image in the set has a matrix transformation unequal identity.
virtual void	setDeformation (std::shared_ptr< Deformation > def, int which=-1)
	Sets a deformation for specified or focus image.
virtual std::shared_ptr< Deformation >	deformation (int which=-1) const
	Returns the deformation for the specified or focused image, or 0 if not deformation is set.
virtual void	setMask (std::shared_ptr< Mask > mask, int which=-1)
	Sets a mask for specified or focus image.
virtual std::shared_ptr< Mask >	mask (int which=-1) const
	Returns the mask for the specified or focused image, or 0 if not mask is set.
virtual mat4	matrixFromWorld () const
	Get matrix mapping from the world coordinate system to the data coordinate system.
virtual mat4	matrixToWorld () const
	Get matrix mapping from the data coordinate system to the world coordinate system.
virtual void	setMatrixFromWorld (const mat4 &m)
	Set matrix mapping from the world coordinate system to the data coordinate system.
virtual void	setMatrixToWorld (const mat4 &m)
	Set matrix mapping from the data coordinate system to the world coordinate system.

Timestamp access
virtual void	setTimestamp (double time, int which=-1)
	Set specific or focused timestamp in seconds.
double	timestamp (int which=-1) const
	Get specific or focused timestamp in seconds.
const std::vector< double >	timestamps () const
	Get the timestamps sequence.
bool	hasTimestamps () const
	Return if all image frames have timestamps.

Miscellaneous const access methods
int	size () const override
	Return the size of the image set.
bool	allEqual () const
	Return if all image descriptors are the same.
Kind	kind () const override
	Return the kind of data contained here.
Geometry::AlignedBox	bounds () const override
	Returns the axis-aligned bounding box of all images in world space.
Properties *	properties ()
	Return auxiliary data structures stored in Properties.
const Properties *	properties () const
	Return auxiliary data structures stored in Properties.

Additional Inherited Members
Static Public Member Functions inherited from Data
static std::string	modalityString (Data::Modality m)
	Return the name of an image modality.
static Data::Modality	stringToModality (const std::string &s)
	Returns the modality corresponding to a modality string or NA if nothing matches.
Public Attributes inherited from Data
Signal< const Data * >	signalDeleted
	Signal emitted when this instance is deleted.
Signal< const Data * >	signalMatrixChanged
	Signal emitted when the transformation of this Data has changed.
Signal< std::string >	signalNameChanged
	Signal emitted when the name changed.
Public Attributes inherited from Selectable
ProtectedSignal	signalSelectionChanged
	Signals that the selection or size might have changed.

Member Enumeration Documentation

CloneOptions

enum CloneOptions

Bitset enumeration to configure which aspects of a SharedImageSet to copy.

Enumerator
Everything	Perform a deep copy of all data contained by the SharedImageSet.
NoImageData	Do not clone any image data.
NoDataComponents	Do not clone any DataComponents.
ShallowImageCopy	Clone SharedImages with SharedImage::ShallowImageCopy flag (do not deep copy the underlying Images)
NoSelection	Do not copy over the Selection.
NoTracking	Do not copy over any TrackingSequences (only relevant for TrackedSharedImageSet derived classes)

Constructor & Destructor Documentation

SharedImageSet() [1/2]

SharedImageSet ( std::shared_ptr< Image > img )

explicit

Construct from a single Image.

Note that any std::unique_ptr implicitly converts to a std::shared_ptr of same type.

SharedImageSet() [2/2]

SharedImageSet ( std::shared_ptr< SharedImage > img )

explicit

Construct from a single SharedImage.

Note that any std::unique_ptr implicitly converts to a std::shared_ptr of same type.

Member Function Documentation

add()

virtual void add ( std::shared_ptr< SharedImage > img )

virtual

Add a shared image to the data set.

Reimplemented in TrackedSharedImageSet.

remove() [1/2]

virtual void remove ( int pos, int count = 1 )

virtual

Removes images at the specified locations and deletes them if owned.

Note

Will notify any attached ElementwiseDataComponent about the removal.

Reimplemented in TrackedSharedImageSet.

remove() [2/2]

void remove

(

const SharedImage *


)

Removes a specific image and deletes it if owned.

Note

Will notify any attached ElementwiseDataComponent about the removal.

clear()

virtual void clear ( )

virtual

Clear all data and delete it if owned.

Reimplemented in TrackedSharedImageSet.

describe()

std::string describe ( ) const

overridevirtual

Short description of the image set.

Reimplemented from Data.

setModalityOverride()

void setModalityOverride

(

std::optional< Data::Modality >

modalityOverride

)

Set a modalityOverride.

See SharedImageSet::modality() for more details on how the modality of the SharedImageSet is determined in case of an active modalityOverride.

Parameters

modalityOverride

Pass a Data::Modality to set a modalityOverride. In order to remove an override you can pass std::nullopt as argument.

modality()

Modality modality ( ) const

overridevirtual

Return the modality of this data.

The modality will be determined like this:

• If a modalityOverride is set its value will be returned.
• Otherwise, if all images have the same modality this modality will be returned.
• In any other case, including an empty SharedImageSet, Data::NA will be returned.

Reimplemented from Data.

Reimplemented in UltrasoundSweep.

prepare()

virtual void prepare ( bool shiftOnly = false )

virtual

Prepare the image in memory for most common scenarios Integral types are converted to unsigned representation if applicable, double-precision will be converted to single-precision float.

Furthermore, if shiftOnly is false it will rescale the present intensity range to [0..1] for floating point types or to the entire available value range for integral types. For image sets that contain more than one image shiftOnly will always be forced to true. Derived classes may do more modality specific processing here.

Note

Pointers to the underlying image data may be invalidated as a result.

uploadGl()

void uploadGl

(

)

const

Upload all images as OpenGL textures.

This method throws an exception if the OpenGL texture creation fails.

mem() [1/2]

MemImage * mem

(

int

which = -1

)

Get specific or selected image in memory If required image will be synchronized.

Use hasMem() to check if synchronization is required.

gl() [1/2]

GlImage * gl

(

int

which = -1

)

Get specific or selected OpenGL image If required image will be synchronized.

Use hasGl() to check if synchronization is required.

images()

const std::vector< std::shared_ptr< SharedImage > > & images ( )

inline

Return entire vector of images.

This method is non-const since the images themselves may be manipulated.

mem() [2/2]

const MemImage * mem

(

int

which = -1

)

const

Get specific or selected image in memory If required image will be synchronized.

Use hasMem() to check if synchronization is required.

gl() [2/2]

const GlImage * gl

(

int

which = -1

)

const

Get specific or selected OpenGL image If required image will be synchronized.

Use hasGl() to check if synchronization is required.

matrixConvention()

Pose::TransformationConvention matrixConvention ( ) const

inlineoverridevirtual

Matrices of images map from the world coordinate system.

Implements Data.

Reimplemented in TrackedSharedImageSet.

setMatrix() [1/2]

virtual void setMatrix ( const mat4 & m, int which, bool updateAll = false )

virtual

Set specific (which >=0) or focused (which ==-1) image matrix.

If updateAll is set, the matrices of all images are updated relative to which.

Reimplemented in TrackedSharedImageSet.

matrix() [1/2]

virtual mat4 matrix ( int which ) const

virtual

Get specific (which >=0) or focused (which ==-1) image matrix.

Reimplemented in TrackedSharedImageSet.

setMatrix() [2/2]

void setMatrix ( const mat4 & m )

overridevirtual

Set focused image matrix.

Reimplemented from Data.

Reimplemented in TrackedSharedImageSet.

matrix() [2/2]

mat4 matrix ( ) const

overridevirtual

Get focused image matrix.

Reimplemented from Data.

Reimplemented in TrackedSharedImageSet.

setMatrixFromWorld() [1/2]

virtual void setMatrixFromWorld ( const mat4 & m, int which, bool updateAll = false )

virtual

Set specific (which >=0) or focused (which ==-1) image matrix mapping from the world coordinate system.

If updateAll is set, the matrices of all images are updated relative to which.

Reimplemented in TrackedSharedImageSet.

setMatrixToWorld() [1/2]

virtual void setMatrixToWorld ( const mat4 & m, int which, bool updateAll = false )

virtual

Set specific (which >=0) or focused (which ==-1) image matrix mapping to the world coordinate system.

If updateAll is set, the matrices of all images are updated relative to which.

Reimplemented in TrackedSharedImageSet.

matrixFromWorld() [1/2]

virtual mat4 matrixFromWorld ( int which ) const

virtual

Get specific (which >=0) or focused (which ==-1) image matrix mapping from the world coordinate system.

Reimplemented in TrackedSharedImageSet.

matrixToWorld() [1/2]

virtual mat4 matrixToWorld ( int which ) const

virtual

Get specific (which >=0) or focused (which ==-1) image matrix mapping to the world coordinate system.

Reimplemented in TrackedSharedImageSet.

hasTransformations()

virtual bool hasTransformations ( ) const

virtual

Return true if at least one image in the set has a matrix transformation unequal identity.

Reimplemented in TrackedSharedImageSet.

setTimestamp()

virtual void setTimestamp ( double time, int which = -1 )

virtual

Set specific or focused timestamp in seconds.

Reimplemented in TrackedSharedImageSet.

size()

int size ( ) const

overridevirtual

Return the size of the image set.

Implements Selectable.

kind()

Kind kind ( ) const

overridevirtual

Return the kind of data contained here.

Implements Data.

bounds()

Geometry::AlignedBox bounds ( ) const

overridevirtual

Returns the axis-aligned bounding box of all images in world space.

Implements Data.

Reimplemented in TrackedSharedImageSet, and UltrasoundSweep.

properties() [1/2]

Properties * properties

(

)

Return auxiliary data structures stored in Properties.

Note

Prefer using DataComponents as type-safe alternative if possible.

properties() [2/2]

const Properties * properties

(

)

const

Return auxiliary data structures stored in Properties.

Note

Prefer using DataComponents as type-safe alternative if possible.

createCloneContainer()

virtual SharedImageSet * createCloneContainer ( ) const

protectedvirtual

Internal method for creating the container object holding the clone.

Reimplemented in TrackedSharedImageSet, and UltrasoundSweep.

cloneInternal()

virtual void cloneInternal ( SharedImageSet & other, Flags< CloneOptions > cloneOptions ) const

protectedvirtual

Internal method for cloning which should be called from derived container classes.

Reimplemented in TrackedSharedImageSet.

matrixFromWorld() [2/2]

virtual mat4 matrixFromWorld ( ) const

virtual

Get matrix mapping from the world coordinate system to the data coordinate system.

Inverse of matrixToWorld.

Note

Depending on how matrices are internally stored in concrete derived classes, a matrix inversion might be necessary to obtain this mapping. The default implementation checks matrixConvention and accordingly returns matrix or its inverse.

Reimplemented from Data.

matrixToWorld() [2/2]

virtual mat4 matrixToWorld ( ) const

virtual

Get matrix mapping from the data coordinate system to the world coordinate system.

Inverse of matrixFromWorld.

Note

Depending on how matrices are internally stored in concrete derived classes, a matrix inversion might be necessary to obtain this mapping. The default implementation checks matrixConvention and accordingly returns matrix or its inverse.

Reimplemented from Data.

setMatrixFromWorld() [2/2]

virtual void setMatrixFromWorld ( const mat4 & m )

virtual

Set matrix mapping from the world coordinate system to the data coordinate system.

Note

Depending on how matrices are internally stored in concrete derived classes, m might be inverted before it is saved. The default implementation checks matrixConvention and accordingly calls setMatrix with either m or its inverse.

Reimplemented from Data.

setMatrixToWorld() [2/2]

virtual void setMatrixToWorld ( const mat4 & m )

virtual

Set matrix mapping from the data coordinate system to the world coordinate system.

Note

Depending on how matrices are internally stored in concrete derived classes, m might be inverted before it is saved. The default implementation checks matrixConvention and accordingly calls setMatrix with either m or its inverse.

Reimplemented from Data.

---

The documentation for this class was generated from the following file:

• ImFusion/GL/SharedImageSet.h
