#include <ImFusion/Base/Mask.h>
Base interface for implementing polymorphic image masks on the CPU. More...

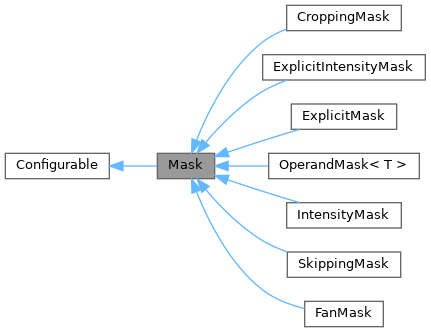

Inheritance diagram for Mask:Base interface for implementing polymorphic image masks on the CPU.
Every SharedImage can hold an optional Mask defining which pixels should be ignored in algorithms supporting this concept. Therefore, the interface provides methods to check whether a certain pixel is "inside" the mask (meaning that it should be considered) or not. The decision whether a pixel is inside can be performed based on the pixel coordinate and/or the pixel value. The actual logic for the mask depends on the concrete implementation of the interface and subclasses are free to only use one of the two inputs if sufficient.
A mask value of 0 means the corresponding pixel is outside the mask, i.e. to be ignored. A value greater than 0 means it is inside, i.e. to be considered. Most mask will only return binary values of 0 and 1 but implementations are free to return any other uint8_t value as well.
The basic Mask interface is meant for CPU-based algorithms only. See GlMask for their OpenGL-based counterpart. Usually, concrete implementations inherit from both the Mask and GlMask interfaces.
Public Types | |
| enum class | CreateOption { DeepCopy , ShallowCopyIfPossible } |
| Enumeration of available behavior for createExplicitMask() More... | |
Public Member Functions | |
| virtual uint8_t | maskValue (const vec3i &coord, const vec4f &color) const =0 |
| Returns 0 if the given pixel is outside the mask (i.e. | |
| uint8_t | maskValue (const vec3i &coord, float value=-1.0f) const |
Convenience overload that calls maskValue(coord, vec4f(value, value, value, 1.0f)). | |
| virtual bool | requiresPixelValue () const =0 |
| Returns true if the maskValue() rely on the pixel value. | |
| virtual bool | isCompatible (const SharedImage *image) const =0 |
Returns true if the mask can be used with the given image or false otherwise. | |
| virtual std::unique_ptr< TypedImage< uint8_t > > | createExplicitMask (const SharedImage &image, CreateOption createOption=CreateOption::DeepCopy) const |
| Creates an explicit mask representation of this mask for a given image. | |
| virtual std::unique_ptr< Mask > | resizedMask (const SharedImage &original, const Image &target) const |
| Creates a copy of the current mask, resized to the dimensions of the target image. | |
| virtual GlMask * | glMask () |
| Returns the OpenGL-based implementation of the mask interface if available. | |
| Public Member Functions inherited from Configurable | |
| virtual void | configure (const Properties *p) |
| Configure this object instance by de-serializing the given Properties. | |
| virtual void | configuration (Properties *p) const |
| Serialize the current object configuration into the given Properties object. | |
| virtual void | configureDefaults () |
| Retrieve the properties of this object, replaces values with their defaults and sets it again. | |
| void | registerParameter (ParameterBase *param) |
| Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration(). | |
| void | unregisterParameter (const ParameterBase *param) |
| Remove the given Parameter or SubProperty from the list of registered parameters. | |
| Configurable (const Configurable &rhs) | |
| Configurable (Configurable &&rhs) noexcept | |
| Configurable & | operator= (const Configurable &) |
| Configurable & | operator= (Configurable &&) noexcept |
Additional Inherited Members | |
| Public Attributes inherited from Configurable | |
| Signal | signalParametersChanged |
Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted. | |
| Protected Attributes inherited from Configurable | |
| std::vector< Param > | m_params |
| List of all registered Parameter and SubProperty instances. | |
|
strong |
Enumeration of available behavior for createExplicitMask()
|
pure virtual |
Returns 0 if the given pixel is outside the mask (i.e.
invisible/to be ignored) or a non-zero value if it is inside the mask (i.e. visible/to be considered).
This function takes both the pixel coordinate and pixel value as input. Concrete implementations of the Mask interface are free to use only either input for their decision if it makes sense. Also, it is up to the implementation whether it supports multi-channel images or not. Subclasses only supporting grayscale images should only use the first channel.
| coord | Pixel coordinate to be tested against the mask, can be outside of the image. |
| color | Pixel value (not normalized) to be tested against the mask. This parameter is only needed if requiresPixelValue() returns true, which can allow for optimizations where pixel lookup is expensive. |
Implemented in CroppingMask, ExplicitIntensityMask, ExplicitMask, OperandMask< T >, IntensityMask, SkippingMask, and FanMask.
|
pure virtual |
Returns true if the maskValue() rely on the pixel value.
If this method returns false, the maskValue() method can be safely used with only the coordinate. This is useful to avoid an otherwise unnecessary and expensive pixel lookup.
Implemented in CroppingMask, ExplicitIntensityMask, ExplicitMask, OperandMask< T >, IntensityMask, SkippingMask, and FanMask.
|
pure virtual |
Returns true if the mask can be used with the given image or false otherwise.
Implemented in CroppingMask, ExplicitIntensityMask, ExplicitMask, OperandMask< T >, IntensityMask, SkippingMask, and FanMask.
|
virtual |
Creates an explicit mask representation of this mask for a given image.
| image | Reference image for which to create the mask, must be compatible. |
| createOption | Subclasses that already store an explicit representation of the mask can optionally return a non-owning TypedImage (shallow copy). If the returned TypedImage will outlive the source Mask, make sure to use CreateOption::DeepCopy. |
Reimplemented in CroppingMask, ExplicitIntensityMask, and ExplicitMask.
|
virtual |
Creates a copy of the current mask, resized to the dimensions of the target image.
The default implementation calls createExplicitMask and resamples the result. Returns nullptr if the mask cannot be resized.
Reimplemented in CroppingMask, and IntensityMask.
|
inlinevirtual |
Returns the OpenGL-based implementation of the mask interface if available.
This function may return nullptr if this is not implemented (default).
Reimplemented in CroppingMask, ExplicitIntensityMask, ExplicitMask, OperandMask< T >, IntensityMask, SkippingMask, and FanMask.
