Data Model

Storage and hierarchical organization of datasets. More...

Collaboration diagram for Data Model:

Detailed Description

Storage and hierarchical organization of datasets.

The Data Interface

One of the central interfaces of the ImFusion SDK is Data. It serves as input and output of Algorithms and is therefore supposed to be used as base class for all entities representing a self-contained piece of information, such as images or meshes.

Storage and Organization of Data Instances

The DataModel class is intended to be used as a central storage container for your datasets. It takes ownership of all Data intances inside and enables you to organize them in a hierarchical fashion leveraging the DataGroup class. Therefore, it is also part of every ApplicationController.

The DataModel takes also care of managing DataLinks: They provides the functionality to keep specific aspects of Data (e.g. windowing information, world pose) in sync across multiple instances.

To facilitate visualizing and interacting with a DataModel in a Qt you should use the DataItemModel wrapper class that transforms it into a QAbstractItemModel to be used in any Qt view or directly in our off-the-shelf DataWidget.

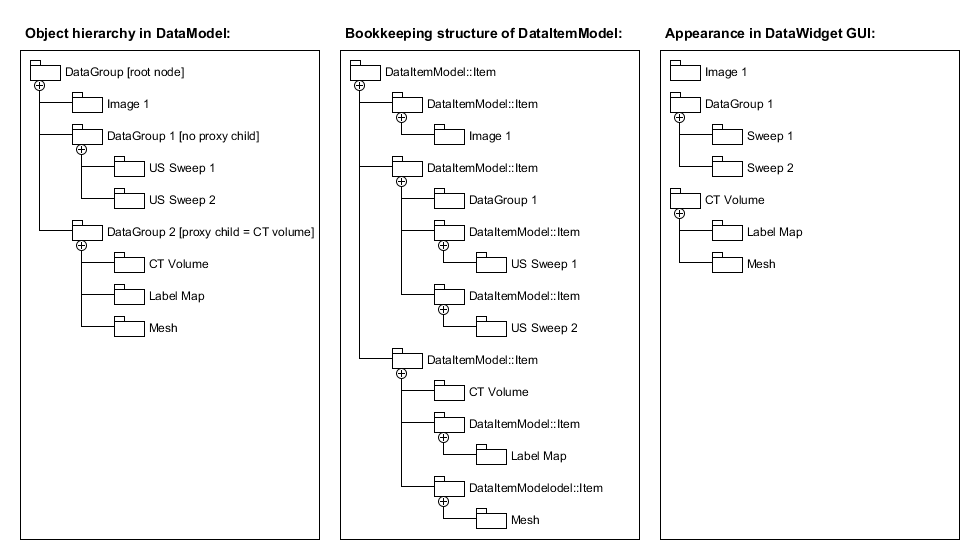

Illustration how the original dataset hierarchy in the DataModel is represented in DataItemModel bookkeeping structure and eventually displayed in the DataWidget

Passing Data Around

When passing one ore multiple datasets around most interfaces of the ImFusion SDK use the DataList or OwningDataList class as container. They are convenience wrappers for a std::vector<Data*> or a std::vector<std::unique_ptr<Data>>, respectively. Technically, these classes are interchangeable with the correspoding std::vector types. However, they provide useful helper functions for searching or filtering of datasets and maintain the basic invariant that they do not contain any duplicate datasets or nullptrs.

See also

• Images

Classes
class	ImFusion::Mesh
	Represents a triangle mesh. More...
class	ImFusion::CompoundData
	Interface for datasets that are formed by one or multiple other nested Data instances. More...
class	ImFusion::Data
	Virtual base class for representing data from which all concrete data class such as images need to derive. More...
class	ImFusion::DataGroup
	Data element that groups multiple Data instances together in a hierarchical fashion. More...
class	ImFusion::DataLink
	Interface for linking properties between multiple Data instances. More...
class	ImFusion::DataList
	Container for any number of Data instances such as image or meshes. More...
class	ImFusion::DataModel
	Container for datasets holding ownership and managing a hierarchical list of persistent data. More...
class	ImFusion::DataModelAutoLinking
	Utility class to automatically create DataLink instances between datasets in a DataModel. More...
class	ImFusion::OwningDataList
	Wrapper class to store a list of owned Data instances. More...
class	ImFusion::PointCloud
	Data structure for point clouds. More...
class	ImFusion::TrackingSequence
	Sequence of rigid tracking data with optional timestamps, quality values and flags. More...
class	ImFusion::Tree
	Data structure for trees. More...
class	ImFusion::DataLogger
	Support for logging data. More...
class	ImFusion::SharedImageSet
	Set of images independent of their storage location. More...
class	ImFusion::DataDisplayModel
	This class extends a DataItemModel with data visibility information from a DisplayWidgetMulti. More...
class	ImFusion::DataFilterModel
	The DataFilterModel class is a proxy model to filter a DataItemModel. More...
class	ImFusion::DataGroupingModel
	QAbstractProxyModel implementation that groups data in a source-model according to a specified GroupingOption. More...
class	ImFusion::DataItemModel
	Wrapper class to transform the DataModel into a QAbstractItemModel so that it can be used in Qt views. More...
class	ImFusion::DataWidget
	Graphical user interface for the DataModel/DataItemModel. More...
class	ImFusion::Stream
	Base class representing a stream of changing data in the DataModel. More...
