#include <ImFusion/GUI/DataItemModel.h>

Wrapper class to transform the DataModel into a QAbstractItemModel so that it can be used in Qt views. More...

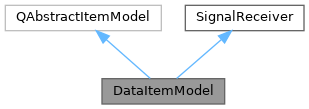

Inheritance diagram for DataItemModel:

Detailed Description

Wrapper class to transform the DataModel into a QAbstractItemModel so that it can be used in Qt views.

The underlying parentModel() will be represented as a tree with a single column. If a DataGroup has a proxy child, the index of the group will represent the proxy child data instead of the group. Furthermore, if a dataset implements the CompoundData interface (without being a DataGroup) the corresponding DataItemModel index will have the nested datasets (CompoundData::children()) as children. These children have the ElementType::Internal instead of ElementType::Regular to illustrate their nature that they are internal to the parent dataset and not owned by/accessible through the underlying DataModel.

A set of custom Roles enables you to query additional metadata from the datasets.

Illustration how the original dataset hierarchy in the DataModel is represented in DataItemModel bookkeeping structure and eventually displayed in the DataWidget

See also

DataModel, DataWidget, DataDisplayModel, DataFilterModel, DataViewModel
https://doc.qt.io/qt-6/qabstractitemmodel.html

Classes
struct	Item
	Internal record to implement bookkeeping of the hierarchy in the underlying DataModel. More...

Public Types
enum	Roles { DataRole = Qt::UserRole + 1 , DescriptionRole = Qt::UserRole + 2 , AttributesRole = Qt::UserRole + 3 , AttributesToolTipRole = Qt::UserRole + 4 , LinksRole = Qt::UserRole + 7 , LinksToolTipRole = Qt::UserRole + 8 , LinksIndexRole = Qt::UserRole + 9 , ElementTypeRole = Qt::UserRole + 10 }
	Enumeration of special roles supported by the model. More...

enum class	ElementType { Regular , Internal }
	Value type of Roles::ElementTypeRole. More...

Signals
void	dataAdded (Data *data)
	Signal emitted whenever a new dataset has been added.

void	dataAboutToBeRemoved (Data *data)
	Signal emitted directly before a dataset will be removed from the model.

void	dataRemoved (Data *data)
	Signal emitted whenever a new dataset has been removed; careful: data is no longer valid.

Public Member Functions
	Q_ENUM (ElementType)

	DataItemModel (DataModel &parentModel)
	Instantiates a new DataItemModel representing the given DataModel, which must remain valid for the entire lifetime.

DataModel &	parentModel ()
	Returns the underlying DataModel.

const DataModel &	parentModel () const

QModelIndex	index (const Data *data) const
	QModelIndices for this item model are constructed as follows:

Data *	get (const QModelIndex &index) const
	Returns the data at the index or `nullptr` if the index does not exist.

void	enableThumbnails (bool enabled, int thumbnailSizePx)
	Enables thumbnail generation when data with Qt::DecorationRole is requested (default is enabled)

bool	thumbnailsEnabled () const
	Returns whether thumbnail generation is enabled.

QVariant	data (const QModelIndex &index, int role=Qt::DisplayRole) const override

bool	setData (const QModelIndex &index, const QVariant &value, int role=Qt::EditRole) override

Qt::ItemFlags	flags (const QModelIndex &index) const override

QModelIndex	parent (const QModelIndex &index) const override

int	columnCount (const QModelIndex &parent=QModelIndex()) const override

int	rowCount (const QModelIndex &parent=QModelIndex()) const override

QModelIndex	index (int row, int column, const QModelIndex &parent=QModelIndex()) const override

Public Member Functions inherited from SignalReceiver
	SignalReceiver ()=default
	Default constructor.

	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.

SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.

virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Protected Member Functions
QModelIndex	index (const Item *item) const

QString	description (const Data *data) const

void	registerData (Data data, const Data parent, bool isInternalRestructuring)
	Updates the internal bookkeeping to track data being added as a child of parent.

void	unregisterData (Data *data, bool isInternalRestructuring)
	Updates the internal bookkeeping to no longer track data.

void	moveRegisteredData (Data data, const Data newParent)
	Updates the internal bookkeeping after data has moved inside/to newParent.

void	onParentModelDataAdded (Data *data)

void	onParentModelDataAboutToBeRemoved (Data *data)

void	onParentModelDataMoved (Data *data)

void	onProxyChildChanged (DataGroup *parent, bool isInternalRestructuring)

void	assertItemMapConsistency (bool checkChildren, bool checkProxyChildSignal) const

Protected Member Functions inherited from SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.

Protected Attributes
DataModel *	m_parentModel

Item	m_rootItem

std::unordered_map< const Data , Item >	m_itemMap

bool	m_thumbnailsEnabled = true

int	m_thumbnailSizePx = 32

Member Enumeration Documentation

◆ Roles

enum Roles

Enumeration of special roles supported by the model.

Enumerator
DataRole	The pointer to the data (use with variant.value<ImFusion::Data*>())
DescriptionRole	A short description of the data type (e.g. '2D Image' or 'Ultrasound Sweep')
AttributesRole	A QList of QIcons representing special attributes of the data (e.g. multichannel, stream, mask, deformation...)
AttributesToolTipRole	A QList of QString representing a tool tip for the elements of AttributesRole.
LinksRole	A QList of QIcons representing links of the data.
LinksToolTipRole	A QList of QString representing a tool tip for the elements of LinksRole.
LinksIndexRole	A QList of the indices of the links in the DataModels list.
ElementTypeRole	The ElementType of the data.

◆ ElementType

enum class ElementType

strong

Value type of Roles::ElementTypeRole.

Enumerator
Regular	A regular Data instance owned and maintained by the underlying DataModel.
Internal	A Data instance that is implicitly bound to/owned by the parent dataset, not accessible through the underlying DataModel.

Member Function Documentation

◆ index()

QModelIndex index ( const Data * data ) const

QModelIndices for this item model are constructed as follows:

The index for the root node is the (invalid) default QModelIndex()
The index's row is the index of the element within the parent group
The index's column is always 0
The index's internalPointer points to the corresponding DataItemModel::Item instance

◆ registerData()

void registerData	(	Data *	data,
		const Data *	parent,
		bool	isInternalRestructuring )

protected

Updates the internal bookkeeping to track data being added as a child of parent.

Will emit the dataAdded() signal unless isInternalRestructuring is true.

◆ unregisterData()

void unregisterData	(	Data *	data,
		bool	isInternalRestructuring )

protected

Updates the internal bookkeeping to no longer track data.

Will emit the dataAboutToBeRemoved() signal unless isInternalRestructuring is true.

The documentation for this class was generated from the following file:

ImFusion/GUI/DataItemModel.h
