#include <ImFusion/GUI/DataWidget.h>

Graphical user interface for the DataModel/DataItemModel. More...

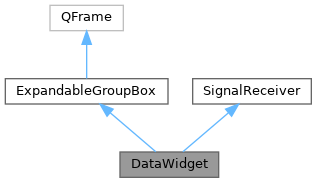

Inheritance diagram for DataWidget:

Detailed Description

Graphical user interface for the DataModel/DataItemModel.

This class provides a Qt-based GUI representing the underlying DataModel. Furthermore, manages the visibility of its contents in a DisplayWidgetMulti, and can instantiate Algorithms in the parent ApplicationController. Internally, it uses the DataDisplayModel to augment the input DataItemModel with the visibility information from the display and the DataWidgetMenu to show a context menu for the selected datasets.

You can configure convenience functionality such as the "quick selection" functionality that synchronizes item selection with visibility in the display, or the automatic linking of poses or windowing. Finally, you can customize the visual appearance by providing a custom DataWidgetItemDelegate.

See also: DataModel, DataItemModel, DefaultDataWidgetItemDelegate, DataWidgetMenu

Public Slots
void	showContextMenu (const QPoint &pos)
	Opens a context menu at pos.

void	setShowThumbnails (bool enable, bool storeInGlobalSettings=true)
	Sets if data thumbnails should be displayed or not.

void	enableQuickSelection (bool enable, bool storeInGlobalSettings=true)
	Enables quick selection i.e. the data visibility changes together with the selection.

void	setAutoLinkWindowing (bool enable, bool storeInGlobalSettings=true)
	Enables automatic creation of LinkWindowing links per modality.

void	setAutoLinkPose (bool enable, bool storeInGlobalSettings=true)
	Enables automatic creation of LinkPose links when grouping Data.

void	setEnableDeleteKeyboardShortcut (bool enable)
	Enables deleting the selected data when the user presses the <delete> key.

void	setDataGroupingOption (DataGroupingModel::GroupingOption option, bool storeInGlobalSettings=true)
	Sets the grouping-option for grouping of data by patientID/seriesID in the TreeView. Optionally stores the option in the global settings.

Public Slots inherited from ExpandableGroupBox
void	expand ()
	Expands the group box.

void	collapse ()
	Collapses the group box.

void	setExpanded (bool expanded)
	Expands or collapses the group box (default: expanded)

void	setResizable (bool isResizable)
	Makes the group box vertical resizable (default: disabled)

void	setTitle (const QString &title)
	Sets the title of the group box.

void	setIcon (const QIcon &icon)
	Sets the icon of the group box.

void	clearAndDeleteLater ()

void	setVisible (bool visible) override

void	addAction (QAction *action)
	Adds a new action to the right side of the expand/collapse button.

void	removeAction (QAction *action)
	Removes an action that was previously added with addAction.

std::vector< QAction * >	actions ()
	Lists all actions.

void	addPage (QWidget *widget)
	Calls setWidget if no containing widget is set, does nothing otherwise (required by the Qt designer plugin)

Public Member Functions
	DataWidget (DataItemModel &dataItemModel, DisplayWidgetMulti &display, ApplicationController &appCtrl, QMainWindow *mainWindow=nullptr)
	Creates the widget using data from dataItemModel.

	DataWidget (MainWindowBase *main)
	Creates the widget from main's data model, display, and with main as application controller and main window.

DataList	selectedData () const
	Convenience method to retrieve the currently selected data.

const QItemSelectionModel *	selectionModel () const
	Returns the selection model used by the tree view displaying the DataModel.

QItemSelectionModel *	selectionModel ()

DataFilterModel *	filterModel ()
	Returns the filter model used by the tree view displaying the DataModel.

DataDisplayModel *	displayModel ()
	Returns the wrapper model to augment the input DataItemModel with dataset visibility information.

void	setItemDelegate (std::unique_ptr< DataWidgetItemDelegate > itemDelegate)
	Assigns a new item delegate defining how to render the individual items in the tree view.

bool	eventFilter (QObject o, QEvent e) override

QSize	minimumSizeHint () const override
	Prescribes a minimum size for the widget when resized.

bool	isAutoLinkPoseEnabled () const

void	updateThumbnail (Data *data)
	Re-creates the thumbnails of the given data.

bool	linkWindowing (const std::vector< SharedImageSet * > &images)
	Links the windowing properties of the given images.

bool	unlinkWindowing (const std::vector< SharedImageSet * > &images)
	Unlinks the windowing properties of the given images.

DataGroup *	groupData (const DataList &data)
	Groups the given data and adds "Group Data" to the history of AlgorithmController.

QModelIndex	index (const Data *data, int column=DataDisplayModel::COLUMN_DATA) const
	Finds the index of the data in the DataModel.

void	deleteData (const DataList &data)
	Deletes the given data from the DataModel.

void	moveDataUp (Data *data)
	Moves the data down by one position and add "Move Data" to the history of AlgorithmController.

void	moveDataDown (Data *data)
	Moves the data up by one position and add "Move Data" to the history of AlgorithmController.

void	moveDataTo (const DataList &data, Data *newParent)
	Re-parents all datasets in data so that they appear underneath newParent.

void	expandItem (const Data *data)
	Expands the tree view for the given dataset.

void	collapseItem (const Data *data)
	Collapses the tree view for the given dataset.

bool	isItemExpanded (const Data *data)
	Returns whether the tree view item for the given dataset is currently expanded or not.

Public Member Functions inherited from ExpandableGroupBox
	ExpandableGroupBox (QWidget *parent=0)
	Creates an empty group box.

QSize	sizeHint () const override

void	setWidget (QWidget *widget)
	Sets the contained widget.

QWidget *	widget ()
	Returns the contained widget if any or nullptr otherwise.

QString	title () const

QIcon	icon () const

bool	isExpanded () const

bool	isResizable () const

void	setCollapsible (bool collapsible)
	Sets if box is collapsible.

bool	isCollapsible ()
	Returns if box is collapsible.

void	setDraggable (bool value)
	Sets the flag whether the box is draggable with the mouse when clicking on the top button.

bool	isDraggable () const
	Returns the flag whether the box is draggable with the mouse when clicking on the top button.

int	count () const
	Returns 1 if widget is set, 0 otherwise (required by the Qt designer plugin)

int	currentIndex () const
	Returns 0 (required by the Qt designer plugin)

Public Member Functions inherited from SignalReceiver
	SignalReceiver ()=default
	Default constructor.

	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.

SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.

virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Additional Inherited Members
Signals inherited from ExpandableGroupBox
void	expansionChanged (bool expanded)

void	resizableChanged (bool isResizable)

void	titleChanged (QString title)

void	iconChanged (QIcon icon)

void	actionAdded (QAction *action)

void	actionRemoved (QAction *action)

Protected Member Functions inherited from SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.

Properties inherited from ExpandableGroupBox
QString	title

QIcon	icon

bool	expanded

bool	resizable

Constructor & Destructor Documentation

◆ DataWidget() [1/2]

DataWidget	(	DataItemModel &	dataItemModel,
		DisplayWidgetMulti &	display,
		ApplicationController &	appCtrl,
		QMainWindow *	mainWindow = nullptr )

Creates the widget using data from dataItemModel.

Parameters

dataItemModel	Input data model to show.
display	Display widget to apply dataset visibility changes to.
appCtrl	Parent ApplicationController to launch algorithms in.
mainWindow	Optional QMainWindow, only used for showing image information in the status bar.

◆ DataWidget() [2/2]

DataWidget ( MainWindowBase * main )

Creates the widget from main's data model, display, and with main as application controller and main window.

Does not use the annotation model (because it is not guaranteed to be valid at this point).

Member Function Documentation

◆ updateThumbnail()

void updateThumbnail ( Data * data )

Re-creates the thumbnails of the given data.

If the data is nullptr all thumbnails are re-created.

◆ linkWindowing()

bool linkWindowing ( const std::vector< SharedImageSet * > & images )

Links the windowing properties of the given images.

Each image can only be in a single linking group. E.g. it is not possible to first link A and B, and afterwards B and C. Returns true if a new link between the images could be created.

◆ unlinkWindowing()

bool unlinkWindowing ( const std::vector< SharedImageSet * > & images )

Unlinks the windowing properties of the given images.

Removes each image in the list from a linked group. The given images can be in different linked groups. Empty or single item groups are removed automatically. Returns true if at least one link was removed.

◆ groupData()

DataGroup * groupData ( const DataList & data )

Groups the given data and adds "Group Data" to the history of AlgorithmController.

Contrary to DataModel::group, the grouping will be reproduced by a workspace.

◆ deleteData()

void deleteData ( const DataList & data )

Deletes the given data from the DataModel.

Only data that MainWindowBase allows to be deleted gets deleted. This might open a dialog to ask the user for confirmation (see MainWindowBase::canBeDeleted). Contrary to DataModel::remove, the deletion will be reproduced by a workspace.

◆ moveDataUp()

void moveDataUp ( Data * data )

Moves the data down by one position and add "Move Data" to the history of AlgorithmController.

Contrary to DataModel::move, the grouping will be reproduced by a workspace.

◆ moveDataDown()

void moveDataDown ( Data * data )

Moves the data up by one position and add "Move Data" to the history of AlgorithmController.
