#include <ImFusion/GUI/MainWindowBase.h>

Extends ApplicationController with additional interfaces for graphical user interfaces. More...

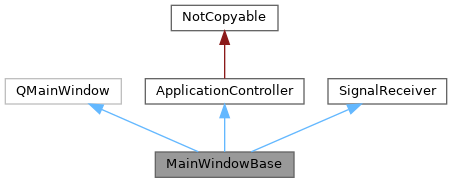

Inheritance diagram for MainWindowBase:

Detailed Description

Extends ApplicationController with additional interfaces for graphical user interfaces.

Depending on the constructor arguments, instantiating this class can also take care of proper initialization (e.g. factories, OpenGL contexts, etc.) of the ImFusion SDK. In this case you do not need to call Framework::init() explicitly.

Public Types
enum class	PostLoadAction { None = 0 , SelectData = 1 << 0 , ShowViews = 1 << 1 , StoreOriginalMatrix = 1 << 2 , CreateDataController = 1 << 3 , All = 0xFF }
	Bitflag enumeration of available actions that the default implementation of postLoad() performs. More...

Public Slots
virtual void	onVisibleDataChanged (const DataList &before, const DataList &now)
	This method is called when the selection in the DataWidget changes. The base implementation only hands all image data to the DisplayWidget.

virtual void	onDataDeleting (Data *data)
	This is called when data in the DataWidget is about to be deleted.

virtual void	onDataDeleted ()
	This is called when data in the DataWidget has been deleted.

Signals
void	settingsChanged ()
	Emitted when the settings are changed by the user e.g.

Public Member Functions
	MainWindowBase (std::optional< Framework::InitConfig > sdkInitConfig, QWidget *parent=nullptr, Qt::WindowFlags flags=Qt::Widget)
	Instantiate and initialize the MainWindowBase interface.

	~MainWindowBase () override
	Destructor.

Progress *	progress () override
	Returns m_progressDialog.

void	setupWidgets ()
	Initializes any widget of MainWindowBase and adds them to the ui. Must be called after the ui has been initialized.

virtual void	resetViews ()
	Resets views of MainWindowBase.

virtual void	resetLayout ()
	Resets layout of MainWindowBase.

void	readSettings ()
	Load and restore window position and size settings.

void	writeSettings ()
	Write window position and size settings.

virtual void	loadStyleSheet ()
	Reads the default style and loads it.

virtual QBoxLayout *	algorithmDock () const =0

virtual QBoxLayout *	secondaryAlgorithmDock () const
	Returns an optional secondary algorithm dock.

virtual QBoxLayout *	scrollBarLayout () const =0

virtual QToolBar *	toolbar () const

virtual DataControllerBar *	controllerBar () const

virtual DisplayWidgetMulti *	display () const =0

virtual LogViewerWidget *	logWidget () const

virtual QWidget *	collapseDockButton () const

virtual QWidget *	mainWidget () const

virtual const DataItemModel *	dataItemModel () const

virtual const QItemSelectionModel *	dataSelectionModel () const

virtual const AnnotationModel *	annotationModel () const

virtual DataItemModel *	dataItemModel ()

virtual QItemSelectionModel *	dataSelectionModel ()

virtual DataFilterModel *	dataItemFilterModel ()

virtual AnnotationModel *	annotationModel ()

std::vector< InteractiveObject * >	selectedAnnotations (const Data *dataset, bool includeGlobal=true) const
	Return the currently selected annotations for a given data set or all annotation if data set is zero.

DataList	selectedData () const
	Return the currently selected data.

void	selectData (const Data *data)
	Select a single data sets.

void	selectData (const DataList &selection)
	Select one or multiple data sets.

void	updateSelected ()
	Update the currently selected data in terms of description and scroll bar.

AlgorithmController *	getAlgorithmController (const Algorithm *a) const override
	Returns the controller of the algorithm or nullptr if not existing.

virtual AlgorithmController *	getAlgorithmController (const std::string &id) const
	Returns the controller of the first algorithm with the given id or nullptr if not existing.

virtual DataController *	getDataController (const std::string &name) const
	Returns the data controller with the given name or nullptr if not existing.

virtual ControllerDecorator *	getControllerDecorator (const Controller *controller)
	Returns the container widget hosting the corresponding Controller or nullptr if not existing.

virtual ControllerDecorator *	addController (Controller *controller)
	Registers a Controller instance with the MainWindowBase so that it can be shown in the GUI.

virtual void	removeController (Controller *controller)
	Removes a previously registered Controller from this MainWindowBase so that it is no longer shown in the GUI.

template<typename T>
T *	getDataController () const
	Returns the data controller of the given type or nullptr if not existing.

bool	canBeDeleted (const Data *data) override
	Check whether data can be deleted or loaded algorithms depend on it.

void	showAnnotationWidget (bool visible=true)
	Shows / hides the annotation editor.

void	expandAnnotationWidget (bool visible=true)
	Expands / collapses the annotation editor.

void	showDataWidget (bool visible=true)
	Expands / collapses the data widget.

void	initIOPlugins (QMenu *importMenu)
	Add I/O plugins to import and export menu.

void	reset (bool keepTester=false)
	Reset application. Set keepTester to true when running GUI unit tests.

void	processEvents ()
	Process pending GUI events.

void	dragEnterEvent (QDragEnterEvent *event) override
	Accepts drops with mime type "text/uri-list".

void	dropEvent (QDropEvent *event) override
	For mime type "text/uri-list", the mime text is used as a filename and the file is opened as data.

std::vector< std::map< std::string, std::string > >	askWorkspacePlaceholders (const std::vector< std::string > &placeholderKeys) override
	Asks the user the value of some placeholders and returns the input of the user.

virtual void	setStatusText (const QString &)
	Sets the text of the status bar.

void	closeAll () override
	Closes all data, algorithms and annotations.

Flags< PostLoadAction >	postLoadActions () const
	Returns the set of actions to perform in default implementation of postLoad().

void	setPostLoadActions (Flags< PostLoadAction > value)
	Sets the set of actions to perform in default implementation of postLoad().

void	addAlgorithm (std::unique_ptr< Algorithm > a, const Properties *config=nullptr) override
	Adds a the given algorithm and creates a controller if available.

void	removeAlgorithm (Algorithm *a, bool del=true) override
	Same as removeAlgorithm(a, del, true)

virtual void	removeAlgorithm (Algorithm *a, bool del, bool delCtrl, bool executed=false)
	Removes the given algorithm and its associated controller.

void	removeAlgorithmLater (Algorithm *a, bool del, bool delCtrl, bool executed=false)
	Schedules a call to removeAlgorithm() with the same arguments using the Qt event loop.

virtual void	setLogoPixmap (std::unique_ptr< QPixmap > logoPixmap)
	Set a logo for customized branding. This functionality is disabled by default unless it is explicity enabled for an installer.

virtual void	onObjectDeleting (InteractiveObject *obj)
	This is called when data in the DataWidget is about to be deleted.

void	onPaste ()

virtual void	applySettings ()
	Apply updated settings.

void	importData ()
	Import data using I/O algorithm.

void	addRecentFile (const QString &algorithm, const QString &fileName, const Properties *p)
	Add file to recently opened files.

AnnotationWidget *	annotationWidget ()

DataWidget *	dataWidget ()

ViewLayoutWidget *	viewsWidget ()

SelectionWidget *	selectionWidget ()

virtual bool	open (const std::string &filename, DataList *outDataList=nullptr)
	Opens a generic file and adds it to the DataModel.

Public Member Functions inherited from ApplicationController
	ApplicationController (std::unique_ptr< DataModel > dataModel, std::optional< Framework::InitConfig > sdkInitConfig)
	Instantiate and initialize the ApplicationController interface.

void	load (int argc, char **argv)
	Load configuration file and optional further parameters.

void	loadAll (const std::vector< std::string > &fileNames)
	Loads all files passed as arguments.

virtual bool	loadWorkspace (const Filesystem::Path &filename, const std::optional< std::map< std::string, std::string > > &=std::nullopt)
	Loads a workspace file from the path denoted by filename.

virtual void	clearAlgorithms ()
	Removes all algorithm and deletes it if del is true.

virtual void	executeAlgorithms ()
	Executes all algorithms. TODO: delete algorithms afterwards?

virtual void	addAlgorithmToHistory (const Algorithm &a, bool allowReplayWorkspaces=true)
	Adds an already executed algorithm to the history.

void	registerAlgorithm (const Algorithm &alg)
	Registers the algorithm.

void	updateRegisteredAlgorithm (const Algorithm &alg)
	Update the description of a recorded algorithm.

void	ignoreDataInHistory (Data &data)
	Ignore the given Data in the algorithm history/workspace.

void	ignoreAnnotationInHistory (InteractiveObject &annotation)
	Ignore the given Annotation in the algorithm history/workspace.

const Workspace &	algorithmHistory () const
	Return the workspace instance modeling list of executed algorithms and their input/output data.

std::vector< Algorithm * >	algorithms () const
	Returns the list of all algorithms.

virtual std::vector< Algorithm * >	dependingAlgorithms (const Data *data) const
	Returns the algorithms that depend on data.

virtual std::vector< Algorithm * >	dependingAlgorithms (const DataList &data) const
	Returns the algorithms that depend on exactly the provided data list.

virtual Algorithm *	getAlgorithm (const std::string &id) const
	Returns the first algorithm with the given id or nullptr if not existing.

template<typename T>
T *	getAlgorithm (const std::string &id="") const
	Returns the first algorithm of the given type, optionally with id filtering.

virtual void	addPlaceholder (const std::string &name, const std::string &value)
	Adds a placeholder value to m_placeholders (or overwrites it if it already exists)

virtual std::map< std::string, std::string >	placeholders () const
	Gets the currently set placeholders.

virtual void	setPlaceholders (const std::map< std::string, std::string > &placeholders)
	Sets the placeholders.

virtual bool	saveWorkspace (const Filesystem::Path &filename, std::optional< std::set< std::string > > selectedDataComps=std::nullopt)
	Save current workspace to a iws file Selected data components passed as parameter are also saved.

virtual DataModel *	dataModel ()

virtual const DataModel *	dataModel () const

void	loadPlugins (const std::vector< std::string > &pluginFolders=std::vector< std::string >())
	Load and register/initializes all ImFusion plugins from the specified folders.

Public Member Functions inherited from SignalReceiver
	SignalReceiver ()=default
	Default constructor.

	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.

SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.

virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Static Public Member Functions
static void	loadStyleSheet (QApplication &app, QString style)
	Loads a specified style sheet.

static void	loadStyleSheet (QApplication &app)
	Loads the default style sheet.

static QString	readDefaultStyleQssFiles ()
	Reads the default style qss files and returns their content (files are concatenated).

static void	reloadStyleSheet ()
	Reloads default style sheet.

Protected Slots
bool	prepareData (Data *data) const override
	Calls ApplicationController::prepareData and additionally checks if an image can be uploaded with OpenGL.

virtual void	postLoad (Data *data)
	This method is called after data has been loaded.

void	toggleFullscreen (bool flag)
	Toggles between fullscreen and default/maximized window mode.

virtual void	onSelectionModelChanged (const QItemSelection &selected, const QItemSelection &deselected)
	Slot called when the MainWindow's data selection model has changed.

virtual void	onScreenChanged (QScreen *newScreen)
	Slot called when the hosting QWindow's screen has changed.

void	processDroppedFiles (const QStringList filenames)
	Slot called after a drop event has been accepted (as to not block the source program by loading data in the drop event itself)

Protected Member Functions
bool	openFile (const QString additionalFilters=0, QString filename=0, QString *selectedFilter=0)
	Shows file selection dialog for open and opens file if the format is known.

bool	saveFileAs (const QString additionalFilters=0, QString filename=0, QString *selectedFilter=0)
	Shows file selection dialog for save and saves file if the format is known.

bool	openWithIoAlgorithms (const std::vector< std::string > &algs, const std::string &filename, DataList *dataOut) override
	Asks the user which of the algs to use to open filename, loads file into the DataModel and stores the result in dataOut.

bool	eventFilter (QObject target, QEvent event) override
	Filters close events of algorithm controllers and data controllers.

void	closeEvent (QCloseEvent *event) override
	Removes all algorithms before closing.

void	configureAlgorithm (Algorithm *a) override
	Called before an Algorithm is executed, allows for custom configuration.

bool	open (const std::string &algorithm, const std::string &name, DataList data, bool addToRecentFiles=true, const Properties p=nullptr, std::string *effectivePath=nullptr) override
	Open a specific file type.

void	deleteControllerIfOwned (Controller *controller)
	Deletes controller and related instances if it is owned by this instance (only applies to AlgorithmControllers and DataControllers).

Protected Member Functions inherited from ApplicationController
virtual bool	prepareData (Data *data) const
	Prepares data for processing and display.

bool	checkDicomMagicByte (const Filesystem::Path &filename) const
	Checks the given file whether it contains the DICOM magic byte ("DICM" at bytes 128 ff.).

Protected Member Functions inherited from SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.

Protected Attributes
std::map< Algorithm *, std::unique_ptr< AlgorithmController > >	m_algorithmController
	AlgorithmControllers per Algorithm.

std::map< std::string, std::unique_ptr< DataController > >	m_dataControllers
	DataControllers per factory ID.

std::map< Controller *, std::unique_ptr< DefaultControllerDecorator > >	m_controllers
	List of all known Controllers and their container widgets.

std::unique_ptr< ProgressDialog >	m_progressDialog
	Progress dialog widget.

std::unique_ptr< DataItemModel >	m_dataItemModel
	DataItemModel wrapping the ApplicationController's dataModel()

DataWidget *	m_dataWidget = nullptr
	Displays the DataModel and provides selection.

AnnotationWidget *	m_annotationWidget = nullptr
	widget to edit annotations

SelectionWidget *	m_selWidget = nullptr
	selection widget

ViewLayoutWidget *	m_layoutWidget = nullptr
	widget controls for the view layout

RecentFilesMenu *	m_recentFilesMenu = nullptr
	menu for recent files

QMap< QString, QAction * >	m_actions
	Contains all menu actions.

Flags< PostLoadAction >	m_postLoadActions = PostLoadAction::All
	Set of actions to perform in default implementation of postLoad()

Protected Attributes inherited from ApplicationController
std::unique_ptr< DataModel >	m_dataModel

std::unique_ptr< Workspace >	m_algorithmHistory
	History of executed algorithms and their input/output data.

std::map< std::string, std::string >	m_placeholders
	Placeholders as extra command line arguments.

std::vector< std::unique_ptr< Algorithm > >	m_algorithms
	List of all active Algorithms.

std::vector< Properties >	m_algorithmTemplates
	List of templates that newly instantiated algorithms should be configured from.

DataList	m_untrackedData
	Data that has been added to the data model but is not yet assigned to an output of an algorithm.

std::vector< Data * >	m_ignoredData
	Data that has been explicitly marked to be ignored in workspaces.

std::vector< InteractiveObject * >	m_ignoredAnnotations
	Annotations that have been explicitly marked to be ignored in workspaces.

bool	m_prepareShiftOnly = true
	Only shift intensities during prepareData.

bool	m_prepareNoShiftScale = false
	Do not shift or scale intensities during prepareData, overrides m_prepareShiftOnly.

bool	m_prepareDownsample = false
	Downsample data during prepareData.

Additional Inherited Members
Public Attributes inherited from ApplicationController
Signal< const Algorithm * >	signalAlgorithmRemoved
	Signal emitted just before an Algorithm is removed.

Static Protected Attributes inherited from ApplicationController
static std::string	m_logFileLocation
	Path to the log file (empty if not set)

Member Enumeration Documentation

◆ PostLoadAction

enum class PostLoadAction

strong

Bitflag enumeration of available actions that the default implementation of postLoad() performs.

Enumerator
None	Don't perform any actions in postLoad()
SelectData	Change the selection of the DataWidget to the newly added Data.
ShowViews	Make views that can show the added Data visible in case they are not.
StoreOriginalMatrix	Store the Data's original pose matrix in its TransformationStashDataComponent.
CreateDataController	Create and show a DataController for the added Data if possible.
All	Perform all actions in postLoad()

Constructor & Destructor Documentation

◆ MainWindowBase()

MainWindowBase	(	std::optional< Framework::InitConfig >	sdkInitConfig,
		QWidget *	parent = nullptr,
		Qt::WindowFlags	flags = Qt::Widget )

Instantiate and initialize the MainWindowBase interface.

Parameters

sdkInitConfig Flag and parameters whether to call Framework::init() during construction. Leave the Optional empty in case you have initialized the SDK already manually.

Note: If you provide a custom OpenGL context make sure to use a GlContextQt so that it is compatible with DisplayWidget.

Parameters

parent	Optional parent QWidget.
flags	Qt window flags

Member Function Documentation

◆ progress()

Progress * progress ( )

overridevirtual

Returns m_progressDialog.

Reimplemented from ApplicationController.

◆ loadStyleSheet() [1/3]

static void loadStyleSheet	(	QApplication &	app,
		QString	style )

static

Loads a specified style sheet.

This function can be used to initially set the style before the main window is created to ensure that a splash/loading, login or license dialog is styled correctly. In this case you should call MainWindowBase::loadStyleSheet(*qApp,CustomMainWindow::readCustomStyle()) where readCustomStyle is a static function reading the custom style (instead of readDefaultStyleQssFiles).

◆ loadStyleSheet() [2/3]

static void loadStyleSheet ( QApplication & app )

static

Loads the default style sheet.

Deprecated: "Use `loadStyleSheet(QApplication& app, QString& style)` to specify the style content or use the non-static version to ensure loading of the correct style"

◆ loadStyleSheet() [3/3]

virtual void loadStyleSheet ( )

virtual

Reads the default style and loads it.

This method internally calls readDefaultStyleQssFiles.

Override this method if you want to provide a custom style in a derived class. Example in custom main window class:

class CustomMainWindow : public MainWindowBase
{
    // ...

    QString readCustomStyle()
    {
        // get file from ressource
        QFile stylesheet(":/style/customStyle.qss");
        if (stylesheet.open(QIODevice::ReadOnly))
            return stylesheet.readAll();
        else
            return QString();
    }

    void loadStyleSheet() override
    {
        MainWindowBase::loadStyleSheet(*qApp, MiniNavSystem::readCustomStyle());
    }
}

◆ reloadStyleSheet()

static void reloadStyleSheet ( )

static

Reloads default style sheet.

Deprecated: "Directly use `loadStyleSheet` instead"

◆ getAlgorithmController()

AlgorithmController * getAlgorithmController ( const Algorithm * a ) const

overridevirtual

Returns the controller of the algorithm or nullptr if not existing.

Reimplemented from ApplicationController.

◆ addController()

virtual ControllerDecorator * addController ( Controller * controller )

virtual

Registers a Controller instance with the MainWindowBase so that it can be shown in the GUI.

The default implementation will decorate it using a standard DefaultControllerDecorator. Subclasses may override this function to use a custom UI.

◆ removeController()

virtual void removeController ( Controller * controller )

virtual

Removes a previously registered Controller from this MainWindowBase so that it is no longer shown in the GUI.

The default implementation will remove the ControllerDecorator used for decoration. Furthermore, it will delete controller if deleteControllerIfOwned is true and controller is owned by this MainWindowBase instance (only applies to AlgorithmControllers and DataControllers that were originally created through MainWindowBase and not added from the outside).

◆ canBeDeleted()

bool canBeDeleted ( const Data * data )

overridevirtual

Check whether data can be deleted or loaded algorithms depend on it.

Reimplemented from ApplicationController.

◆ askWorkspacePlaceholders()

std::vector< std::map< std::string, std::string > > askWorkspacePlaceholders ( const std::vector< std::string > & placeholderKeys )

overridevirtual

Asks the user the value of some placeholders and returns the input of the user.

Reimplemented from ApplicationController.

◆ closeAll()

void closeAll ( )

overridevirtual

Closes all data, algorithms and annotations.

Reimplemented from ApplicationController.

◆ addAlgorithm()

void addAlgorithm	(	std::unique_ptr< Algorithm >	a,
		const Properties *	config = nullptr )

overridevirtual

Adds a the given algorithm and creates a controller if available.

If no controller is available, the algorithm is instantly executed and deletes afterwards (a will be set to 0). If config contains a sub-property "Controller", it will be used to configure the controller. The controller is always initialized after the algorithm was configured and added.

Reimplemented from ApplicationController.

◆ removeAlgorithm() [1/2]

void removeAlgorithm	(	Algorithm *	a,
		bool	del = true )

overridevirtual

Same as removeAlgorithm(a, del, true)

Reimplemented from ApplicationController.

◆ removeAlgorithm() [2/2]

virtual void removeAlgorithm	(	Algorithm *	a,
		bool	del,
		bool	delCtrl,
		bool	executed = false )

virtual

Removes the given algorithm and its associated controller.

If del is true, the algorithm is also deleted (a will be invalid afterwards!). If delCtrl is true, the controller is deleted, too. If executed is true, the algorithm configuration is stored in the history of executed algorithms.

◆ settingsChanged

void settingsChanged ( )

signal

Emitted when the settings are changed by the user e.g.

through the SettingsDialog. It is not emitted when the settings change through any other means. You should not rely on this signal ever being called.

◆ postLoad

virtual void postLoad ( Data * data )

protectedvirtualslot

This method is called after data has been loaded.

The default implementation will perform all actions as specified in postLoadActions().

◆ onScreenChanged

virtual void onScreenChanged ( QScreen * newScreen )

protectedvirtualslot

Slot called when the hosting QWindow's screen has changed.

Will re-evaluate the new screen's DPI and notify the renderer backend etc.

◆ openFile()

bool openFile	(	const QString *	additionalFilters = 0,
		QString *	filename = 0,
		QString *	selectedFilter = 0 )

protected

Shows file selection dialog for open and opens file if the format is known.

The caller can add additional filters to the file open dialog. If an unknown filter is selected the method returns it in selectedFilter.

◆ saveFileAs()

bool saveFileAs	(	const QString *	additionalFilters = 0,
		QString *	filename = 0,
		QString *	selectedFilter = 0 )

protected

Shows file selection dialog for save and saves file if the format is known.

The caller can add additional filters to the file save dialog. If an unknown filter is selected the method returns it in selectedFilter.

◆ openWithIoAlgorithms()

bool openWithIoAlgorithms	(	const std::vector< std::string > &	algs,
		const std::string &	filename,
		DataList *	dataOut )

overrideprotectedvirtual

Asks the user which of the algs to use to open filename, loads file into the DataModel and stores the result in dataOut.

Reimplemented from ApplicationController.

◆ eventFilter()

bool eventFilter	(	QObject *	target,
		QEvent *	event )

overrideprotected

Filters close events of algorithm controllers and data controllers.

On close event for a data controller, the controller is removed and deleted. For algorithm controllers which are QWidget the controller and its algorithm is removed and deleted. For controllers which are QDialog, reject() slot will be raised. They must handle deleting themselves and their algorithms either by overriding the reject() slot or in their run() method considering that the default reject slot() causes the exec() method to return 0. AlgorithmController::closeAlgorithm method can be called to remove the algorithm and its controller.

◆ configureAlgorithm()

void configureAlgorithm ( Algorithm * a )

overrideprotectedvirtual

Called before an Algorithm is executed, allows for custom configuration.

Reimplemented from ApplicationController.

◆ open() [1/2]

bool open	(	const std::string &	algorithm,
		const std::string &	name,
		DataList *	data,
		bool	addToRecentFiles = true,
		const Properties *	p = nullptr,
		std::string *	effectivePath = nullptr )

overrideprotectedvirtual

Open a specific file type.

Reimplemented from ApplicationController.

◆ open() [2/2]

virtual bool open	(	const std::string &	filename,
		DataList *	outDataList = nullptr )

virtual

Opens a generic file and adds it to the DataModel.

The algorithm used to open the file is decided on the extension. You can provide an optional outDataList parameter to receive the list of loaded data. Returns true on success, false otherwise.

Reimplemented from ApplicationController.

The documentation for this class was generated from the following file:

ImFusion/GUI/MainWindowBase.h

Detailed Description

Public Types

Public Slots

Signals

Public Member Functions

Static Public Member Functions

Protected Slots

Protected Member Functions

Protected Attributes

Additional Inherited Members

Member Enumeration Documentation

◆ PostLoadAction

Constructor & Destructor Documentation

◆ MainWindowBase()

Member Function Documentation

◆ progress()

◆ loadStyleSheet() [1/3]

◆ loadStyleSheet() [2/3]

◆ loadStyleSheet() [3/3]

◆ reloadStyleSheet()

◆ getAlgorithmController()

◆ addController()

◆ removeController()

◆ canBeDeleted()

◆ askWorkspacePlaceholders()

◆ closeAll()

◆ addAlgorithm()

◆ removeAlgorithm() [1/2]

◆ removeAlgorithm() [2/2]

◆ settingsChanged

◆ postLoad

◆ onScreenChanged

◆ openFile()

◆ saveFileAs()

◆ openWithIoAlgorithms()

◆ eventFilter()

◆ configureAlgorithm()

◆ open() [1/2]

◆ open() [2/2]
