#include <ImFusion/GUI/Controller.h>
Base interface for a GUI element within MainWindowBase. More...

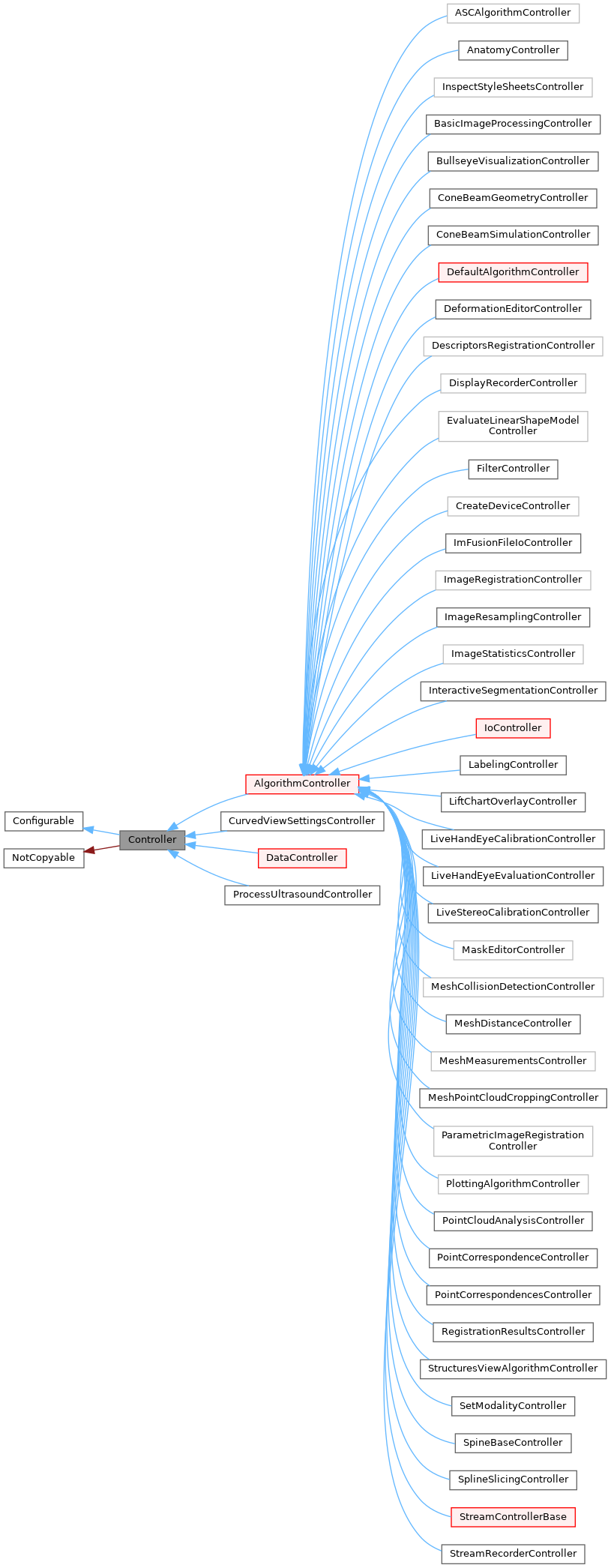

Inheritance diagram for Controller:Base interface for a GUI element within MainWindowBase.
A Controller enables the user to configure and control the underlying entity such as an Algorithm or a Data instance hosted by a MainWindowBase. Furthermore, a Controller has access to the parent MainWindowBase instance and can therefore also access entities that usually would not be accessible by the underlying entity (e.g. DisplayWidget, DataModel, other Algorithms, ...). Furthermore, it provides the following callbacks for convenience:
The Controller interface by itself is just an interface providing the necessary link to the parent MainWindowBase instance and does not provide any "visible" GUI. This is done in order to avoid a dependency to a particular GUI framework. However, usually all concrete implementations of this interface will provide a concrete GUI and therefore depend on a particular GUI framework (Qt in the case of all ImFusion Controllers).
Depending on the application a Controller can be placed in different locations within the GUI, which can be customized by the programmer through the supportedLocations() and preferredLocation() member functions. The actual placement within the application GUI is to be performed from the outside by the hosting MainWindowBase and the ControllerDecorator class/interface. Custom applications specializing MainWindowBase are free to implement their own container widgets supporting additional locations.
Public Types | |
| enum class | Location : int { Unknown = -1 , Naked = 0 , PrimaryDock = 1 , SecondaryDock = 2 , Detached = 3 , ToolBar = 4 , UserLocation = 100 } |
| Enumeration of possible placement/decoration options of a Controller. More... | |
Public Member Functions | |
| void | setMainWindowBase (MainWindowBase *mw) |
Complete the initialization by providing the parent MainWindowBase instance hosting the controller by setting m_main and m_disp and eventually call init(). | |
| virtual void | onSelectedDataChanged (const DataList &) |
| Called by MainWindowBase in the case that the selection in the data model has changed. | |
| virtual void | onVisibleDataChanged (const DataList &) |
| Called by MainWindowBase in the case that the currently visible data has changed. | |
| virtual std::vector< Location > | supportedLocations () const |
| Returns the list of locations in which this controller is allowed to be placed by the parent MainWindowBase. | |
| virtual Location | preferredLocation () const |
| Returns the preferred location in which the parent MainWindowBase should place this controller. | |
| virtual void | onLocationChanged (Location newLocation) |
| Callback function called by the parent MainWindowBase/ControllerDecorator whenever the place was changed. | |
| Location | location () const |
| Convenience function to query the current controller Location from the parent ControllerDecorator. | |
| virtual std::string | title () const =0 |
| Returns the shown widget title if the controller is shown in a mode that supports this (e.g. when in dock). | |
| ControllerDecorator * | getDecorator () const |
Convenience function to return m_main->getControllerDecorator(this) if m_main is set or nullptr otherwise. | |
| template<typename T> | |
| T * | getDecorator () const |
Convenience function to dynamic_cast the return value of getDecorator() to a derived type. | |
| Public Member Functions inherited from Configurable | |
| virtual void | configure (const Properties *p) |
| Configure this object instance by de-serializing the given Properties. | |
| virtual void | configuration (Properties *p) const |
| Serialize the current object configuration into the given Properties object. | |
| virtual void | configureDefaults () |
| Retrieve the properties of this object, replaces values with their defaults and sets it again. | |
| void | registerParameter (ParameterBase *param) |
| Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration(). | |
| void | unregisterParameter (const ParameterBase *param) |
| Remove the given Parameter or SubProperty from the list of registered parameters. | |
| Configurable (const Configurable &rhs) | |
| Configurable (Configurable &&rhs) noexcept | |
| Configurable & | operator= (const Configurable &) |
| Configurable & | operator= (Configurable &&) noexcept |
Public Attributes | |
| Signal | signalTitleChanged |
| Signal emitted when the title() has changed. | |
| Public Attributes inherited from Configurable | |
| Signal | signalParametersChanged |
Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted. | |
Protected Member Functions | |
| virtual void | init ()=0 |
| Two-step initialization function to be implemented by subclasses. | |
Protected Attributes | |
| MainWindowBase * | m_main = nullptr |
| The parent MainWindowBase instance hosting this Controller. | |
| DisplayWidgetMulti * | m_disp = nullptr |
The main DisplayWidget instance, convenience shortcut for m_main->display(). | |
| Protected Attributes inherited from Configurable | |
| std::vector< Param > | m_params |
| List of all registered Parameter and SubProperty instances. | |
|
strong |
Enumeration of possible placement/decoration options of a Controller.
| Enumerator | |
|---|---|
| Unknown | Exact location could not be determined (e.g. when Controller is not yet initialized). |
| Naked | Controller should not be wrapped/placed by MainWindowBase at all (e.g. Controller hosts its own window). |
| PrimaryDock | Controller should be placed in MainWindowBase::algorithmDock() if available. |
| SecondaryDock | Controller should be placed in MainWindowBase::secondaryAlgorithmDock() if available. |
| Detached | Controller should be placed in a detached floating window. |
| ToolBar | Controller should be placed in MainWindowBase::controllerBar() if available. |
| UserLocation | First unreserved enum value that can be used for custom or application-specific purposes. |
| void setMainWindowBase | ( | MainWindowBase * | mw | ) |
Complete the initialization by providing the parent MainWindowBase instance hosting the controller by setting m_main and m_disp and eventually call init().
This function is called by MainWindowBase::addController() so that you normally do not need to call it manually from the outside except in case you want to use a Controller without adding it to MainWindowBase.
|
inlinevirtual |
Called by MainWindowBase in the case that the selection in the data model has changed.
Reimplemented in BasicImageProcessingController, Gated4DImageSetDisplayDataController, GraphDataController, InteractiveSegmentationController, LabelingController, RGBDStreamController, StereoImageStreamDataController, StereoSharedImageSetController, StreamController, BoneSegmentationController, GeometryDetectionController, UltrasoundCalibrationController, and VitalsDataController.
|
inlinevirtual |
Called by MainWindowBase in the case that the currently visible data has changed.
Reimplemented in RTStructureDataController, Gated4DImageSetDisplayDataController, GraphDataController, TrackedSharedImageSetDisplayDataController, FrameGrabbingConfigEditorController, StreamDisplayDataController, SweepDisplayDataController, and VitalsDataController.
|
inlinevirtual |
Returns the list of locations in which this controller is allowed to be placed by the parent MainWindowBase.
If the controller should not be placed/wrapped by the host but stand by itself you should return a list containing only Location::Naked.
Reimplemented in DataController, Gated4DImageSetDisplayDataController, ImFusionFileIoController, IoController, SetModalityController, TrackedSharedImageSetDisplayDataController, TrackedSharedImageSetPropertiesLegacy, TrackingStreamProperties, ExportCalibrationController, UltrasoundCalibrationWizard, VideoCameraStreamPropertiesInspectorController, and VitalsDataController.
|
inlinevirtual |
Returns the preferred location in which the parent MainWindowBase should place this controller.
If the controller should not be placed/wrapped by the host but stand by itself you should return Location::Naked.
Reimplemented in DataController, Gated4DImageSetDisplayDataController, ImFusionFileIoController, IoController, SetModalityController, TrackedSharedImageSetDisplayDataController, TrackedSharedImageSetPropertiesLegacy, TrackingStreamProperties, ExportCalibrationController, UltrasoundCalibrationWizard, VideoCameraStreamPropertiesInspectorController, and VitalsDataController.
|
virtual |
Callback function called by the parent MainWindowBase/ControllerDecorator whenever the place was changed.
Reimplemented in MeshDataController.
| Location location | ( | ) | const |
Convenience function to query the current controller Location from the parent ControllerDecorator.
If the current location could not be determined, Location::Unknown is returned.
|
pure virtual |
Returns the shown widget title if the controller is shown in a mode that supports this (e.g. when in dock).
Implemented in AlgorithmController, CurvedViewSettingsController, DataController, Gated4DImageSetDisplayDataController, MeshDataController, TrackedSharedImageSetDisplayDataController, ProcessUltrasoundController, StreamDisplayDataController, SweepDisplayDataController, and VitalsDataController.
|
protectedpure virtual |
Two-step initialization function to be implemented by subclasses.
This function is called by setMainWindowBase() after the m_disp and m_main attributes have been set and hence a complete initialization of the controller is possible at this point.
Implemented in AnatomyController, InspectStyleSheetsController, ASCAlgorithmController, ASCProjectionController, BasicImageProcessingController, BullseyeVisualizationController, CombinedTrackingStreamController, AlgorithmReconstructionDecoratorController, AutoFocusMotionCompensationAlgorithmController, ConeBeamGeometryController, ConeBeamSimulationController, GeometrySelfCalibrationController, Gl2D3DRegistrationController, GridBasedDistortionCorrectionController, Mesh2D3DRegistrationController, XRay2D3DRegistrationAlgorithmController, CurvedViewSettingsController, DataController, DefaultAlgorithmController, DefaultASCRegistrationController, DefaultASCSegmentationController< SegmentationAlgorithm >, DeformationEditorController, DescriptorsRegistrationController, RTStructureDataController, DrawGraphController, EvaluateLinearShapeModelController, FilterController, GraphDataController, CreateDeviceController, ImageRegistrationController, ImageResamplingController, ImageStatisticsController, ImFusionFileIoController, InteractiveSegmentationController, IoController, LabelingController, LiftChartOverlayController, LineToIsosurfaceIntersectionController, LinkPoseDeformableController, LiveHandEyeCalibrationController, LiveHandEyeEvaluationController, LiveStereoCalibrationController, MaskEditorController, MeshCollisionDetectionController, MeshDataController, MeshDistanceController, MeshMeasurementsController, MeshPointCloudCroppingController, NDITrackingController, ParametricImageRegistrationController, PlottingAlgorithmController, PointCloudAnalysisController, PointCorrespondenceController, PointCorrespondencesController, RegistrationResultsController, RGBDStreamController, FrankaManagerController, RTStructureToLabelMapController, StructuresViewAlgorithmController, SetModalityController, SpineBaseController, SpineMeshCurvatureController, SplineSlicingController, StereoImageStreamDataController, StereoSharedImageSetController, StreamAlgorithmExecutorController, StreamControllerBase, StreamRecorderController, ThresholdingFiducialExtractionController, ToolCalibrationController, ToolVisualizationController, TrackedSharedImageSetDisplayDataController, TrackedSharedImageSetProperties, TrackedSharedImageSetPropertiesLegacy, TrackingStreamProperties, TrackingToolCalibrationWizard, TransferGraphFeatureToMeshController, BoneSegmentationController, ExportCalibrationController, FrameGeometryPropertiesController, FrameGrabbingConfigEditorController, FrameGrabbingController, GeometryDetectionController, ImportCalibrationController, LiveSweepRecordingVisualizationController, NeedleSweepCalibrationController, ProcessUltrasoundController, RawDataController, StreamDisplayDataController, SweepDisplayDataController, SweepGlobalInitController, SweepPointCorrController, SweepRecorderController, SyntheticUltrasoundSweepController, TrackingEstimationController, UltrasoundCalibrationController, UltrasoundCalibrationWizard, UltrasoundDISARegistrationController, UltrasoundRegistrationController, VertebraDissectionLegacyController, VideoCameraStreamPropertiesInspectorController, VitalsDataController, VolumeBasedMeshCurvatureController, and VolumeBasedMeshRegistrationController.
