#include <ImFusion/GUI/DefaultAlgorithmController.h>

Default algorithm controller, with automatically generated GUI This GUI includes: A PropertiesWidget displaying the configurable properties of the Algorithm A push-button for each Algorithm::Action registered with the algorithm (see Algorithm::registerAction). More...

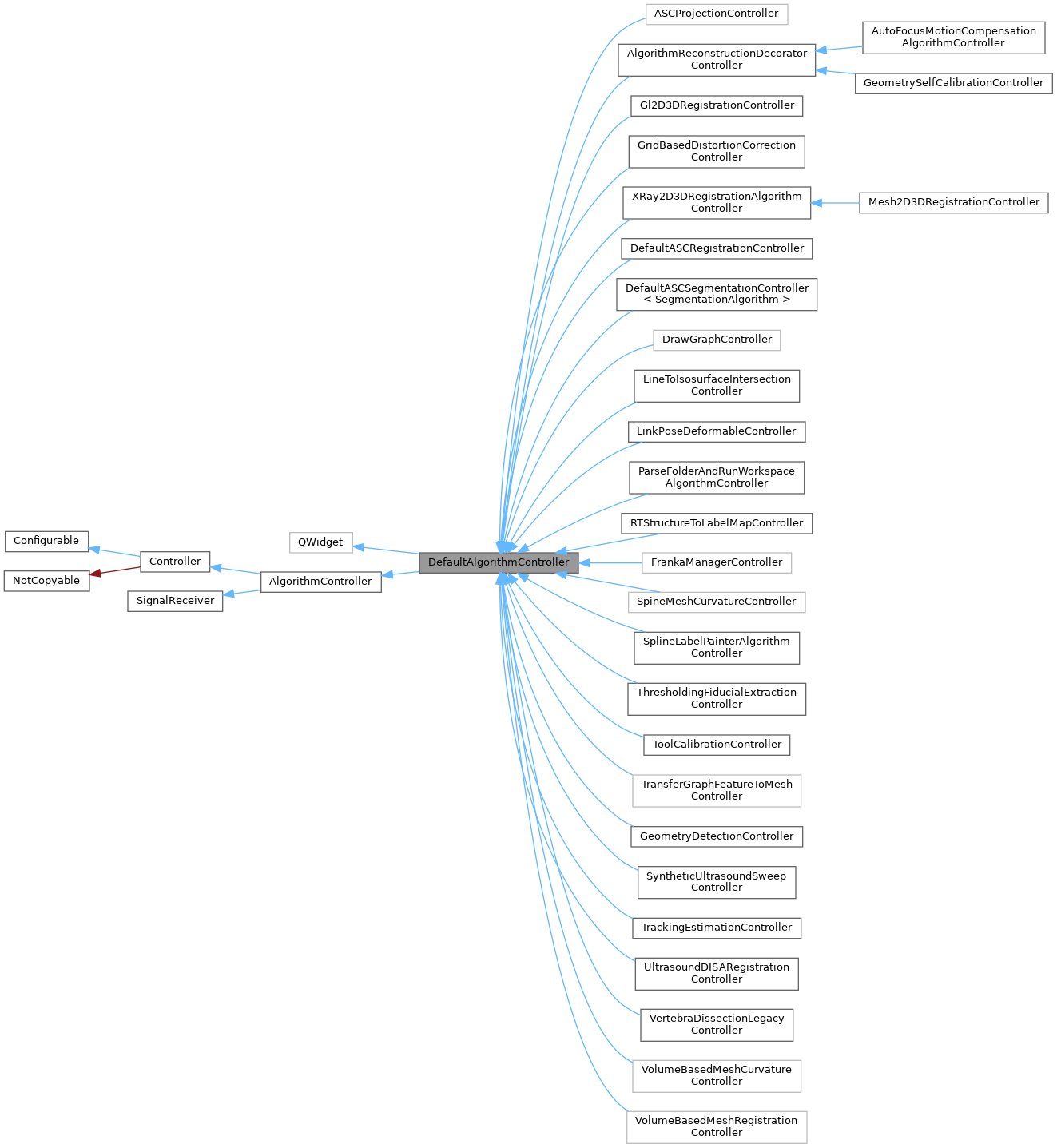

Inheritance diagram for DefaultAlgorithmController:

Detailed Description

Default algorithm controller, with automatically generated GUI This GUI includes: A PropertiesWidget displaying the configurable properties of the Algorithm A push-button for each Algorithm::Action registered with the algorithm (see Algorithm::registerAction).

The push-button for the "compute" action is always shown last, and always calls Algorithm::compute() when clicked ( even if the "compute" action is overwritten with Algorithm::registerAction )

See also: PropertiesWidget, Algorithm

Public Slots
virtual void	onCompute ()

virtual void	updatePropertiesWidget ()

Public Member Functions
	DefaultAlgorithmController (Algorithm *algo, const QString &uiTemplate="", bool configureOnChanged=false, bool autoDeleteAfterCompute=false)

void	init () override
	Two-step initialization function to be implemented by subclasses.

void	setAutoDeleteAfterCompute (bool enable)
	Sets if the algorithm will be deleted after onCompute() was called.

void	setConfigureOnChanged (bool enable)
	Sets if the algorithm should be re-configured with each changed value.

void	hideComputeButton (bool hide)
	Hides or shows the compute button.

void	setAddAlgorithmToHistory (bool toggle)
	Enable/disable algorithm registration on compute.

virtual void	copyAlgorithmConfiguration () const
	Copy the algorithm configuration as currently shown in the controller to the clipboard.

virtual void	pasteAlgorithmConfiguration ()
	Paste the algorithm configuration from the clipboard.

void	setSplitCamelCase (bool enable)
	Calls PropertiesWidget::setSplitCamelCase(enabled) on m_propertiesWidget.

void	setCustomWidget (const std::string &subPropertyName, std::unique_ptr< QWidget > widget)
	Assign a custom widget to the subproperty.

OptimizationDialog *	optimizationDialog () const
	Getter for the OptimizationDialog.

Public Member Functions inherited from AlgorithmController
	AlgorithmController (Algorithm *algorithm)
	Creates a new AlgorithmController wrapping the given algorithm, which must not be null.

const Algorithm *	algorithm () const
	Returns the underlying Algorithm instance.

Algorithm *	algorithm ()

void	showInputData ()
	Shows the input data in the DisplayWidget.

InputDataVisibility	showsInputData ()
	Checks if the input data is currently visible in the DisplayWidget.

void	showHelp ()
	Attempts to open the user documentation page for the underlying algorithm.

std::optional< Filesystem::Path >	helpPath () const
	Returns the path to the user documentation page if it is available, std::nullopt otherwise.

std::string	title () const override
	Returns the original factory name of the underlying Algorithm.

Public Member Functions inherited from Controller
void	setMainWindowBase (MainWindowBase *mw)
	Complete the initialization by providing the parent MainWindowBase instance hosting the controller by setting `m_main` and `m_disp` and eventually call init().

virtual void	onSelectedDataChanged (const DataList &)
	Called by MainWindowBase in the case that the selection in the data model has changed.

virtual void	onVisibleDataChanged (const DataList &)
	Called by MainWindowBase in the case that the currently visible data has changed.

virtual std::vector< Location >	supportedLocations () const
	Returns the list of locations in which this controller is allowed to be placed by the parent MainWindowBase.

virtual Location	preferredLocation () const
	Returns the preferred location in which the parent MainWindowBase should place this controller.

virtual void	onLocationChanged (Location newLocation)
	Callback function called by the parent MainWindowBase/ControllerDecorator whenever the place was changed.

Location	location () const
	Convenience function to query the current controller Location from the parent ControllerDecorator.

ControllerDecorator *	getDecorator () const
	Convenience function to return `m_main->getControllerDecorator(this)` if m_main is set or `nullptr` otherwise.

template<typename T>
T *	getDecorator () const
	Convenience function to `dynamic_cast` the return value of getDecorator() to a derived type.

Public Member Functions inherited from Configurable
virtual void	configure (const Properties *p)
	Configure this object instance by de-serializing the given Properties.

virtual void	configuration (Properties *p) const
	Serialize the current object configuration into the given Properties object.

virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.

void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().

void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.

	Configurable (const Configurable &rhs)

	Configurable (Configurable &&rhs) noexcept

Configurable &	operator= (const Configurable &)

Configurable &	operator= (Configurable &&) noexcept

Public Member Functions inherited from SignalReceiver
	SignalReceiver ()=default
	Default constructor.

	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.

SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.

virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Protected Slots
virtual void	onParameterChanged (const std::string &paramName)

Protected Member Functions
void	addButton (const QString &title, const std::function< void()> &callback, int position=-1)
	Adds a button at the end of the widget One can pass a position to indicate the order of the added buttons, by passing nothing, the button is added to the end Note: Buttons must be added before the init method is called.

virtual void	fillActionMenu (QMenu &menu)
	Fill a QMenu with all available actions.

void	onAlgorithmParametersChanged () override
	Callback called when the Algorithm's signalParametersChanged signal was emitted.

void	onAlgorithmOutputChanged () override
	Callback called when the Algorithm's signalOutputChanged signal was emitted.

QVBoxLayout *	layout () const
	Return the main layout of the controller.

virtual OwningDataList	postprocessOutput (OwningDataList output)
	This function will be called directly on the output generated by the algorithm.

void	duplicateAlgorithmOnSelectedData () const override
	Instantiates a new copy of underlying Algorithm on the currently selected Data in the DataModel and adds it to the ApplicationController.

Protected Member Functions inherited from AlgorithmController
virtual void	closeAlgorithm (bool executed=false)
	Removes the algorithm from the ApplicationController and closes the controller.

void	addToDataAndAnnotationModels (OwningDataList data)
	Adds the contents of data to the DataModel of the parent MainWindowBase.

Protected Member Functions inherited from SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.

Protected Attributes
bool	m_autoDeleteAfterCompute

bool	m_configureOnChanged

bool	m_isInitialized = false

bool	m_addAlgorithmToHistory = true
	enable/disable register algorithm on compute()

bool	m_optUpdatesDisplay = false
	enable/disable display updates from the optimizer

PropertiesWidget *	m_propertiesWidget = nullptr

OptimizationDialog *	m_optDialog = nullptr

QVBoxLayout *	m_layout = nullptr

QPushButton *	m_optDialogButton = nullptr

QPushButton *	m_computeButton = nullptr

QList< QPushButton * >	m_buttons

Protected Attributes inherited from AlgorithmController
Algorithm *	m_algorithm = nullptr
	The underlying algorithm.

Protected Attributes inherited from Controller
MainWindowBase *	m_main = nullptr
	The parent MainWindowBase instance hosting this Controller.

DisplayWidgetMulti *	m_disp = nullptr
	The main DisplayWidget instance, convenience shortcut for `m_main->display()`.

Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Additional Inherited Members
Public Types inherited from AlgorithmController
enum class	InputDataVisibility { None = 0 , All = 1 , Some = 2 }
	Enumeration of possible return values for showsInputData(). More...

Public Types inherited from Controller
enum class	Location : int { Unknown = -1 , Naked = 0 , PrimaryDock = 1 , SecondaryDock = 2 , Detached = 3 , ToolBar = 4 , UserLocation = 100 }
	Enumeration of possible placement/decoration options of a Controller. More...

Public Attributes inherited from Controller
Signal	signalTitleChanged
	Signal emitted when the title() has changed.

Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' `signalValueChanged` signal was emitted.

Member Function Documentation

◆ init()

void init ( )

overridevirtual

Two-step initialization function to be implemented by subclasses.

This function is called by setMainWindowBase() after the m_disp and m_main attributes have been set and hence a complete initialization of the controller is possible at this point.

Implements Controller.

Reimplemented in GeometrySelfCalibrationController, Gl2D3DRegistrationController, GridBasedDistortionCorrectionController, Mesh2D3DRegistrationController, XRay2D3DRegistrationAlgorithmController, DefaultASCRegistrationController, DefaultASCSegmentationController< SegmentationAlgorithm >, DrawGraphController, LineToIsosurfaceIntersectionController, LinkPoseDeformableController, FrankaManagerController, RTStructureToLabelMapController, SpineMeshCurvatureController, ThresholdingFiducialExtractionController, ToolCalibrationController, TransferGraphFeatureToMeshController, GeometryDetectionController, SyntheticUltrasoundSweepController, TrackingEstimationController, UltrasoundDISARegistrationController, VertebraDissectionLegacyController, VolumeBasedMeshCurvatureController, and VolumeBasedMeshRegistrationController.

◆ setAutoDeleteAfterCompute()

void setAutoDeleteAfterCompute ( bool enable )

Sets if the algorithm will be deleted after onCompute() was called.

Disabled by default.

◆ setConfigureOnChanged()

void setConfigureOnChanged ( bool enable )

Sets if the algorithm should be re-configured with each changed value.

If enabled, changing a parameter in the widget will instantly re-configure the algorithm with the new value. Otherwise the algorithm is only configured when onCompute() is called. Disabled by default.

◆ setCustomWidget()

void setCustomWidget	(	const std::string &	subPropertyName,
		std::unique_ptr< QWidget >	widget )

Assign a custom widget to the subproperty.

This widget will not be re-configured. It is the responsibility of the widget to handle all signals and re-configure its parameters if present. Note: if there are multiple subProperties with the same name, only one widget will be added for the last subProperty

◆ onAlgorithmParametersChanged()

void onAlgorithmParametersChanged ( )

overrideprotectedvirtual

Callback called when the Algorithm's signalParametersChanged signal was emitted.

Reimplemented from AlgorithmController.

Reimplemented in Gl2D3DRegistrationController, and XRay2D3DRegistrationAlgorithmController.

◆ onAlgorithmOutputChanged()

void onAlgorithmOutputChanged ( )

overrideprotectedvirtual

Callback called when the Algorithm's signalOutputChanged signal was emitted.

Reimplemented from AlgorithmController.

Reimplemented in ThresholdingFiducialExtractionController, GeometryDetectionController, and VertebraDissectionLegacyController.

◆ layout()

QVBoxLayout * layout ( ) const

protected

Return the main layout of the controller.

The last item is the compute button. Derived classes should add their custom widgets before the compute button.

◆ postprocessOutput()

virtual OwningDataList postprocessOutput ( OwningDataList output )

inlineprotectedvirtual

This function will be called directly on the output generated by the algorithm.

Its purpose is to let derived classes do some custom post-processing.

Reimplemented in DefaultASCRegistrationController, DefaultASCSegmentationController< SegmentationAlgorithm >, and DrawGraphController.

◆ duplicateAlgorithmOnSelectedData()

void duplicateAlgorithmOnSelectedData ( ) const

overrideprotectedvirtual

Instantiates a new copy of underlying Algorithm on the currently selected Data in the DataModel and adds it to the ApplicationController.

Reimplemented from AlgorithmController.

◆ onCompute

virtual void onCompute ( )

virtualslot

Reimplemented in Gl2D3DRegistrationController.

◆ updatePropertiesWidget

virtual void updatePropertiesWidget ( )

virtualslot

Reimplemented in Gl2D3DRegistrationController.

◆ onParameterChanged

virtual void onParameterChanged ( const std::string & paramName )

protectedvirtualslot

Reimplemented in Gl2D3DRegistrationController.

The documentation for this class was generated from the following file:

ImFusion/GUI/DefaultAlgorithmController.h
