#include <ImFusion/GUI/ApplicationController.h>

The basic ApplicationController provides essential interfaces of the SDK but no graphical user interface. More...

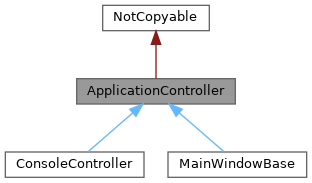

Inheritance diagram for ApplicationController:

Detailed Description

The basic ApplicationController provides essential interfaces of the SDK but no graphical user interface.

Depending on the constructor arguments, instantiating this class can also take care of proper initialization (e.g. factories, OpenGL contexts, etc.) of the ImFusion SDK. In this case you do not need to call Framework::init() explicitly.

While it is technically possible to have multiple ApplicationController instances at the same time, such setups are discouraged and may be considered undefined/unsupported behavior.

See also: What is the correct way to initialize the ImFusionLib and its plugins?

Public Member Functions
	ApplicationController (std::unique_ptr< DataModel > dataModel, std::optional< Framework::InitConfig > sdkInitConfig)
	Instantiate and initialize the ApplicationController interface.

void	load (int argc, char **argv)
	Load configuration file and optional further parameters.

void	loadAll (const std::vector< std::string > &fileNames)
	Loads all files passed as arguments.

virtual bool	loadWorkspace (const Filesystem::Path &filename, const std::optional< std::map< std::string, std::string > > &=std::nullopt)
	Loads a workspace file from the path denoted by filename.

virtual Progress *	progress ()
	Returns the optional Progress instance that can be used to report progress updates.

virtual bool	open (const std::string &filename, DataList *outDataList=nullptr)
	Opens a generic file and adds it to the DataModel.

virtual void	closeAll ()
	Closes all data, algorithms and annotations.

virtual void	addAlgorithm (std::unique_ptr< Algorithm > a, const Properties *config=nullptr)
	Adds an algorithm.

virtual void	removeAlgorithm (Algorithm *a, bool del=true)
	Removes the algorithm and deletes it if del is true.

virtual void	clearAlgorithms ()
	Removes all algorithm and deletes it if del is true.

virtual void	executeAlgorithms ()
	Executes all algorithms. TODO: delete algorithms afterwards?

virtual void	addAlgorithmToHistory (const Algorithm &a, bool allowReplayWorkspaces=true)
	Adds an already executed algorithm to the history.

void	registerAlgorithm (const Algorithm &alg)
	Registers the algorithm.

void	updateRegisteredAlgorithm (const Algorithm &alg)
	Update the description of a recorded algorithm.

void	ignoreDataInHistory (Data &data)
	Ignore the given Data in the algorithm history/workspace.

void	ignoreAnnotationInHistory (InteractiveObject &annotation)
	Ignore the given Annotation in the algorithm history/workspace.

const Workspace &	algorithmHistory () const
	Return the workspace instance modeling list of executed algorithms and their input/output data.

std::vector< Algorithm * >	algorithms () const
	Returns the list of all algorithms.

virtual std::vector< Algorithm * >	dependingAlgorithms (const Data *data) const
	Returns the algorithms that depend on data.

virtual std::vector< Algorithm * >	dependingAlgorithms (const DataList &data) const
	Returns the algorithms that depend on exactly the provided data list.

virtual Algorithm *	getAlgorithm (const std::string &id) const
	Returns the first algorithm with the given id or nullptr if not existing.

template<typename T>
T *	getAlgorithm (const std::string &id="") const
	Returns the first algorithm of the given type, optionally with id filtering.

virtual std::vector< std::map< std::string, std::string > >	askWorkspacePlaceholders (const std::vector< std::string > &placeholderKeys)
	Asks the user the value of some placeholders and returns the input of the user.

virtual void	addPlaceholder (const std::string &name, const std::string &value)
	Adds a placeholder value to m_placeholders (or overwrites it if it already exists)

virtual std::map< std::string, std::string >	placeholders () const
	Gets the currently set placeholders.

virtual void	setPlaceholders (const std::map< std::string, std::string > &placeholders)
	Sets the placeholders.

virtual bool	saveWorkspace (const Filesystem::Path &filename, std::optional< std::set< std::string > > selectedDataComps=std::nullopt)
	Save current workspace to a iws file Selected data components passed as parameter are also saved.

virtual DataModel *	dataModel ()

virtual const DataModel *	dataModel () const

void	loadPlugins (const std::vector< std::string > &pluginFolders=std::vector< std::string >())
	Load and register/initializes all ImFusion plugins from the specified folders.

virtual bool	canBeDeleted (const Data *data)
	Check whether data can be deleted or loaded algorithms depend on it.

Public Attributes
Signal< const Algorithm * >	signalAlgorithmRemoved
	Signal emitted just before an Algorithm is removed.

Protected Member Functions
virtual void	configureAlgorithm (Algorithm *)
	Called before an Algorithm is executed, allows for custom configuration.

virtual bool	open (const std::string &algorithm, const std::string &name, DataList outDataList, bool addToRecentFiles=true, const Properties p=nullptr, std::string *pathOut=nullptr)
	Open a specific file type.

virtual bool	prepareData (Data *data) const
	Prepares data for processing and display.

virtual AlgorithmController *	getAlgorithmController (const Algorithm *) const
	Returns the controller of the algorithm or nullptr if not existing (default implementation).

bool	checkDicomMagicByte (const Filesystem::Path &filename) const
	Checks the given file whether it contains the DICOM magic byte ("DICM" at bytes 128 ff.).

virtual bool	openWithIoAlgorithms (const std::vector< std::string > &algs, const std::string &filename, DataList *dataOut)
	Uses the first of the given algs to open filename, store them in the DataModel and optionally put them in dataOut.

Protected Attributes
std::unique_ptr< DataModel >	m_dataModel

std::unique_ptr< Workspace >	m_algorithmHistory
	History of executed algorithms and their input/output data.

std::map< std::string, std::string >	m_placeholders
	Placeholders as extra command line arguments.

std::vector< std::unique_ptr< Algorithm > >	m_algorithms
	List of all active Algorithms.

std::vector< Properties >	m_algorithmTemplates
	List of templates that newly instantiated algorithms should be configured from.

DataList	m_untrackedData
	Data that has been added to the data model but is not yet assigned to an output of an algorithm.

std::vector< Data * >	m_ignoredData
	Data that has been explicitly marked to be ignored in workspaces.

std::vector< InteractiveObject * >	m_ignoredAnnotations
	Annotations that have been explicitly marked to be ignored in workspaces.

bool	m_prepareShiftOnly = true
	Only shift intensities during prepareData.

bool	m_prepareNoShiftScale = false
	Do not shift or scale intensities during prepareData, overrides m_prepareShiftOnly.

bool	m_prepareDownsample = false
	Downsample data during prepareData.

Static Protected Attributes
static std::string	m_logFileLocation
	Path to the log file (empty if not set)

Constructor & Destructor Documentation

◆ ApplicationController()

ApplicationController	(	std::unique_ptr< DataModel >	dataModel,
		std::optional< Framework::InitConfig >	sdkInitConfig )

Instantiate and initialize the ApplicationController interface.

Parameters

dataModel	DataModel to use for storing Data, must not be null.
sdkInitConfig	Flag and parameters whether to call Framework::init() during construction. Leave the Optional empty in case you have manually initialized the framework already.

See also: Framework::init(), LicenseManagerSDK

Member Function Documentation

◆ load()

void load	(	int	argc,
		char **	argv )

Load configuration file and optional further parameters.

Deprecated: "Use instead one of the member functions `loadAll`, `loadWorkspace`, `loadImf`."

◆ loadWorkspace()

virtual bool loadWorkspace	(	const Filesystem::Path &	filename,
		const std::optional< std::map< std::string, std::string > > &	= std::nullopt )

virtual

Loads a workspace file from the path denoted by filename.

Loads the properties from the file and calls loadWorkspace(const Properties*).

◆ progress()

virtual Progress * progress ( )

inlinevirtual

Returns the optional Progress instance that can be used to report progress updates.

Reimplemented in ConsoleController, and MainWindowBase.

◆ open() [1/2]

virtual bool open	(	const std::string &	filename,
		DataList *	outDataList = nullptr )

virtual

Opens a generic file and adds it to the DataModel.

The algorithm used to open the file is decided on the extension. You can provide an optional outDataList parameter to receive the list of loaded data. Returns true on success, false otherwise.

Reimplemented in MainWindowBase.

◆ closeAll()

virtual void closeAll ( )

virtual

Closes all data, algorithms and annotations.

Reimplemented in MainWindowBase.

◆ addAlgorithm()

virtual void addAlgorithm	(	std::unique_ptr< Algorithm >	a,
		const Properties *	config = nullptr )

virtual

Adds an algorithm.

Subclasses overriding this method may change or even delete the pointer. The optional config is used to configure the algorithm before it is added to the list of algorithms.

Reimplemented in MainWindowBase.

◆ removeAlgorithm()

virtual void removeAlgorithm	(	Algorithm *	a,
		bool	del = true )

virtual

Removes the algorithm and deletes it if del is true.

Reimplemented in MainWindowBase.

◆ registerAlgorithm()

void registerAlgorithm ( const Algorithm & alg )

Registers the algorithm.

Current untracked data (m_untrackedData) is marked as output of alg.

◆ ignoreDataInHistory()

void ignoreDataInHistory ( Data & data )

Ignore the given Data in the algorithm history/workspace.

AlgorithmControllers that add temporary data to the DataModel should call this function to mark the data as its side-product. This will avoid potentially corrupt workspaces due to wrong tracking of data origin.

◆ ignoreAnnotationInHistory()

void ignoreAnnotationInHistory ( InteractiveObject & annotation )

Ignore the given Annotation in the algorithm history/workspace.

AlgorithmControllers that add temporary annotations to the AnnotationModel should call this function to mark the data as its side-product. This will avoid potentially corrupt workspaces due to wrong tracking of data origin.

◆ getAlgorithm()

template<typename T>

T * getAlgorithm ( const std::string & id = "" ) const

Returns the first algorithm of the given type, optionally with id filtering.

Returns nullptr if not existing

◆ askWorkspacePlaceholders()

virtual std::vector< std::map< std::string, std::string > > askWorkspacePlaceholders ( const std::vector< std::string > & placeholderKeys )

virtual

Asks the user the value of some placeholders and returns the input of the user.

Reimplemented in ConsoleController, and MainWindowBase.

◆ loadPlugins()

void loadPlugins ( const std::vector< std::string > & pluginFolders = std::vector< std::string >() )

Load and register/initializes all ImFusion plugins from the specified folders.

If pluginFolders is empty, the following default search paths are used:

Windows platforms:

IMFUSION_PLUGIN_PATH environment variable
<executable-path>/plugins
<ImFusionLib.dll-path>/plugins

Unix platforms:

IMFUSION_PLUGIN_PATH environment variable
<ImFusionLib.so-path>/../lib/ImFusionLib/plugins

Plugin names defined in the environment variable IMFUSION_PLUGIN_BLACKLIST as a semi-colon-separated list (e.g. "Foo.dll;Bar.dll") will not be loaded by this function. This mechanism can also be used to explicitly ignore libraries that might conflict with or crash the application.

Will additionally call ImFusionPlugin::setApplicationController() on every loaded plugin.

◆ canBeDeleted()

virtual bool canBeDeleted ( const Data * data )

virtual

Check whether data can be deleted or loaded algorithms depend on it.

Reimplemented in MainWindowBase.

◆ configureAlgorithm()

virtual void configureAlgorithm ( Algorithm * )

inlineprotectedvirtual

Called before an Algorithm is executed, allows for custom configuration.

Reimplemented in MainWindowBase.

◆ open() [2/2]

virtual bool open	(	const std::string &	algorithm,
		const std::string &	name,
		DataList *	outDataList,
		bool	addToRecentFiles = true,
		const Properties *	p = nullptr,
		std::string *	pathOut = nullptr )

protectedvirtual

Open a specific file type.

Reimplemented in MainWindowBase.

◆ prepareData()

virtual bool prepareData ( Data * data ) const

protectedvirtual

Prepares data for processing and display.

Callback of DataModel::setPrepareCallback

◆ getAlgorithmController()

virtual AlgorithmController * getAlgorithmController ( const Algorithm * ) const

inlineprotectedvirtual

Returns the controller of the algorithm or nullptr if not existing (default implementation).

Reimplemented in MainWindowBase.

◆ openWithIoAlgorithms()

virtual bool openWithIoAlgorithms	(	const std::vector< std::string > &	algs,
		const std::string &	filename,
		DataList *	dataOut )

protectedvirtual

Uses the first of the given algs to open filename, store them in the DataModel and optionally put them in dataOut.

Reimplemented in MainWindowBase.

The documentation for this class was generated from the following file:

ImFusion/GUI/ApplicationController.h

Detailed Description

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Constructor & Destructor Documentation

◆ ApplicationController()

Member Function Documentation

◆ load()

◆ loadWorkspace()

◆ progress()

◆ open() [1/2]

◆ closeAll()

◆ addAlgorithm()

◆ removeAlgorithm()

◆ registerAlgorithm()

◆ ignoreDataInHistory()

◆ ignoreAnnotationInHistory()

◆ getAlgorithm()

◆ askWorkspacePlaceholders()

◆ loadPlugins()

◆ canBeDeleted()

◆ configureAlgorithm()

◆ open() [2/2]

◆ prepareData()

◆ getAlgorithmController()

◆ openWithIoAlgorithms()
