ImFusion SDK 4.3
|
|
ImFusion SDK 4.3
|

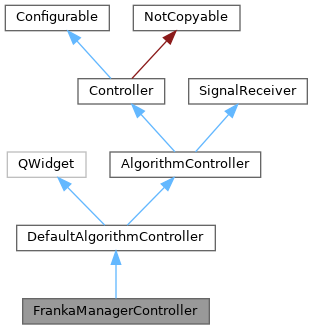

Inheritance diagram for FrankaManagerController:Public Member Functions | |
| FrankaManagerController (FrankaManagerAlgorithm *alg) | |
| void | init () override |
| Two-step initialization function to be implemented by subclasses. | |
| Public Member Functions inherited from DefaultAlgorithmController | |
| DefaultAlgorithmController (Algorithm *algo, const QString &uiTemplate="", bool configureOnChanged=false, bool autoDeleteAfterCompute=false) | |
| void | setAutoDeleteAfterCompute (bool enable) |
| Sets if the algorithm will be deleted after onCompute() was called. | |
| void | setConfigureOnChanged (bool enable) |
| Sets if the algorithm should be re-configured with each changed value. | |
| void | hideComputeButton (bool hide) |
| Hides or shows the compute button. | |
| void | setAddAlgorithmToHistory (bool toggle) |
| Enable/disable algorithm registration on compute. | |
| virtual void | copyAlgorithmConfiguration () const |
| Copy the algorithm configuration as currently shown in the controller to the clipboard. | |
| virtual void | pasteAlgorithmConfiguration () |
| Paste the algorithm configuration from the clipboard. | |
| void | setSplitCamelCase (bool enable) |
| Calls PropertiesWidget::setSplitCamelCase(enabled) on m_propertiesWidget. | |
| void | setCustomWidget (const std::string &subPropertyName, std::unique_ptr< QWidget > widget) |
| Assign a custom widget to the subproperty. | |
| OptimizationDialog * | optimizationDialog () const |
| Getter for the OptimizationDialog. | |
| Public Member Functions inherited from AlgorithmController | |
| AlgorithmController (Algorithm *algorithm) | |
| Creates a new AlgorithmController wrapping the given algorithm, which must not be null. | |
| const Algorithm * | algorithm () const |
| Returns the underlying Algorithm instance. | |
| Algorithm * | algorithm () |
| void | showInputData () |
| Shows the input data in the DisplayWidget. | |
| InputDataVisibility | showsInputData () |
| Checks if the input data is currently visible in the DisplayWidget. | |
| void | showHelp () |
| Attempts to open the user documentation page for the underlying algorithm. | |
| std::optional< Filesystem::Path > | helpPath () const |
| Returns the path to the user documentation page if it is available, std::nullopt otherwise. | |
| std::string | title () const override |
| Returns the original factory name of the underlying Algorithm. | |
| Public Member Functions inherited from Controller | |
| void | setMainWindowBase (MainWindowBase *mw) |
Complete the initialization by providing the parent MainWindowBase instance hosting the controller by setting m_main and m_disp and eventually call init(). | |
| virtual void | onSelectedDataChanged (const DataList &) |
| Called by MainWindowBase in the case that the selection in the data model has changed. | |
| virtual void | onVisibleDataChanged (const DataList &) |
| Called by MainWindowBase in the case that the currently visible data has changed. | |
| virtual std::vector< Location > | supportedLocations () const |
| Returns the list of locations in which this controller is allowed to be placed by the parent MainWindowBase. | |
| virtual Location | preferredLocation () const |
| Returns the preferred location in which the parent MainWindowBase should place this controller. | |
| virtual void | onLocationChanged (Location newLocation) |
| Callback function called by the parent MainWindowBase/ControllerDecorator whenever the place was changed. | |
| Location | location () const |
| Convenience function to query the current controller Location from the parent ControllerDecorator. | |
| ControllerDecorator * | getDecorator () const |
Convenience function to return m_main->getControllerDecorator(this) if m_main is set or nullptr otherwise. | |
| template<typename T> | |
| T * | getDecorator () const |
Convenience function to dynamic_cast the return value of getDecorator() to a derived type. | |
| Public Member Functions inherited from Configurable | |
| virtual void | configure (const Properties *p) |
| Configure this object instance by de-serializing the given Properties. | |
| virtual void | configuration (Properties *p) const |
| Serialize the current object configuration into the given Properties object. | |
| virtual void | configureDefaults () |
| Retrieve the properties of this object, replaces values with their defaults and sets it again. | |
| void | registerParameter (ParameterBase *param) |
| Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration(). | |
| void | unregisterParameter (const ParameterBase *param) |
| Remove the given Parameter or SubProperty from the list of registered parameters. | |
| Configurable (const Configurable &rhs) | |
| Configurable (Configurable &&rhs) noexcept | |
| Configurable & | operator= (const Configurable &) |
| Configurable & | operator= (Configurable &&) noexcept |
| Public Member Functions inherited from SignalReceiver | |
| SignalReceiver ()=default | |
| Default constructor. | |
| SignalReceiver (const SignalReceiver &other) | |
| Copy constructor, does not copy any existing signal connections from other. | |
| SignalReceiver & | operator= (SignalReceiver rhs) |
| Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs. | |
| virtual | ~SignalReceiver () |
| Virtual destructor disconnects from all connected signals. | |
Additional Inherited Members | |
| Public Types inherited from AlgorithmController | |
| enum class | InputDataVisibility { None = 0 , All = 1 , Some = 2 } |
| Enumeration of possible return values for showsInputData(). More... | |
| Public Types inherited from Controller | |
| enum class | Location : int { Unknown = -1 , Naked = 0 , PrimaryDock = 1 , SecondaryDock = 2 , Detached = 3 , ToolBar = 4 , UserLocation = 100 } |
| Enumeration of possible placement/decoration options of a Controller. More... | |
| Public Slots inherited from DefaultAlgorithmController | |
| virtual void | onCompute () |
| virtual void | updatePropertiesWidget () |
| Public Attributes inherited from Controller | |
| Signal | signalTitleChanged |
| Signal emitted when the title() has changed. | |
| Public Attributes inherited from Configurable | |
| Signal | signalParametersChanged |
Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted. | |
| Protected Slots inherited from DefaultAlgorithmController | |
| virtual void | onParameterChanged (const std::string ¶mName) |
| Protected Member Functions inherited from DefaultAlgorithmController | |
| void | addButton (const QString &title, const std::function< void()> &callback, int position=-1) |
| Adds a button at the end of the widget One can pass a position to indicate the order of the added buttons, by passing nothing, the button is added to the end Note: Buttons must be added before the init method is called. | |
| virtual void | fillActionMenu (QMenu &menu) |
| Fill a QMenu with all available actions. | |
| void | onAlgorithmParametersChanged () override |
| Callback called when the Algorithm's signalParametersChanged signal was emitted. | |
| void | onAlgorithmOutputChanged () override |
| Callback called when the Algorithm's signalOutputChanged signal was emitted. | |
| QVBoxLayout * | layout () const |
| Return the main layout of the controller. | |
| virtual OwningDataList | postprocessOutput (OwningDataList output) |
| This function will be called directly on the output generated by the algorithm. | |
| void | duplicateAlgorithmOnSelectedData () const override |
| Instantiates a new copy of underlying Algorithm on the currently selected Data in the DataModel and adds it to the ApplicationController. | |
| Protected Member Functions inherited from AlgorithmController | |
| virtual void | closeAlgorithm (bool executed=false) |
| Removes the algorithm from the ApplicationController and closes the controller. | |
| void | addToDataAndAnnotationModels (OwningDataList data) |
| Adds the contents of data to the DataModel of the parent MainWindowBase. | |
| Protected Member Functions inherited from SignalReceiver | |
| void | disconnectAll () |
| Disconnects all existing connections. | |
| Protected Attributes inherited from DefaultAlgorithmController | |
| bool | m_autoDeleteAfterCompute |
| bool | m_configureOnChanged |
| bool | m_isInitialized = false |
| bool | m_addAlgorithmToHistory = true |
| enable/disable register algorithm on compute() | |
| bool | m_optUpdatesDisplay = false |
| enable/disable display updates from the optimizer | |
| PropertiesWidget * | m_propertiesWidget = nullptr |
| OptimizationDialog * | m_optDialog = nullptr |
| QVBoxLayout * | m_layout = nullptr |
| QPushButton * | m_optDialogButton = nullptr |
| QPushButton * | m_computeButton = nullptr |
| QList< QPushButton * > | m_buttons |
| Protected Attributes inherited from AlgorithmController | |
| Algorithm * | m_algorithm = nullptr |
| The underlying algorithm. | |
| Protected Attributes inherited from Controller | |
| MainWindowBase * | m_main = nullptr |
| The parent MainWindowBase instance hosting this Controller. | |
| DisplayWidgetMulti * | m_disp = nullptr |
The main DisplayWidget instance, convenience shortcut for m_main->display(). | |
| Protected Attributes inherited from Configurable | |
| std::vector< Param > | m_params |
| List of all registered Parameter and SubProperty instances. | |
|
overridevirtual |
Two-step initialization function to be implemented by subclasses.
This function is called by setMainWindowBase() after the m_disp and m_main attributes have been set and hence a complete initialization of the controller is possible at this point.
Reimplemented from DefaultAlgorithmController.
