DefaultASCRegistrationController Class Reference

#include <AnatomyPlugin/include/ImFusion/AnatomyPlugin/DefaultASCRegistrationController.h>

Controller for AnatomicalStructureCollection (ASC) registration algorithms that handles basic UI elements such as adding the ASCs to the DataModel, unlinking their pose with the moving Data if they were linked and re-linking on closure. More...

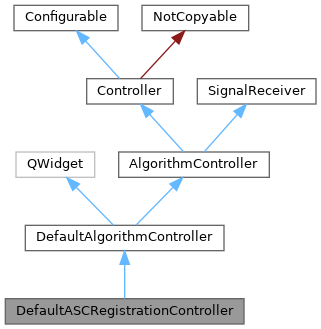

Inheritance diagram for DefaultASCRegistrationController:

Detailed Description

Controller for AnatomicalStructureCollection (ASC) registration algorithms that handles basic UI elements such as adding the ASCs to the DataModel, unlinking their pose with the moving Data if they were linked and re-linking on closure.

Public Member Functions
	DefaultASCRegistrationController (ASCRegistrationInterface &regAlg)
OwningDataList	postprocessOutput (OwningDataList output) override
	This function will be called directly on the output generated by the algorithm.
void	onCompute () override
void	init () override
	Two-step initialization function to be implemented by subclasses.
Public Member Functions inherited from DefaultAlgorithmController
	DefaultAlgorithmController (Algorithm *algo, const QString &uiTemplate="", bool configureOnChanged=false, bool autoDeleteAfterCompute=false)
void	setAutoDeleteAfterCompute (bool enable)
	Sets if the algorithm will be deleted after onCompute() was called.
void	setConfigureOnChanged (bool enable)
	Sets if the algorithm should be re-configured with each changed value.
void	hideComputeButton (bool hide)
	Hides or shows the compute button.
void	setAddAlgorithmToHistory (bool toggle)
	Enable/disable algorithm registration on compute.
virtual void	copyAlgorithmConfiguration () const
	Copy the algorithm configuration as currently shown in the controller to the clipboard.
virtual void	pasteAlgorithmConfiguration ()
	Paste the algorithm configuration from the clipboard.
void	setSplitCamelCase (bool enable)
	Calls PropertiesWidget::setSplitCamelCase(enabled) on m_propertiesWidget.
void	setCustomWidget (const std::string &subPropertyName, std::unique_ptr< QWidget > widget)
	Assign a custom widget to the subproperty.
OptimizationDialog *	optimizationDialog () const
	Getter for the OptimizationDialog.
Public Member Functions inherited from AlgorithmController
	AlgorithmController (Algorithm *algorithm)
	Creates a new AlgorithmController wrapping the given algorithm, which must not be null.
const Algorithm *	algorithm () const
	Returns the underlying Algorithm instance.
Algorithm *	algorithm ()
void	showInputData ()
	Shows the input data in the DisplayWidget.
InputDataVisibility	showsInputData ()
	Checks if the input data is currently visible in the DisplayWidget.
void	showHelp ()
	Attempts to open the user documentation page for the underlying algorithm.
std::optional< Filesystem::Path >	helpPath () const
	Returns the path to the user documentation page if it is available, std::nullopt otherwise.
std::string	title () const override
	Returns the original factory name of the underlying Algorithm.
Public Member Functions inherited from Controller
void	setMainWindowBase (MainWindowBase *mw)
	Complete the initialization by providing the parent MainWindowBase instance hosting the controller by setting m_main and m_disp and eventually call init().
virtual void	onSelectedDataChanged (const DataList &)
	Called by MainWindowBase in the case that the selection in the data model has changed.
virtual void	onVisibleDataChanged (const DataList &)
	Called by MainWindowBase in the case that the currently visible data has changed.
virtual std::vector< Location >	supportedLocations () const
	Returns the list of locations in which this controller is allowed to be placed by the parent MainWindowBase.
virtual Location	preferredLocation () const
	Returns the preferred location in which the parent MainWindowBase should place this controller.
virtual void	onLocationChanged (Location newLocation)
	Callback function called by the parent MainWindowBase/ControllerDecorator whenever the place was changed.
Location	location () const
	Convenience function to query the current controller Location from the parent ControllerDecorator.
ControllerDecorator *	getDecorator () const
	Convenience function to return m_main->getControllerDecorator(this) if m_main is set or nullptr otherwise.
template<typename T>
T *	getDecorator () const
	Convenience function to dynamic_cast the return value of getDecorator() to a derived type.
Public Member Functions inherited from Configurable
virtual void	configure (const Properties *p)
	Configure this object instance by de-serializing the given Properties.
virtual void	configuration (Properties *p) const
	Serialize the current object configuration into the given Properties object.
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept
Public Member Functions inherited from SignalReceiver
	SignalReceiver ()=default
	Default constructor.
	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.
SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Protected Attributes
ASCRegistrationInterface &	m_regAlg
Protected Attributes inherited from DefaultAlgorithmController
bool	m_autoDeleteAfterCompute
bool	m_configureOnChanged
bool	m_isInitialized = false
bool	m_addAlgorithmToHistory = true
	enable/disable register algorithm on compute()
bool	m_optUpdatesDisplay = false
	enable/disable display updates from the optimizer
PropertiesWidget *	m_propertiesWidget = nullptr
OptimizationDialog *	m_optDialog = nullptr
QVBoxLayout *	m_layout = nullptr
QPushButton *	m_optDialogButton = nullptr
QPushButton *	m_computeButton = nullptr
QList< QPushButton * >	m_buttons
Protected Attributes inherited from AlgorithmController
Algorithm *	m_algorithm = nullptr
	The underlying algorithm.
Protected Attributes inherited from Controller
MainWindowBase *	m_main = nullptr
	The parent MainWindowBase instance hosting this Controller.
DisplayWidgetMulti *	m_disp = nullptr
	The main DisplayWidget instance, convenience shortcut for m_main->display().
Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Additional Inherited Members
Public Types inherited from AlgorithmController
enum class	InputDataVisibility { None = 0 , All = 1 , Some = 2 }
	Enumeration of possible return values for showsInputData(). More...
Public Types inherited from Controller
enum class	Location : int {   Unknown = -1 , Naked = 0 , PrimaryDock = 1 , SecondaryDock = 2 ,   Detached = 3 , ToolBar = 4 , UserLocation = 100 }
	Enumeration of possible placement/decoration options of a Controller. More...
Public Slots inherited from DefaultAlgorithmController
virtual void	updatePropertiesWidget ()
Public Attributes inherited from Controller
Signal	signalTitleChanged
	Signal emitted when the title() has changed.
Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.
Protected Slots inherited from DefaultAlgorithmController
virtual void	onParameterChanged (const std::string &paramName)
Protected Member Functions inherited from DefaultAlgorithmController
void	addButton (const QString &title, const std::function< void()> &callback, int position=-1)
	Adds a button at the end of the widget One can pass a position to indicate the order of the added buttons, by passing nothing, the button is added to the end Note: Buttons must be added before the init method is called.
virtual void	fillActionMenu (QMenu &menu)
	Fill a QMenu with all available actions.
void	onAlgorithmParametersChanged () override
	Callback called when the Algorithm's signalParametersChanged signal was emitted.
void	onAlgorithmOutputChanged () override
	Callback called when the Algorithm's signalOutputChanged signal was emitted.
QVBoxLayout *	layout () const
	Return the main layout of the controller.
void	duplicateAlgorithmOnSelectedData () const override
	Instantiates a new copy of underlying Algorithm on the currently selected Data in the DataModel and adds it to the ApplicationController.
Protected Member Functions inherited from AlgorithmController
virtual void	closeAlgorithm (bool executed=false)
	Removes the algorithm from the ApplicationController and closes the controller.
void	addToDataAndAnnotationModels (OwningDataList data)
	Adds the contents of data to the DataModel of the parent MainWindowBase.
Protected Member Functions inherited from SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.

Member Function Documentation

postprocessOutput()

OwningDataList postprocessOutput ( OwningDataList output )

overridevirtual

This function will be called directly on the output generated by the algorithm.

Its purpose is to let derived classes do some custom post-processing.

Reimplemented from DefaultAlgorithmController.

onCompute()

void onCompute ( )

overridevirtual

Reimplemented from DefaultAlgorithmController.

init()

void init ( )

overridevirtual

Two-step initialization function to be implemented by subclasses.

This function is called by setMainWindowBase() after the m_disp and m_main attributes have been set and hence a complete initialization of the controller is possible at this point.

Reimplemented from DefaultAlgorithmController.

---

The documentation for this class was generated from the following file:

• AnatomyPlugin/include/ImFusion/AnatomyPlugin/DefaultASCRegistrationController.h
