UltrasoundCalibrationController Class Reference

#include <ImFusion/US/UltrasoundCalibrationController.h>

GUI controller for freehand ultrasound calibration. More...

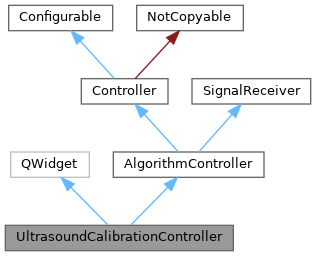

Inheritance diagram for UltrasoundCalibrationController:

Detailed Description

GUI controller for freehand ultrasound calibration.

Opens an OptimizationDialog for the user to interactively choose suited optimizers, run single calibrations as well as calibration studies, and examine the result using an additional 2D view.

See UltrasoundCalibration for details on the underlying algorithm. Best practice includes running the algorithm with already pre-initialized calibration, and color-blending turned on in the addutional 2D view and/or the MPR views.

Public Slots
void	onSetSM (int mode)
	Change the similarity measure.
void	onSetPatchSize (int val)
	Change the patch size.
void	onSetMinOverlap (int percent)
	Change the minimum overlap in percent.
void	onSetUseSweeps (int which)
	Change which of the sweeps to compute similarity to.
void	onSetMultiMode (int mode)
	Change mode for more than two sweeps.
void	onSetMask (bool flag)
	Change whether internal zero-mask is used for computed compounding slices.
void	onSetShow (bool flag)
	Change of show MPR flag.
void	onRun ()
	Execute the image-based optimization.
void	onInit ()
	Initialize calibration based on geometry alone.
void	onReset ()
	Resets the calibration.
void	onEval ()
	Single evaluation.
void	onCalibrationChanged (UltrasoundSweep *sweep)
	Called from sweep properties when calibration parameters have changed.
void	onNumMotionParsChanged ()
	Called from optionally connected sweep motion controllers.
void	onFlip ()

Signals
void	calibrationChanged ()
	Emitted when the calibration has changed.

Public Member Functions
	UltrasoundCalibrationController (UltrasoundCalibration *usCal)
void	init () override
	Two-step initialization function to be implemented by subclasses.
void	selectionChanged (const SharedImageSet *data)
	Update compounding and similarity in single frame mode.
void	onSelectedDataChanged (const DataList &data) override
	Switch between sweeps in single frame mode.
Public Member Functions inherited from AlgorithmController
	AlgorithmController (Algorithm *algorithm)
	Creates a new AlgorithmController wrapping the given algorithm, which must not be null.
const Algorithm *	algorithm () const
	Returns the underlying Algorithm instance.
Algorithm *	algorithm ()
void	showInputData ()
	Shows the input data in the DisplayWidget.
InputDataVisibility	showsInputData ()
	Checks if the input data is currently visible in the DisplayWidget.
void	showHelp ()
	Attempts to open the user documentation page for the underlying algorithm.
std::optional< Filesystem::Path >	helpPath () const
	Returns the path to the user documentation page if it is available, std::nullopt otherwise.
std::string	title () const override
	Returns the original factory name of the underlying Algorithm.
Public Member Functions inherited from Controller
void	setMainWindowBase (MainWindowBase *mw)
	Complete the initialization by providing the parent MainWindowBase instance hosting the controller by setting m_main and m_disp and eventually call init().
virtual void	onVisibleDataChanged (const DataList &)
	Called by MainWindowBase in the case that the currently visible data has changed.
virtual std::vector< Location >	supportedLocations () const
	Returns the list of locations in which this controller is allowed to be placed by the parent MainWindowBase.
virtual Location	preferredLocation () const
	Returns the preferred location in which the parent MainWindowBase should place this controller.
virtual void	onLocationChanged (Location newLocation)
	Callback function called by the parent MainWindowBase/ControllerDecorator whenever the place was changed.
Location	location () const
	Convenience function to query the current controller Location from the parent ControllerDecorator.
ControllerDecorator *	getDecorator () const
	Convenience function to return m_main->getControllerDecorator(this) if m_main is set or nullptr otherwise.
template<typename T>
T *	getDecorator () const
	Convenience function to dynamic_cast the return value of getDecorator() to a derived type.
Public Member Functions inherited from Configurable
virtual void	configure (const Properties *p)
	Configure this object instance by de-serializing the given Properties.
virtual void	configuration (Properties *p) const
	Serialize the current object configuration into the given Properties object.
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept
Public Member Functions inherited from SignalReceiver
	SignalReceiver ()=default
	Default constructor.
	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.
SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Additional Inherited Members
Public Types inherited from AlgorithmController
enum class	InputDataVisibility { None = 0 , All = 1 , Some = 2 }
	Enumeration of possible return values for showsInputData(). More...
Public Types inherited from Controller
enum class	Location : int {   Unknown = -1 , Naked = 0 , PrimaryDock = 1 , SecondaryDock = 2 ,   Detached = 3 , ToolBar = 4 , UserLocation = 100 }
	Enumeration of possible placement/decoration options of a Controller. More...
Public Attributes inherited from Controller
Signal	signalTitleChanged
	Signal emitted when the title() has changed.
Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.
Protected Member Functions inherited from AlgorithmController
virtual void	closeAlgorithm (bool executed=false)
	Removes the algorithm from the ApplicationController and closes the controller.
virtual void	onAlgorithmParametersChanged ()
	Callback called when the Algorithm's signalParametersChanged signal was emitted.
virtual void	onAlgorithmOutputChanged ()
	Callback called when the Algorithm's signalOutputChanged signal was emitted.
virtual void	duplicateAlgorithmOnSelectedData () const
	Instantiates a new copy of underlying Algorithm on the currently selected Data in the DataModel and adds it to the ApplicationController.
void	addToDataAndAnnotationModels (OwningDataList data)
	Adds the contents of data to the DataModel of the parent MainWindowBase.
Protected Member Functions inherited from SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.
Protected Attributes inherited from AlgorithmController
Algorithm *	m_algorithm = nullptr
	The underlying algorithm.
Protected Attributes inherited from Controller
MainWindowBase *	m_main = nullptr
	The parent MainWindowBase instance hosting this Controller.
DisplayWidgetMulti *	m_disp = nullptr
	The main DisplayWidget instance, convenience shortcut for m_main->display().
Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Member Function Documentation

init()

void init ( )

overridevirtual

Two-step initialization function to be implemented by subclasses.

This function is called by setMainWindowBase() after the m_disp and m_main attributes have been set and hence a complete initialization of the controller is possible at this point.

Implements Controller.

onSelectedDataChanged()

void onSelectedDataChanged ( const DataList & data )

overridevirtual

Switch between sweeps in single frame mode.

Reimplemented from Controller.

---

The documentation for this class was generated from the following file:

• ImFusion/US/UltrasoundCalibrationController.h
