#include <ImFusion/US/SweepDisplayDataController.h>
GUI DataController for adjusting ultrasound sweep visualization in the display views. More...

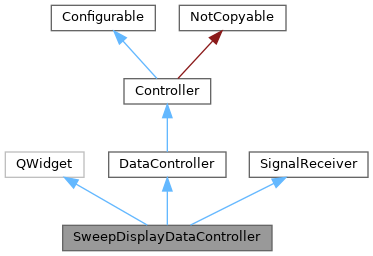

Inheritance diagram for SweepDisplayDataController:GUI DataController for adjusting ultrasound sweep visualization in the display views.
It is visible when a sweep exists in the data model. It is enabled when the sweep is visible in the views.
The chosen visualization options for the sweep are kept in SweepDisplayOptions. This controller is the interface to those - it sets them upon request (button toggle) and it reacts to their change controlling the visualizations in the views. There are additionally some further options that can be configured by the SDK user.
The GUI user can choose whether the sweep is displayed in the MPR views and/or in the 3D volume view.
There is an adaptive ruler GlUltrasoundRuler that visualizes the depth of the ultrasound scan. The user can toggle it off. It is shown in the plain 2D view and if the MPR views are linked, it will show in the axial view.
The MPR views can be linked to the ultrasound or not. In the linked state, the axial view will be aligned with the focus frame upon activation of the linking and, afterward, aligned every time upon scrolling (changing the focus). When the focus frame is displayed in the axial view the ruler's visibility is on, the ruler will also be displayed. Upon unlinking, the pose of the view will be restored to its pre-linking state.
There is a button to center the views onto the selected sweep. The MPRs will be centered on the sweep and the zoom level in the volume view will be set to encompass the sweep. The plain 2D view will not be affected nor the zoom level in the MPRs.
The behavior of the controller can be modified by the SDK user.
If the blending of the views makes the sweep less than 10% visible, its fan is going to be visualized in the axial view. The SDK user can set the color and width of the fan.
Public Slots | |
| void | onShow (bool flag) |
| Sweep is shown or hidden in the 3D world. | |
| void | onLink (bool flag) |
| MPR planes are linked to focus frame of sweep. | |
| void | on3dMode (bool flag) |
| 3D visualization mode is toggled | |
| void | onRuler (bool flag) |
| The visibility of displayed ruler is toggled See GlUltrasoundRuler. | |
| void | onCenter () |
| Moves the 3D camera of the view to show the US sweep at the center It will not change the plain 2D view. | |
| void | onSelectionChanged () |
| Invokes the method selectionChanged(const SharedImageSet*) with m_us. | |
| void | onSettingsChanged () |
| Called when the global settings are changed. | |
Signals | |
| void | mprLinked (bool linked) |
| A signal emitted upon mpr linkage request. | |
Public Member Functions | |
| void | init () override |
| Two-step initialization function to be implemented by subclasses. | |
| std::string | title () const override |
| Returns the shown widget title if the controller is shown in a mode that supports this (e.g. | |
| void | onVisibleDataChanged (const DataList &data) override |
| Called by MainWindowBase in the case that the currently visible data has changed. | |
| void | updateRuler () |
| Without changing selection or visible data, only updates the US ruler scale, for instance after the image size was changed. | |
| void | updateFanGeometry (bool updatePoints=true) |
| Only updates the fan geometry and its visibility. | |
| void | setSecondLinkPlaneSagittal (bool flag) |
| If enabled, the second link MPR plane is horizontal, to resemble a sagittal DICOM plane (given that the first is axial) The view matrix would be Pose::eulerToMat(vec3::Zero(), {-90.0, 0.0, 90.0}) if true and otherwise Pose::eulerToMat(vec3::Zero(), {0.0, -90.0, 0.0}). | |
| void | setEnableScanlineScrolling (bool flag) |
| If enabled, scrolling in the second link MPR plane will follow the scanline directions before and after. | |
| void | setLimitAxialScrollToSelection (bool flag) |
| If enabled, scrolling in the first linked MRP plane will be limited by the selection. | |
| void | setKeepLinkConfig (bool flag) |
| If enabled, try to keep the relative in-plane configuration of all MPRs during focus change. | |
| bool | secondLinkPlaneSagittal () const |
| Return the orientation mode of the second link plane. | |
| bool | hasScanlineScrollingEnabled () const |
| Return the scrolling mode of the second link plane. | |
| bool | keepLinkConfig () const |
| Return the flag whether the in-plane MPR config is kept. | |
| bool | isMprLinked () |
| Returns if any of the shown sweeps have MPR linking enabled. | |
| bool | isRulerVisible () |
| Returns if any of the shown sweeps have a visible ruler. | |
| void | setFanStyle (const vec4 &color, float lineWidth) |
| Sets the US fan style. | |
| void | updateMPRLinking () |
| Updates the state of the MPR linking. Call when link state is changed from outside. | |
| void | updateMPRResetMatrices (ViewGroup *vg, Data *data) |
| Update the MPR reset matrices used in case of unlinking, with the default pose of the provided data. | |
| void | setInvertFocusFrameScrollDir (bool invert) |
| Sets if the scrolling direction of the focus frame should be inverted. | |
| bool | isFocusFrameScrollDirInverted () const |
| Returns if the scrolling direction of the focus frame is inverted. | |
| void | setPlanes (UltrasoundSweep *us, std::vector< ImageView2D * > views, bool suppressAnimation) |
| Sets the views' matrix according to the sweep's focus frame. Used for MPR linking. | |
| void | onBlendFactorChanged () |
| Blending of multiple datasets might turn on/off fan geometry visualization. | |
| Public Member Functions inherited from DataController | |
| std::string | factoryName () const |
| Returns the name used to identify this DataController in the factory. | |
| void | setFactoryName (const std::string &factoryName) |
| Sets the name used to identify this DataController in the factory. | |
| std::vector< Location > | supportedLocations () const override |
| Returns the list of locations in which this controller is allowed to be placed by the parent MainWindowBase. | |
| Location | preferredLocation () const override |
| Returns the preferred location in which the parent MainWindowBase should place this controller. | |
| Public Member Functions inherited from Controller | |
| void | setMainWindowBase (MainWindowBase *mw) |
Complete the initialization by providing the parent MainWindowBase instance hosting the controller by setting m_main and m_disp and eventually call init(). | |
| virtual void | onSelectedDataChanged (const DataList &) |
| Called by MainWindowBase in the case that the selection in the data model has changed. | |
| virtual void | onLocationChanged (Location newLocation) |
| Callback function called by the parent MainWindowBase/ControllerDecorator whenever the place was changed. | |
| Location | location () const |
| Convenience function to query the current controller Location from the parent ControllerDecorator. | |
| ControllerDecorator * | getDecorator () const |
Convenience function to return m_main->getControllerDecorator(this) if m_main is set or nullptr otherwise. | |
| template<typename T> | |
| T * | getDecorator () const |
Convenience function to dynamic_cast the return value of getDecorator() to a derived type. | |
| Public Member Functions inherited from Configurable | |
| virtual void | configure (const Properties *p) |
| Configure this object instance by de-serializing the given Properties. | |
| virtual void | configuration (Properties *p) const |
| Serialize the current object configuration into the given Properties object. | |
| virtual void | configureDefaults () |
| Retrieve the properties of this object, replaces values with their defaults and sets it again. | |
| void | registerParameter (ParameterBase *param) |
| Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration(). | |
| void | unregisterParameter (const ParameterBase *param) |
| Remove the given Parameter or SubProperty from the list of registered parameters. | |
| Configurable (const Configurable &rhs) | |
| Configurable (Configurable &&rhs) noexcept | |
| Configurable & | operator= (const Configurable &) |
| Configurable & | operator= (Configurable &&) noexcept |
| Public Member Functions inherited from SignalReceiver | |
| SignalReceiver ()=default | |
| Default constructor. | |
| SignalReceiver (const SignalReceiver &other) | |
| Copy constructor, does not copy any existing signal connections from other. | |
| SignalReceiver & | operator= (SignalReceiver rhs) |
| Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs. | |
| virtual | ~SignalReceiver () |
| Virtual destructor disconnects from all connected signals. | |
Static Public Member Functions | |
| static mat4 | getLinkedMprViewMatrix (const UltrasoundSweep &us, int plane, bool secondPlaneSag) |
| Get the view matrix in the case of mpr linking of the desired plane. | |
| static bool | isLinkedMprViewMatrixAllowed (const UltrasoundSweep &us, const mat4 &viewMatrix) |
| Checks if a view matrix is allowed in case MPRs are linked. | |
| static bool | createCompatible (const DataList &data, DataController **a=nullptr) |
| Static Public Member Functions inherited from DataController | |
| static bool | createCompatible (const DataList &, DataController **=0) |
| Factory interface for DataControllers: If data is compatible with data controller return true. | |
Protected Member Functions | |
| void | matrixChanged (const Data *data) |
| Update linked MPR views and ruler according to the new sweep matrix. | |
| void | selectionChanged (const SharedImageSet *data) |
| Update linked MPR views and ruler according to the new selection. | |
| bool | supportsToolBar () const override |
| The data controller can be put in at the location of the toolbar. | |
| Protected Member Functions inherited from SignalReceiver | |
| void | disconnectAll () |
| Disconnects all existing connections. | |
Additional Inherited Members | |
| Public Types inherited from Controller | |
| enum class | Location : int { Unknown = -1 , Naked = 0 , PrimaryDock = 1 , SecondaryDock = 2 , Detached = 3 , ToolBar = 4 , UserLocation = 100 } |
| Enumeration of possible placement/decoration options of a Controller. More... | |
| Public Attributes inherited from Controller | |
| Signal | signalTitleChanged |
| Signal emitted when the title() has changed. | |
| Public Attributes inherited from Configurable | |
| Signal | signalParametersChanged |
Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted. | |
| Protected Attributes inherited from DataController | |
| std::string | m_factoryName |
| Protected Attributes inherited from Controller | |
| MainWindowBase * | m_main = nullptr |
| The parent MainWindowBase instance hosting this Controller. | |
| DisplayWidgetMulti * | m_disp = nullptr |
The main DisplayWidget instance, convenience shortcut for m_main->display(). | |
| Protected Attributes inherited from Configurable | |
| std::vector< Param > | m_params |
| List of all registered Parameter and SubProperty instances. | |
|
static |
Get the view matrix in the case of mpr linking of the desired plane.
The second plane is one of the following, depending on secondPlaneSag:
| us | The sweep whose position needs to be taken into account |
| plane | The number of plane the matrix is for. Expects 1 for axial, 2 for elevational or 3 for the perpendicular to the two. Otherwise, return the identity. |
| secondPlaneSag | An option determining the rotation of the elevational plane. |
|
static |
Checks if a view matrix is allowed in case MPRs are linked.
A violation is detected if the convex fan apex is outside of the view plane.
|
overridevirtual |
Two-step initialization function to be implemented by subclasses.
This function is called by setMainWindowBase() after the m_disp and m_main attributes have been set and hence a complete initialization of the controller is possible at this point.
Reimplemented from DataController.
|
overridevirtual |
Returns the shown widget title if the controller is shown in a mode that supports this (e.g.
when in dock). Unless overridden, it returns the factory name.
Reimplemented from DataController.
|
overridevirtual |
Called by MainWindowBase in the case that the currently visible data has changed.
Reimplemented from Controller.
|
slot |
Sweep is shown or hidden in the 3D world.
It will not change the plain 2D view.
|
inlineoverrideprotectedvirtual |
The data controller can be put in at the location of the toolbar.
See Location
Reimplemented from DataController.
