#include <ImFusion/GUI/ViewGroup.h>
Non-owning container of multiple views that share and sync properties with each other. More...

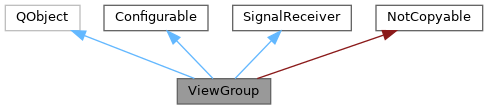

Inheritance diagram for ViewGroup:Non-owning container of multiple views that share and sync properties with each other.
ViewGroup provides you with a set of convenience functions helpful for dealing with multiple views showing the same data. Furthermore, it enables you to specify Qt properties that shall automatically be synced between the views, such as zoom factor or blending mode if you have multiple MPR views.
The DisplayWidgetMulti will usually form a ViewGroup consisting of 3 MPR views and one 3D view.
Signals | |
| void | viewRemoved (InteractiveView *view) |
| void | viewAdded (InteractiveView *view) |
Public Member Functions | |
| ViewGroup (const QStringList &sharedProperties) | |
| void | addView (InteractiveView *view) |
| void | removeView (InteractiveView *view) |
| bool | isInGroup (InteractiveView *view) const |
| int | numViews () const |
| void | addProperty (const QString &name) |
| void | removeProperty (const QString &name) |
| bool | isShared (const QString &name) const |
| bool | acceptsData (const Data *data) |
| Returns whether any of the group's views is capable of displaying the given data. | |
| void | setVisibleData (const DataList &data) |
| Calls setVisibleData() on all of the views comprising this group. | |
| DataList | visibleData () const |
| Returns the union of the visible data of all views comprising this group. | |
| bool | showData (Data *data) |
| Calls showData() on all of the views comprising this group. | |
| void | hideData (Data *data) |
| Calls hideData() on all of the views comprising this group. | |
| void | addObject (GUI::ViewObject *object) |
| void | removeObject (GUI::ViewObject *object) |
| const std::vector< InteractiveView * > & | views () const |
| std::vector< ImageView2D * > | mprViews () const |
| Returns only the ImageView2D views of type GlView::SLICE3D. | |
| std::vector< ImageView3D * > | volumeViews () const |
| Returns only the ImageView3D views of type GlView::SPACE3D. | |
| void | reset () |
| Reset all member views to their default state. | |
| std::optional< vec3 > | intersectionCenter () const |
| Return the world coordinate where the 3 views intersect. | |
| void | centerIntersection () |
| Center slice views to their intersection. | |
| void | centerSlices (const vec3 &point) |
| Center slice views to a specific point. | |
| void | centerSlices (const vec3 &point, const vec3 &normal) |
| Center slice views to a specific point. | |
| void | centerOnData (const Data *data) |
| Center both slice views and volume view on the provided data. | |
| void | orthogonalizeSlices () |
| Rotates the 3 slice views to an orthogonal configuration. | |
| void | setMprViewMatrices (const mat4 &matrix) |
| Sets the matrix of each MPR view according to their original plane. | |
| void | alignMprViewsToVoxelGrid () |
| Aligns all MPR views to the volume axes. | |
| const QStringList & | sharedProperties () const |
| void | configure (const Properties *p) override |
| Set one or multiple properties. | |
| void | configuration (Properties *p) const override |
| Retrieve the properties of this object. | |
| Public Member Functions inherited from Configurable | |
| virtual void | configureDefaults () |
| Retrieve the properties of this object, replaces values with their defaults and sets it again. | |
| void | registerParameter (ParameterBase *param) |
| Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration(). | |
| void | unregisterParameter (const ParameterBase *param) |
| Remove the given Parameter or SubProperty from the list of registered parameters. | |
| Configurable (const Configurable &rhs) | |
| Configurable (Configurable &&rhs) noexcept | |
| Configurable & | operator= (const Configurable &) |
| Configurable & | operator= (Configurable &&) noexcept |
| Public Member Functions inherited from SignalReceiver | |
| SignalReceiver ()=default | |
| Default constructor. | |
| SignalReceiver (const SignalReceiver &other) | |
| Copy constructor, does not copy any existing signal connections from other. | |
| SignalReceiver & | operator= (SignalReceiver rhs) |
| Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs. | |
| virtual | ~SignalReceiver () |
| Virtual destructor disconnects from all connected signals. | |
Protected Member Functions | |
| bool | connectProperty (const char *property, InteractiveView *src, InteractiveView *dst) |
| bool | disconnectProperty (const char *property, InteractiveView *src, InteractiveView *dst) |
| void | onDisplayOptionsChanged (DisplayOptions2d *sender) |
| Protected Member Functions inherited from SignalReceiver | |
| void | disconnectAll () |
| Disconnects all existing connections. | |
Protected Attributes | |
| QStringList | m_sharedProperties |
| std::vector< InteractiveView * > | m_views |
| bool | m_ignoreEvents |
| Protected Attributes inherited from Configurable | |
| std::vector< Param > | m_params |
| List of all registered Parameter and SubProperty instances. | |
Additional Inherited Members | |
| Public Attributes inherited from Configurable | |
| Signal | signalParametersChanged |
Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted. | |
| void centerSlices | ( | const vec3 & | point, |
| const vec3 & | normal ) |
Center slice views to a specific point.
The second parameter additionally rotates the views, such that the normal on the first slice matches it.
| void orthogonalizeSlices | ( | ) |
Rotates the 3 slice views to an orthogonal configuration.
Requires exactly 3 slice views to be present. Will generally need additional rotation around view normals to look "nice". Use with care.
| void setMprViewMatrices | ( | const mat4 & | matrix | ) |
Sets the matrix of each MPR view according to their original plane.
The rotation part of matrix sets the rotation of views with originalPlane() == 0. All MPR views will have the same position afterward (they will all intersect in their centers).
|
overridevirtual |
Set one or multiple properties.
Reimplemented from Configurable.
|
overridevirtual |
Retrieve the properties of this object.
Reimplemented from Configurable.
