#include <ImFusion/Base/DisplayOptions2d.h>

Configures the display options for 2D slice rendering of images. More...

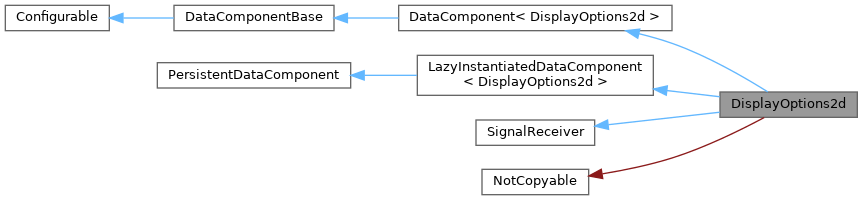

Inheritance diagram for ImFusion::DisplayOptions2d:

Detailed Description

Configures the display options for 2D slice rendering of images.

2D display options are mainly consumed by GlSlice which implements 2D rendering of image data. Usually, DisplayOptions2d are attached as a DataComponent to the image for which they define the rendering options. However, classes like ImageView2D may use special (e.g. view-specific) display options for rendering their images and therefore use the same interface.

Note: Window/level parameters are defined in original pixel value domain (e.g. Hounsfield Units). Conversion of pixel values to display intensities is performed using the LINEAR_EXACT VOI LUT function as described in section C.11.2.1.3.2 of the DICOM standard. http://dicom.nema.org/medical/dicom/current/output/chtml/part03/sect_C.11.2.html#sect_C.11.2.1.3

See also: GlSlice, ImageView2D, DisplayOptions3d

Classes
struct	WindowLevelPreset
	Window-level configuration that can be stored as a preset. More...

Public Types
enum class	MaskingMode { Ignore , Discard , AdditiveBlend , MultiplicativeBlend , DiscardZerosAdditiveOnes , DiscardZerosMultiplicativeOnes }
	Enumeration of options for how masked image pixels should be rendered. More...

Public Member Functions
	DisplayOptions2d (const DisplayOptions2d &other)
	DisplayOptions2d (const Data *data)
	Standard constructor for the given data.
virtual DisplayOptions2d &	operator= (const DisplayOptions2d &other)
bool	operator== (const DisplayOptions2d &other) const
bool	windowingInitialized () const
	Returns whether the windowing has been (non-default) initialized.
const Data *	data () const
	Return the optional reference Data.
void	setOriginalTransferFunction (const TransferFunction &lut)
	Setter and getter for the original LUT-Transfer Function of this data.
const std::optional< TransferFunction > &	originalTransferFunction ()
Public Member Functions inherited from ImFusion::DataComponent< DisplayOptions2d >
std::unique_ptr< DataComponentBase >	clone () const override
	Creates a clone of this data component.
std::unique_ptr< Subclass >	cloneDerived () const
bool	assign (const DataComponentBase &other) override
	Assigns the content of other to this data component.
bool	equals (const DataComponentBase &other) const override
	Compares this data component to other for equality.
Public Member Functions inherited from ImFusion::Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept
Public Member Functions inherited from ImFusion::SignalReceiver
	SignalReceiver ()=default
	Default constructor.
	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.
SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Public Attributes
Signal< DisplayOptions2d * >	signalChanged
	Signal emitted when the display options have changed.
Public Attributes inherited from ImFusion::Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.

Getters/Setters
double	window () const
	Returns the windowing width corresponding to the image.
void	setWindow (double value)
	Sets the windowing width corresponding to the image.
double	level () const
	Returns the windowing level corresponding to the image.
void	setLevel (double value)
	Sets the windowing level corresponding to the image.
void	setWindowLevel (double window, double level)
	Convenience method for setting the windowing range based on window and level.
double	alpha () const
	Returns the alpha blending factor of the corresponding image.
void	setAlpha (double value)
	Sets the alpha blending factor of the corresponding image.
double	gamma () const
	Returns the gamma level corresponding to the image.
void	setGamma (double value)
	Sets the gamma level corresponding to the image.
bool	invert () const
	Returns the flag whether to invert the intensities.
void	setInvert (bool value)
	Sets the flag whether to invert the intensities.
MaskingMode	maskingMode () const
	Returns the mode how masked image pixels should be rendered.
void	setMaskingMode (MaskingMode value)
	Sets the mode how masked image pixels should be rendered.
const vec4 &	maskingColor () const
	Returns the color used for the Multiply options of maskingMode().
void	setMaskingColor (const vec4 &value)
	Sets the color used for the Multiply options of maskingMode().
const GlImage *	colormap () const
	Returns the color map to use during rendering, the pointer is owned by the DisplayOptions2d object, may be 0.
TransferFunction &	transferFunction ()
	Returns the transfer function storing window/level as well as the optional color map.
const TransferFunction &	transferFunction () const
	Returns the transfer function storing window/level as well as the optional color map.

Manage window/level presets
const std::vector< WindowLevelPreset > &	windowLevelPresets () const
	Returns the list of window-level presets.
void	addWindowLevelPreset (WindowLevelPreset preset)
	Adds a new window-level preset.
void	removeWindowLevelPreset (int index)
	Removes the window-level preset of the given index.
void	applyWindowLevelPreset (int index)
	Applies the window-level preset of the given index.

DataComponent interface
std::string	id () const override
	Returns a unique string identifier for this type of data component.
void	configure (const Properties *p) override
	Configure this object instance by de-serializing the given Properties.
void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.

Additional Inherited Members
Static Public Member Functions inherited from ImFusion::LazyInstantiatedDataComponent< DisplayOptions2d >
static DisplayOptions2d &	get (const Data &data)
	Returns the specific options of type T that are associated with the given data.
Protected Member Functions inherited from ImFusion::DataComponentBase
	DataComponentBase (const DataComponentBase &)=default
DataComponentBase &	operator= (const DataComponentBase &other)=default
Protected Member Functions inherited from ImFusion::SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.
Protected Attributes inherited from ImFusion::Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Member Enumeration Documentation

◆ MaskingMode

enum class ImFusion::DisplayOptions2d::MaskingMode

strong

Enumeration of options for how masked image pixels should be rendered.

Enumerator
Ignore	Ignore the mask, render the pixels normally.
Discard	Discard masked pixels (where the mask value is 0).
AdditiveBlend	Add maskingColor() to masked pixels (where the mask value is 0).
MultiplicativeBlend	Multiply masked pixels with the maskingColor() (where the mask value is 0).
DiscardZerosAdditiveOnes	Discard pixels where the mask value is 0, add maskingColor() to pixels where the mask value is 1.
DiscardZerosMultiplicativeOnes	Discard pixels where the mask value is 0, multiply pixels with maskingColor() where the mask value is 1.

Constructor & Destructor Documentation

◆ DisplayOptions2d()

ImFusion::DisplayOptions2d::DisplayOptions2d ( const Data * data )

explicit

Standard constructor for the given data.

Note: If data is not null and a SharedImageSet, window/level will be initialized to match the value range of the underlying image type without considering any actual pixel data. In all other cases it will be initialized to match a value range of [0..255].

Member Function Documentation

◆ id()

std::string ImFusion::DisplayOptions2d::id ( ) const

overridevirtual

Returns a unique string identifier for this type of data component.

Note: To avoid conflicts make sure to include potential plugin names into this ID. Due to the modular architecture of the ImFusion library, uniqueness of IDs cannot be checked at compile time. However, DataComponentFactory will check the uniqueness of the ID during registration.

Implements ImFusion::DataComponentBase.

◆ configure()

void ImFusion::DisplayOptions2d::configure ( const Properties * p )

overridevirtual

Configure this object instance by de-serializing the given Properties.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configuration() for the inverse functionality

Reimplemented from ImFusion::Configurable.

◆ configuration()

void ImFusion::DisplayOptions2d::configuration ( Properties * p ) const

overridevirtual

Serialize the current object configuration into the given Properties object.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configure() for the inverse functionality

Reimplemented from ImFusion::Configurable.

The documentation for this class was generated from the following file:

ImFusion/Base/DisplayOptions2d.h
