DisplayOptions3d Class Reference

#include <ImFusion/Base/DisplayOptions3d.h>

Configures the display options for 3D volume rendering of images. More...

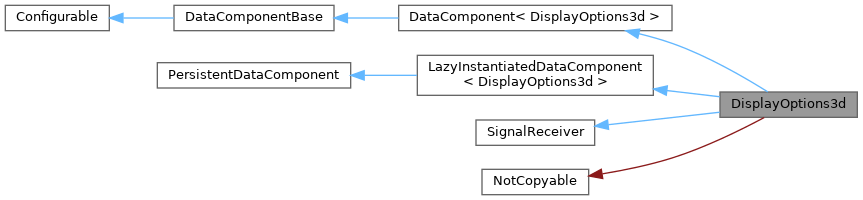

Inheritance diagram for DisplayOptions3d:

Detailed Description

Configures the display options for 3D volume rendering of images.

3D display options are mainly consumed by GlVolumeRenderer which implements 3D rendering of image data. Usually, DisplayOptions3d are attached as a DataComponent to the image for which they define the rendering options. However, classes like ImageView3D may use special (e.g. view-specific) display options for rendering their images and therefore use the same interface.

Note

Window/level parameters are defined in original pixel value domain (e.g. Hounsfield Units). Conversion of pixel values to display intensities is performed using the LINEAR_EXACT VOI LUT function as described in section C.11.2.1.3.2 of the DICOM standard. http://dicom.nema.org/medical/dicom/current/output/chtml/part03/sect_C.11.2.html#sect_C.11.2.1.3

See also

GlVolumeRenderer, ImageView3D, DisplayOptions2d

Public Types
enum class	MaskingMode { Ignore , Discard , MultiplicativeBlend , DiscardZerosMultiplicativeOnes }
	Enumeration of options for how masked image pixels should be rendered. More...

Public Member Functions
	DisplayOptions3d (const DisplayOptions3d &other)
	DisplayOptions3d (const Data *data)
	Standard constructor for the given data.
virtual DisplayOptions3d &	operator= (const DisplayOptions3d &other)
bool	operator== (const DisplayOptions3d &other) const
const Data *	data () const
	Return the optional reference Data.
Public Member Functions inherited from DataComponent< DisplayOptions3d >
std::unique_ptr< DataComponentBase >	clone () const override
	Creates a clone of this data component.
std::unique_ptr< Subclass >	cloneDerived () const
bool	assign (const DataComponentBase &other) override
	Assigns the content of other to this data component.
bool	equals (const DataComponentBase &other) const override
	Compares this data component to other for equality.
Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept
Public Member Functions inherited from SignalReceiver
	SignalReceiver ()=default
	Default constructor.
	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.
SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Public Attributes
Signal< DisplayOptions3d * >	signalChanged
	Signal emitted when the display options have changed.
Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.

Getters/Setters
double	window () const
	Returns the windowing width corresponding to the image.
void	setWindow (double value)
	Sets the windowing width corresponding to the image.
double	level () const
	Returns the windowing level corresponding to the image.
void	setLevel (double value)
	Sets the windowing level corresponding to the image.
void	setWindowLevel (double window, double level)
	Convenience method for setting the windowing range based on window and level.
double	alpha () const
	Returns the alpha blending factor of the corresponding image.
void	setAlpha (double value)
	Sets the alpha blending factor of the corresponding image.
bool	invert () const
	Returns the flag whether to invert the intensities.
void	setInvert (bool value)
	Sets the flag whether to invert the intensities.
MaskingMode	maskingMode () const
	Returns the mode how masked image pixels should be rendered.
void	setMaskingMode (MaskingMode value)
	Sets the mode how masked image pixels should be rendered.
const vec4 &	maskingColor () const
	Returns the color used for the Multiply options of maskingMode().
void	setMaskingColor (const vec4 &value)
	Sets the color used for the Multiply options of maskingMode().
TransferFunction &	transferFunction ()
	Returns the transfer function to use.
const TransferFunction &	transferFunction () const
	Returns the transfer function to use.

DataComponent interface
std::string	id () const override
	Returns a unique string identifier for this type of data component.
void	configure (const Properties *p) override
	Configure this object instance by de-serializing the given Properties.
void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.

Additional Inherited Members
Static Public Member Functions inherited from LazyInstantiatedDataComponent< DisplayOptions3d >
static DisplayOptions3d &	get (const Data &data)
	Returns the specific options of type T that are associated with the given data.
static DisplayOptions3d *	get (const Data *data)
	Returns the specific options of type T that are associated with the given data.
Protected Member Functions inherited from DataComponentBase
	DataComponentBase (const DataComponentBase &)=default
DataComponentBase &	operator= (const DataComponentBase &other)=default
Protected Member Functions inherited from SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.
Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Member Enumeration Documentation

MaskingMode

enum class MaskingMode

strong

Enumeration of options for how masked image pixels should be rendered.

Enumerator
Ignore	Ignore the mask, render the pixels normally.
Discard	Discard masked pixels (where the mask value is 0)
MultiplicativeBlend	Multiply masked pixels with the maskingColor() (where the mask value is 0)
DiscardZerosMultiplicativeOnes	Discard pixels where the mask value is 0, multiply pixels with maskingColor() where the mask value is 1.

Member Function Documentation

window()

double window

(

)

const

Returns the windowing width corresponding to the image.

Note

Convenience function to access the windowing information in the transfer function.

setWindow()

void setWindow

(

double

value

)

Sets the windowing width corresponding to the image.

Note

Convenience function to access the windowing information in the transfer function.

level()

double level

(

)

const

Returns the windowing level corresponding to the image.

Note

Convenience function to access the windowing information in the transfer function.

setLevel()

void setLevel

(

double

value

)

Sets the windowing level corresponding to the image.

Note

Convenience function to access the windowing information in the transfer function.

id()

std::string id ( ) const

overridevirtual

Returns a unique string identifier for this type of data component.

Note

To avoid conflicts make sure to include potential plugin names into this ID. Due to the modular architecture of the ImFusion library, uniqueness of IDs cannot be checked at compile time. However, DataComponentFactory will check the uniqueness of the ID during registration.

Implements DataComponentBase.

configure()

void configure ( const Properties * p )

overridevirtual

Configure this object instance by de-serializing the given Properties.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also

configuration() for the inverse functionality

Reimplemented from Configurable.

configuration()

void configuration ( Properties * p ) const

overridevirtual

Serialize the current object configuration into the given Properties object.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also

configure() for the inverse functionality

Reimplemented from Configurable.

---

The documentation for this class was generated from the following file:

• ImFusion/Base/DisplayOptions3d.h
