#include <ImFusion/GL/GlVolumeRenderer.h>

Interface for a class that can render volumetric data into a GlVolumeView. More...

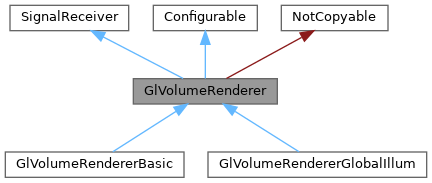

Inheritance diagram for GlVolumeRenderer:

Detailed Description

Interface for a class that can render volumetric data into a GlVolumeView.

Implement the Configurable interface in order to provide an automatically generated GUI for configuration when using the InteractiveViewOptionsOverlay.

See also: ImageView3D, GlVolumeView, InteractiveViewOptionsOverlay, EntryExitPointRenderer

Classes
struct	RenderTextures
	Helper struct to encapsulate all input/output textures needed/used during direct volume rendering. More...

Public Member Functions
virtual std::string	name () const =0
	Returns the name for identification/GUI usage of this volume renderer.

virtual void	setData (const std::vector< std::pair< const SharedImageSet , const DisplayOptions3d > > &data)
	Sets the data to render paired with the display options to use.

virtual void	render (const GL::ViewState &viewState, const RenderTextures &renderTextures)=0
	Renders the data in the given configuration.

std::vector< std::pair< const SharedImageSet , const DisplayOptions3d > >	data () const
	Return the list of shown data paired with the DisplayOptions to use.

virtual SharedImageSet *	imageData () const =0
	Returns the first SharedImageSet that is rendered by this GlVolumeRenderer.

virtual vec3	center () const =0
	Returns the center in world coordinates of the first shown data.

virtual bool	dirty () const
	Returns whether the scene is dirty (i.e. re-rendering is required).

virtual bool	supportsOITIntegration () const
	Returns whether this renderer supports the order-independent integration of semi-transparent scene geometry.

virtual bool	supportsDeformations () const
	Returns whether this renderer supports showing Deformations attached to images.

bool	showsDeformations () const
	Returns the flag whether to evaluate deformation fields of volumes during rendering if supported.

void	setShowDeformations (bool value)
	Sets the flag whether to evaluate deformation fields of volumes during rendering if supported.

bool	lod () const
	Returns the flag whether low LOD mode is enabled (half output render size, half sampling rate).

virtual void	setLod (bool value)
	Sets the flag whether low LOD mode is enabled (half output render size, half sampling rate).

float	samplesPerVoxel () const
	Returns the number of ray casting samples to use per smallest voxel length.

void	setSamplesPerVoxel (float value)
	Sets the number of ray casting samples to use per smallest voxel length.

void	setClipPlane (std::optional< Geometry::Plane > clipPlane)
	Sets an optional clip plane so that parts on the back (opposite the direction of the normal vector) are clipped.

void	setMaxVolumesToDisplay (int value)
	Sets the maximum number of volumes to display.

void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.

void	configure (const Properties *p) override
	Configure this object instance by de-serializing the given Properties.

Public Member Functions inherited from SignalReceiver
	SignalReceiver ()=default
	Default constructor.

	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.

SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.

virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.

void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().

void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.

	Configurable (const Configurable &rhs)

	Configurable (Configurable &&rhs) noexcept

Configurable &	operator= (const Configurable &)

Configurable &	operator= (Configurable &&) noexcept

Protected Member Functions
virtual void	clearImages ()
	Called when the set of images to render is going to be reset.

virtual void	markDirty ()
	Set the dirty flag so that the scene is re-rendered from scratch next time.

virtual void	onTransformationChanged (const Data *sis)
	Called when the transformation of one of the rendered images has changed.

void	onDeformationEvent (const DeformationEvent &event)
	Called when a Deformation object attached to the SharedImage has changed its state.

virtual void	registerImage (const SharedImageSet sis, int index, const DisplayOptions3d displayOptions)=0
	Called for each image that shall be rendered.

Protected Member Functions inherited from SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.

Protected Attributes
std::vector< std::pair< const SharedImageSet , const DisplayOptions3d > >	m_currentData

std::vector< std::shared_ptr< SignalConnection > >	m_temporarySlots
	signal connections created for the set of currently shown images

std::unique_ptr< GL::Framebuffer >	m_fbo
	FBO used during rendering.

bool	m_dirty = true

bool	m_showDeformations = false
	Flag whether to evaluate deformation fields of volumes if supported.

bool	m_lod = false
	Flag whether low LOD mode is enabled (half output render size, half sampling rate)

float	m_samplesPerVoxel = 1.f
	Ray casting samples per smallest voxel length.

std::optional< Geometry::Plane >	m_clipPlane
	Optional clipping plane to use during rendering.

int	m_maxVolumesToDisplay = 4
	Maximum number of volumes to display.

Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Additional Inherited Members
Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' `signalValueChanged` signal was emitted.

Member Function Documentation

◆ name()

virtual std::string name ( ) const

pure virtual

Returns the name for identification/GUI usage of this volume renderer.

Implemented in GlVolumeRendererBasic, and GlVolumeRendererGlobalIllum.

◆ render()

virtual void render	(	const GL::ViewState &	viewState,
		const RenderTextures &	renderTextures )

pure virtual

Renders the data in the given configuration.

Parameters

viewState	OpenGL state describing projection and model-view matrix to use for rendering
renderTextures	Struct holding all the render textures to use

Note: The dimensions of all provided textures must be equivalent.

Implemented in GlVolumeRendererBasic, and GlVolumeRendererGlobalIllum.

◆ imageData()

virtual SharedImageSet * imageData ( ) const

pure virtual

Returns the first SharedImageSet that is rendered by this GlVolumeRenderer.

Note: This is merely a low-level convenience function. Please use GlVolumeRenderer::data() or ImageView3D::visibleData() on the parent view in order to get all shown data.

Implemented in GlVolumeRendererBasic, and GlVolumeRendererGlobalIllum.

◆ center()

virtual vec3 center ( ) const

pure virtual

Returns the center in world coordinates of the first shown data.

Implemented in GlVolumeRendererBasic, and GlVolumeRendererGlobalIllum.

◆ supportsOITIntegration()

virtual bool supportsOITIntegration ( ) const

virtual

Returns whether this renderer supports the order-independent integration of semi-transparent scene geometry.

This flag is queried by GlVolumeView to determine whether blending OIT fragments is performed by the volume renderer (return true) or whether it should be done by the GlVolumeView prior to letting the GlVolumeRenderer render (return false). The default implementation returns false.

See also: GlOrderIndependentTransparency

Reimplemented in GlVolumeRendererGlobalIllum.

◆ supportsDeformations()

virtual bool supportsDeformations ( ) const

virtual

Returns whether this renderer supports showing Deformations attached to images.

The default implementation returns false.

See also: setShowDeformations()

Reimplemented in GlVolumeRendererBasic, and GlVolumeRendererGlobalIllum.

◆ setLod()

virtual void setLod ( bool value )

virtual

Sets the flag whether low LOD mode is enabled (half output render size, half sampling rate).

Reimplemented in GlVolumeRendererGlobalIllum.

◆ configuration()

void configuration ( Properties * p ) const

overridevirtual

Serialize the current object configuration into the given Properties object.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configure() for the inverse functionality

Reimplemented from Configurable.

Reimplemented in GlVolumeRendererBasic, and GlVolumeRendererGlobalIllum.

◆ configure()

void configure ( const Properties * p )

overridevirtual

Configure this object instance by de-serializing the given Properties.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configuration() for the inverse functionality

Reimplemented from Configurable.

Reimplemented in GlVolumeRendererBasic, and GlVolumeRendererGlobalIllum.

◆ clearImages()

virtual void clearImages ( )

protectedvirtual

Called when the set of images to render is going to be reset.

Default implementation will disconnect all connections in m_temporarySlots and clear the vector.

The documentation for this class was generated from the following file:
