#include <ImFusion/GL/GlVolumeRendererGlobalIllum.h>

GlVolumeRenderer that supports global illumination in terms of shadows and local ambient occlusion. More...

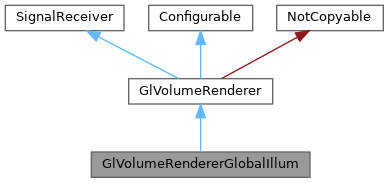

Inheritance diagram for ImFusion::GlVolumeRendererGlobalIllum:

Detailed Description

GlVolumeRenderer that supports global illumination in terms of shadows and local ambient occlusion.

Using this renderer will provide an improved visual appearance by showing shadows in regions that are occluded by its surroundings. This improves depth perception and yields a generally more realistic rendering outcome. Furthermore, this renderer supports a ChromaDepthMode gradient-free "chroma-depth" shading mode that tints voxels depending on the local distance to the camera, which is useful for rendering noisy image data such as ultrasound volumes.

The current implementation supports rendering multiple volumes at the same time, as well as masks and deformations.

This renderer requires OpenGL 3.3 hardware.

See also: ImageView3D, GlVolumeView Hernell et al.: "Local ambient occlusion in direct volume rendering.", IEEE TVCG 16.4 (2010) Sunden et al.: "Efficient volume illumination with multiple light sources through selective light updates." IEEE PacificVis 2015

Classes
struct	ShadingParameters
	Structure encapsulating a Phong shading configuration. More...

Public Types
enum class	ChromaDepthMode { Off , UltrasoundOnly , On }
	Options when to apply gradient-free chroma-depth shading, which tints voxels depending on the local distance to the camera. More...

Public Member Functions
	GlVolumeRendererGlobalIllum ()
	Create the renderer, may throw if the local hardware does not support OpenGL 4.3.
ShadingParameters	shadingParameters () const
	Returns the Phong shading parameters.
void	setShadingParameters (ShadingParameters value)
	Sets the Phong shading parameters.
bool	isShadowingEnabled () const
	Returns the flag whether to enable shadowing.
void	setShadowingEnabled (bool value)
	Sets the flag whether to enable shadowing.
ChromaDepthMode	chromaDepthMode () const
	Returns when to apply gradient-free chroma-depth shading.
void	setChromaDepthMode (ChromaDepthMode value)
	Sets when to apply gradient-free chroma-depth shading.
std::string	name () const override
	Returns the name for identification/GUI usage of this volume renderer.
void	render (const GL::ViewState &viewState, const RenderTextures &renderTextures) override
	Renders the data in the given configuration.
SharedImageSet *	imageData () const override
	Returns the first SharedImageSet that is rendered by this GlVolumeRenderer.
bool	supportsOITIntegration () const override
	Returns whether this renderer supports the order-independent integration of semi-transparent scene geometry.
bool	supportsDeformations () const override
	Returns whether this renderer supports showing Deformations attached to images.
vec3	center () const override
	Returns the center in world coordinates of the first shown data.
void	setLod (bool value) override
	Sets the flag whether low LOD mode is enabled (half output render size, half sampling rate).
void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.
void	configure (const Properties *p) override
	Configure this object instance by de-serializing the given Properties.
Public Member Functions inherited from ImFusion::GlVolumeRenderer
virtual void	setData (const std::vector< std::pair< const SharedImageSet , const DisplayOptions3d > > &data)
	Sets the data to render paired with the display options to use.
std::vector< std::pair< const SharedImageSet , const DisplayOptions3d > >	data () const
	Return the list of shown data paired with the DisplayOptions to use.
virtual bool	dirty () const
	Returns whether the scene is dirty (i.e. re-rendering is required).
bool	showsDeformations () const
	Returns the flag whether to evaluate deformation fields of volumes during rendering if supported.
void	setShowDeformations (bool value)
	Sets the flag whether to evaluate deformation fields of volumes during rendering if supported.
bool	lod () const
	Returns the flag whether low LOD mode is enabled (half output render size, half sampling rate).
float	samplesPerVoxel () const
	Returns the number of ray casting samples to use per smallest voxel length.
void	setSamplesPerVoxel (float value)
	Sets the number of ray casting samples to use per smallest voxel length.
void	setClipPlane (std::optional< Geometry::Plane > clipPlane)
	Sets an optional clip plane so that parts on the back (opposite the direction of the normal vector) are clipped.
void	setMaxVolumesToDisplay (int value)
	Sets the maximum number of volumes to display.
Public Member Functions inherited from ImFusion::SignalReceiver
	SignalReceiver ()=default
	Default constructor.
	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.
SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.
Public Member Functions inherited from ImFusion::Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept

Additional Inherited Members
Public Attributes inherited from ImFusion::Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.
Protected Member Functions inherited from ImFusion::GlVolumeRenderer
virtual void	onTransformationChanged (const Data *sis)
	Called when the transformation of one of the rendered images has changed.
void	onDeformationEvent (const DeformationEvent &event)
	Called when a Deformation object attached to the SharedImage has changed its state.
Protected Member Functions inherited from ImFusion::SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.
Protected Attributes inherited from ImFusion::GlVolumeRenderer
std::vector< std::pair< const SharedImageSet , const DisplayOptions3d > >	m_currentData
std::vector< std::shared_ptr< SignalConnection > >	m_temporarySlots
	signal connections created for the set of currently shown images
std::unique_ptr< GL::Framebuffer >	m_fbo
	FBO used during rendering.
bool	m_dirty = true
bool	m_showDeformations = false
	Flag whether to evaluate deformation fields of volumes if supported.
bool	m_lod = false
	Flag whether low LOD mode is enabled (half output render size, half sampling rate).
float	m_samplesPerVoxel = 1.f
	Ray casting samples per smallest voxel length.
std::optional< Geometry::Plane >	m_clipPlane
	Optional clipping plane to use during rendering.
int	m_maxVolumesToDisplay = 4
	Maximum number of volumes to display.
Protected Attributes inherited from ImFusion::Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Member Enumeration Documentation

◆ ChromaDepthMode

enum class ImFusion::GlVolumeRendererGlobalIllum::ChromaDepthMode

strong

Options when to apply gradient-free chroma-depth shading, which tints voxels depending on the local distance to the camera.

This mode is mainly intended for image data with low signal-to-noise ratio such as Ultrasound since it does not rely on local gradients.

Enumerator
Off	Do not use chroma-depth rendering mode for any image.
UltrasoundOnly	Use chroma-depth rendering mode for images with Modality::ULTRASOUND only.
On	Use chroma-depth rendering mode for all images.

Member Function Documentation

◆ name()

std::string ImFusion::GlVolumeRendererGlobalIllum::name ( ) const

overridevirtual

Returns the name for identification/GUI usage of this volume renderer.

Implements ImFusion::GlVolumeRenderer.

◆ render()

void ImFusion::GlVolumeRendererGlobalIllum::render	(	const GL::ViewState &	viewState,
		const RenderTextures &	renderTextures )

overridevirtual

Renders the data in the given configuration.

Parameters

viewState	OpenGL state describing projection and model-view matrix to use for rendering
renderTextures	Struct holding all the render textures to use

Note: The dimensions of all provided textures must be equivalent.

Implements ImFusion::GlVolumeRenderer.

◆ imageData()

SharedImageSet * ImFusion::GlVolumeRendererGlobalIllum::imageData ( ) const

overridevirtual

Returns the first SharedImageSet that is rendered by this GlVolumeRenderer.

Note: This is merely a low-level convenience function. Please use GlVolumeRenderer::data() or ImageView3D::visibleData() on the parent view in order to get all shown data.

Implements ImFusion::GlVolumeRenderer.

◆ supportsOITIntegration()

bool ImFusion::GlVolumeRendererGlobalIllum::supportsOITIntegration ( ) const

overridevirtual

Returns whether this renderer supports the order-independent integration of semi-transparent scene geometry.

This flag is queried by GlVolumeView to determine whether blending OIT fragments is performed by the volume renderer (return true) or whether it should be done by the GlVolumeView prior to letting the GlVolumeRenderer render (return false). The default implementation returns false.

See also: GlOrderIndependentTransparency

Reimplemented from ImFusion::GlVolumeRenderer.

◆ supportsDeformations()

bool ImFusion::GlVolumeRendererGlobalIllum::supportsDeformations ( ) const

overridevirtual

Returns whether this renderer supports showing Deformations attached to images.

The default implementation returns false.

See also: setShowDeformations()

Reimplemented from ImFusion::GlVolumeRenderer.

◆ center()

vec3 ImFusion::GlVolumeRendererGlobalIllum::center ( ) const

overridevirtual

Returns the center in world coordinates of the first shown data.

Implements ImFusion::GlVolumeRenderer.

◆ setLod()

void ImFusion::GlVolumeRendererGlobalIllum::setLod ( bool value )

overridevirtual

Sets the flag whether low LOD mode is enabled (half output render size, half sampling rate).

Reimplemented from ImFusion::GlVolumeRenderer.

◆ configuration()

void ImFusion::GlVolumeRendererGlobalIllum::configuration ( Properties * p ) const

overridevirtual

Serialize the current object configuration into the given Properties object.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configure() for the inverse functionality

Reimplemented from ImFusion::GlVolumeRenderer.

◆ configure()

void ImFusion::GlVolumeRendererGlobalIllum::configure ( const Properties * p )

overridevirtual

Configure this object instance by de-serializing the given Properties.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configuration() for the inverse functionality

Reimplemented from ImFusion::GlVolumeRenderer.

The documentation for this class was generated from the following file:

ImFusion/GL/GlVolumeRendererGlobalIllum.h
