Deformation Class Reference

#include <ImFusion/GL/Deformation.h>

Base class for different kinds of non-linear image transformations. More...

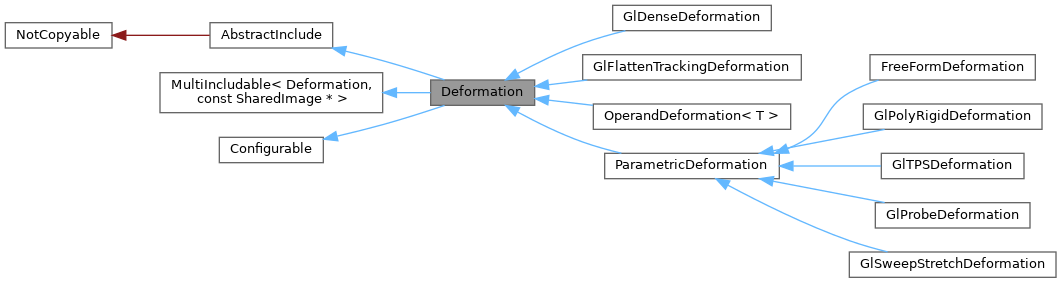

Inheritance diagram for Deformation:

Detailed Description

Base class for different kinds of non-linear image transformations.

The transformations are defined inversely, i.e. they do not describe how a point has to be displaced, but where a point originates from. If x is a point in world coordinates and g(x) the same point after applying the deformation, the displacement disp describes:

x = g(x) + disp(g(x))

and NOT:

g(x) = x + disp(x)

This means, for each point in world coordinates (g(x)) one can directly determine where this point originates from (x). However, one can not directly tell where a point x will be displaced to because non-linear deformations are not always reversible.. While this may seem is very useless to transform individual points, it is very helpful when deforming images. * When deforming an image, one can iterate the pixels of the resulting deformed image and look-up the values in the original, undeformed image. To get the deformed position of an individual point, use the displacePoint method.

Derived classes should provide a CPU and OpenGL implementation. A generic OpenGL interface is provided by a GlAbstractInclude. Similar as with GlMask, you can use several different deformation fields in the same shader by using the helper class DeformationMultiInclude.

In order to work with DeformationMultiInclude, derived classes need to comply with the following requirements:

• The GlAbstractInclude define name is "IMAGE_DEFORM"
• Every uniform and every function needs to be prefixed with "deform"
• The GLSL header needs to provide at least the following function:

  vec3 deformDisplacement(vec3 tc);

  This method should take image texture coordinates as input and return the displacement again in texture coordinates.
• When implementing Deformation::setIncludeArguments(), make sure to use the given prefix when accessing the shader uniforms, i.e.

  setArgument((prefix + "OutsideValue").c_str, ...)

  instead of

  setArgument("deformOutsideValue", ...)

See also

DeformationMultiInclude

Public Member Functions
	Deformation (const std::string &shaderPath)
	Initializes the Deformation with path to the GlInclude file.
virtual Deformation *	clone () const =0
	Returns a copy of the deformation.
virtual vec3	displacement (const vec3 &pos) const =0
	Returns the displacement for pos (in world coordinates).
virtual vec3	displacement (const vec2 &pos) const
	Returns the displacement at the world position pos.
virtual vec3	displacePoint (const vec3 &point) const
	Returns the displaced position of the given point in world-coordinates.
virtual bool	isIdentity () const =0
	Returns if the current state of the deformation transformations the image or not.
virtual void	setIdentity ()=0
	Sets all displacements to 0.
int	setIncludeArguments (GL::Program &p, const SharedImage *img=nullptr, const std::string &prefix="deform") const override=0
	Override default arguments for GlMask includes.
void	setDisabled (bool flag)
	Set a disabled flag in order to hide the visualization of this deformation.
bool	disabled () const
	Return whether the deformation was set to disabled.
virtual int	dimension () const =0
	Returns the dimension of the deformation.
virtual std::string	id () const =0
	Returns a unique string identifier for this type of deformation.
virtual std::unique_ptr< SharedImageSet >	supportingImages () const
	Returns the images that, together with the configuration, defines the deformation.
Public Member Functions inherited from AbstractInclude
	AbstractInclude (const std::string &defineName, const std::string &includePath)
	Creates a AbstractInclude for the given define and with the corresponding GLSL file at includePath.
const std::string &	defineName () const
	Returns the name of define used by this include.
const std::string &	includePath () const
	Returns the path to the included shader file.
virtual std::function< std::string(const std::string &)>	includeCodeSubstitution () const
	Optionally the abstract include can provide a function to change the shader code.
virtual std::vector< AbstractInclude * >	dependentIncludes () const
	Returns a list of dependent abstract includes that need to be included as well.
virtual Fingerprint	fingerprint () const
	Provides a finger print of the include.
Public Member Functions inherited from MultiIncludable< Deformation, const SharedImage * >
std::shared_ptr< MultiIncludeType >	createMultiInclude (const std::string &replacementToken)
	Instantiates a new AbstractInclude instance where all occurrences of baseToken provided during construction are replaces with replacementToken according to the specified replacementScheme.
virtual int	setIncludeArguments (Program &prog, IncludeArgumentsTypes... includeArgs, const std::string &token) const=0
	Interface that multi includes should use to configure the shader include (such as setting uniforms, binding textures, etc).
Public Member Functions inherited from Configurable
virtual void	configure (const Properties *p)
	Configure this object instance by de-serializing the given Properties.
virtual void	configuration (Properties *p) const
	Serialize the current object configuration into the given Properties object.
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept

Static Public Member Functions
static std::string	defineName ()
	Returns the define name of GlAbstractInclude for all deformations.
static std::string	defineSuffix ()
	Returns "DEFORM".
static std::string	multiIncludeDefine (const std::string &replacementToken)
	Returns "IMAGE_" + toUpper(replacementToken)

Public Attributes
Signal< const DeformationEvent & >	signalChanged
Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.

Protected Member Functions
void	notifyListeners (const DeformationEvent &event) const
	convenience function to call signalChanged.emitSignal(event).
Protected Member Functions inherited from MultiIncludable< Deformation, const SharedImage * >
	MultiIncludable (Deformation *crtpInstance, const std::string &baseToken, Flags< ShaderTextReplacement > replacementScheme)
	Instantiate and configure the MultiIncludable interface.

Protected Attributes
bool	m_disabled
	Disabled flag for visualization.
Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Additional Inherited Members
Public Types inherited from MultiIncludable< Deformation, const SharedImage * >
using	MultiIncludeType
	Alias for type of a multi-include instance of the original include.

Member Function Documentation

clone()

virtual Deformation * clone ( ) const

pure virtual

Returns a copy of the deformation.

Implemented in FreeFormDeformation, GlDenseDeformation, GlFlattenTrackingDeformation, GlPolyRigidDeformation, GlTPSDeformation, OperandDeformation< T >, GlProbeDeformation, and GlSweepStretchDeformation.

defineName()

static std::string defineName ( )

static

Returns the define name of GlAbstractInclude for all deformations.

Always returns IMAGE_DEFORM

displacement() [1/2]

virtual vec3 displacement ( const vec3 & pos ) const

pure virtual

Returns the displacement for pos (in world coordinates).

The returned displacement is also in world coordinates. The displacement indicates where pos originated from before applying the deformation.

Implemented in FreeFormDeformation, GlDenseDeformation, GlFlattenTrackingDeformation, GlPolyRigidDeformation, GlTPSDeformation, OperandDeformation< T >, GlProbeDeformation, and GlSweepStretchDeformation.

displacement() [2/2]

virtual vec3 displacement ( const vec2 & pos ) const

virtual

Returns the displacement at the world position pos.

The base implementation just calls displacement(vec3(pos,0.0))

Reimplemented in FreeFormDeformation, and GlDenseDeformation.

displacePoint()

virtual vec3 displacePoint ( const vec3 & point ) const

virtual

Returns the displaced position of the given point in world-coordinates.

This method will estimate the inverse displacement.

Reimplemented in GlFlattenTrackingDeformation, and GlPolyRigidDeformation.

isIdentity()

virtual bool isIdentity ( ) const

pure virtual

Returns if the current state of the deformation transformations the image or not.

Implemented in FreeFormDeformation, GlDenseDeformation, GlFlattenTrackingDeformation, GlPolyRigidDeformation, GlTPSDeformation, OperandDeformation< T >, GlProbeDeformation, and GlSweepStretchDeformation.

setIdentity()

virtual void setIdentity ( )

pure virtual

Sets all displacements to 0.

Implemented in FreeFormDeformation, GlDenseDeformation, GlFlattenTrackingDeformation, GlPolyRigidDeformation, GlTPSDeformation, OperandDeformation< T >, GlProbeDeformation, and GlSweepStretchDeformation.

setIncludeArguments()

int setIncludeArguments ( GL::Program & p, const SharedImage * img = nullptr, const std::string & prefix = "deform" ) const

overridepure virtual

Override default arguments for GlMask includes.

Implemented in FreeFormDeformation, GlDenseDeformation, GlFlattenTrackingDeformation, GlPolyRigidDeformation, GlTPSDeformation, OperandDeformation< T >, GlProbeDeformation, and GlSweepStretchDeformation.

dimension()

virtual int dimension ( ) const

pure virtual

Returns the dimension of the deformation.

Implemented in FreeFormDeformation, GlDenseDeformation, GlFlattenTrackingDeformation, GlPolyRigidDeformation, GlTPSDeformation, OperandDeformation< T >, GlProbeDeformation, and GlSweepStretchDeformation.

id()

virtual std::string id ( ) const

pure virtual

Returns a unique string identifier for this type of deformation.

Usually the name of the class.

Note

To avoid conflicts make sure to include potential plugin names into this ID. Due to the modular architecture of the ImFusion library, uniqueness of IDs cannot be checked at compile time. However, DeformationFactory will check the uniqueness of the ID during registration.

See also

DeformationFactory

Implemented in FreeFormDeformation, GlDenseDeformation, GlFlattenTrackingDeformation, GlPolyRigidDeformation, GlTPSDeformation, OperandDeformation< T >, GlProbeDeformation, and GlSweepStretchDeformation.

supportingImages()

virtual std::unique_ptr< SharedImageSet > supportingImages ( ) const

inlinevirtual

Returns the images that, together with the configuration, defines the deformation.

See also

DeformationFactory

Reimplemented in GlDenseDeformation.

---

The documentation for this class was generated from the following file:

• ImFusion/GL/Deformation.h
