#include <ImFusion/Reg/GlPolyRigidDeformation.h>

Poly-rigid deformation class. More...

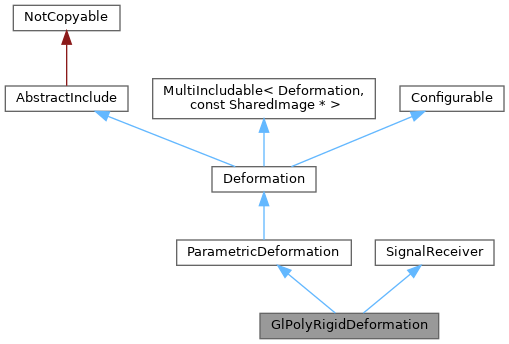

Inheritance diagram for GlPolyRigidDeformation:

Detailed Description

Poly-rigid deformation class.

Based on inverse distance weighting using the positions of the rigid segments before deformation. To-world matrices for both deformed and undeformed rigid segments have to be provided separately. Note that excessive stretching may cause tearing in the displacement field due to numerical limitations. Does not have a CPU mode.

Classes
struct	RigidSegmentParameters

Public Types
enum class	Mode { BACKWARD = 0 , FORWARD = 1 , ONLYRIGID = 2 }

Public Types inherited from MultiIncludable< Deformation, const SharedImage * >
using	MultiIncludeType
	Alias for type of a multi-include instance of the original include.

Public Member Functions
	GlPolyRigidDeformation (std::unique_ptr< SharedImageSet > distVol, const SharedImageSet &refVol, SharedImageSet *multiLabelMap=nullptr)
	Constructor with distance volumes for the individual rigid segments Does not take ownership of.

	GlPolyRigidDeformation (std::unique_ptr< SharedImageSet > distVol, const SharedImageSet &refVol, std::unique_ptr< SharedImageSet > multiLabelMap)
	Constructor with distance volumes for the individual rigid segments.

	GlPolyRigidDeformation (SharedImageSet &labelMap, const SharedImageSet &refVol)
	Constructor that computes distance volumes from a label map.

	GlPolyRigidDeformation (const GlPolyRigidDeformation &other)
	Copy constructor. Warning: ownership of the labelMap is not transferred.

	~GlPolyRigidDeformation () override
	Destructor.

Deformation *	clone () const override
	Clone method which calls the copy constructor.

SharedImageSet *	distanceVolumes ()
	Access to the distance volumes in order to e.g. update its matrices.

void	setSegmentMatrices (const std::vector< mat4 > &v)
	Current/deformed to-world matrices of the rigid segments.

void	setInitialSegmentMatrices (const std::vector< mat4 > &v)
	Initial/undeformed to-world matrices of the rigid segments.

std::shared_ptr< GlDenseDeformation >	forwardDef ()

std::shared_ptr< GlDenseDeformation >	backwardDef ()

void	setSphereMode (bool v)

void	setParametersToUse (const RigidSegmentParameters &params, int segmentIdx=-1)
	Specify which parts of the rigid segment poses are used by the setParameters/parameters functions.

void	setParameters (const std::vector< double > &pars) override
	Set the parameters of the deformation, effectively calls setSegmentMatrices.

void	parameters (std::vector< double > &parsOut) const override
	Retrieve the current parameters of the deformation.

void	setMode (Mode mode)
	Set the mode.

Mode	mode ()

void	setUseDistanceExponentialAsParam (bool v)
	Sets whether to treat the distance exponential as an optimization parameter.

int	numberOfParameters () const override
	Returns the number of parameters e.g. for optimization.

void	setInversionSteps (int v)

std::string	id () const override
	Returns a unique string identifier for this type of deformation.

Public Member Functions inherited from ParametricDeformation
	ParametricDeformation (const std::string &shaderPath)
	Initializes the parametric deformation with path to the GlInclude file.

	~ParametricDeformation () override
	Destructor.

virtual void	setDisplacement (const std::vector< vec3f > &d)
	Set displacement in mm for all control points if applicable For 2D images the z-coordinate of the displacement is ignored.

virtual std::vector< vec3f >	displacements () const
	Get displacement in mm of all control points if applicable.

virtual std::vector< vec3 >	controlPoints () const
	Returns a list of all control points in world coordinates (might be empty for certain models)

virtual int	numberOfControlPoints () const
	Returns the number of control points (may be zero for certain deformations)

Public Member Functions inherited from Deformation
	Deformation (const std::string &shaderPath)
	Initializes the Deformation with path to the GlInclude file.

virtual vec3	displacement (const vec2 &pos) const
	Returns the displacement at the world position pos.

void	setDisabled (bool flag)
	Set a disabled flag in order to hide the visualization of this deformation.

bool	disabled () const
	Return whether the deformation was set to disabled.

virtual std::unique_ptr< SharedImageSet >	supportingImages () const
	Returns the images that, together with the configuration, defines the deformation.

Public Member Functions inherited from AbstractInclude
	AbstractInclude (const std::string &defineName, const std::string &includePath)
	Creates a AbstractInclude for the given define and with the corresponding GLSL file at includePath.

const std::string &	defineName () const
	Returns the name of define used by this include.

const std::string &	includePath () const
	Returns the path to the included shader file.

virtual std::vector< AbstractInclude * >	dependentIncludes () const
	Returns a list of dependent abstract includes that need to be included as well.

virtual Fingerprint	fingerprint () const
	Provides a finger print of the include.

Public Member Functions inherited from MultiIncludable< Deformation, const SharedImage * >
std::shared_ptr< MultiIncludeType >	createMultiInclude (const std::string &replacementToken)
	Instantiates a new AbstractInclude instance where all occurrences of baseToken provided during construction are replaces with replacementToken according to the specified replacementScheme.

virtual int	setIncludeArguments (Program &prog, IncludeArgumentsTypes... includeArgs, const std::string &token) const=0
	Interface that multi includes should use to configure the shader include (such as setting uniforms, binding textures, etc).

Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.

void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().

void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.

	Configurable (const Configurable &rhs)

	Configurable (Configurable &&rhs) noexcept

Configurable &	operator= (const Configurable &)

Configurable &	operator= (Configurable &&) noexcept

Public Member Functions inherited from SignalReceiver
	SignalReceiver ()=default
	Default constructor.

	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.

SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.

virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Public Attributes
Signal	signalCachedDeformChanged

Public Attributes inherited from Deformation
Signal< const DeformationEvent & >	signalChanged

Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' `signalValueChanged` signal was emitted.

Protected Member Functions
	GlPolyRigidDeformation (SharedImageSet *multiLabel, const SharedImageSet &refVol)
	Constructor that computes distance volumes from a multi-label map.

void	recomputeDeformation () const
	If m_dirty=true, sets m_dirty=false and recomputes deformation.

Protected Member Functions inherited from Deformation
void	notifyListeners (const DeformationEvent &event) const
	convenience function to call `signalChanged.emitSignal(event)`.

Protected Member Functions inherited from MultiIncludable< Deformation, const SharedImage * >
	MultiIncludable (Deformation *crtpInstance, const std::string &baseToken, Flags< ShaderTextReplacement > replacementScheme)
	Instantiate and configure the MultiIncludable interface.

Protected Member Functions inherited from SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.

Protected Attributes
const SharedImageSet &	m_refVol

Mode	m_mode = Mode::BACKWARD

std::unique_ptr< SharedImageSet >	m_distVol
	The distance volume(s)

int	m_convergenceFallbackMode = 0
	No convergence: 0 = discard voxel, 1 = best guess, 2 = best guess unless it maps to rigid segment.

float	m_distanceExponential = 1.5
	Exponential of the inverse distance for weighting.

int	m_inversionSteps = 50

std::vector< mat4 >	m_segmentMats
	Current to-world matrices of the rigid segments.

std::vector< mat4 >	m_segmentInitialMats
	Initial to-world matrices of the rigid segments.

bool	m_deformationDirty = true
	Indicates if the Deformation needs to be recomputed.

std::unique_ptr< GL::ImageProgram >	m_extractDefProg

std::shared_ptr< GlDenseDeformation >	m_forwardDef

std::shared_ptr< GlDenseDeformation >	m_backwardDef

bool	m_sphereMode = false
	Simplified mode using control points with spherical influence, not requiring distance volumes.

std::vector< RigidSegmentParameters >	m_segmentParamsToUse

RigidSegmentParameters	m_defaultSegmentParams

bool	m_distanceExponentialAsParam = false

SharedImageSet *	m_labelMap = nullptr

std::unique_ptr< SharedImageSet >	m_labelMapOwner

Protected Attributes inherited from Deformation
bool	m_disabled
	Disabled flag for visualization.

Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Methods implementing the required base class functionality
int	dimension () const override

vec3	displacement (const vec3 &pos) const override
	Does nothing due to lack of CPU mode.

vec3	displacePoint (const vec3 &pos) const override
	Returns the displaced position of the given point in world-coordinates.

int	setIncludeArguments (GL::Program &p, const SharedImage *img=nullptr, const std::string &prefix="deform") const override
	Override default arguments for GlMask includes.

std::function< std::string(const std::string &)>	includeCodeSubstitution () const override
	Optionally the abstract include can provide a function to change the shader code.

bool	isIdentity () const override
	Checks whether the deformed and undeformed segment matrices match.

void	setIdentity () override
	Removes the deformation by pretenting the rigid segments have always been in the current position.

Methods implementing the Configurable interface
void	configure (const Properties *p) override
	Configure this object instance by de-serializing the given Properties.

void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.

Additional Inherited Members
Static Public Member Functions inherited from Deformation
static std::string	defineName ()
	Returns the define name of GlAbstractInclude for all deformations.

static std::string	defineSuffix ()
	Returns "DEFORM".

static std::string	multiIncludeDefine (const std::string &replacementToken)
	Returns `"IMAGE_" + toUpper(replacementToken)`

Member Enumeration Documentation

◆ Mode

enum class Mode

strong

Enumerator
FORWARD	Compute deformation based on forward model, then invert it.
ONLYRIGID	Compute deformation based on backwards model directly.

Constructor & Destructor Documentation

◆ GlPolyRigidDeformation() [1/2]

GlPolyRigidDeformation	(	std::unique_ptr< SharedImageSet >	distVol,
		const SharedImageSet &	refVol,
		SharedImageSet *	multiLabelMap = nullptr )

Constructor with distance volumes for the individual rigid segments Does not take ownership of.

Parameters

multiLabelMap

◆ GlPolyRigidDeformation() [2/2]

GlPolyRigidDeformation	(	SharedImageSet &	labelMap,
		const SharedImageSet &	refVol )

Constructor that computes distance volumes from a label map.

If labelMap is not already split into one frame per label, a temporary version of this type is created and owned by this object. In this case, updates via setParameters will not be propagated to the input label map.

Member Function Documentation

◆ clone()

Deformation * clone ( ) const

overridevirtual

Clone method which calls the copy constructor.

Implements Deformation.

◆ dimension()

int dimension ( ) const

overridevirtual

Spatial dimensions of the input data (or rather the distance maps)

Implements Deformation.

◆ displacement()

vec3 displacement ( const vec3 & pos ) const

overridevirtual

Does nothing due to lack of CPU mode.

Implements Deformation.

◆ displacePoint()

vec3 displacePoint ( const vec3 & pos ) const

overridevirtual

Returns the displaced position of the given point in world-coordinates.

Reimplemented from Deformation.

◆ setIncludeArguments()

int setIncludeArguments	(	GL::Program &	p,
		const SharedImage *	img = nullptr,
		const std::string &	prefix = "deform" ) const

overridevirtual

Override default arguments for GlMask includes.

Implements Deformation.

◆ includeCodeSubstitution()

std::function< std::string(const std::string &)> includeCodeSubstitution ( ) const

overridevirtual

Optionally the abstract include can provide a function to change the shader code.

This function will be called after the shader include has been loaded from includePath() and receives the include code as argument. The function can then modify the code and is supposed to return the modified GLSL code. This can be used to include two instances of the same include by for example prefixing every uniform and function. The default implementation returns NULL and therefore does not change the code.

Reimplemented from AbstractInclude.

◆ isIdentity()

bool isIdentity ( ) const

overridevirtual

Checks whether the deformed and undeformed segment matrices match.

Implements Deformation.

◆ setIdentity()

void setIdentity ( )

overridevirtual

Removes the deformation by pretenting the rigid segments have always been in the current position.

Implements Deformation.

◆ configure()

void configure ( const Properties * p )

overridevirtual

Configure this object instance by de-serializing the given Properties.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configuration() for the inverse functionality

Reimplemented from Configurable.

◆ configuration()

void configuration ( Properties * p ) const

overridevirtual

Serialize the current object configuration into the given Properties object.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configure() for the inverse functionality

Reimplemented from Configurable.

◆ setParametersToUse()

void setParametersToUse	(	const RigidSegmentParameters &	params,
		int	segmentIdx = -1 )

Specify which parts of the rigid segment poses are used by the setParameters/parameters functions.

setInitialSegmentMatrices should have been used beforehand to configure the number of rigid segments. If segmentIdx is less than zero, the configuration is applied to all segments.

◆ setParameters()

void setParameters ( const std::vector< double > & pars )

overridevirtual

Set the parameters of the deformation, effectively calls setSegmentMatrices.

Reimplemented from ParametricDeformation.

◆ parameters()

void parameters ( std::vector< double > & parsOut ) const

overridevirtual

Retrieve the current parameters of the deformation.

Reimplemented from ParametricDeformation.

◆ numberOfParameters()

int numberOfParameters ( ) const

overridevirtual

Returns the number of parameters e.g. for optimization.

Reimplemented from ParametricDeformation.

◆ id()

std::string id ( ) const

inlineoverridevirtual

Returns a unique string identifier for this type of deformation.

Usually the name of the class.

Note: To avoid conflicts make sure to include potential plugin names into this ID. Due to the modular architecture of the ImFusion library, uniqueness of IDs cannot be checked at compile time. However, DeformationFactory will check the uniqueness of the ID during registration.

See also: DeformationFactory

Implements Deformation.

The documentation for this class was generated from the following file:

ImFusion/Reg/GlPolyRigidDeformation.h

Detailed Description

Classes

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Methods implementing the required base class functionality

Methods implementing the Configurable interface

Additional Inherited Members

Member Enumeration Documentation

◆ Mode

Constructor & Destructor Documentation

◆ GlPolyRigidDeformation() [1/2]

◆ GlPolyRigidDeformation() [2/2]

Member Function Documentation

◆ clone()

◆ dimension()

◆ displacement()

◆ displacePoint()

◆ setIncludeArguments()

◆ includeCodeSubstitution()

◆ isIdentity()

◆ setIdentity()

◆ configure()

◆ configuration()

◆ setParametersToUse()

◆ setParameters()

◆ parameters()

◆ numberOfParameters()

◆ id()
