#include <ImFusion/GL/GlDenseDeformation.h>

The GlDenseDeformation class represents dense deformations based on a displacement map. More...

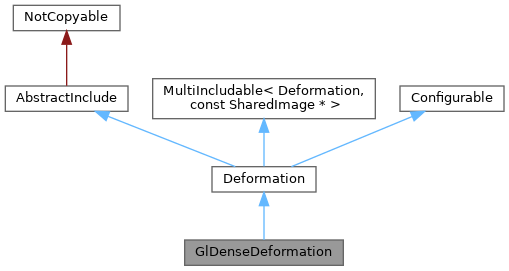

Inheritance diagram for GlDenseDeformation:

Detailed Description

The GlDenseDeformation class represents dense deformations based on a displacement map.

Public Member Functions
	GlDenseDeformation (int width, int height, int slices)
	Creates a deformation field of the given size.

	GlDenseDeformation (const SharedImage *img)
	Creates a deformation field with the same size as img.

	GlDenseDeformation (const Image &img)
	Creates a deformation field with the same size as img.

	GlDenseDeformation (const ImageDescriptor &desc)

	GlDenseDeformation (const GlDenseDeformation &other)
	Copy constructor.

Deformation *	clone () const override
	Returns a copy of the deformation.

bool	isIdentity () const override
	Returns if the current state of the deformation transformations the image or not.

void	setIdentity () override
	Sets all displacements to 0.

void	setChanged ()
	Causes listeners to be notified because the deformation field was changed.

void	copyFrom (const Deformation &other, const SharedImage &image)

vec3	displacement (const vec3 &pos) const override
	Returns the displacement for pos (in world coordinates).

int	setIncludeArguments (GL::Program &p, const SharedImage *img=nullptr, const std::string &prefix="deform") const override
	Initializes the DenseDeformation shader header to deform the given image.

int	dimension () const override
	Dimension of the displacement field, either 2 or 3.

mat4	transformation () const
	The world transformation of the displacement field.

void	setTransformation (const mat4 &matrix)

void	setDisplacement (const SharedImage &d)
	Set displacement in mm.

const SharedImage &	displacementField () const
	Returns the complete displacement field.

SharedImage &	displacementField ()

void	configure (const Properties *p) override
	Set one or multiple properties.

void	configuration (Properties *p) const override
	Retrieve the properties of this object.

std::string	id () const override
	Returns a unique string identifier for this type of deformation.

std::unique_ptr< SharedImageSet >	supportingImages () const override
	Returns the images that, together with the configuration, defines the deformation.

virtual vec3	displacement (const vec2 &pos) const
	Returns the displacement at the world position pos.

Public Member Functions inherited from Deformation
	Deformation (const std::string &shaderPath)
	Initializes the Deformation with path to the GlInclude file.

virtual vec3	displacePoint (const vec3 &point) const
	Returns the displaced position of the given point in world-coordinates.

void	setDisabled (bool flag)
	Set a disabled flag in order to hide the visualization of this deformation.

bool	disabled () const
	Return whether the deformation was set to disabled.

Public Member Functions inherited from AbstractInclude
	AbstractInclude (const std::string &defineName, const std::string &includePath)
	Creates a AbstractInclude for the given define and with the corresponding GLSL file at includePath.

const std::string &	defineName () const
	Returns the name of define used by this include.

const std::string &	includePath () const
	Returns the path to the included shader file.

virtual std::function< std::string(const std::string &)>	includeCodeSubstitution () const
	Optionally the abstract include can provide a function to change the shader code.

virtual std::vector< AbstractInclude * >	dependentIncludes () const
	Returns a list of dependent abstract includes that need to be included as well.

virtual Fingerprint	fingerprint () const
	Provides a finger print of the include.

Public Member Functions inherited from MultiIncludable< Deformation, const SharedImage * >
std::shared_ptr< MultiIncludeType >	createMultiInclude (const std::string &replacementToken)
	Instantiates a new AbstractInclude instance where all occurrences of baseToken provided during construction are replaces with replacementToken according to the specified replacementScheme.

virtual int	setIncludeArguments (Program &prog, IncludeArgumentsTypes... includeArgs, const std::string &token) const=0
	Interface that multi includes should use to configure the shader include (such as setting uniforms, binding textures, etc).

Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.

void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().

void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.

	Configurable (const Configurable &rhs)

	Configurable (Configurable &&rhs) noexcept

Configurable &	operator= (const Configurable &)

Configurable &	operator= (Configurable &&) noexcept

Static Public Member Functions
static std::unique_ptr< GlDenseDeformation >	createFrom (const Deformation &other, const SharedImage &image, std::optional< ImageDescriptorWorld > domain=std::nullopt)
	Create a new dense deformation field based on a given deformation and image.

Static Public Member Functions inherited from Deformation
static std::string	defineName ()
	Returns the define name of GlAbstractInclude for all deformations.

static std::string	defineSuffix ()
	Returns "DEFORM".

static std::string	multiIncludeDefine (const std::string &replacementToken)
	Returns `"IMAGE_" + toUpper(replacementToken)`

Protected Attributes
std::unique_ptr< SharedImage >	m_disp
	Displacement field.

std::unique_ptr< GL::Sampler >	m_sampler

Protected Attributes inherited from Deformation
bool	m_disabled
	Disabled flag for visualization.

Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Additional Inherited Members
Public Types inherited from MultiIncludable< Deformation, const SharedImage * >
using	MultiIncludeType
	Alias for type of a multi-include instance of the original include.

Public Attributes inherited from Deformation
Signal< const DeformationEvent & >	signalChanged

Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' `signalValueChanged` signal was emitted.

Protected Member Functions inherited from Deformation
void	notifyListeners (const DeformationEvent &event) const
	convenience function to call `signalChanged.emitSignal(event)`.

Protected Member Functions inherited from MultiIncludable< Deformation, const SharedImage * >
	MultiIncludable (Deformation *crtpInstance, const std::string &baseToken, Flags< ShaderTextReplacement > replacementScheme)
	Instantiate and configure the MultiIncludable interface.

Member Function Documentation

◆ createFrom()

static std::unique_ptr< GlDenseDeformation > createFrom	(	const Deformation &	other,
		const SharedImage &	image,
		std::optional< ImageDescriptorWorld >	domain = std::nullopt )

static

Create a new dense deformation field based on a given deformation and image.

Parameters

other	Deformation to use as source, will be evaluated for every voxel of the new dense deformation field.
image	Image to use as reference for size, spacing and transformation of the old deformation field.
domain	Domain of the new deformation field. If nullptr, then `image` is used.

◆ clone()

Deformation * clone ( ) const

overridevirtual

Returns a copy of the deformation.

Implements Deformation.

◆ isIdentity()

bool isIdentity ( ) const

overridevirtual

Returns if the current state of the deformation transformations the image or not.

Implements Deformation.

◆ setIdentity()

void setIdentity ( )

overridevirtual

Sets all displacements to 0.

Implements Deformation.

◆ displacement() [1/2]

vec3 displacement ( const vec3 & pos ) const

overridevirtual

Returns the displacement for pos (in world coordinates).

The returned displacement is also in world coordinates. The displacement indicates where pos originated from before applying the deformation.

Implements Deformation.

◆ setIncludeArguments()

int setIncludeArguments	(	GL::Program &	p,
		const SharedImage *	img = nullptr,
		const std::string &	prefix = "deform" ) const

overridevirtual

Initializes the DenseDeformation shader header to deform the given image.

Inside the shader the deformDisplacement function returns the displacement in texture coordinates. If you need them in world coordinates, transform them with SharedImage::textureToWorldMatrix.

Implements Deformation.

◆ dimension()

int dimension ( ) const

overridevirtual

Dimension of the displacement field, either 2 or 3.

Implements Deformation.

◆ transformation()

mat4 transformation ( ) const

The world transformation of the displacement field.

This is the same as displacementField().matrix().

◆ setDisplacement()

void setDisplacement ( const SharedImage & d )

Set displacement in mm.

The given image must be a 3 channel FLOAT image.

◆ displacementField()

const SharedImage & displacementField ( ) const

Returns the complete displacement field.

The returned image is always 3 channel FLOAT. Each pixel is a 3D displacement vector in mm (world coordinates). Use SharedImage::texture/pixelToWorld and SharedImage::worldToTexture/Pixel to convert between coordinates.

◆ configure()

void configure ( const Properties * p )

overridevirtual

Set one or multiple properties.

Reimplemented from Configurable.

◆ configuration()

void configuration ( Properties * p ) const

overridevirtual

Retrieve the properties of this object.

Reimplemented from Configurable.

◆ id()

std::string id ( ) const

inlineoverridevirtual

Returns a unique string identifier for this type of deformation.

Usually the name of the class.

Note: To avoid conflicts make sure to include potential plugin names into this ID. Due to the modular architecture of the ImFusion library, uniqueness of IDs cannot be checked at compile time. However, DeformationFactory will check the uniqueness of the ID during registration.

See also: DeformationFactory

Implements Deformation.

◆ supportingImages()

std::unique_ptr< SharedImageSet > supportingImages ( ) const

overridevirtual

Returns the images that, together with the configuration, defines the deformation.

See also: DeformationFactory

Reimplemented from Deformation.

◆ displacement() [2/2]

virtual vec3 displacement ( const vec2 & pos ) const

virtual

Returns the displacement at the world position pos.

The base implementation just calls displacement(vec3(pos,0.0))

Reimplemented from Deformation.

The documentation for this class was generated from the following file:

ImFusion/GL/GlDenseDeformation.h
