#include <ImFusion/GL/GlTPSDeformation.h>

The GlTPSDeformation class provides deformations using a thin-plate splines (TPS). More...

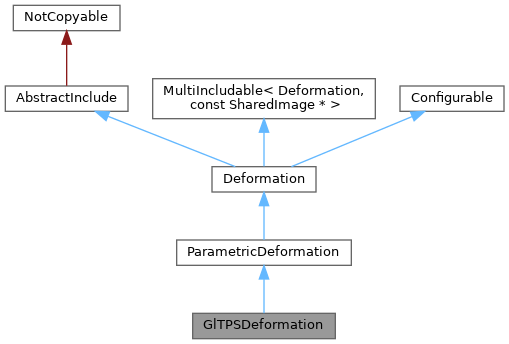

Inheritance diagram for ImFusion::GlTPSDeformation:

Detailed Description

The GlTPSDeformation class provides deformations using a thin-plate splines (TPS).

Public Member Functions
	GlTPSDeformation (int dimension)
	GlTPSDeformation (SharedImage *img)
	GlTPSDeformation (const GlTPSDeformation &other)
Deformation *	clone () const override
	Returns a copy of the deformation.
int	dimension () const override
	Dimension of the deformation.
void	setUseLocalModel (bool useLocal)
bool	useLocalModel () const
void	setPointCorrespondences (const std::vector< vec3 > &pts1, const std::vector< vec3 > &pts2)
	Set point correspondences.
void	setDefaultControlPoints (SharedImage *img, bool fit=false)
	Set the four (in 2D) or eight (in 3D) default control points in the image corners, optionally fitting it to the content.
void	setControlPoints (const std::vector< vec3 > &pts)
	Set the control points given in world coordinate system.
std::vector< vec3 >	controlPoints () const override
	Get current control points.
void	addControlPoint (const vec3 &points)
	Add control point.
void	removeControlPoint (int index)
	Remove control point at index.
vec3	displacement (const vec3 &pos) const override
	Get displacement at given point.
int	setIncludeArguments (GL::Program &p, const SharedImage *img=nullptr, const std::string &prefix="deform") const override
	Initializes the FFDeformation shader header to deform the given image.
void	setRegularizerWeight (double value)
double	regularizerWeight () const
void	setDisplacement (const std::vector< vec3f > &d) override
	Set displacement in world coordinate units for every control points.
void	setDisplacement (int idx, const vec3f &d)
	Sets the displacement in world coordinate units at the given control point.
std::vector< vec3f >	displacements () const override
	Get displacement in world coordinate units of all control points.
const GlImage *	displacementTexture () const
const GlImage *	controlPointTexture () const
int	numberOfControlPoints () const override
	Returns the number of control points.
bool	isIdentity () const override
	Returns if the current state of the deformation transformations the image or not.
void	setIdentity () override
	Sets the displacement of all control points to zero.
void	configure (const Properties *p) override
	Set one or multiple properties.
void	configuration (Properties *p) const override
	Retrieve the properties of this object.
std::string	id () const override
	Returns a unique string identifier for this type of deformation.
Public Member Functions inherited from ImFusion::ParametricDeformation
	ParametricDeformation (const std::string &shaderPath)
	Initializes the parametric deformation with path to the GlInclude file.
	~ParametricDeformation () override
	Destructor.
virtual void	setParameters (const std::vector< double > &pars)
	Set the parameters of the deformation.
virtual void	parameters (std::vector< double > &parsOut) const
	Retrieve the current parameters of the deformation.
virtual int	numberOfParameters () const
	Returns the number of parameters e.g. for optimization.
Public Member Functions inherited from ImFusion::Deformation
	Deformation (const std::string &shaderPath)
	Initializes the Deformation with path to the GlInclude file.
virtual vec3	displacement (const vec2 &pos) const
	Returns the displacement at the world position pos.
virtual vec3	displacePoint (const vec3 &point) const
	Returns the displaced position of the given point in world-coordinates.
void	setDisabled (bool flag)
	Set a disabled flag in order to hide the visualization of this deformation.
bool	disabled () const
	Return whether the deformation was set to disabled.
virtual std::unique_ptr< SharedImageSet >	supportingImages () const
	Returns the images that, together with the configuration, defines the deformation.
Public Member Functions inherited from ImFusion::GL::AbstractInclude
	AbstractInclude (const std::string &defineName, const std::string &includePath)
	Creates a AbstractInclude for the given define and with the corresponding GLSL file at includePath.
const std::string &	defineName () const
	Returns the name of define used by this include.
const std::string &	includePath () const
	Returns the path to the included shader file.
virtual std::function< std::string(const std::string &)>	includeCodeSubstitution () const
	Optionally the abstract include can provide a function to change the shader code.
virtual std::vector< AbstractInclude * >	dependentIncludes () const
	Returns a list of dependent abstract includes that need to be included as well.
virtual Fingerprint	fingerprint () const
	Provides a finger print of the include.
Public Member Functions inherited from ImFusion::GL::MultiIncludable< Deformation, const SharedImage * >
std::shared_ptr< MultiIncludeType >	createMultiInclude (const std::string &replacementToken)
	Instantiates a new AbstractInclude instance where all occurrences of baseToken provided during construction are replaces with replacementToken according to the specified replacementScheme.
virtual int	setIncludeArguments (Program &prog, IncludeArgumentsTypes... includeArgs, const std::string &token) const=0
	Interface that multi includes should use to configure the shader include (such as setting uniforms, binding textures, etc).
Public Member Functions inherited from ImFusion::Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept

Protected Attributes
std::vector< vec3 >	m_pts
	Control points.
std::vector< vec3f >	m_disp
	Displacement of control points in mm.
GlImage *	m_texDisp
	Displacement texture (same content as m_disp).
Eigen::MatrixXd	m_W
GlImage *	m_texParameters
GlImage *	m_texControlPoints
int	m_dimension
double	m_lambda
bool	m_useLocal
Protected Attributes inherited from ImFusion::Deformation
bool	m_disabled
	Disabled flag for visualization.
Protected Attributes inherited from ImFusion::Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Additional Inherited Members
Public Types inherited from ImFusion::GL::MultiIncludable< Deformation, const SharedImage * >
using	MultiIncludeType
	Alias for type of a multi-include instance of the original include.
Static Public Member Functions inherited from ImFusion::Deformation
static std::string	defineName ()
	Returns the define name of GlAbstractInclude for all deformations.
static std::string	defineSuffix ()
	Returns "DEFORM".
static std::string	multiIncludeDefine (const std::string &replacementToken)
	Returns "IMAGE_" + toUpper(replacementToken).
Public Attributes inherited from ImFusion::Deformation
Signal< const DeformationEvent & >	signalChanged
Public Attributes inherited from ImFusion::Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.
Protected Member Functions inherited from ImFusion::Deformation
void	notifyListeners (const DeformationEvent &event) const
	convenience function to call signalChanged.emitSignal(event).
Protected Member Functions inherited from ImFusion::GL::MultiIncludable< Deformation, const SharedImage * >
	MultiIncludable (Deformation *crtpInstance, const std::string &baseToken, Flags< ShaderTextReplacement > replacementScheme)
	Instantiate and configure the MultiIncludable interface.

Member Function Documentation

◆ clone()

Deformation * ImFusion::GlTPSDeformation::clone ( ) const

overridevirtual

Returns a copy of the deformation.

Implements ImFusion::Deformation.

◆ dimension()

int ImFusion::GlTPSDeformation::dimension ( ) const

overridevirtual

Dimension of the deformation.

Implements ImFusion::Deformation.

◆ setPointCorrespondences()

void ImFusion::GlTPSDeformation::setPointCorrespondences	(	const std::vector< vec3 > &	pts1,
		const std::vector< vec3 > &	pts2 )

Set point correspondences.

This is equivalent to setting the control points to the first correspondence and setting the displacement to the vector to the second correspondence

◆ setDefaultControlPoints()

void ImFusion::GlTPSDeformation::setDefaultControlPoints	(	SharedImage *	img,
		bool	fit = false )

Set the four (in 2D) or eight (in 3D) default control points in the image corners, optionally fitting it to the content.

If the fit parameter is true, the minimum bounding box of the non-zero image content will be used to place the control points.

◆ controlPoints()

std::vector< vec3 > ImFusion::GlTPSDeformation::controlPoints ( ) const

overridevirtual

Get current control points.

Reimplemented from ImFusion::ParametricDeformation.

◆ displacement()

vec3 ImFusion::GlTPSDeformation::displacement ( const vec3 & pos ) const

overridevirtual

Get displacement at given point.

Implements ImFusion::Deformation.

◆ setIncludeArguments()

int ImFusion::GlTPSDeformation::setIncludeArguments	(	GL::Program &	p,
		const SharedImage *	img = nullptr,
		const std::string &	prefix = "deform" ) const

overridevirtual

Initializes the FFDeformation shader header to deform the given image.

The displacements are computed from the texture coordinates of the image and are returned in image coordinates, therefore this method should be called again when the displacement should be computed on an image with different extent.

Implements ImFusion::Deformation.

◆ setDisplacement()

void ImFusion::GlTPSDeformation::setDisplacement ( const std::vector< vec3f > & d )

overridevirtual

Set displacement in world coordinate units for every control points.

For 2D images the z-coordinate of the displacement is ignored.

Reimplemented from ImFusion::ParametricDeformation.

◆ displacements()

std::vector< vec3f > ImFusion::GlTPSDeformation::displacements ( ) const

overridevirtual

Get displacement in world coordinate units of all control points.

Reimplemented from ImFusion::ParametricDeformation.

◆ numberOfControlPoints()

int ImFusion::GlTPSDeformation::numberOfControlPoints ( ) const

overridevirtual

Returns the number of control points.

Reimplemented from ImFusion::ParametricDeformation.

◆ isIdentity()

bool ImFusion::GlTPSDeformation::isIdentity ( ) const

overridevirtual

Returns if the current state of the deformation transformations the image or not.

Implements ImFusion::Deformation.

◆ setIdentity()

void ImFusion::GlTPSDeformation::setIdentity ( )

overridevirtual

Sets the displacement of all control points to zero.

Implements ImFusion::Deformation.

◆ configure()

void ImFusion::GlTPSDeformation::configure ( const Properties * p )

overridevirtual

Set one or multiple properties.

Reimplemented from ImFusion::Configurable.

◆ configuration()

void ImFusion::GlTPSDeformation::configuration ( Properties * p ) const

overridevirtual

Retrieve the properties of this object.

Reimplemented from ImFusion::Configurable.

◆ id()

std::string ImFusion::GlTPSDeformation::id ( ) const

inlineoverridevirtual

Returns a unique string identifier for this type of deformation.

Usually the name of the class.

Note: To avoid conflicts make sure to include potential plugin names into this ID. Due to the modular architecture of the ImFusion library, uniqueness of IDs cannot be checked at compile time. However, DeformationFactory will check the uniqueness of the ID during registration.

See also: DeformationFactory

Implements ImFusion::Deformation.

The documentation for this class was generated from the following file:

ImFusion/GL/GlTPSDeformation.h
