#include <ImFusion/GUI/IoController.h>
Controller for image IO. More...

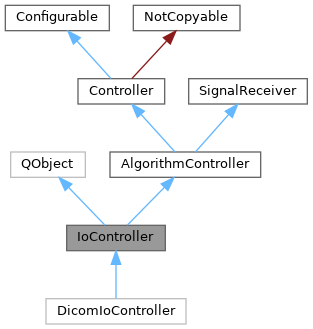

Inheritance diagram for IoController:Controller for image IO.
Public Slots | |
| virtual void | run () |
Public Member Functions | |
| IoController (IoAlgorithm *algorithm, bool multiFileSelection=false, bool noOutput=false) | |
| Constructor with the algorithm instance. | |
| void | init () override |
| Initializes the widget. | |
| void | configure (const Properties *p) override |
| Set one or multiple properties. | |
| std::vector< Location > | supportedLocations () const override |
| Returns the list of locations in which this controller is allowed to be placed by the parent MainWindowBase. | |
| Location | preferredLocation () const override |
| Returns the preferred location in which the parent MainWindowBase should place this controller. | |
| Public Member Functions inherited from AlgorithmController | |
| AlgorithmController (Algorithm *algorithm) | |
| Creates a new AlgorithmController wrapping the given algorithm, which must not be null. | |
| const Algorithm * | algorithm () const |
| Returns the underlying Algorithm instance. | |
| Algorithm * | algorithm () |
| void | showInputData () |
| Shows the input data in the DisplayWidget. | |
| InputDataVisibility | showsInputData () |
| Checks if the input data is currently visible in the DisplayWidget. | |
| void | showHelp () |
| Attempts to open the user documentation page for the underlying algorithm. | |
| std::optional< Filesystem::Path > | helpPath () const |
| Returns the path to the user documentation page if it is available, std::nullopt otherwise. | |
| std::string | title () const override |
| Returns the original factory name of the underlying Algorithm. | |
| Public Member Functions inherited from Controller | |
| void | setMainWindowBase (MainWindowBase *mw) |
Complete the initialization by providing the parent MainWindowBase instance hosting the controller by setting m_main and m_disp and eventually call init(). | |
| virtual void | onSelectedDataChanged (const DataList &) |
| Called by MainWindowBase in the case that the selection in the data model has changed. | |
| virtual void | onVisibleDataChanged (const DataList &) |
| Called by MainWindowBase in the case that the currently visible data has changed. | |
| virtual void | onLocationChanged (Location newLocation) |
| Callback function called by the parent MainWindowBase/ControllerDecorator whenever the place was changed. | |
| Location | location () const |
| Convenience function to query the current controller Location from the parent ControllerDecorator. | |
| ControllerDecorator * | getDecorator () const |
Convenience function to return m_main->getControllerDecorator(this) if m_main is set or nullptr otherwise. | |
| template<typename T> | |
| T * | getDecorator () const |
Convenience function to dynamic_cast the return value of getDecorator() to a derived type. | |
| Public Member Functions inherited from Configurable | |
| virtual void | configuration (Properties *p) const |
| Serialize the current object configuration into the given Properties object. | |
| virtual void | configureDefaults () |
| Retrieve the properties of this object, replaces values with their defaults and sets it again. | |
| void | registerParameter (ParameterBase *param) |
| Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration(). | |
| void | unregisterParameter (const ParameterBase *param) |
| Remove the given Parameter or SubProperty from the list of registered parameters. | |
| Configurable (const Configurable &rhs) | |
| Configurable (Configurable &&rhs) noexcept | |
| Configurable & | operator= (const Configurable &) |
| Configurable & | operator= (Configurable &&) noexcept |
| Public Member Functions inherited from SignalReceiver | |
| SignalReceiver ()=default | |
| Default constructor. | |
| SignalReceiver (const SignalReceiver &other) | |
| Copy constructor, does not copy any existing signal connections from other. | |
| SignalReceiver & | operator= (SignalReceiver rhs) |
| Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs. | |
| virtual | ~SignalReceiver () |
| Virtual destructor disconnects from all connected signals. | |
Protected Attributes | |
| IoAlgorithm * | m_alg |
| The algorithm instance. | |
| bool | m_multiFileSelection |
| bool | m_noOutput |
| If set, no error will be displayed if the algorithm does not produce any output. | |
| Properties * | m_glProperties |
| Protected Attributes inherited from AlgorithmController | |
| Algorithm * | m_algorithm = nullptr |
| The underlying algorithm. | |
| Protected Attributes inherited from Controller | |
| MainWindowBase * | m_main = nullptr |
| The parent MainWindowBase instance hosting this Controller. | |
| DisplayWidgetMulti * | m_disp = nullptr |
The main DisplayWidget instance, convenience shortcut for m_main->display(). | |
| Protected Attributes inherited from Configurable | |
| std::vector< Param > | m_params |
| List of all registered Parameter and SubProperty instances. | |
Additional Inherited Members | |
| Public Types inherited from AlgorithmController | |
| enum class | InputDataVisibility { None = 0 , All = 1 , Some = 2 } |
| Enumeration of possible return values for showsInputData(). More... | |
| Public Types inherited from Controller | |
| enum class | Location : int { Unknown = -1 , Naked = 0 , PrimaryDock = 1 , SecondaryDock = 2 , Detached = 3 , ToolBar = 4 , UserLocation = 100 } |
| Enumeration of possible placement/decoration options of a Controller. More... | |
| Public Attributes inherited from Controller | |
| Signal | signalTitleChanged |
| Signal emitted when the title() has changed. | |
| Public Attributes inherited from Configurable | |
| Signal | signalParametersChanged |
Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted. | |
| Protected Member Functions inherited from AlgorithmController | |
| virtual void | closeAlgorithm (bool executed=false) |
| Removes the algorithm from the ApplicationController and closes the controller. | |
| virtual void | onAlgorithmParametersChanged () |
| Callback called when the Algorithm's signalParametersChanged signal was emitted. | |
| virtual void | onAlgorithmOutputChanged () |
| Callback called when the Algorithm's signalOutputChanged signal was emitted. | |
| virtual void | duplicateAlgorithmOnSelectedData () const |
| Instantiates a new copy of underlying Algorithm on the currently selected Data in the DataModel and adds it to the ApplicationController. | |
| void | addToDataAndAnnotationModels (OwningDataList data) |
| Adds the contents of data to the DataModel of the parent MainWindowBase. | |
| Protected Member Functions inherited from SignalReceiver | |
| void | disconnectAll () |
| Disconnects all existing connections. | |
|
overridevirtual |
Initializes the widget.
Implements Controller.
|
overridevirtual |
Set one or multiple properties.
Reimplemented from Configurable.
|
overridevirtual |
Returns the list of locations in which this controller is allowed to be placed by the parent MainWindowBase.
If the controller should not be placed/wrapped by the host but stand by itself you should return a list containing only Location::Naked.
Reimplemented from Controller.
|
overridevirtual |
Returns the preferred location in which the parent MainWindowBase should place this controller.
If the controller should not be placed/wrapped by the host but stand by itself you should return Location::Naked.
Reimplemented from Controller.
