#include <ImFusion/Base/IoAlgorithm.h>
Interface for describing IO algorithms. More...

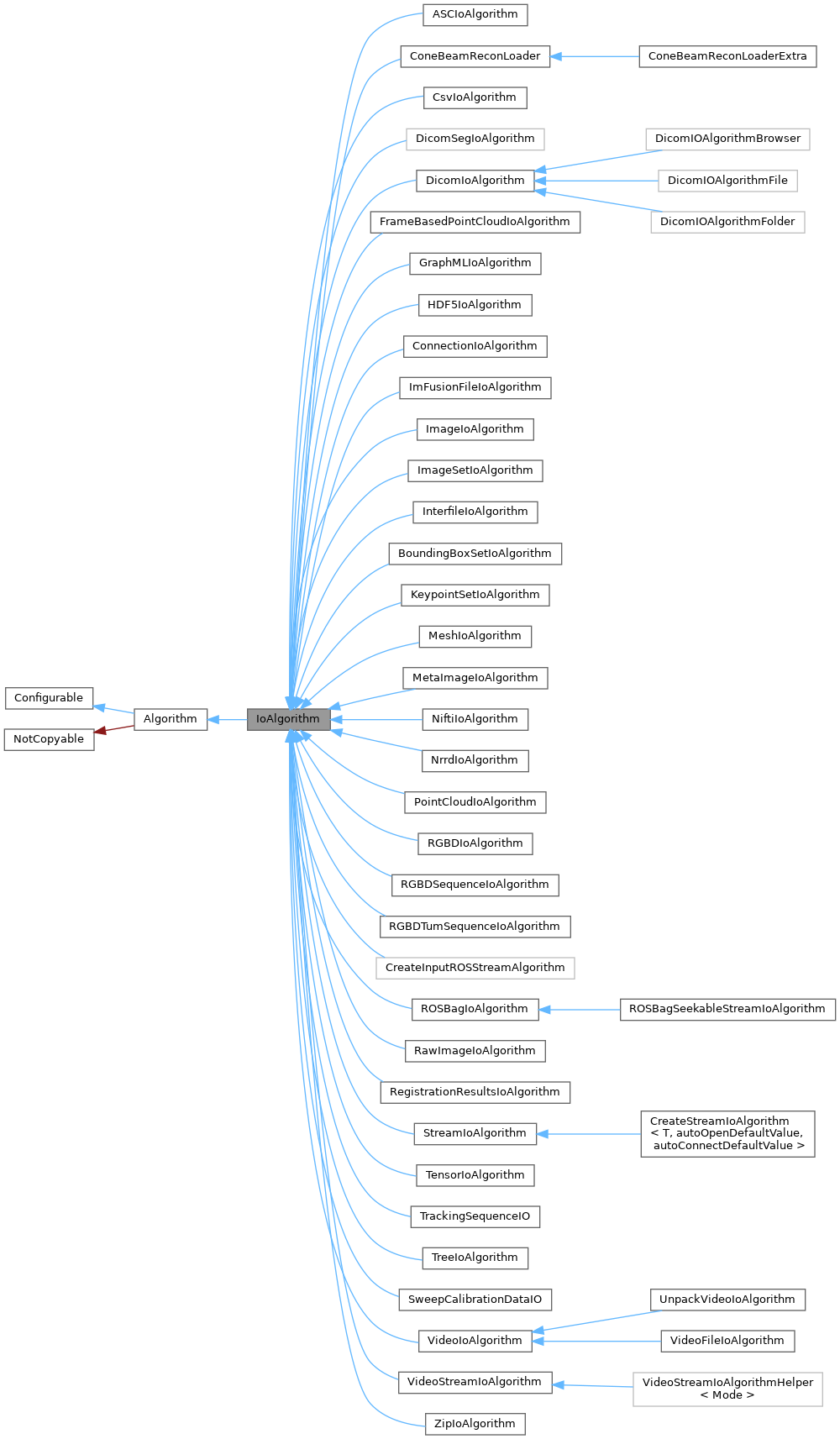

Inheritance diagram for IoAlgorithm:Interface for describing IO algorithms.
IO algorithms constructed with an empty DataList in createCompatible() will read data. IO algorithms constructed with a data set matching the IO algorithm capabilities will write data. If the data does not match the capabilities of the IO algorithm the creation will fail. Images are loaded and saved using the compute() method. Before calling compute the IO location has to be set using the setLocation() method. If the algorithm is a reader the loaded data will be available from the takeOutput() method. To find out whether the IO operation succeeded call fail(). The supported file extensions (in case of a file-based IO algorithm) can be queried from the supportedFileExtensions() method. When implementing your algorithm you should not limit the locations to the ones with the correct extension. The extensions are only intended as help when displaying the file IO dialog.
Public Types | |
| enum | IoMode { Read = 0 , Write = 1 } |
| enum | LocationType { File = 1 , Folder = 2 , URI = 4 , OpenIGTLink = 8 , Device = 16 } |
| Public Types inherited from Algorithm | |
| enum | Status { Unknown = -1 , Success = 0 , Error = 1 , InvalidInput , IncompleteInput , OutOfMemoryHost , OutOfMemoryGPU , UnsupportedGPU , UnknownAction , AbortedByUser , User = 1000 } |
| Status codes. More... | |
Public Member Functions | |
| IoAlgorithm (IoMode ioMode, int locationType) | |
| Constructor for initializing IO algorithm. | |
| virtual IoMode | ioMode () const |
| Return IO mode. | |
| virtual std::vector< std::string > | supportedFileExtensions () const |
| Return supported file extensions (for file based IO) | |
| virtual std::string | suggestedSaveFileName () const |
| Return a file name suggestion typically used by IoController to prefill the file name in the save file dialog (for file based write) | |
| virtual bool | canLoad (const Filesystem::Path &filepath) const |
| Returns whether the algorithm is suitable for loading the indicated file. | |
| virtual bool | fail (int *errorCode=nullptr) const |
| int | status () const override |
| Indicates the status of the last call to compute(). | |
| virtual int | supportedLocations () const |
| Return combination of supported location types from LocationType enum. | |
| virtual void | setLocation (const std::string &location) |
| Set location for subsequent loading/saving. | |
| virtual std::string | location () const |
| Get location for loading/saving. | |
| void | configure (const Properties *p) override |
| Set one or multiple properties. | |
| void | configuration (Properties *p) const override |
| Retrieve the properties of this object. | |
| std::unique_ptr< Properties > | userOptions (bool includeReadOptions, bool includeWriteOptions) const |
| Convenience method to retrieve all properties from this IoAlgorithm that are tagged as user options to be configured during load/save. | |
| void | configureFromGlobalSettings () |
| Convenience method to configure the algorithm's user options with the values stored in the global settings. | |
| Public Member Functions inherited from Algorithm | |
| Algorithm () | |
| Default constructor will registers a single "compute" action that calls compute() and returns status(). | |
| virtual void | compute ()=0 |
| Execute the algorithm. | |
| virtual OwningDataList | takeOutput () |
| Return any new Data that was created by the Algorithm during the last call to compute(). | |
| virtual void | setProgress (Progress *progress) |
| Sets a Progress interface the algorithm can use to notify observers about its computing progress. | |
| Progress * | progress () const |
| Returns the progress interface if set. | |
| virtual bool | survivesDataDeletion (const Data *) const |
| Indicates whether the algorithm can handle (partial) deletion of the specified data, by default this checks whether the data is in the input list. | |
| const FactoryInfo & | factoryInfo () const |
| Returns the record describing how this Algorithm was instantiated by the AlgorithmFactory. | |
| void | setFactoryInfo (const FactoryInfo &value) |
| Sets the record describing how this Algorithm was instantiated by the AlgorithmFactory. | |
| Status | runAction (const std::string &id) |
Run the action with name id if it exists. | |
| const std::vector< Action > & | actions () |
| Get a mapping from Action id to Action as registered in this algorithm. | |
| Public Member Functions inherited from Configurable | |
| virtual void | configureDefaults () |
| Retrieve the properties of this object, replaces values with their defaults and sets it again. | |
| void | registerParameter (ParameterBase *param) |
| Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration(). | |
| void | unregisterParameter (const ParameterBase *param) |
| Remove the given Parameter or SubProperty from the list of registered parameters. | |
| Configurable (const Configurable &rhs) | |
| Configurable (Configurable &&rhs) noexcept | |
| Configurable & | operator= (const Configurable &) |
| Configurable & | operator= (Configurable &&) noexcept |
Static Public Member Functions | |
| static std::unique_ptr< IoAlgorithm > | createFromLastDataSource (const DataSourceComponent &dsc) |
| Virtual constructor that creates the IoAlgorithm recorded last in the DataSourceComponent. | |
| Static Public Member Functions inherited from Algorithm | |
| static bool | createCompatible (const DataList &data, Algorithm **a=nullptr) |
| Factory function to check algorithm compatibility with input data and optionally instantiate it. | |
Protected Member Functions | |
| void | recordToDataSourceComponent (Data &data, int indexInFile) |
| Append the current configuration of the IoAlgorithm to the DataSourceComponent of a data. | |
| Protected Member Functions inherited from Algorithm | |
| void | loadDefaults () |
| void | registerAction (const std::string &id, const std::string &guiName, const std::function< Algorithm::Status(void)> &action) |
| Register an action to be run via runAction. | |
| template<typename D> | |
| void | registerAction (const std::string &id, const std::string &guiName, Algorithm::Status(D::*action)(void)) |
| Template version of runAction that can be used with a pointer to a member function. | |
| void | registerAction (const Action &action) |
| Register an action. | |
Protected Attributes | |
| std::string | m_location |
| IoMode | m_ioMode |
| int | m_locationType |
| bool | m_fail |
| Protected Attributes inherited from Algorithm | |
| std::string | m_name |
| Algorithm name. | |
| Progress * | m_progress = nullptr |
| Non-owing pointer to a progress interface. May be a nullptr. | |
| FactoryInfo | m_factoryInfo = {} |
| Record describing how this algorithm was instantiated by the AlgorithmFactory. | |
| int | m_status = Status::Unknown |
| Algorithm status after last call to compute() | |
| std::vector< Action > | m_actions |
| Map of key given by the id of the action, of the available actions of this algorithm. | |
| Protected Attributes inherited from Configurable | |
| std::vector< Param > | m_params |
| List of all registered Parameter and SubProperty instances. | |
Additional Inherited Members | |
| Public Attributes inherited from Algorithm | |
| Signal | signalOutputChanged |
| Signal should be emitted by Algorithms when their output/result has changed. | |
| Signal | signalParametersChanged |
| Signal should be emitted by Algorithms when their parameter configuration has changed. | |
| Public Attributes inherited from Configurable | |
| Signal | signalParametersChanged |
Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted. | |
|
virtual |
Return supported file extensions (for file based IO)
Reimplemented in ASCIoAlgorithm, CsvIoAlgorithm, FrameBasedPointCloudIoAlgorithm, GraphMLIoAlgorithm, HDF5IoAlgorithm, ImageIoAlgorithm, ImFusionFileIoAlgorithm, InterfileIoAlgorithm, MeshIoAlgorithm, MetaImageIoAlgorithm, BoundingBoxSetIoAlgorithm, KeypointSetIoAlgorithm, NiftiIoAlgorithm, NrrdIoAlgorithm, PointCloudIoAlgorithm, RawImageIoAlgorithm, RegistrationResultsIoAlgorithm, RGBDSequenceIoAlgorithm, ROSBagIoAlgorithm, TensorIoAlgorithm, TrackingSequenceIO, TreeIoAlgorithm, SweepCalibrationDataIO, VideoIoAlgorithm, VideoStreamIoAlgorithm, VideoStreamIoAlgorithmHelper< Mode >, and ZipIoAlgorithm.
|
virtual |
Return a file name suggestion typically used by IoController to prefill the file name in the save file dialog (for file based write)
Reimplemented in ASCIoAlgorithm.
|
virtual |
Returns whether the algorithm is suitable for loading the indicated file.
Default implementation simply compares the file extension.
Reimplemented in NiftiIoAlgorithm.
|
virtual |
Reimplemented in MeshIoAlgorithm, and PointCloudIoAlgorithm.
|
overridevirtual |
|
virtual |
Return combination of supported location types from LocationType enum.
Reimplemented in DicomIOAlgorithmBrowser, DicomIOAlgorithmFile, DicomIOAlgorithmFolder, and ZipIoAlgorithm.
|
overridevirtual |
Set one or multiple properties.
Reimplemented from Configurable.
Reimplemented in MeshIoAlgorithm, MetaImageIoAlgorithm, NiftiIoAlgorithm, NrrdIoAlgorithm, PointCloudIoAlgorithm, RawImageIoAlgorithm, RGBDIoAlgorithm, RGBDTumSequenceIoAlgorithm, ROSBagIoAlgorithm, TrackingSequenceIO, VideoIoAlgorithm, VideoStreamIoAlgorithm, and ZipIoAlgorithm.
|
overridevirtual |
Retrieve the properties of this object.
Reimplemented from Configurable.
Reimplemented in MeshIoAlgorithm, MetaImageIoAlgorithm, NiftiIoAlgorithm, NrrdIoAlgorithm, PointCloudIoAlgorithm, RawImageIoAlgorithm, RGBDIoAlgorithm, RGBDTumSequenceIoAlgorithm, ROSBagIoAlgorithm, TrackingSequenceIO, VideoIoAlgorithm, VideoStreamIoAlgorithm, and ZipIoAlgorithm.
| std::unique_ptr< Properties > userOptions | ( | bool | includeReadOptions, |
| bool | includeWriteOptions ) const |
Convenience method to retrieve all properties from this IoAlgorithm that are tagged as user options to be configured during load/save.
Retrieves the configuration of this algorithms and filters only those parameters that have the 'useroption' attribute set according to includeReadOptions and includeWriteOptions. If such parameters are present (i.e. set in configure()) they will be shown during the load/save dialog of the default IoController, as well as in the global settings dialog.
|
protected |
Append the current configuration of the IoAlgorithm to the DataSourceComponent of a data.
If it does not exist already, the DataSourceComponent will be created.
