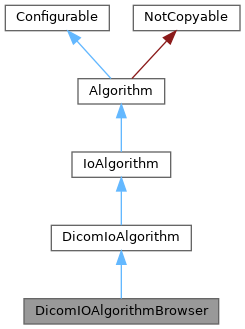

Inheritance diagram for DicomIOAlgorithmBrowser:Public Member Functions | |
| void | configure (const Properties *p) override |
| Configure this object instance by de-serializing the given Properties. | |
| void | configuration (Properties *p) const override |
| Serialize the current object configuration into the given Properties object. | |
| int | supportedLocations () const override |
| Return combination of supported location types from LocationType enum. | |
| Public Member Functions inherited from DicomIoAlgorithm | |
| DicomIoAlgorithm () | |
| Instantiates a new DicomIOAlgorithm for reading. | |
| DicomIoAlgorithm (SharedImageSet *image, IoMode mode, bool writeFolder=false) | |
| Instantiates a new DicomIOAlgorithm with the given parameters. | |
| DicomIoAlgorithm (SharedImageSet *image, const std::vector< SharedImageSet * > &references, IoMode mode, bool writeFolder=false) | |
| Instantiates a new DicomIOAlgorithm with the given parameters. | |
| DicomIoAlgorithm (const std::vector< PointCloud * > rtStructs) | |
| DicomIoAlgorithm (const std::vector< SharedImageSet * > &images, const std::vector< SharedImageSet * > &references, IoMode mode, bool writeFolder=false) | |
| Instantiates a new DicomIOAlgorithm with the given parameters. | |
| DicomIoAlgorithm (const DataList &input, const std::vector< SharedImageSet * > &references, IoMode mode, bool writeFolder=false, std::unique_ptr< Dicom::IOD_Registry > registry=nullptr) | |
| ~DicomIoAlgorithm () override | |
| Default destructor. | |
| void | compute () override |
| Executes the algorithm. | |
| OwningDataList | takeOutput () override |
| Returns the loaded DICOM data. | |
| void | setCache (std::shared_ptr< Dicom::DatasetCache > datasetCache) |
| Sets the internal dataset cache (must not be null) | |
| std::shared_ptr< Dicom::DatasetCache > | cache () const |
| Returns the internal dataset cache (never nullptr) | |
| SharedImageSet * | inputImage () const |
| The image that is getting written (nullptr if mode is Read) | |
| void | setReferencedImages (const std::vector< SharedImageSet * > &images) |
| Sets a list of images the exported DICOM files should reference. | |
| const std::vector< SharedImageSet * > & | referencedImages () const |
| Returns a list of images the exported DICOM files will reference. | |
| void | setReferencedFiles (const std::vector< std::string > &files) |
| Sets a list of DICOM files the exported DICOM files should reference. | |
| const std::vector< std::string > & | referencedFiles () const |
| Returns a list of DICOM files the exported DICOM files will reference. | |
| Dicom::IOD_Registry & | registry () |
| Returns the registry instance used for reading and writing. | |
| const Dicom::IOD_Registry & | registry () const |
| Returns the registry instance used for reading and writing. | |
| bool | ignoreTransform () const |
| Returns the flag whether to ignore the transformation matrix during loading. | |
| void | setIgnoreTransform (bool value) |
| Sets the flag whether to ignore the transformation matrix during loading. | |
| bool | isAutoCropSegmentationsEnabled () const |
| Returns whether segmentations will be cropped during writing. | |
| void | setAutoCropSegmentations (bool value) |
| Sets whether segmentations will be cropped during writing. | |
| Dicom::Compression | compression () const |
| Sets the compression used when saving. | |
| void | setCompression (Dicom::Compression compression) |
| Returns the compression used when saving. | |
| int | compressionQuality () const |
| Sets the quality setting of lossy compressions. | |
| void | setCompressionQuality (int quality) |
| Returns the quality setting of lossy compressions. | |
| void | setFilenameFormat (const std::string &format) |
| Sets the filename format that will be used for exporting files to a folder. | |
| const std::string & | filenameFormat () const |
| Returns the current filename format. | |
| const std::vector< std::shared_ptr< DcmDataset > > & | createDatasetsToWrite () |
| void | clearDatasetsToWrite () |
| void | registerErrorHandler (std::function< void(const Dicom::Error &)> handler) |
| std::vector< Dicom::Error > | caughtErrors () const |
| int | status () const override |
| Unlike other IoAlgorithms, this algorithm can report a more detailed status. | |
| Public Member Functions inherited from IoAlgorithm | |
| IoAlgorithm (IoMode ioMode, int locationType) | |
| Constructor for initializing IO algorithm. | |
| virtual IoMode | ioMode () const |
| Return IO mode. | |
| virtual std::vector< std::string > | supportedFileExtensions () const |
| Return supported file extensions (for file based IO) | |
| virtual std::string | suggestedSaveFileName () const |
| Return a file name suggestion typically used by IoController to prefill the file name in the save file dialog (for file based write) | |
| virtual bool | canLoad (const Filesystem::Path &filepath) const |
| Returns whether the algorithm is suitable for loading the indicated file. | |
| virtual bool | fail (int *errorCode=nullptr) const |
| int | status () const override |
| Indicates the status of the last call to compute(). | |
| virtual void | setLocation (const std::string &location) |
| Set location for subsequent loading/saving. | |
| virtual std::string | location () const |
| Get location for loading/saving. | |
| void | configure (const Properties *p) override |
| Set one or multiple properties. | |
| void | configuration (Properties *p) const override |
| Retrieve the properties of this object. | |
| std::unique_ptr< Properties > | userOptions (bool includeReadOptions, bool includeWriteOptions) const |
| Convenience method to retrieve all properties from this IoAlgorithm that are tagged as user options to be configured during load/save. | |
| void | configureFromGlobalSettings () |
| Convenience method to configure the algorithm's user options with the values stored in the global settings. | |
| Public Member Functions inherited from Algorithm | |
| Algorithm () | |
| Default constructor will registers a single "compute" action that calls compute() and returns status(). | |
| virtual void | setProgress (Progress *progress) |
| Sets a Progress interface the algorithm can use to notify observers about its computing progress. | |
| Progress * | progress () const |
| Returns the progress interface if set. | |
| virtual bool | survivesDataDeletion (const Data *) const |
| Indicates whether the algorithm can handle (partial) deletion of the specified data, by default this checks whether the data is in the input list. | |
| const FactoryInfo & | factoryInfo () const |
| Returns the record describing how this Algorithm was instantiated by the AlgorithmFactory. | |
| void | setFactoryInfo (const FactoryInfo &value) |
| Sets the record describing how this Algorithm was instantiated by the AlgorithmFactory. | |
| Status | runAction (const std::string &id) |
Run the action with name id if it exists. | |
| const std::vector< Action > & | actions () |
| Get a mapping from Action id to Action as registered in this algorithm. | |
| Public Member Functions inherited from Configurable | |
| virtual void | configureDefaults () |
| Retrieve the properties of this object, replaces values with their defaults and sets it again. | |
| void | registerParameter (ParameterBase *param) |
| Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration(). | |
| void | unregisterParameter (const ParameterBase *param) |
| Remove the given Parameter or SubProperty from the list of registered parameters. | |
| Configurable (const Configurable &rhs) | |
| Configurable (Configurable &&rhs) noexcept | |
| Configurable & | operator= (const Configurable &) |
| Configurable & | operator= (Configurable &&) noexcept |
Static Public Member Functions | |
| static bool | createCompatible (const DataList &data, Algorithm **a=0) |
| Static Public Member Functions inherited from IoAlgorithm | |
| static std::unique_ptr< IoAlgorithm > | createFromLastDataSource (const DataSourceComponent &dsc) |
| Virtual constructor that creates the IoAlgorithm recorded last in the DataSourceComponent. | |
| Static Public Member Functions inherited from Algorithm | |
| static bool | createCompatible (const DataList &data, Algorithm **a=nullptr) |
| Factory function to check algorithm compatibility with input data and optionally instantiate it. | |
Additional Inherited Members | |
| Public Types inherited from DicomIoAlgorithm | |
| enum class | GroupingType { None = 0 , PatientId = 1 , StudyId = 2 } |
| Public Types inherited from IoAlgorithm | |
| enum | IoMode { Read = 0 , Write = 1 } |
| enum | LocationType { File = 1 , Folder = 2 , URI = 4 , OpenIGTLink = 8 , Device = 16 } |
| Public Types inherited from Algorithm | |
| enum | Status { Unknown = -1 , Success = 0 , Error = 1 , InvalidInput , IncompleteInput , OutOfMemoryHost , OutOfMemoryGPU , UnsupportedGPU , UnknownAction , AbortedByUser , User = 1000 } |
| Status codes. More... | |
| Public Attributes inherited from Algorithm | |
| Signal | signalOutputChanged |
| Signal should be emitted by Algorithms when their output/result has changed. | |
| Signal | signalParametersChanged |
| Signal should be emitted by Algorithms when their parameter configuration has changed. | |
| Public Attributes inherited from Configurable | |
| Signal | signalParametersChanged |
Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted. | |
| Protected Member Functions inherited from IoAlgorithm | |
| void | recordToDataSourceComponent (Data &data, int indexInFile) |
| Append the current configuration of the IoAlgorithm to the DataSourceComponent of a data. | |
| Protected Member Functions inherited from Algorithm | |
| void | loadDefaults () |
| void | registerAction (const std::string &id, const std::string &guiName, const std::function< Algorithm::Status(void)> &action) |
| Register an action to be run via runAction. | |
| template<typename D> | |
| void | registerAction (const std::string &id, const std::string &guiName, Algorithm::Status(D::*action)(void)) |
| Template version of runAction that can be used with a pointer to a member function. | |
| void | registerAction (const Action &action) |
| Register an action. | |
| Protected Attributes inherited from DicomIoAlgorithm | |
| std::unique_ptr< Impl > | m_pimpl |
| DataList | m_input |
| std::vector< SharedImageSet * > | m_referencedImages |
| std::vector< std::string > | m_referencedFiles |
| OwningDataList | m_output |
| const bool | m_writeFolder |
| std::vector< std::shared_ptr< DcmDataset > > | m_datasetsToWrite |
| std::shared_ptr< Dicom::DatasetCache > | m_cache |
| Caches datasets between the writer and the controller. | |
| std::shared_ptr< Dicom::IOD_Registry > | m_registry |
| std::unordered_map< std::string, std::unique_ptr< Dicom::DatasetHandler > > | m_datasetHandlers |
| Dicom::ErrorRecorder | m_errorRecorder |
| std::function< void(const Dicom::Error &)> | m_errorHandler |
| Optional error handler. | |
| void * | m_cacheErrorRecorderHandler = nullptr |
| bool | m_wasCanceled |
| bool | m_ignoreTransform |
| Flag whether to ignore the transformation matrix during loading. | |
| bool | m_reconstructVolume |
| Flag corresponding to DicomLoader::reconstructVolumes() | |
| bool | m_ignoreDuplicateFrames |
| Flag corresponding to DicomLoader::ignoreDuplicateFrames() | |
| Dicom::Compression | m_compression = Dicom::Compression::LittleEndianImplicit |
| int | m_compressionQuality = 90 |
| std::string | m_filenameFormat = "" |
| bool | m_dicomSegCrop = false |
| Flag whether DicomSeg drops frames without segmented data (like e.g. Slicer does) | |
| GroupingType | m_groupIdType = GroupingType::None |
| Protected Attributes inherited from IoAlgorithm | |
| std::string | m_location |
| IoMode | m_ioMode |
| int | m_locationType |
| bool | m_fail |
| Protected Attributes inherited from Algorithm | |
| std::string | m_name |
| Algorithm name. | |
| Progress * | m_progress = nullptr |
| Non-owing pointer to a progress interface. May be a nullptr. | |
| FactoryInfo | m_factoryInfo = {} |
| Record describing how this algorithm was instantiated by the AlgorithmFactory. | |
| int | m_status = Status::Unknown |
| Algorithm status after last call to compute() | |
| std::vector< Action > | m_actions |
| Map of key given by the id of the action, of the available actions of this algorithm. | |
| Protected Attributes inherited from Configurable | |
| std::vector< Param > | m_params |
| List of all registered Parameter and SubProperty instances. | |
|
overridevirtual |
Configure this object instance by de-serializing the given Properties.
The default implementation will do so automatically for all registered Parameter and SubProperty instances.
Reimplemented from DicomIoAlgorithm.
|
overridevirtual |
Serialize the current object configuration into the given Properties object.
The default implementation will do so automatically for all registered Parameter and SubProperty instances.
Reimplemented from DicomIoAlgorithm.
|
overridevirtual |
Return combination of supported location types from LocationType enum.
Reimplemented from IoAlgorithm.
