#include <ImFusion/Base/AlgorithmFactory.h>

Interface for algorithm factories. More...

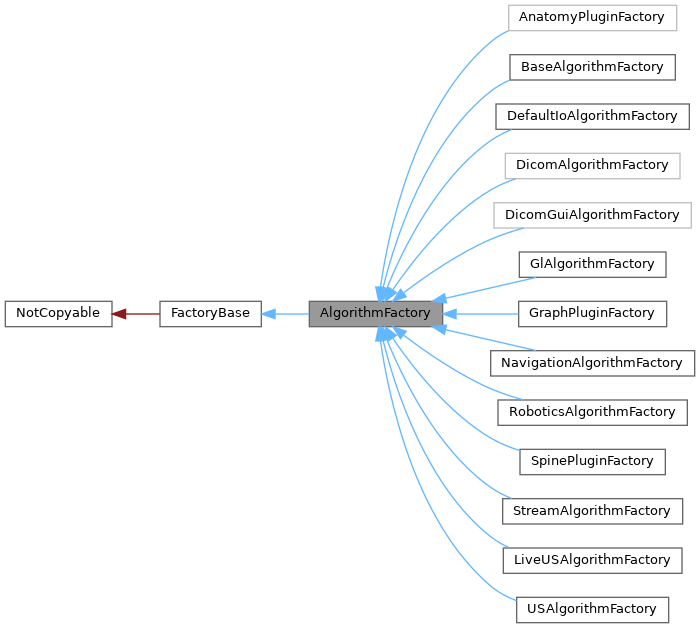

Inheritance diagram for AlgorithmFactory:

Detailed Description

Interface for algorithm factories.

Inherit from this class to create an algorithm factory for your module. You can register Algorithms with the factory (typically done in the constructor) and query or instantiate them later.

An algorithm can be registered with registerAlgorithm<T>(id, name) where T is the algorithm type. The algorithm can later be queried with algorithmDescriptor(qualifiedId) and instantiated with instantiateAlgorithm(qualifiedId, data), where qualifiedId is id prepended with the factory module name.

class VisionAlgorithmFactory : public AlgorithmFactory
{
    VisionAlgorithmFactory() : AlgorithmFactory("Vision")
    {
        registerAlgorithm<GaussianFilterAlgorithm>("GaussianFilter", "Filters;Gaussian");
    }
};

std::unique_ptr<Algorithm> alg = instantiateAlgorithm("Vision.GaussianFilter", data); // using id
std::unique_ptr<GaussianFilterAlgorithm> alg = instantiateAlgorithm<GaussianFilterAlgorithm>(data); // using type

You may also query algorithms compatible with a given set of data:

std::vector<Descriptor> compatible = compatibleDescriptors(data); // non-I/O algorithms

std::vector<Descriptor> compatibleIo = compatibleIoDescriptors(data); // I/O algorithms

ImFusion::AlgorithmFactory::compatibleDescriptors

virtual std::vector< Descriptor > compatibleDescriptors(const DataList &data) const

Returns the descriptors of non-I/O algorithms registered with this factory which are compatible with ...

ImFusion::AlgorithmFactory::compatibleIoDescriptors

virtual std::vector< Descriptor > compatibleIoDescriptors(const DataList &data) const

Returns the descriptors of I/O algorithms registered with this factory which are compatible with data...

std::vector

Examples: StreamAlgorithmFactory.cpp.

Classes
struct	Descriptor
	Struct describing an algorithm registered with a factory. More...

Public Member Functions
	AlgorithmFactory (const std::string &module, bool checkLicense=true)
	Create algorithm factory for the given module.

template<typename T>
void	registerAlgorithm (std::string id, std::string guiName, Flags< Descriptor::AlgorithmAttributes > flags={}, std::optional< Properties > configurationOverride=std::nullopt)
	Register algorithm type T with the given id and GUI name.

template<typename T>
std::unique_ptr< T >	instantiateAlgorithm (const DataList &data) const
	Create an instance of the algorithm with the type T.

virtual std::unique_ptr< Algorithm >	instantiateAlgorithm (const std::string &id, const DataList &data) const
	Create an instance of the algorithm with the given id.

virtual std::unique_ptr< IoAlgorithm >	instantiateIoAlgorithm (const std::string &id, const DataList &data) const
	Convenience function to create an instance of an IO algorithm with the given id.

virtual std::vector< Descriptor >	compatibleDescriptors (const DataList &data) const
	Returns the descriptors of non-I/O algorithms registered with this factory which are compatible with data.

virtual std::vector< Descriptor >	compatibleIoDescriptors (const DataList &data) const
	Returns the descriptors of I/O algorithms registered with this factory which are compatible with data.

virtual std::vector< Descriptor >	compatibleIoDescriptors (const Filesystem::Path &path) const
	Returns the descriptors of algorithms registered with this factory which can load the given file path.

virtual Descriptor	algorithmDescriptor (const std::string &id, bool matchGuiName=false) const
	Returns the descriptors of the algorithm with the given id.

virtual std::vector< Descriptor >	algorithmDescriptors () const
	Returns all algorithm descriptors registered with this factory.

virtual std::vector< Descriptor >	ioAlgorithmDescriptors () const
	Returns all I/O algorithm descriptors registered with this factory.

template<typename T>
Descriptor	algorithmDescriptor () const
	Returns the descriptors of the algorithm type T.

template<typename T>
std::string	algorithmId () const
	Returns the id of the algorithm type T.

virtual bool	addAlgorithmFactoryToFront () const
	Returns whether to add this AlgorithmFactory to the front of the list during registration.

	AlgorithmFactory ()

Public Member Functions inherited from FactoryBase
	FactoryBase ()
	No license check is performed for the module instantiated with this constructor.

	FactoryBase (std::string module, bool checkLicense=true)

std::string	moduleName () const
	Returns the module name of the factory.

Protected Member Functions
bool	registerAlgorithmIfLicensed (const Descriptor &descriptor)
	Register algorithm with descriptor if license allows it.

Protected Member Functions inherited from FactoryBase
virtual	~FactoryBase ()
	Virtual destructor.

std::string	getComponentPath (const std::string &componentName) const
	Returns the path to the component referred to by `name`.

bool	isLicensed (const std::string &name)
	Return true if the license allows the use of the component referred to by `name`.

Static Protected Member Functions
static std::string	nameFromId (const std::string &name)
	Create a GUI name from the algorithm id.

static std::string	idFromName (const std::string &name)
	Create a standard algorithm id from the GUI name.

Static Protected Member Functions inherited from FactoryBase
static std::string	getComponentPath (const std::string &moduleName, const std::string &componentName)
	Returns the path to the component referred to by `name`.

static bool	isLicensed (const std::string &moduleName, const std::string &name)
	Return true if the license allows the use of the component referred to by `name`.

Protected Attributes
std::vector< Descriptor >	m_algorithmDescriptors

std::unordered_map< std::type_index, std::string >	m_algorithmIds

Protected Attributes inherited from FactoryBase
std::string	m_factoryModule

bool	m_checkLicense

Constructor & Destructor Documentation

◆ AlgorithmFactory() [1/2]

AlgorithmFactory	(	const std::string &	module,
		bool	checkLicense = true )

explicit

Create algorithm factory for the given module.

The algorithms registered with this factory will have their names qualified with the module name.

Parameters

checkLicense If true, the license is checked for the module.

◆ AlgorithmFactory() [2/2]

AlgorithmFactory ( )

Deprecated: "AlgorithmFactory must have a module name."

Member Function Documentation

◆ registerAlgorithm()

template<typename T>

void registerAlgorithm	(	std::string	id,
		std::string	guiName,
		Flags< Descriptor::AlgorithmAttributes >	flags = {},
		std::optional< Properties >	configurationOverride = std::nullopt )

Register algorithm type T with the given id and GUI name.

Parameters

id	The unique algorithm ID. The id will be automatically prepended by the factory module name (e.g. "GaussianFilter" -> "Vision.GaussianFilter"). As a convention, the ID should be the same as the algorithm's class name excluding the "Algorithm" suffix (e.g. GaussianFilterAlgorithm -> "GaussianFilter").
guiName	The name used by the GUI to represent this algorithm. Can contain semicolon delimited categories (e.g. Filters;Gaussian). As a convention, IoAlgorithms should always be in the IO top-level category (e.g. IO;MyPlugin;MyIoAlgorithm).
flags	Optional AlgorithmAttributes to set for this algorithm.
configurationOverride	Flags to set for this algorithm.

◆ instantiateAlgorithm() [1/2]

template<typename T>

std::unique_ptr< T > instantiateAlgorithm ( const DataList & data ) const

Create an instance of the algorithm with the type T.

Will return nullptr if no such algorithm is registered, or if the algorithm creation fails.

◆ instantiateAlgorithm() [2/2]

virtual std::unique_ptr< Algorithm > instantiateAlgorithm	(	const std::string &	id,
		const DataList &	data ) const

virtual

Create an instance of the algorithm with the given id.

Will return nullptr if no such algorithm is registered, or if the algorithm creation fails.

◆ instantiateIoAlgorithm()

virtual std::unique_ptr< IoAlgorithm > instantiateIoAlgorithm	(	const std::string &	id,
		const DataList &	data ) const

virtual

Convenience function to create an instance of an IO algorithm with the given id.

Will return nullptr if no such algorithm is registered, or if the algorithm is not an IoAlgorithm, or the algorithm creation fails.

◆ algorithmDescriptor()

virtual Descriptor algorithmDescriptor	(	const std::string &	id,
		bool	matchGuiName = false ) const

virtual

Returns the descriptors of the algorithm with the given id.

Parameters

matchGuiName If true, tries to find algorithms with matching GUI names if no algorithm with the given id is found. Returns a default constructed Descriptor if no matching algorithm is found.

◆ addAlgorithmFactoryToFront()

virtual bool addAlgorithmFactoryToFront ( ) const

virtual

Returns whether to add this AlgorithmFactory to the front of the list during registration.

Per default return false. You may override this method to change the behavior.

Reimplemented in DicomAlgorithmFactory, and DicomGuiAlgorithmFactory.

◆ nameFromId()

static std::string nameFromId ( const std::string & name )

staticprotected

Create a GUI name from the algorithm id.

Used as a convenience fallback if no name is specified.

◆ idFromName()

static std::string idFromName ( const std::string & name )

staticprotected

Create a standard algorithm id from the GUI name.

Used as a deprecation fallback if no id is specified.

◆ registerAlgorithmIfLicensed()

bool registerAlgorithmIfLicensed ( const Descriptor & descriptor )

protected

Register algorithm with descriptor if license allows it.

Return true if successful.

The documentation for this class was generated from the following file:

ImFusion/Base/AlgorithmFactory.h
