RegistrationResultsController Class Reference

#include <ImFusion/Reg/RegistrationResultsController.h>

GUI controller managing registration results. More...

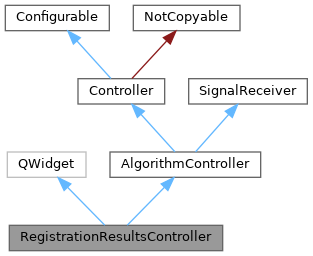

Inheritance diagram for RegistrationResultsController:

Detailed Description

GUI controller managing registration results.

This controller allows to conveniently add registration results on the currently visible (image) data of the main 3D view group, and toggle between them later.

Classes
class	ListItemDelegate
	Custom Item Delegate that paints an item in the results list If data(Qt::UserRole + 1).toBool() is true it adds a "GT" symbol next to the result. More...

Public Slots
void	onAdd ()
	Add new registration result using the currently visible data.
void	onRemove ()
	Remove the currently selected result.
void	onReload ()
	Apply the currently selected result.
void	onSelect (int index)
	Select another result with given index.
void	onDataDeleting (Data *data)
	A data instance is about to be deleted from the data model.
void	showContextMenu (const QPoint &pos)
	Context menu with tools to copy or set current result on other data.
void	onOpenBrowser ()
	On open browser button clicked.
void	onExport ()
	On export button clicked.
void	onLoad ()
	On load button clicked.

Public Member Functions
	RegistrationResultsController (RegistrationResultsAlgorithm *alg)
	Constructor with corresponding algorithm instance.
	~RegistrationResultsController () override
	Destructor, deleting the UI.
void	init () override
	Initializes the controller, also applying last result.
void	load (const std::string &path, bool loadData, bool append=false)
	Load results.
RegistrationResults &	results ()
void	loadMissingData (int index=-1)
	Calls loadMissingData on the underlying RegistrationResults and add the data to the DataModel.
void	removeResult (int index)
	Remove result at specified index.
void	removeResultsWithoutData ()
	Remove results that do not have any data associated with them.
Public Member Functions inherited from AlgorithmController
	AlgorithmController (Algorithm *algorithm)
	Creates a new AlgorithmController wrapping the given algorithm, which must not be null.
const Algorithm *	algorithm () const
	Returns the underlying Algorithm instance.
Algorithm *	algorithm ()
void	showInputData ()
	Shows the input data in the DisplayWidget.
InputDataVisibility	showsInputData ()
	Checks if the input data is currently visible in the DisplayWidget.
void	showHelp ()
	Attempts to open the user documentation page for the underlying algorithm.
std::optional< Filesystem::Path >	helpPath () const
	Returns the path to the user documentation page if it is available, std::nullopt otherwise.
std::string	title () const override
	Returns the original factory name of the underlying Algorithm.
Public Member Functions inherited from Controller
void	setMainWindowBase (MainWindowBase *mw)
	Complete the initialization by providing the parent MainWindowBase instance hosting the controller by setting m_main and m_disp and eventually call init().
virtual void	onSelectedDataChanged (const DataList &)
	Called by MainWindowBase in the case that the selection in the data model has changed.
virtual void	onVisibleDataChanged (const DataList &)
	Called by MainWindowBase in the case that the currently visible data has changed.
virtual std::vector< Location >	supportedLocations () const
	Returns the list of locations in which this controller is allowed to be placed by the parent MainWindowBase.
virtual Location	preferredLocation () const
	Returns the preferred location in which the parent MainWindowBase should place this controller.
virtual void	onLocationChanged (Location newLocation)
	Callback function called by the parent MainWindowBase/ControllerDecorator whenever the place was changed.
Location	location () const
	Convenience function to query the current controller Location from the parent ControllerDecorator.
ControllerDecorator *	getDecorator () const
	Convenience function to return m_main->getControllerDecorator(this) if m_main is set or nullptr otherwise.
template<typename T>
T *	getDecorator () const
	Convenience function to dynamic_cast the return value of getDecorator() to a derived type.
Public Member Functions inherited from Configurable
virtual void	configure (const Properties *p)
	Configure this object instance by de-serializing the given Properties.
virtual void	configuration (Properties *p) const
	Serialize the current object configuration into the given Properties object.
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept
Public Member Functions inherited from SignalReceiver
	SignalReceiver ()=default
	Default constructor.
	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.
SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Additional Inherited Members
Public Types inherited from AlgorithmController
enum class	InputDataVisibility { None = 0 , All = 1 , Some = 2 }
	Enumeration of possible return values for showsInputData(). More...
Public Types inherited from Controller
enum class	Location : int {   Unknown = -1 , Naked = 0 , PrimaryDock = 1 , SecondaryDock = 2 ,   Detached = 3 , ToolBar = 4 , UserLocation = 100 }
	Enumeration of possible placement/decoration options of a Controller. More...
Public Attributes inherited from Controller
Signal	signalTitleChanged
	Signal emitted when the title() has changed.
Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.
Protected Member Functions inherited from AlgorithmController
virtual void	closeAlgorithm (bool executed=false)
	Removes the algorithm from the ApplicationController and closes the controller.
virtual void	onAlgorithmParametersChanged ()
	Callback called when the Algorithm's signalParametersChanged signal was emitted.
virtual void	onAlgorithmOutputChanged ()
	Callback called when the Algorithm's signalOutputChanged signal was emitted.
virtual void	duplicateAlgorithmOnSelectedData () const
	Instantiates a new copy of underlying Algorithm on the currently selected Data in the DataModel and adds it to the ApplicationController.
void	addToDataAndAnnotationModels (OwningDataList data)
	Adds the contents of data to the DataModel of the parent MainWindowBase.
Protected Member Functions inherited from SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.
Protected Attributes inherited from AlgorithmController
Algorithm *	m_algorithm = nullptr
	The underlying algorithm.
Protected Attributes inherited from Controller
MainWindowBase *	m_main = nullptr
	The parent MainWindowBase instance hosting this Controller.
DisplayWidgetMulti *	m_disp = nullptr
	The main DisplayWidget instance, convenience shortcut for m_main->display().
Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Member Function Documentation

init()

void init ( )

overridevirtual

Initializes the controller, also applying last result.

Implements Controller.

load()

void load	(	const std::string &	path,
		bool	loadData,
		bool	append = false )

Load results.

Parameters

path	path to ImFusion Registration Results (IRR) file
loadData	whether to load the data necessary for the loaded results
append	whether to append the results to the existing ones

---

The documentation for this class was generated from the following file:

• ImFusion/Reg/RegistrationResultsController.h
