ExpandableGroupBox Class Reference

#include <ImFusion/GUI/ExpandableGroupBox.h>

This class is a container widget that can expand and collapse another widget. More...

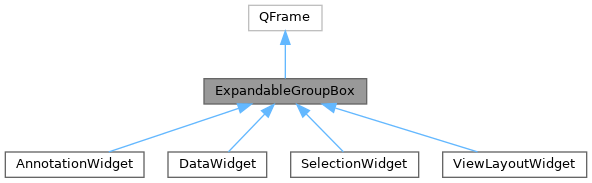

Inheritance diagram for ExpandableGroupBox:

Detailed Description

This class is a container widget that can expand and collapse another widget.

The ExpandableGroupBoxButton widget consists of a button and a container area below which holds a custom widget. Toggling the button will show/hide the contained widget. Therefore, showing and hiding the contained widget itself has the same effect as clicking the button. Additionally this widget supports custom actions that are displayed as (icon only) toolbuttons on the right of the expand/collapse button. Deleting the contained widget will also delete this object. If the ExpandableGroupBox is resizable, a handle at the bottom allows to dynamically resize the widget vertically. The container widget has a ExpandableGroupBoxContainer property which is set to true, to make it identifiable e.g. in a style sheet.

Public Slots
void	expand ()
	Expands the group box.
void	collapse ()
	Collapses the group box.
void	setExpanded (bool expanded)
	Expands or collapses the group box (default: expanded)
void	setResizable (bool isResizable)
	Makes the group box vertical resizable (default: disabled)
void	setTitle (const QString &title)
	Sets the title of the group box.
void	setIcon (const QIcon &icon)
	Sets the icon of the group box.
void	clearAndDeleteLater ()
void	setVisible (bool visible) override
void	addAction (QAction *action)
	Adds a new action to the right side of the expand/collapse button.
void	removeAction (QAction *action)
	Removes an action that was previously added with addAction.
std::vector< QAction * >	actions ()
	Lists all actions.
void	addPage (QWidget *widget)
	Calls setWidget if no containing widget is set, does nothing otherwise (required by the Qt designer plugin)

Signals
void	expansionChanged (bool expanded)
void	resizableChanged (bool isResizable)
void	titleChanged (QString title)
void	iconChanged (QIcon icon)
void	actionAdded (QAction *action)
void	actionRemoved (QAction *action)

Public Member Functions
	ExpandableGroupBox (QWidget *parent=0)
	Creates an empty group box.
QSize	sizeHint () const override
void	setWidget (QWidget *widget)
	Sets the contained widget.
QWidget *	widget ()
	Returns the contained widget if any or nullptr otherwise.
QString	title () const
QIcon	icon () const
bool	isExpanded () const
bool	isResizable () const
void	setCollapsible (bool collapsible)
	Sets if box is collapsible.
bool	isCollapsible ()
	Returns if box is collapsible.
void	setDraggable (bool value)
	Sets the flag whether the box is draggable with the mouse when clicking on the top button.
bool	isDraggable () const
	Returns the flag whether the box is draggable with the mouse when clicking on the top button.
int	count () const
	Returns 1 if widget is set, 0 otherwise (required by the Qt designer plugin)
int	currentIndex () const
	Returns 0 (required by the Qt designer plugin)

Properties
QString	title
QIcon	icon
bool	expanded
bool	resizable

Member Function Documentation

setWidget()

void setWidget

(

QWidget *

widget

)

Sets the contained widget.

This will change the widgets parent.

setIcon

void setIcon ( const QIcon & icon )

slot

Sets the icon of the group box.

The default icon is an arrow pointing down if the box is expanded or pointing right otherwise. The QIcon::On state is used for the expanded group box, QIcon::Off for the collapsed one.

addAction

void addAction ( QAction * action )

slot

Adds a new action to the right side of the expand/collapse button.

The toolbutton representing the action will be icon only, so make sure the action has an icon otherwise the button will not be visible but still clickable. Its in the users responsibility to assure the widget is wide enough to hold all actions.

---

The documentation for this class was generated from the following file:

• ImFusion/GUI/ExpandableGroupBox.h
