#include <ImFusion/Base/Tree.h>

Data structure for trees. More...

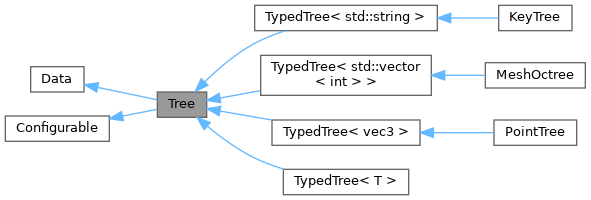

Inheritance diagram for Tree:

Detailed Description

Data structure for trees.

Public Member Functions
	Tree (const Tree &)

Tree &	operator= (const Tree &)

void	clear ()

void	setFilename (const std::string &name)
	Sets a filename from where this tree can be loaded.

const std::string &	filename () const
	Returns the filename from where this tree can be loaded or an empty string if it's not on disk.

Kind	kind () const override
	Return the kind of this data.

Geometry::AlignedBox	bounds () const override
	Returns the axis-aligned bounding box of this data in world space.

vec3	center () const
	Returns the center in object space.

vec3	extent () const
	Returns the extent in object space.

const mat4 &	matrixRef () const

Pose::TransformationConvention	matrixConvention () const override
	Matrices of trees map to world coordinate system.

bool	isAnnotationType () const override
	Return whether this data type is visualized through an annotation (e.g. mesh)

void	configure (const Properties *p) override
	Configure this object instance by de-serializing the given Properties.

void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.

virtual Node *	addNode (std::unique_ptr< Node > node, Node *parent)
	Insert node below parent into tree Returns a non-owning pointer to the node if node is added successfully, nullptr otherwise (probably due to invalid parent).

void	addTreeAsNode (Node *node, std::unique_ptr< Tree > tree)
	Add tree as a child-node to node.

void	removeNode (Node *node)
	Remove node and all its children. Deletes all affected nodes.

bool	containsNode (Node *node) const
	Returns true if the tree contains the specified node.

bool	containsNode (Node parentNode, Node possibleChildNode) const
	Check whether parentNode contains possibleChildNode as a child somewhere down the tree.

virtual std::unique_ptr< Tree >	detachNode (Node *node)
	Detach a node with all its children, and form a new tree from it.

void	detachNode (Tree &tree, Node *node)
	Detach a node with all its children, and fill a tree from it.

void	changeRoot (Node *rootNode)
	Change root of the tree to rootNode. rootNode must be a part of the tree.

Node *	node (int id) const
	Get node through its id.

Node *	root () const
	Get root node.

std::vector< Node * >	children (Node *node) const
	Get child nodes.

Node *	parent (Node *node) const
	Get parent node.

int	nodeLevel (Node *node) const
	get level of the node (root being 0, its children 1 and so on)

void	traverse (std::function< void(Node *, int level)> fcn, bool breadthFirst, int maxLevel=-1)
	Function which traverses the tree using breadth-first approach (if flag breadthFirst is set to true), or depth-first approach (if flag breadthFirst is set to false).

virtual std::string	typeName () const

int	size () const
	Return number of nodes in the tree.

bool	empty () const
	Check whether tree is empty.

Public Member Functions inherited from Data
	Data (const std::string &name="")

	Data (const Data &other)

Data &	operator= (const Data &other)

virtual	~Data ()
	Mandatory virtual destructor.

virtual Modality	modality () const
	Return the modality of this data.

const std::string &	name () const
	Return the name of this data.

void	setName (const std::string &name)
	Sets the name of this data.

const DataComponentList &	components () const
	Returns the list of DataComponents for this data.

DataComponentList &	components ()

virtual std::string	describe () const
	Human readable description of the data for showing in the info bar.

virtual void	setMatrixFromWorld (const mat4 &m)
	Set matrix mapping from the world coordinate system to the data coordinate system.

virtual void	setMatrixToWorld (const mat4 &m)
	Set matrix mapping from the data coordinate system to the world coordinate system.

virtual mat4	matrixFromWorld () const
	Get matrix mapping from the world coordinate system to the data coordinate system.

virtual mat4	matrixToWorld () const
	Get matrix mapping from the data coordinate system to the world coordinate system.

virtual mat4	matrix () const
	Return the transformation matrix.

virtual void	setMatrix (const mat4 &m)
	Set the transformation matrix.

Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.

void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().

void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.

	Configurable (const Configurable &rhs)

	Configurable (Configurable &&rhs) noexcept

Configurable &	operator= (const Configurable &)

Configurable &	operator= (Configurable &&) noexcept

Protected Attributes
std::unordered_map< int, std::unique_ptr< Node > >	m_nodes

std::string	m_filename

int	m_idCounter

Protected Attributes inherited from Data
mat4	m_matrix
	Transformation matrix.

std::recursive_mutex *	m_matrixMutex
	Used to internally synchronize access to the matrix of data.

DataComponentList	m_dataComponentList
	The list of DataComponents for this data.

Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Additional Inherited Members
Public Types inherited from Data
enum	Kind { UNKNOWN = 0 , IMAGE = 1 , VOLUME = 2 , IMAGESET = 3 , VOLUMESET = 4 , IMAGESTREAM = 5 , VOLUMESTREAM = 6 , POINTSET = 7 , SURFACE = 8 , TRACKINGSTREAM = 9 , LIVETRACKINGSTREAM = TRACKINGSTREAM , TRACKINGDATA = 10 , TREE = 11 , TENSOR = 12 , POLYDATASTREAM = 13 , STEREOIMAGESET = 14 , STEREOIMAGESTREAM = 15 , VOLUMETRICMESH = 16 }
	Kind of data. More...

enum	Modality { NA = 0 , XRAY = 1 , CT = 2 , MRI = 3 , ULTRASOUND = 4 , VIDEO = 5 , NM = 6 , OCT = 7 , LABEL = 8 , DISTANCE = 9 }
	Image modality of the data. More...

Static Public Member Functions inherited from Data
static std::string	modalityString (Data::Modality m)
	Return the name of an image modality.

static Data::Modality	stringToModality (const std::string &s)
	Returns the modality corresponding to a modality string or NA if nothing matches.

Public Attributes inherited from Data
Signal< const Data * >	signalDeleted
	Signal emitted when this instance is deleted.

Signal< const Data * >	signalMatrixChanged
	Signal emitted when the transformation of this Data has changed.

Signal< std::string >	signalNameChanged
	Signal emitted when the name changed.

Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' `signalValueChanged` signal was emitted.

Protected Member Functions inherited from Data
void	swapWith (Data &other)
	Swaps the data and emits a matrix and name changed signal for both.

Member Function Documentation

◆ kind()

Kind kind ( ) const

overridevirtual

Return the kind of this data.

Implements Data.

◆ bounds()

Geometry::AlignedBox bounds ( ) const

overridevirtual

Returns the axis-aligned bounding box of this data in world space.

Implements Data.

◆ matrixConvention()

Pose::TransformationConvention matrixConvention ( ) const

overridevirtual

Matrices of trees map to world coordinate system.

Implements Data.

◆ isAnnotationType()

bool isAnnotationType ( ) const

inlineoverridevirtual

Return whether this data type is visualized through an annotation (e.g. mesh)

Reimplemented from Data.

◆ configure()

void configure ( const Properties * p )

overridevirtual

Configure this object instance by de-serializing the given Properties.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configuration() for the inverse functionality

Reimplemented from Configurable.

◆ configuration()

void configuration ( Properties * p ) const

overridevirtual

Serialize the current object configuration into the given Properties object.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configure() for the inverse functionality

Reimplemented from Configurable.

◆ addNode()

virtual Node * addNode	(	std::unique_ptr< Node >	node,
		Node *	parent )

virtual

Insert node below parent into tree Returns a non-owning pointer to the node if node is added successfully, nullptr otherwise (probably due to invalid parent).

nullptr parent means that the node should become the root of the tree. If tree already has a root, the node will not be added.

Reimplemented in KeyTree, PointTree, TypedTree< T >, TypedTree< std::string >, TypedTree< std::vector< int > >, and TypedTree< vec3 >.

◆ detachNode()

virtual std::unique_ptr< Tree > detachNode ( Node * node )

virtual

Detach a node with all its children, and form a new tree from it.

Reimplemented in KeyTree, PointTree, TypedTree< T >, TypedTree< std::string >, TypedTree< std::vector< int > >, and TypedTree< vec3 >.

◆ traverse()

void traverse	(	std::function< void(Node *, int level)>	fcn,
		bool	breadthFirst,
		int	maxLevel = -1 )

Function which traverses the tree using breadth-first approach (if flag breadthFirst is set to true), or depth-first approach (if flag breadthFirst is set to false).

During a traversal, fcn is applied to a newly visited node maxLevel specifies maximum level for traversal. -1 means that all the levels must be traversed

◆ typeName()

virtual std::string typeName ( ) const

virtual

Reimplemented in KeyTree.

The documentation for this class was generated from the following file:

ImFusion/Base/Tree.h
