#include <ImFusion/Stream/RemoteVideoStream.h>

Creates image stream which receives the Image data via network connection. More...

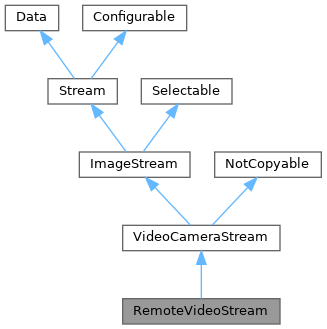

Inheritance diagram for RemoteVideoStream:

Detailed Description

Creates image stream which receives the Image data via network connection.

Internally, it uses a WebsocketClient to received the image (compressed) data as a ByteBuffer, and then it uses the Decoder class to decode the image. RemoteVideoStream inherit from VideoCameraStream to be able to call its specific functions, like tryApplySettings however, the server side stream could be a simple ImageStream, in this case this function will have no effect

See also: LiveCameraStreaming; RemoteCameraStreamController

Public Member Functions
void	configure (const Properties *p) override
	Configure this object instance by de-serializing the given Properties.

void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.

std::string	describe () const override
	responsible for showing the info about the stream at the bottom of the UI

Properties	tryApplySettings (const Properties *p) override
	Takes the given Properties and tries to apply them if it is possible without restarting the stream.

Properties	forceApplySettings (const Properties *p) override
	Takes the given Properties and applies them, even if it means restarting the stream.

bool	tryConnect (const std::string &host, int videoPort, int controlPort)
	try to connect to a server using the specified host and port, returns false if unsuccessful video and control ports must be between 1025 and 50000, and different to each other

std::string	host () const

int	videoPort () const

int	controlPort () const

void	setUseHardwareAcceleration (bool value)

bool	useHardwareAcceleration () const

std::string	uuid () override
	Unique identifier for stream.

int	width ()

int	height ()

ImageDescriptor	descriptor ()
	returns the descriptor of the underlying image of the stream

size_t	estimatedBytesPerSeconds () const
	get the average number of Bytes received per second (estimated by the decoder class)

double	estimatedFPS () const
	get the estimated frame per second (estimated by the decoder class)

std::unique_ptr< Properties >	sendMessageAndWaitForReply (const std::string &message, int timeout=2000) const
	sends a message the server and wait for the response this blocks the UI until we receive a valid response from the server, usually in the form of Properties Json String

Public Member Functions inherited from VideoCameraStream
	VideoCameraStream (const std::string &name)

const VideoCameraDeviceInfo &	deviceInfo () const
	Currently selected device, will be empty if no device has been set.

virtual bool	setFormat (size_t idx)
	Set capture mode as index in deviceInfo().supportedFormats.

const VideoStreamFrameFormat &	format () const
	Currently selected format, will use default values if no format has been set.

std::string	describe () const override
	Human readable description of the stream type.

bool	reset () final
	Returns false, because rewinding a live stream just does not make sense.

std::string	uuid () override
	Returns the memory address of this object as unique identifier.

double	fps () const

template<typename T>
std::enable_if_t< std::is_base_of_v< VideoStreamSettings::VideoStreamSettingsBase, T >, T > *	settings ()
	Gets an accessor for a camera setting.

Public Member Functions inherited from ImageStream
	ImageStream (const std::string &name="")

Data::Kind	kind () const override final
	Returns the kind (typically IMAGESTREAM or VOLUMESTREAM)

void	setModality (Modality m)
	Set the modality descriptor of this stream.

Modality	modality () const override final
	Return the modality of this stream.

virtual bool	topDown () const
	Specify whether the first line of the image data is to be displayed on top.

int	size () const override
	Returns the number of images of the image stream per emission.

Public Member Functions inherited from Stream
	Stream (const std::string &name="")
	Constructor with the `name` for this stream.

virtual ThreadingMode	threadingMode () const
	Configures threading mode of stream.

virtual bool	supportsAsyncOperation ()
	Returns true if xxxAsync() methods support execution in a background thread.

std::shared_future< bool >	openAsync ()
	Open stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful.

std::shared_future< bool >	closeAsync ()
	Close stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful.

std::shared_future< bool >	startAsync ()
	Start stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful.

std::shared_future< bool >	stopAsync ()
	Stop stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful.

std::shared_future< bool >	pauseAsync ()
	Pause stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful.

std::shared_future< bool >	resumeAsync ()
	Resume stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful.

bool	open ()
	Open stream and wait for the operation to complete. Returns whether the operation was successful.

bool	close ()
	Close stream and wait for the operation to complete. Returns whether the operation was successful.

bool	start ()
	Start stream and wait for the operation to complete. Returns whether the operation was successful.

bool	stop ()
	Stop stream and wait for the operation to complete. Returns whether the operation was successful.

bool	pause ()
	Pause stream and wait for the operation to complete. Returns whether the operation was successful.

bool	resume ()
	Resume stream and wait for the operation to complete. Returns whether the operation was successful.

bool	restart ()
	Stops, closes, opens and starts the stream. Returns whether the operation was successful.

virtual bool	isRunning () const
	Return whether stream is currently running.

State	currentState () const

bool	isStateOneOf (const std::vector< State > &states) const

Geometry::AlignedBox	bounds () const override
	Per default a Stream has empty/invalid bounds.

Pose::TransformationConvention	matrixConvention () const override
	Matrices of streams by default map to the world coordinate system.

virtual bool	createDefaultStreamController ()
	Indicates whether a StreamController should be created for the stream (by default returns true).

double	updateRate () const
	Average update rate in Hz of the `signalStreamData`.

Public Member Functions inherited from Data
	Data (const std::string &name="")

	Data (const Data &other)

Data &	operator= (const Data &other)

virtual	~Data ()
	Mandatory virtual destructor.

const std::string &	name () const
	Return the name of this data.

void	setName (const std::string &name)
	Sets the name of this data.

virtual bool	isAnnotationType () const
	Return whether this data type is visualized through an annotation (e.g. mesh)

const DataComponentList &	components () const
	Returns the list of DataComponents for this data.

DataComponentList &	components ()

virtual void	setMatrixFromWorld (const mat4 &m)
	Set matrix mapping from the world coordinate system to the data coordinate system.

virtual void	setMatrixToWorld (const mat4 &m)
	Set matrix mapping from the data coordinate system to the world coordinate system.

virtual mat4	matrixFromWorld () const
	Get matrix mapping from the world coordinate system to the data coordinate system.

virtual mat4	matrixToWorld () const
	Get matrix mapping from the data coordinate system to the world coordinate system.

virtual mat4	matrix () const
	Return the transformation matrix.

virtual void	setMatrix (const mat4 &m)
	Set the transformation matrix.

Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.

void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().

void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.

	Configurable (const Configurable &rhs)

	Configurable (Configurable &&rhs) noexcept

Configurable &	operator= (const Configurable &)

Configurable &	operator= (Configurable &&) noexcept

Public Member Functions inherited from Selectable
	Selectable (const Selectable &)

	Selectable (Selectable &&)

Selectable &	operator= (const Selectable &)

Selectable &	operator= (Selectable &&)

virtual Selection	selection () const

virtual int	focus () const

virtual void	setSelection (const Selection &sel)
	Set the underlying selection.

virtual void	setFocus (int index)
	Set focus of the selection.

Protected Member Functions
bool	openImpl () override
	Open stream.

bool	closeImpl () override
	Close stream.

bool	startImpl () override
	Start stream.

bool	stopImpl () override
	Stop stream.

bool	pauseImpl () override
	Pause stream (not required to be supported).

bool	resumeImpl () override
	Resume stream from pause (only required to be supported when pauseImpl() is supported).

bool	supportsPausing () const override
	Override and return true if this stream implements the pausing and resume operations.

std::optional< WorkContinuation >	doWork () override
	Create one StreamData and publish it (this function will be called at the desired frame rate) If this is not desired, you can do the following: return std::nullopt;.

std::any	getSettings (const std::string &name) override

Protected Member Functions inherited from ImageStream
void	setKind (Kind k)
	Sets the kind (typically IMAGESTREAM or VOLUMESTREAM) and emits signalKindChanged.

bool	workerThreadRequiresOpenGl () const override
	Ensure the thread has an GL context before the main loop starts.

Protected Member Functions inherited from Stream
virtual bool	worksWhilePaused () const
	Override if doWork() should be called also in the Paused state.

void	changeState (State newState)

std::shared_future< bool >	attemptStateChange (std::function< bool()> work, State stateWorking, State stateSuccess, State stateError)

Protected Member Functions inherited from Data
void	swapWith (Data &other)
	Swaps the data and emits a matrix and name changed signal for both.

Protected Member Functions inherited from NotCopyable
	NotCopyable (NotCopyable &&) noexcept=default

NotCopyable &	operator= (NotCopyable &&) noexcept=default

	NotCopyable (const NotCopyable &)=delete

NotCopyable &	operator= (const NotCopyable &)=delete

Additional Inherited Members
Public Types inherited from Stream
enum class	ThreadingMode { BaseClassRunsWorkerThread , DerivedClassHandlesThreading }
	This flag represents the two supported threading modes of a Stream. More...

enum class	State { Closed , Opening , Open , Starting , Running , Pausing , Paused , Resuming , Stopping , Closing }

Public Types inherited from Data
enum	Kind { UNKNOWN = 0 , IMAGE = 1 , VOLUME = 2 , IMAGESET = 3 , VOLUMESET = 4 , IMAGESTREAM = 5 , VOLUMESTREAM = 6 , POINTSET = 7 , SURFACE = 8 , TRACKINGSTREAM = 9 , LIVETRACKINGSTREAM = TRACKINGSTREAM , TRACKINGDATA = 10 , TREE = 11 , TENSOR = 12 , POLYDATASTREAM = 13 , STEREOIMAGESET = 14 , STEREOIMAGESTREAM = 15 , VOLUMETRICMESH = 16 }
	Kind of data. More...

enum	Modality { NA = 0 , XRAY = 1 , CT = 2 , MRI = 3 , ULTRASOUND = 4 , VIDEO = 5 , NM = 6 , OCT = 7 , LABEL = 8 , DISTANCE = 9 }
	Image modality of the data. More...

Static Public Member Functions inherited from VideoCameraStream
static std::vector< VideoCameraDeviceInfo >	enumerateDevices ()
	Lists all currently connected compatible cameras.

Static Public Member Functions inherited from Stream
static std::string	stateToString (State state)

Static Public Member Functions inherited from Data
static std::string	modalityString (Data::Modality m)
	Return the name of an image modality.

static Data::Modality	stringToModality (const std::string &s)
	Returns the modality corresponding to a modality string or NA if nothing matches.

Public Attributes inherited from ImageStream
Signal< Data::Kind >	signalKindChanged
	Is emitted when the stream changes between IMAGESTREAM and VOLUMESTREAM, before the next ImageStreamData is emitted.

Public Attributes inherited from Stream
ProtectedSignal< StateChange >	signalStateChanged
	Emitted after a state change has been completed with the old and new state.

ProtectedSignal	signalEnded
	Indicates that the stream reached the end of its data, e.g. when a video stream has played to the end.

ProtectedSignal< std::shared_ptr< const StreamData > >	signalStreamData
	Signal that is emitted by the stream when a new StreamData is available.

DeprecatedSignal< ProtectedSignal< std::shared_ptr< const StreamData > >, const StreamData & >	signalNewData
	Signal that is emitted by the stream when a new StreamData is available.

Public Attributes inherited from Data
Signal< const Data * >	signalDeleted
	Signal emitted when this instance is deleted.

Signal< const Data * >	signalMatrixChanged
	Signal emitted when the transformation of this Data has changed.

Signal< std::string >	signalNameChanged
	Signal emitted when the name changed.

Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' `signalValueChanged` signal was emitted.

Public Attributes inherited from Selectable
ProtectedSignal	signalSelectionChanged
	Signals that the selection or size might have changed.

Protected Attributes inherited from VideoCameraStream
VideoCameraDeviceInfo	m_device

VideoStreamFrameFormat	m_format

StreamFps	m_actualFPS

Protected Attributes inherited from Data
mat4	m_matrix
	Transformation matrix.

std::recursive_mutex *	m_matrixMutex
	Used to internally synchronize access to the matrix of data.

DataComponentList	m_dataComponentList
	The list of DataComponents for this data.

Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Protected Attributes inherited from Selectable
std::mutex	m_selectionMutex
	Mutex protecting the selection.

Selection	m_sel

Member Function Documentation

◆ configure()

void configure ( const Properties * p )

overridevirtual

Configure this object instance by de-serializing the given Properties.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configuration() for the inverse functionality

Reimplemented from Configurable.

◆ configuration()

void configuration ( Properties * p ) const

overridevirtual

Serialize the current object configuration into the given Properties object.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configure() for the inverse functionality

Reimplemented from Configurable.

◆ describe()

std::string describe ( ) const

overridevirtual

responsible for showing the info about the stream at the bottom of the UI

Reimplemented from ImageStream.

◆ tryApplySettings()

Properties tryApplySettings ( const Properties * p )

overridevirtual

Takes the given Properties and tries to apply them if it is possible without restarting the stream.

This method is meant to work in connection with a VideoCamerStreamPropertiesInspectorController, which will try to call it when the user changed any setting. It is given as a complement to forceApplySettings(const Properties* p), which will force all options to be applied.

Returns: A set of properties which were changed implicitly due to the change in parameters.

Reimplemented from VideoCameraStream.

◆ forceApplySettings()

Properties forceApplySettings ( const Properties * p )

overridevirtual

Takes the given Properties and applies them, even if it means restarting the stream.

This method is meant to work in connection with a VideoCamerStreamPropertiesInspectorController, which will try to call it when the user pressed the "apply" button. It is given as a complement to tryApplySettings(const Properties* p), which may opt to only apply those options which can be set immediately without restarting the stream, to apply all settings which do need a stream restart to take effect.

Returns: A set of properties which were changed implicitly due to the change in parameters.

Reimplemented from VideoCameraStream.

◆ uuid()

std::string uuid ( )

overridevirtual

Unique identifier for stream.

Implements Stream.

◆ openImpl()

bool openImpl ( )

overrideprotectedvirtual

Open stream.

Returns whether the operation was successful. This method is responsible for allocating necessary resources, initializing device handles, and establishing connections to devices. Implementers should ensure that all one-time setup tasks are completed here.

Implements Stream.

◆ closeImpl()

bool closeImpl ( )

overrideprotectedvirtual

Close stream.

Returns whether the operation was successful. This method should be used to free any resources that were allocated during the openImpl() call and to disconnect from any devices. Implementers must ensure that all resources are properly released to avoid memory leaks.

Implements Stream.

◆ startImpl()

bool startImpl ( )

overrideprotectedvirtual

Start stream.

Returns whether the operation was successful. This method is intended to initiate the actual data readout process or to connect a callback function for data handling. Implementers should ensure that the stream is ready and producing data after this call.

Implements Stream.

◆ stopImpl()

bool stopImpl ( )

overrideprotectedvirtual

Stop stream.

Returns whether the operation was successful. This method should halt any ongoing data readouts or callbacks, effectively pausing the data flow to reduce CPU load. Implementers should ensure that the stream can be restarted after this call.

Implements Stream.

◆ pauseImpl()

bool pauseImpl ( )

overrideprotectedvirtual

Pause stream (not required to be supported).

Returns whether the operation was successful. This method is intended to temporarily pause data acquisition.

Reimplemented from Stream.

◆ resumeImpl()

bool resumeImpl ( )

overrideprotectedvirtual

Resume stream from pause (only required to be supported when pauseImpl() is supported).

Returns whether the operation was successful. This method should resume data acquisition after a pause.

Reimplemented from Stream.

◆ supportsPausing()

bool supportsPausing ( ) const

overrideprotectedvirtual

Override and return true if this stream implements the pausing and resume operations.

Overridden method must be constexpr-essible and thread-safe.

Reimplemented from Stream.

◆ doWork()

std::optional< WorkContinuation > doWork ( )

overrideprotectedvirtual

Create one StreamData and publish it (this function will be called at the desired frame rate) If this is not desired, you can do the following: return std::nullopt;.

Implements Stream.

◆ getSettings()

std::any getSettings ( const std::string & name )

overrideprotectedvirtual

Reimplemented from VideoCameraStream.

The documentation for this class was generated from the following file:

ImFusion/Stream/RemoteVideoStream.h

Detailed Description

Public Member Functions

Protected Member Functions

Additional Inherited Members

Member Function Documentation

◆ configure()

◆ configuration()

◆ describe()

◆ tryApplySettings()

◆ forceApplySettings()

◆ uuid()

◆ openImpl()

◆ closeImpl()

◆ startImpl()

◆ stopImpl()

◆ pauseImpl()

◆ resumeImpl()

◆ supportsPausing()

◆ doWork()

◆ getSettings()
