DataItem Class Reference

#include <ImFusion/ML/DataItem.h>

Class for holding a map of heterogeneous DataElements, see DataElement. More...

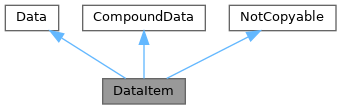

Inheritance diagram for DataItem:

Detailed Description

Class for holding a map of heterogeneous DataElements, see DataElement.

This class is used as a data container for applying Operations (see Operation) to a collection of heterogeneous elements in a consistent way. This class implements the concept of batch size for the contained elements. As such, a DataItem can be splitted or stacked along the batch axis like the contained DataElements, but only if all DataElements stored have consistent batch size.

Public Types
using	Field = std::string
using	Element = std::shared_ptr<DataElement>
using	Elements = OrderedMap<Field, Element>
Public Types inherited from Data
enum	Kind {   UNKNOWN = 0 , IMAGE = 1 , VOLUME = 2 , IMAGESET = 3 ,   VOLUMESET = 4 , IMAGESTREAM = 5 , VOLUMESTREAM = 6 , POINTSET = 7 ,   SURFACE = 8 , TRACKINGSTREAM = 9 , LIVETRACKINGSTREAM = TRACKINGSTREAM , TRACKINGDATA = 10 ,   TREE = 11 , TENSOR = 12 , POLYDATASTREAM = 13 , STEREOIMAGESET = 14 ,   STEREOIMAGESTREAM = 15 , VOLUMETRICMESH = 16 }
	Kind of data. More...
enum	Modality {   NA = 0 , XRAY = 1 , CT = 2 , MRI = 3 ,   ULTRASOUND = 4 , VIDEO = 5 , NM = 6 , OCT = 7 ,   LABEL = 8 , DISTANCE = 9 }
	Image modality of the data. More...

Public Member Functions
	DataItem (Elements elements={})
	Constructor from a map of elements.
	DataItem (DataItem &&that) noexcept
DataItem &	operator= (DataItem &&that) noexcept
bool	operator== (const DataItem &other) const
bool	operator!= (const DataItem &other) const
std::unordered_set< Field >	fields () const
	Returns the set of fields contained in this data item.
Elements &	elements ()
	Exposes the underlying map.
const Elements &	elements () const
bool	empty () const
void	clear ()
void	set (Field field, std::shared_ptr< DataElement > element)
	Set an element to the data item.
void	set (Field field, std::shared_ptr< SharedImageSet > data)
	Convenience function for directly adding a SharedImageSet as an Element Note: if the image dimension < 2 a VectorElement is created, otherwise an ImageElement.
void	set (Field field, std::shared_ptr< KeypointSet > data)
	Convenience functions for directly adding KeypointSet as a KeypointsElement.
void	set (Field field, const KeypointSet &data)
void	set (Field field, KeypointSet &&data)
void	set (Field field, std::shared_ptr< BoundingBoxSet > data)
	Convenience functions for directly adding BoundingBoxSet as a BoundingBoxesElement.
void	set (Field field, const BoundingBoxSet &data)
void	set (Field field, BoundingBoxSet &&data)
void	set (Field field, std::shared_ptr< Tensor > data)
	Convenience functions for directly adding Tensor or TensorSet as a TensorSetElement.
void	set (Field field, const Tensor &data)
void	set (Field field, Tensor &&data)
void	set (Field field, std::shared_ptr< TensorSet > data)
void	set (Field field, const TensorSet &data)
void	set (Field field, TensorSet &&data)
DataItem	clone (DataElement::CloneOptions opt=DataElement::CloneOptions::Everything) const
	Creates a clone of the current data item.
int	dimension () const
	Returns the dimensionality of the fields, or zero if no elements are present or if there are inconsistencies within them.
size_t	numFields () const
	Returns the number of the fields in the item.
std::optional< size_t >	batchSize () const
	Returns the batch size of the fields, 0 if elements are empty, or an empty optional if the batch size is inconsistent.
bool	contains (const Field &name) const
	Checks if the data item contains a field with the given name.
std::shared_ptr< DataElement >	pop (const Field &name)
	Removes an element from the item and returns it.
const DataElement *	get (const Field &name) const
	Returns a non-owning pointer to an element (or nullptr if it does not exist)
DataElement *	get (const Field &name)
	Returns a non-owning pointer to an element (or nullptr if it does not exist)
template<typename T>
T *	get (const Field &name)
	Returns a non-owning pointer to a typed element (or nullptr if it does not exist or does not have the correct type)
template<typename T>
const T *	get (const Field &name) const
	Returns a non-owning pointer to a typed element (or nullptr if it does not exist or does not have the correct type)
template<typename T>
std::unordered_set< T * >	getAll ()
	Returns a set of non-owning pointers to all elements of a certain type.
template<typename T>
std::unordered_set< const T * >	getAll () const
	Returns a set of non-owning pointers to all elements of a certain type.
template<typename T>
T *	getIfOnly ()
	Returns non-owning pointer to element of a certain type, if it is the only element in the item of that type.
template<typename T>
const T *	getIfOnly () const
	Returns non-owning pointer to element of a certain type, if it is the only element in the item of that type.
bool	append (const DataItem &src)
	Append a frame at index frame from another DataItem to the current one.
ML::Status	save (const std::string &location, bool compress=true) const
Public Member Functions inherited from Data
	Data (const std::string &name="")
	Data (const Data &other)
Data &	operator= (const Data &other)
virtual	~Data ()
	Mandatory virtual destructor.
virtual Modality	modality () const
	Return the modality of this data.
const std::string &	name () const
	Return the name of this data.
void	setName (const std::string &name)
	Sets the name of this data.
virtual bool	isAnnotationType () const
	Return whether this data type is visualized through an annotation (e.g. mesh)
const DataComponentList &	components () const
	Returns the list of DataComponents for this data.
DataComponentList &	components ()
virtual void	setMatrixFromWorld (const mat4 &m)
	Set matrix mapping from the world coordinate system to the data coordinate system.
virtual void	setMatrixToWorld (const mat4 &m)
	Set matrix mapping from the data coordinate system to the world coordinate system.
virtual mat4	matrixFromWorld () const
	Get matrix mapping from the world coordinate system to the data coordinate system.
virtual mat4	matrixToWorld () const
	Get matrix mapping from the data coordinate system to the world coordinate system.
virtual mat4	matrix () const
	Return the transformation matrix.

Static Public Member Functions
static DataItem	stack (std::vector< DataItem > &&items)
	Stack several data items along the batch dimension.
static std::vector< DataItem >	split (DataItem &&item)
static DataItem	merge (std::vector< DataItem > &&items)
static ML::Status	save (const DataItem &item, const std::string &location, bool compress=true)
static DataItem	load (const std::string &location)
Static Public Member Functions inherited from Data
static std::string	modalityString (Data::Modality m)
	Return the name of an image modality.
static Data::Modality	stringToModality (const std::string &s)
	Returns the modality corresponding to a modality string or NA if nothing matches.

Implementation of CompoundData interface
DataList	children () const override
	Returns the list of direct children of this group.
decltype(m_elements->cbegin())	cbegin () const
decltype(m_elements->cend())	cend () const
decltype(m_elements->begin())	begin ()
decltype(m_elements->end())	end ()

Implementation of Data interface
Kind	kind () const override
	Return the kind of this data.
Pose::TransformationConvention	matrixConvention () const override
	Defines whether the internally stored matrices in derived classes map from or to the world coordinate system.
Geometry::AlignedBox	bounds () const override
	Returns the axis-aligned bounding box of this data in world space.
void	setMatrix (const mat4 &m) override
	Set the transformation matrix and updates all child matrices with the relative matrix between the old and new one.
std::string	describe () const override
	Return type description.

Additional Inherited Members
Public Attributes inherited from Data
Signal< const Data * >	signalDeleted
	Signal emitted when this instance is deleted.
Signal< const Data * >	signalMatrixChanged
	Signal emitted when the transformation of this Data has changed.
Signal< std::string >	signalNameChanged
	Signal emitted when the name changed.
Public Attributes inherited from CompoundData
Signal< Data * >	signalChildAdded
	Signal emitted when a new Data instance has been added to children()
Signal< Data * >	signalChildMoved
	Signal emitted when a Data instance has changed its position in children()
Signal< Data * >	signalChildAboutToBeRemoved
	Signal emitted when a Data instance is about to be removed or taken from children()
Protected Member Functions inherited from Data
void	swapWith (Data &other)
	Swaps the data and emits a matrix and name changed signal for both.
Protected Member Functions inherited from NotCopyable
	NotCopyable (NotCopyable &&) noexcept=default
NotCopyable &	operator= (NotCopyable &&) noexcept=default
	NotCopyable (const NotCopyable &)=delete
NotCopyable &	operator= (const NotCopyable &)=delete
Protected Attributes inherited from Data
mat4	m_matrix
	Transformation matrix.
std::recursive_mutex *	m_matrixMutex
	Used to internally synchronize access to the matrix of data.
DataComponentList	m_dataComponentList
	The list of DataComponents for this data.

Member Function Documentation

getIfOnly() [1/2]

template<typename T>

T * getIfOnly ( )

inline

Returns non-owning pointer to element of a certain type, if it is the only element in the item of that type.

Otherwise returns a nullptr

getIfOnly() [2/2]

template<typename T>

const T * getIfOnly ( ) const

inline

Returns non-owning pointer to element of a certain type, if it is the only element in the item of that type.

Otherwise returns a nullptr

append()

bool append

(

const DataItem &

src

)

Append a frame at index frame from another DataItem to the current one.

/ Return false if any field in the data item is missing in the src DataItem. / If the function call is not successful, the item is left unchanged. bool appendFrame(const DataItem& src, int frame = 0);

/ Append all frames from another DataItem to the current one. / Return false if any field in the data item is missing in the src DataItem, / or if the src item has an inconsistent batch size. If the function call is not successful, the item is left unchanged.

stack()

static DataItem stack ( std::vector< DataItem > && items )

static

Stack several data items along the batch dimension.

Exceptions

DataItemException

if DataItems have inconsistent batch size

split()

static std::vector< DataItem > split ( DataItem && item )

static

Exceptions

DataItemException

if DataItem has inconsistent batch size

kind()

Kind kind ( ) const

inlineoverridevirtual

Return the kind of this data.

Implements Data.

matrixConvention()

Pose::TransformationConvention matrixConvention ( ) const

inlineoverridevirtual

Defines whether the internally stored matrices in derived classes map from or to the world coordinate system.

Changes the behavior of the default implementations of matrixToWorld and matrixFromWorld.

Implements Data.

bounds()

Geometry::AlignedBox bounds ( ) const

overridevirtual

Returns the axis-aligned bounding box of this data in world space.

Warning

Depending on the underlying data type this calling function may be computationally expensive! Do not call this method more often than needed, unless it is known that the caching behavior is implemented.

Implements Data.

setMatrix()

void setMatrix ( const mat4 & m )

overridevirtual

Set the transformation matrix and updates all child matrices with the relative matrix between the old and new one.

Reimplemented from Data.

describe()

std::string describe ( ) const

inlineoverridevirtual

Return type description.

Reimplemented from Data.

children()

DataList children ( ) const

overridevirtual

Returns the list of direct children of this group.

Implements CompoundData.

---

The documentation for this class was generated from the following file:

• ImFusion/ML/DataItem.h
