DataElement Class Reference

#include <ImFusion/ML/DataElement.h>

Main interface for data elements used for wrapping other ImFusion types and use them in a machine learning specific workflow. More...

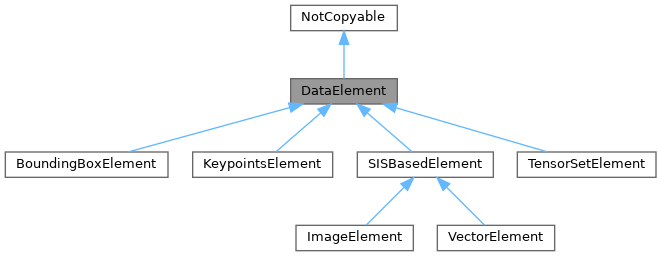

Inheritance diagram for DataElement:

Detailed Description

Main interface for data elements used for wrapping other ImFusion types and use them in a machine learning specific workflow.

A data element should implement the concept of batch size, such that different types of data, such as images, keypoints etc. can be batched, stacked or splitted in a transparent and standardized way.

This class is used for creating containers of heterogeneous elements, see DataItem.

Public Types
enum class	CloneOptions { Everything = 0 , Container , NoImageData }
	Option to control which parts of the data element are to be copied when cloning the DataElement. More...

Public Member Functions
virtual ElementType	type () const =0
	Returns the type of the underlying data.
template<typename Derived>
Derived *	typed ()
template<typename Derived>
const Derived *	typed () const
virtual std::shared_ptr< Data >	content () const
	Returns the underlying data object.
virtual void	setContent (std::shared_ptr< Data >)=0
	Sets the underlying data object.
virtual int	dimension () const =0
	Returns the dimensionality of the underlying data.
virtual size_t	batchSize () const =0
	Returns the batch size of the element.
virtual std::vector< std::shared_ptr< DataElement > >	split ()=0
	Split an element into several ones along the batch dimension.
virtual std::unique_ptr< DataElement >	clone (CloneOptions opt=CloneOptions::Everything) const =0
	Create a (shallow or deep) copy of the element.
const DataComponentList &	components () const
	Convenience function to expose the DataComponents of the underlying Data object.
DataComponentList &	components ()
bool	isTarget () const
	Returns true if this element is marked as a label.
void	tagAsTarget ()
	Mark this element as being a label.
void	untagAsTarget ()
	Remove label status from this element.

Static Public Member Functions
static std::unique_ptr< DataElement >	stack (const std::vector< std::shared_ptr< DataElement > > &elements)
	Stack several elements along the batch dimension.

Protected Attributes
std::shared_ptr< Data >	m_data

Additional Inherited Members
Protected Member Functions inherited from NotCopyable
	NotCopyable (NotCopyable &&) noexcept=default
NotCopyable &	operator= (NotCopyable &&) noexcept=default
	NotCopyable (const NotCopyable &)=delete
NotCopyable &	operator= (const NotCopyable &)=delete

Member Enumeration Documentation

CloneOptions

enum class CloneOptions

strong

Option to control which parts of the data element are to be copied when cloning the DataElement.

Enumerator
Everything	Copy everything, including the underlying data.
Container	For keypoints and bounding boxes, onyl clone the container without the underlying data.
NoImageData	For images and vectors, only clone the container without the underlying data.

Member Function Documentation

type()

virtual ElementType type ( ) const

pure virtual

Returns the type of the underlying data.

Implemented in BoundingBoxElement, ImageElement, KeypointsElement, TensorSetElement, and VectorElement.

setContent()

virtual void setContent ( std::shared_ptr< Data > )

pure virtual

Sets the underlying data object.

Derived methods can throw an exception if derived type of Data does not fit with the Element type

Implemented in BoundingBoxElement, KeypointsElement, SISBasedElement, and TensorSetElement.

dimension()

virtual int dimension ( ) const

pure virtual

Returns the dimensionality of the underlying data.

Implemented in BoundingBoxElement, KeypointsElement, SISBasedElement, TensorSetElement, and VectorElement.

batchSize()

virtual size_t batchSize ( ) const

pure virtual

Returns the batch size of the element.

Implemented in BoundingBoxElement, KeypointsElement, SISBasedElement, and TensorSetElement.

split()

virtual std::vector< std::shared_ptr< DataElement > > split ( )

pure virtual

Split an element into several ones along the batch dimension.

After a call to this function, the element is empty.

Implemented in BoundingBoxElement, ImageElement, KeypointsElement, TensorSetElement, and VectorElement.

clone()

virtual std::unique_ptr< DataElement > clone ( CloneOptions opt = CloneOptions::Everything ) const

pure virtual

Create a (shallow or deep) copy of the element.

Implemented in BoundingBoxElement, ImageElement, KeypointsElement, TensorSetElement, and VectorElement.

---

The documentation for this class was generated from the following file:

• ImFusion/ML/DataElement.h
