#include <AnatomyPlugin/include/ImFusion/AnatomyPlugin/GenericASC.h>

Generic implementation of the AnatomicalStructureCollection interface. More...

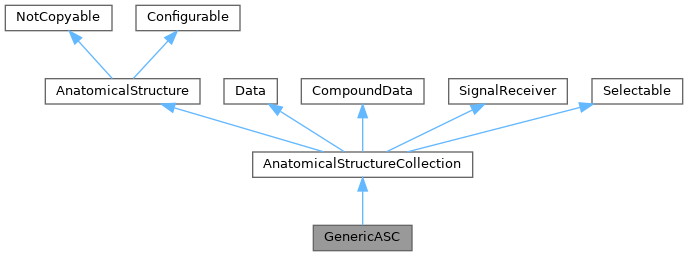

Inheritance diagram for ImFusion::GenericASC:

Detailed Description

Generic implementation of the AnatomicalStructureCollection interface.

This class holds a vector AnatomicalStructure objects

Public Member Functions
	GenericASC (bool is2D=false)
	GenericASC (SharedImageSet &ct)
void	addAnatomicalStructure (const std::string &name, std::unique_ptr< AnatomicalStructure > as)
	Helper function for adding GenericAnatomicalStructure objects that don't have a name.
std::string	identifier () const override
	A (machine-readable) name of the anatomy.
std::string	serializationID () const override
	String differentiating the type of Anatomical Structure For imfusion types, these strings should start with "imfusion." Used for (de)serialization.
Public Member Functions inherited from ImFusion::AnatomicalStructureCollection
	AnatomicalStructureCollection (bool is2D=false)
	AnatomicalStructureCollection (const AnatomicalStructureCollection &)=delete
AnatomicalStructureCollection &	operator= (const AnatomicalStructureCollection &)=delete
AnatomicalStructure *	anatomicalStructureByIdentifier (const std::string &identifier)
const AnatomicalStructure *	anatomicalStructureByIdentifier (const std::string &identifier) const
std::vector< AnatomicalStructure * >	allAnatomicalStructuresByIdentifier (const std::string &identifier)
std::vector< const AnatomicalStructure * >	allAnatomicalStructuresByIdentifier (const std::string &identifier) const
virtual std::vector< const AnatomicalStructure * >	anatomicalStructures () const
	Returns a vector of pointers to all anatomical structures.
virtual std::vector< AnatomicalStructure * >	anatomicalStructures ()
Pose::TransformationConvention	matrixConvention () const final override
	Defines whether the internally stored matrices in derived classes map from or to the world coordinate system.
DataList	children () const override
	Returns the list of direct children of this group.
bool	enableChildren ()
void	setEnableChildren (bool enableChildren)
int	size () const override
bool	empty () const override
	Retuns true if all members are empty, i.e. this structure has no associated information.
void	merge (const AnatomicalStructureCollection &other, bool checkIdentifier=true)
	Merges the collection other into the current collection by adding all anatomical structures from other.
void	clear () override
	Clear all data contained in this structure.
ASCSet *	parent () const
	If the AnatomicalStructureCollection is part of an ASCSet, the parent ASCSet of the anatomical structure.
void	setParent (ASCSet *parent)
	Sets the parent ASCSet of the anatomical structure.
mat4	matrixToWorld () const
	Get matrix mapping from the data coordinate system to the world coordinate system.
Public Member Functions inherited from ImFusion::AnatomicalStructure
	AnatomicalStructure (bool is2D=false)
	AnatomicalStructure (AnatomicalStructure &other)
	AnatomicalStructure (AnatomicalStructure &&other)
mat4	matrixToWorld () const
virtual Geometry::AlignedBox	bounds (const mat4 &orientation=mat4::Identity(), const std::vector< ContentType > &toConsider={ContentType::Keypoints, ContentType::PointClouds, ContentType::Meshes, ContentType::Splines, ContentType::Graphs}) const
Properties &	attributes ()
Properties const &	attributes () const
template<typename Derived>
std::unique_ptr< Derived >	clone () const
	Helper function for calling cloneImpl() and casting to a specific type.
void	configure (const Properties *p) override
	Configure attributes and parameters.
void	configuration (Properties *p) const override
	Retrieve configuration of attributes and parameters.
bool	is2D () const
	Returns true if the AnatomicalStructure is 2D or false if it is 3D.
KeyValueStore< vec3 > &	keypoints ()
	Getters for non-Data key/value stores.
const KeyValueStore< vec3 > &	keypoints () const
KeyValueStore< vec4 > &	planes ()
const KeyValueStore< vec4 > &	planes () const
KeyValueStore< std::unique_ptr< Spline > > &	splines ()
const KeyValueStore< std::unique_ptr< Spline > > &	splines () const
KeyValueStore< std::unique_ptr< SharedImageSet > > &	images ()
	Getters for Data key/value stores.
const KeyValueStore< std::unique_ptr< SharedImageSet > > &	images () const
KeyValueStore< std::unique_ptr< Mesh > > &	meshes ()
const KeyValueStore< std::unique_ptr< Mesh > > &	meshes () const
KeyValueStore< std::unique_ptr< PointCloud > > &	pointclouds ()
const KeyValueStore< std::unique_ptr< PointCloud > > &	pointclouds () const
KeyValueStore< std::unique_ptr< Graph > > &	graphs ()
const KeyValueStore< std::unique_ptr< Graph > > &	graphs () const
KeyValueStore< AnatomicalStructureDeformation > &	deformations ()
const KeyValueStore< AnatomicalStructureDeformation > &	deformations () const
Public Member Functions inherited from ImFusion::Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept
Public Member Functions inherited from ImFusion::Data
	Data (const std::string &name="")
	Data (const Data &other)
Data &	operator= (const Data &other)
virtual	~Data ()
	Mandatory virtual destructor.
virtual Modality	modality () const
	Return the modality of this data.
const std::string &	name () const
	Return the name of this data.
void	setName (const std::string &name)
	Sets the name of this data.
virtual bool	isAnnotationType () const
	Return whether this data type is visualized through an annotation (e.g. mesh).
const DataComponentList &	components () const
	Returns the list of DataComponents for this data.
DataComponentList &	components ()
virtual void	setMatrixFromWorld (const mat4 &m)
	Set matrix mapping from the world coordinate system to the data coordinate system.
virtual void	setMatrixToWorld (const mat4 &m)
	Set matrix mapping from the data coordinate system to the world coordinate system.
virtual mat4	matrixFromWorld () const
	Get matrix mapping from the world coordinate system to the data coordinate system.
virtual mat4	matrix () const
	Return the transformation matrix.
Public Member Functions inherited from ImFusion::SignalReceiver
	SignalReceiver ()=default
	Default constructor.
	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.
SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.
Public Member Functions inherited from ImFusion::Selectable
	Selectable (const Selectable &)
	Selectable (Selectable &&)
Selectable &	operator= (const Selectable &)
Selectable &	operator= (Selectable &&)
virtual Selection	selection () const
virtual int	focus () const
virtual void	setSelection (const Selection &sel)
	Set the underlying selection.
virtual void	setFocus (int index)
	Set focus of the selection.

Protected Member Functions
virtual std::unique_ptr< AnatomicalStructure >	construct () const override
std::unique_ptr< AnatomicalStructure >	cloneImpl () const override
	Derived classes may override this, but should call the base class cloneImpl to obtain a (unique-ptr) which they may assume to point to an object of the derived class.
Protected Member Functions inherited from ImFusion::Utils::NotCopyable
	NotCopyable (NotCopyable &&) noexcept=default
NotCopyable &	operator= (NotCopyable &&) noexcept=default
	NotCopyable (const NotCopyable &)=delete
NotCopyable &	operator= (const NotCopyable &)=delete
Protected Member Functions inherited from ImFusion::Data
void	swapWith (Data &other)
	Swaps the data and emits a matrix and name changed signal for both.
Protected Member Functions inherited from ImFusion::SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.
Kind	kind () const override
	Data interface.
Geometry::AlignedBox	bounds () const override
	Returns the axis-aligned bounding box of this data in world space.
std::string	describe () const override
	A (human-readable) description of this anatomy.
void	setMatrix (const mat4 &other) override
	Set the transformation matrix.
void	setMatrix (const mat4 &other, bool syncWorld)
void	setMatrixToWorld (const mat4 &other, bool syncWorld) override
	Set the local to world matrix of this object.
int	numAnatomicalStructures () const override
	AnatomicalStructureCollection interface.
const AnatomicalStructure &	anatomicalStructure (int index) const override
	Returns the anatomical structure at index index.
AnatomicalStructure &	anatomicalStructure (int index) override
	Returns the anatomical structure at index index.
int	anatomicalStructureIndex (const AnatomicalStructure *anatomicalStructure) const override
	Return the index corresponding to a given anatomical structure.
std::unique_ptr< AnatomicalStructure >	takeAnatomicalStructure (AnatomicalStructure *as) override
	Take an anatomical structure from this collection.
bool	addAnatomicalStructure (std::unique_ptr< AnatomicalStructure > as) override
	Add an anatomical structure to this collection.

Additional Inherited Members
Public Types inherited from ImFusion::AnatomicalStructure
using	ContentType = AnatomyPlugin::ContentType
Public Types inherited from ImFusion::Data
enum	Kind { UNKNOWN = 0 , IMAGE = 1 , VOLUME = 2 , IMAGESET = 3 , VOLUMESET = 4 , IMAGESTREAM = 5 , VOLUMESTREAM = 6 , POINTSET = 7 , SURFACE = 8 , TRACKINGSTREAM = 9 , LIVETRACKINGSTREAM = TRACKINGSTREAM , TRACKINGDATA = 10 , TREE = 11 , TENSOR = 12 , POLYDATASTREAM = 13 , STEREOIMAGESET = 14 , STEREOIMAGESTREAM = 15 , VOLUMETRICMESH = 16 }
	Kind of data. More...
enum	Modality { NA = 0 , XRAY = 1 , CT = 2 , MRI = 3 , ULTRASOUND = 4 , VIDEO = 5 , NM = 6 , OCT = 7 , LABEL = 8 , DISTANCE = 9 }
	Image modality of the data. More...
Static Public Member Functions inherited from ImFusion::Data
static std::string	modalityString (Data::Modality m)
	Return the name of an image modality.
static Data::Modality	stringToModality (const std::string &s)
	Returns the modality corresponding to a modality string or NA if nothing matches.
Public Attributes inherited from ImFusion::AnatomicalStructureCollection
Signal< AnatomicalStructure * >	signalAnatomicalStructureToBeDeleted
Signal< AnatomicalStructure * >	signalAnatomicalStructureAdded
Signal	signalDataChanged
	This signal can be emitted after changing included anatomical structures or parameters owned by this object.
Signal	signalMatrixChanged
Public Attributes inherited from ImFusion::AnatomicalStructure
Signal	signalMatrixChanged
Signal	signalInDestructor
	This signal is called in the destructor. Classes that inherit from AnatomicalStructure may additionally emit this signal.
Public Attributes inherited from ImFusion::Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.
Public Attributes inherited from ImFusion::Data
Signal< const Data * >	signalDeleted
	Signal emitted when this instance is deleted.
Signal< const Data * >	signalMatrixChanged
	Signal emitted when the transformation of this Data has changed.
Signal< std::string >	signalNameChanged
	Signal emitted when the name changed.
Public Attributes inherited from ImFusion::CompoundData
Signal< Data * >	signalChildAdded
	Signal emitted when a new Data instance has been added to children().
Signal< Data * >	signalChildMoved
	Signal emitted when a Data instance has changed its position in children().
Signal< Data * >	signalChildAboutToBeRemoved
	Signal emitted when a Data instance is about to be removed or taken from children().
Public Attributes inherited from ImFusion::Selectable
ProtectedSignal	signalSelectionChanged
	Signals that the selection or size might have changed.
Protected Attributes inherited from ImFusion::AnatomicalStructure
mat4	m_matrixToWorld = mat4::Identity()
KeyValueStore< vec3 >	m_keypoints {m_matrixToWorld}
KeyValueStore< vec4 >	m_planes {m_matrixToWorld}
KeyValueStore< std::unique_ptr< Spline > >	m_splines {m_matrixToWorld}
KeyValueStore< std::unique_ptr< SharedImageSet > >	m_images {m_matrixToWorld}
KeyValueStore< std::unique_ptr< Mesh > >	m_meshes {m_matrixToWorld}
KeyValueStore< std::unique_ptr< PointCloud > >	m_pointClouds {m_matrixToWorld}
KeyValueStore< std::unique_ptr< Graph > >	m_graphs {m_matrixToWorld}
KeyValueStore< AnatomicalStructureDeformation >	m_deformations {m_matrixToWorld}
Properties	m_attributes
	General properties object for the Anatomical Structure.
bool	m_is2D
	Indicates if the AnatomicalStructure information is in 2D or, if false, in 3D.
Protected Attributes inherited from ImFusion::Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.
Protected Attributes inherited from ImFusion::Data
mat4	m_matrix
	Transformation matrix.
std::recursive_mutex *	m_matrixMutex
	Used to internally synchronize access to the matrix of data.
DataComponentList	m_dataComponentList
	The list of DataComponents for this data.
Protected Attributes inherited from ImFusion::Selectable
std::mutex	m_selectionMutex
	Mutex protecting the selection.
Selection	m_sel

Member Function Documentation

◆ kind()

Kind ImFusion::GenericASC::kind ( ) const

inlineoverridevirtual

Data interface.

Implements ImFusion::Data.

◆ bounds()

Geometry::AlignedBox ImFusion::GenericASC::bounds ( ) const

overridevirtual

Returns the axis-aligned bounding box of this data in world space.

Warning: Depending on the underlying data type this calling function may be computationally expensive! Do not call this method more often than needed, unless it is known that the caching behavior is implemented.

Reimplemented from ImFusion::AnatomicalStructureCollection.

◆ describe()

std::string ImFusion::GenericASC::describe ( ) const

overridevirtual

A (human-readable) description of this anatomy.

Reimplemented from ImFusion::AnatomicalStructure.

◆ setMatrix()

void ImFusion::GenericASC::setMatrix ( const mat4 & m )

overridevirtual

Set the transformation matrix.

Note: The matrix convention expected for m depends on the concrete derived class implementation, with either a matrix mapping to or from the world coordinate system being expected. Only use if convention is explicitly known. Use methods setMatrixFromWorld or setMatrixToWorld to avoid inconsistencies. The default implementation sets m_matrix.

Reimplemented from ImFusion::Data.

◆ setMatrixToWorld()

void ImFusion::GenericASC::setMatrixToWorld	(	const mat4 &	m,
		bool	synchronizeWorld )

overridevirtual

Set the local to world matrix of this object.

If synchronizeWorld is true, then the local representation of all objects owned by this class are used to update the "world" representations. If synchronizeWorld is false, then the local representations are updated based on the "world" representations,

See also: ImpliedImageCoordinates Derived classes should call the parent version.

Reimplemented from ImFusion::AnatomicalStructureCollection.

◆ numAnatomicalStructures()

int ImFusion::GenericASC::numAnatomicalStructures ( ) const

inlineoverridevirtual

AnatomicalStructureCollection interface.

Implements ImFusion::AnatomicalStructureCollection.

◆ anatomicalStructure() [1/2]

const AnatomicalStructure & ImFusion::GenericASC::anatomicalStructure ( int index ) const

overridevirtual

Returns the anatomical structure at index index.

Warning: the index must be non-negative and smaller than the result of numAnatomicalStructures

Implements ImFusion::AnatomicalStructureCollection.

◆ anatomicalStructure() [2/2]

AnatomicalStructure & ImFusion::GenericASC::anatomicalStructure ( int index )

overridevirtual

Returns the anatomical structure at index index.

Warning: the index must be non-negative and smaller than the result of numAnatomicalStructures

Implements ImFusion::AnatomicalStructureCollection.

◆ anatomicalStructureIndex()

int ImFusion::GenericASC::anatomicalStructureIndex ( const AnatomicalStructure * anatomicalStructure ) const

overridevirtual

Return the index corresponding to a given anatomical structure.

If the anatomical structure is not included in this AnatomicalStructureCollection object, -1 is returned.

Reimplemented from ImFusion::AnatomicalStructureCollection.

◆ takeAnatomicalStructure()

std::unique_ptr< AnatomicalStructure > ImFusion::GenericASC::takeAnatomicalStructure ( AnatomicalStructure * a )

overridevirtual

Take an anatomical structure from this collection.

Reimplemented from ImFusion::AnatomicalStructureCollection.

◆ addAnatomicalStructure()

bool ImFusion::GenericASC::addAnatomicalStructure ( std::unique_ptr< AnatomicalStructure > toAdd )

overridevirtual

Add an anatomical structure to this collection.

Returns false if the anatomical structure that is being added is not supported

Reimplemented from ImFusion::AnatomicalStructureCollection.

◆ identifier()

std::string ImFusion::GenericASC::identifier ( ) const

inlineoverridevirtual

A (machine-readable) name of the anatomy.

Implements ImFusion::AnatomicalStructure.

◆ serializationID()

std::string ImFusion::GenericASC::serializationID ( ) const

inlineoverridevirtual

String differentiating the type of Anatomical Structure For imfusion types, these strings should start with "imfusion." Used for (de)serialization.

Implements ImFusion::AnatomicalStructure.

◆ construct()

virtual std::unique_ptr< AnatomicalStructure > ImFusion::GenericASC::construct ( ) const

inlineoverrideprotectedvirtual

Implements ImFusion::AnatomicalStructure.

◆ cloneImpl()

std::unique_ptr< AnatomicalStructure > ImFusion::GenericASC::cloneImpl ( ) const

overrideprotectedvirtual

Derived classes may override this, but should call the base class cloneImpl to obtain a (unique-ptr) which they may assume to point to an object of the derived class.

This is done using the (virtual) construct function (see below).

Reimplemented from ImFusion::AnatomicalStructure.

The documentation for this class was generated from the following file:

AnatomyPlugin/include/ImFusion/AnatomyPlugin/GenericASC.h

Detailed Description

Public Member Functions

Protected Member Functions

Additional Inherited Members

Member Function Documentation

◆ kind()

◆ bounds()

◆ describe()

◆ setMatrix()

◆ setMatrixToWorld()

◆ numAnatomicalStructures()

◆ anatomicalStructure() [1/2]

◆ anatomicalStructure() [2/2]

◆ anatomicalStructureIndex()

◆ takeAnatomicalStructure()

◆ addAnatomicalStructure()

◆ identifier()

◆ serializationID()

◆ construct()

◆ cloneImpl()
