#include <AnatomyPlugin/include/ImFusion/AnatomyPlugin/AnatomicalStructure.h>

Interface for storing information (points, meshes, images, ...) about anatomical structures. More...

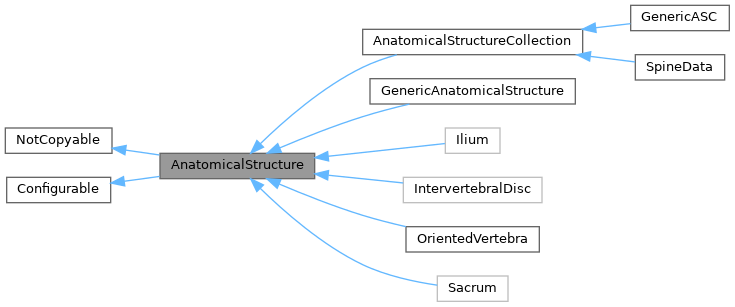

Inheritance diagram for ImFusion::AnatomicalStructure:

Detailed Description

Interface for storing information (points, meshes, images, ...) about anatomical structures.

A class can extend this class, the base version of which contains: a) A collection of various KeyValueStore objects (points, meshes, images, ...) b) A matrix which describes the local to world transformation for the objects in (a). Changing the matrix changes the KeyValueStore objects,

See also: ImpliedImageCoordiantes Derived classes of this class must override the construct() function.

Public Types
using	ContentType = AnatomyPlugin::ContentType

Public Member Functions
	AnatomicalStructure (bool is2D=false)
	AnatomicalStructure (AnatomicalStructure &other)
	AnatomicalStructure (AnatomicalStructure &&other)
virtual std::string	describe () const
	A (human-readable) description of this anatomy.
virtual std::string	identifier () const =0
	A (machine-readable) name of the anatomy.
virtual std::string	serializationID () const =0
	String differentiating the type of Anatomical Structure For imfusion types, these strings should start with "imfusion." Used for (de)serialization.
virtual void	setMatrixToWorld (const mat4 &m, bool synchronizeWorld=true)
	Set the local to world matrix of this object.
mat4	matrixToWorld () const
virtual Geometry::AlignedBox	bounds (const mat4 &orientation=mat4::Identity(), const std::vector< ContentType > &toConsider={ContentType::Keypoints, ContentType::PointClouds, ContentType::Meshes, ContentType::Splines, ContentType::Graphs}) const
virtual bool	empty () const
	Retuns true if all members are empty, i.e. this structure has no associated information.
Properties &	attributes ()
Properties const &	attributes () const
template<typename Derived>
std::unique_ptr< Derived >	clone () const
	Helper function for calling cloneImpl() and casting to a specific type.
virtual void	clear ()
	Clear all data contained in this structure.
void	configure (const Properties *p) override
	Configure attributes and parameters.
void	configuration (Properties *p) const override
	Retrieve configuration of attributes and parameters.
bool	is2D () const
	Returns true if the AnatomicalStructure is 2D or false if it is 3D.
virtual std::unique_ptr< AnatomicalStructure >	construct () const =0
Public Member Functions inherited from ImFusion::Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept

Public Attributes
Signal	signalMatrixChanged
Signal	signalInDestructor
	This signal is called in the destructor. Classes that inherit from AnatomicalStructure may additionally emit this signal.
Public Attributes inherited from ImFusion::Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.

Protected Member Functions
virtual std::unique_ptr< AnatomicalStructure >	cloneImpl () const
	Derived classes may override this, but should call the base class cloneImpl to obtain a (unique-ptr) which they may assume to point to an object of the derived class.
Protected Member Functions inherited from ImFusion::Utils::NotCopyable
	NotCopyable (NotCopyable &&) noexcept=default
NotCopyable &	operator= (NotCopyable &&) noexcept=default
	NotCopyable (const NotCopyable &)=delete
NotCopyable &	operator= (const NotCopyable &)=delete

Protected Attributes
mat4	m_matrixToWorld = mat4::Identity()
KeyValueStore< vec3 >	m_keypoints {m_matrixToWorld}
KeyValueStore< vec4 >	m_planes {m_matrixToWorld}
KeyValueStore< std::unique_ptr< Spline > >	m_splines {m_matrixToWorld}
KeyValueStore< std::unique_ptr< SharedImageSet > >	m_images {m_matrixToWorld}
KeyValueStore< std::unique_ptr< Mesh > >	m_meshes {m_matrixToWorld}
KeyValueStore< std::unique_ptr< PointCloud > >	m_pointClouds {m_matrixToWorld}
KeyValueStore< std::unique_ptr< Graph > >	m_graphs {m_matrixToWorld}
KeyValueStore< AnatomicalStructureDeformation >	m_deformations {m_matrixToWorld}
Properties	m_attributes
	General properties object for the Anatomical Structure.
bool	m_is2D
	Indicates if the AnatomicalStructure information is in 2D or, if false, in 3D.
Protected Attributes inherited from ImFusion::Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.
KeyValueStore< vec3 > &	keypoints ()
	Getters for non-Data key/value stores.
const KeyValueStore< vec3 > &	keypoints () const
KeyValueStore< vec4 > &	planes ()
const KeyValueStore< vec4 > &	planes () const
KeyValueStore< std::unique_ptr< Spline > > &	splines ()
const KeyValueStore< std::unique_ptr< Spline > > &	splines () const
KeyValueStore< std::unique_ptr< SharedImageSet > > &	images ()
	Getters for Data key/value stores.
const KeyValueStore< std::unique_ptr< SharedImageSet > > &	images () const
KeyValueStore< std::unique_ptr< Mesh > > &	meshes ()
const KeyValueStore< std::unique_ptr< Mesh > > &	meshes () const
KeyValueStore< std::unique_ptr< PointCloud > > &	pointclouds ()
const KeyValueStore< std::unique_ptr< PointCloud > > &	pointclouds () const
KeyValueStore< std::unique_ptr< Graph > > &	graphs ()
const KeyValueStore< std::unique_ptr< Graph > > &	graphs () const
KeyValueStore< AnatomicalStructureDeformation > &	deformations ()
const KeyValueStore< AnatomicalStructureDeformation > &	deformations () const

Member Function Documentation

◆ describe()

virtual std::string ImFusion::AnatomicalStructure::describe ( ) const

inlinevirtual

A (human-readable) description of this anatomy.

Reimplemented in ImFusion::GenericAnatomicalStructure, ImFusion::GenericASC, ImFusion::Ilium, ImFusion::IntervertebralDisc, ImFusion::OrientedVertebra, ImFusion::Sacrum, and ImFusion::SpineData.

◆ identifier()

virtual std::string ImFusion::AnatomicalStructure::identifier ( ) const

pure virtual

A (machine-readable) name of the anatomy.

Implemented in ImFusion::GenericAnatomicalStructure, ImFusion::GenericASC, ImFusion::Ilium, ImFusion::IntervertebralDisc, ImFusion::OrientedVertebra, ImFusion::Sacrum, and ImFusion::SpineData.

◆ serializationID()

virtual std::string ImFusion::AnatomicalStructure::serializationID ( ) const

pure virtual

String differentiating the type of Anatomical Structure For imfusion types, these strings should start with "imfusion." Used for (de)serialization.

Implemented in ImFusion::GenericAnatomicalStructure, ImFusion::GenericASC, ImFusion::Ilium, ImFusion::IntervertebralDisc, ImFusion::OrientedVertebra, ImFusion::Sacrum, and ImFusion::SpineData.

◆ setMatrixToWorld()

virtual void ImFusion::AnatomicalStructure::setMatrixToWorld	(	const mat4 &	m,
		bool	synchronizeWorld = true )

virtual

Set the local to world matrix of this object.

If synchronizeWorld is true, then the local representation of all objects owned by this class are used to update the "world" representations. If synchronizeWorld is false, then the local representations are updated based on the "world" representations,

See also: ImpliedImageCoordinates Derived classes should call the parent version.

Reimplemented in ImFusion::AnatomicalStructureCollection, ImFusion::GenericASC, and ImFusion::SpineData.

◆ empty()

virtual bool ImFusion::AnatomicalStructure::empty ( ) const

virtual

Retuns true if all members are empty, i.e. this structure has no associated information.

Reimplemented in ImFusion::AnatomicalStructureCollection, and ImFusion::Sacrum.

◆ attributes() [1/2]

Properties & ImFusion::AnatomicalStructure::attributes ( )

inline

Returns: The general properties object for the Anatomical Structure.

◆ attributes() [2/2]

Properties const & ImFusion::AnatomicalStructure::attributes ( ) const

inline

Returns: The general properties object for the Anatomical Structure.

◆ clear()

virtual void ImFusion::AnatomicalStructure::clear ( )

virtual

Clear all data contained in this structure.

Reimplemented in ImFusion::AnatomicalStructureCollection, and ImFusion::SpineData.

◆ configure()

void ImFusion::AnatomicalStructure::configure ( const Properties * p )

overridevirtual

Configure attributes and parameters.

Reimplemented from ImFusion::Configurable.

◆ configuration()

void ImFusion::AnatomicalStructure::configuration ( Properties * p ) const

overridevirtual

Retrieve configuration of attributes and parameters.

Reimplemented from ImFusion::Configurable.

◆ cloneImpl()

virtual std::unique_ptr< AnatomicalStructure > ImFusion::AnatomicalStructure::cloneImpl ( ) const

protectedvirtual

Derived classes may override this, but should call the base class cloneImpl to obtain a (unique-ptr) which they may assume to point to an object of the derived class.

This is done using the (virtual) construct function (see below).

Reimplemented in ImFusion::GenericAnatomicalStructure, ImFusion::GenericASC, ImFusion::OrientedVertebra, and ImFusion::SpineData.

The documentation for this class was generated from the following file:

AnatomyPlugin/include/ImFusion/AnatomyPlugin/AnatomicalStructure.h
