GlOverlay Class Reference

#include <ImFusion/GL/GlOverlay.h>

Abstract base class for OpenGL overlays. More...

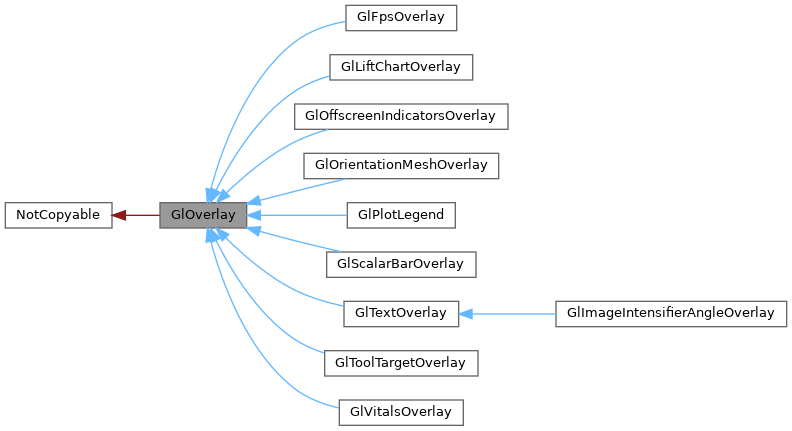

Inheritance diagram for GlOverlay:

Detailed Description

Abstract base class for OpenGL overlays.

In contrast to a GlObject, a GlOverlay is rendered on top of a GlView and reside in viewport space. Furthermore, you can not add a GlOverlay directly to a GlView. Instead it must always be wrapped in a InteractiveOverlay and added to an InteractiveView.

See also

InteravtiveOverlay

Public Member Functions
	GlOverlay (int widthHint, int heightHint, int minWidthHint, int minHeightHint)
	Instantiate a new GlOverlay with the given size hints.
virtual void	setVisible (bool visible)
	Set overlay visibility.
virtual bool	visible () const
	Return overlay visibility.
virtual void	setSizeHint (int width, int height)
	Sets the preferred size of the overlay for a DPI scaling of 1.0.
virtual int	sizeHintWidth () const
	Gets the preferred width of the overlay.
virtual int	sizeHintHeight () const
	Gets the preferred height of the overlay.
virtual void	setMinimalSizeHint (int width, int height)
	Sets the minimal size of the overlay for a DPI scaling of 1.0.
virtual int	minimalSizeHintWidth () const
	Gets the minimal width of the overlay.
virtual int	minimalSizeHintHeight () const
	Gets the minimal height of the overlay.
virtual void	render (const GL::Viewport &viewport)=0
	render the overlay with the given width and height
virtual void	update ()
	updates any intermediate data the overlay uses for rendering

Public Attributes
Signal< int, int >	m_sizeChangedSignal
	Signal emitted when the size hint has changed.
Signal< int, int >	m_minSizeChangedSignal
	Signal emitted when the minimum size hint has changed.

Protected Attributes
bool	m_visible = true
	Overlay visibility.
int	m_sizeHintWidth = 0
int	m_sizeHintHeight = 0
int	m_minSizeHintWidth = 0
int	m_minSizeHintHeight = 0

Member Function Documentation

setSizeHint()

virtual void setSizeHint ( int width, int height )

virtual

Sets the preferred size of the overlay for a DPI scaling of 1.0.

The size hint should be the optimal size of the overlay to display all its information. If the overlay does not have a preferred size, the size hint should be set to to the minimalSizeHint.

setMinimalSizeHint()

virtual void setMinimalSizeHint ( int width, int height )

virtual

Sets the minimal size of the overlay for a DPI scaling of 1.0.

The minimal size should reflect the size to display the content in an undistorted way. The actual size of the overlay can still be lower than this, in which case the overlay should scale its content.

render()

virtual void render ( const GL::Viewport & viewport )

pure virtual

render the overlay with the given width and height

Implemented in GlFpsOverlay, GlLiftChartOverlay, GlOffscreenIndicatorsOverlay, GlOrientationMeshOverlay, GlPlotLegend, GlScalarBarOverlay, GlTextOverlay, GlToolTargetOverlay, and GlVitalsOverlay.

update()

virtual void update ( )

virtual

updates any intermediate data the overlay uses for rendering

Reimplemented in GlImageIntensifierAngleOverlay.

---

The documentation for this class was generated from the following file:

• ImFusion/GL/GlOverlay.h
