ImFusion::Interaction Class Reference

#include <ImFusion/GUI/Interaction.h>

Base interface class for view and overlay interactions. More...

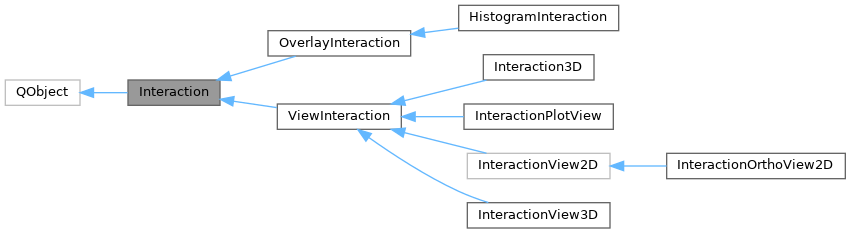

Inheritance diagram for ImFusion::Interaction:

Detailed Description

Base interface class for view and overlay interactions.

Public Member Functions
virtual bool	sceneEvent (QEvent *event)=0
	Handles the event and returns true if the event was handles and should not passed to other interactions.
virtual void	contextMenuCreate (QMenu &)
	Create context menu entries.
virtual void	openContextMenu (QPoint pos, QPoint globalPos, Qt::KeyboardModifiers modifiers)
virtual void	reset ()
void	setUseContextMenu (bool use)
	Set if the context menu must be created or not.
bool	useContextMenu () const
	Specifies if the view creates context menu entries or not. Default value is false.

Protected Slots
virtual void	contextMenuEvaluate (QAction *)
	Evaluate action chosen in context menu or by shortcut.

Protected Member Functions
virtual void	createActions ()
	Create actions shown in context menu.

Protected Attributes
QMap< QString, QAction * >	m_actions
	Actions used in the context menu.
bool	m_useContextMenu = false
	Default value is false.

Member Function Documentation

sceneEvent()

virtual bool ImFusion::Interaction::sceneEvent ( QEvent * event )

pure virtual

Handles the event and returns true if the event was handles and should not passed to other interactions.

Implemented in ImFusion::HistogramInteraction, ImFusion::Interaction3D, ImFusion::InteractionOrthoView2D, ImFusion::InteractionPlotView, ImFusion::InteractionView2D, and ImFusion::InteractionView3D.

contextMenuCreate()

virtual void ImFusion::Interaction::contextMenuCreate ( QMenu & )

inlinevirtual

Create context menu entries.

Reimplemented in ImFusion::HistogramInteraction, ImFusion::InteractionPlotView, ImFusion::InteractionView2D, ImFusion::InteractionView3D, and ImFusion::ViewInteraction.

reset()

virtual void ImFusion::Interaction::reset ( )

inlinevirtual

Reimplemented in ImFusion::Interaction3D.

createActions()

virtual void ImFusion::Interaction::createActions ( )

inlineprotectedvirtual

Create actions shown in context menu.

Reimplemented in ImFusion::InteractionPlotView, ImFusion::InteractionView2D, ImFusion::InteractionView3D, and ImFusion::ViewInteraction.

contextMenuEvaluate

virtual void ImFusion::Interaction::contextMenuEvaluate ( QAction * )

inlineprotectedvirtualslot

Evaluate action chosen in context menu or by shortcut.

Reimplemented in ImFusion::HistogramInteraction, ImFusion::InteractionPlotView, ImFusion::InteractionView2D, and ImFusion::InteractionView3D.

---

The documentation for this class was generated from the following file:

• ImFusion/GUI/Interaction.h
