InfoOverlay Class Reference

#include <ImFusion/GUI/InfoOverlay.h>

Interface for a ViewOverlay to show textual information depending on the mouse cursor position (for instance: pixel information of an image, face/vertex info of a mesh). More...

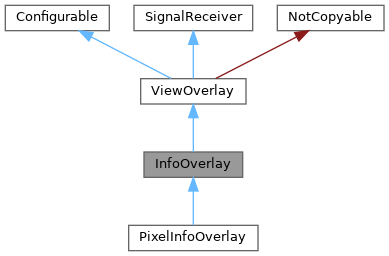

Inheritance diagram for InfoOverlay:

Detailed Description

Interface for a ViewOverlay to show textual information depending on the mouse cursor position (for instance: pixel information of an image, face/vertex info of a mesh).

The text can either be shown using a regular GlTextOverlay at the selected Anchor or as a tooltip hovering next to the mouse pointer.

Public Types
enum class	Style { Overlay = 0 , Tooltip }
	Enumeration specifying how the text information shall be presented. More...
Public Types inherited from ViewOverlay
enum class	Anchor {   BottomLeft = 0 , BottomRight = 1 , TopLeft = 2 , TopRight = 3 ,   Top = 4 , Bottom = 5 , Left = 6 , Right = 7 ,   Fill = 8 }
	Anchor point of the overlay in the parent View. More...
enum class	LayoutDirection { Horizontal = 0 , Vertical = 1 }
	Layout direction when stacking multiple ViewOverlays at the same anchor.

Public Member Functions
const vec4 &	textColor ()
	Returns the used text color in Style::Overlay mode.
void	setTextColor (const vec4 &color)
	Set the used text color in Style::Overlay mode.
void	setStyle (Style s)
Style	style () const
GlTextOverlay *	glOverlay ()
	Get a pointer to the underlying GlTextOverlay to allow for more customization than setTextColor().
void	render () override
	Calls GlOverlay::render() on the underlying glOverlay() using the current viewport() shrinked by margin().
EventResult	handleInputEvent (const InputEvent &event) override
	Handle a user event received from the parent View.
Public Member Functions inherited from ViewOverlay
	ViewOverlay (std::unique_ptr< GlOverlay > glOverlay)
	Instantiate a new ViewOverlay taking ownership of the underlying GlOverlay which must not be null.
const GlOverlay &	glOverlay () const
	Get a pointer to the underlying overlay.
GlOverlay &	glOverlay ()
	Get a pointer to the underlying overlay.
const GL::Viewport &	viewport ()
	Returns the area where this overlay is rendered.
bool	isVisible () const
	Returns the visibility of this overlay.
virtual void	setVisible (bool value)
	Sets the visibility of this overlay.
const vec2i &	margin () const
	Returns the margin in pixels between the border of the drawing area and the border of the overlay content.
void	setMargin (const vec2i &value)
	Sets the margin in pixels between the border of the drawing area and the border of the overlay content.
vec2i	minimalSizeHint () const
	Returns the underlying GlOverlay's minimal size hint plus the configured margin().
vec2i	sizeHint () const
	Returns the underlying GlOverlay's size hint plus the configured margin().
void	configure (const Properties *p) override
	Configure this object instance by de-serializing the given Properties.
void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.
Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept
Public Member Functions inherited from SignalReceiver
	SignalReceiver ()=default
	Default constructor.
	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.
SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Protected Member Functions
void	updateSizeHint ()
	Updates the size hint of the overlay so that the view overlay layouting can be updated.
virtual std::string	createText (vec2i mousePositionPx)=0
	Implement this function to specify what text to display for the given mouse position.
virtual std::string	createSizeHintText ()=0
	Implement this function to return a largest sample text that would give a hint about the necessary overlay size.
Protected Member Functions inherited from SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.

Protected Attributes
GlTextOverlay *	m_textOverlay = nullptr
Style	m_style = Style::Overlay
std::optional< vec2i >	m_pixelPos = std::nullopt
std::string	m_text
Protected Attributes inherited from ViewOverlay
std::unique_ptr< GlOverlay >	m_glOverlay
GL::Viewport	m_viewport = {}
vec2i	m_margin = vec2i::Zero()
bool	m_isVisible = true
Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Additional Inherited Members
Public Attributes inherited from ViewOverlay
Signal	signalUpdateRequested
	Emitted in order to notify the parent Display that it's contents have changed and need to be re-rendered.
Signal	signalLayoutNeeded
	Emitted whenever the size hints or margin have changed to notify the parent View that it needs to perform overlay layouting.
Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.

Member Enumeration Documentation

Style

enum class Style

strong

Enumeration specifying how the text information shall be presented.

Enumerator
Overlay	Information is displayed as a regular text overlay at the selected Anchor.
Tooltip	Information is displayed as a tooltip hovering next to the mouse pointer.

Member Function Documentation

render()

void render ( )

overridevirtual

Calls GlOverlay::render() on the underlying glOverlay() using the current viewport() shrinked by margin().

Reimplemented from ViewOverlay.

handleInputEvent()

EventResult handleInputEvent ( const InputEvent & event )

overridevirtual

Handle a user event received from the parent View.

The default implementation is empty.

Reimplemented from ViewOverlay.

updateSizeHint()

void updateSizeHint ( )

protected

Updates the size hint of the overlay so that the view overlay layouting can be updated.

Derived classes should call this whenever the maximum size of the possible text changes considerably.

createText()

virtual std::string createText ( vec2i mousePositionPx )

protectedpure virtual

Implement this function to specify what text to display for the given mouse position.

Implemented in PixelInfoOverlay.

createSizeHintText()

virtual std::string createSizeHintText ( )

protectedpure virtual

Implement this function to return a largest sample text that would give a hint about the necessary overlay size.

Implemented in PixelInfoOverlay.

---

The documentation for this class was generated from the following file:

• ImFusion/GUI/InfoOverlay.h
